2012 FORD SUPER DUTY Navigation System Manual

Introduction
4
System introduction 4
Driving restrictions 4
How to get going 5
System overview
9
Map display options 12
Display voice commands 13
Status bars 13
Home screen 13
Loading pictures 14
Reverse camera 16
Quick reference chart 17
Setting the clock 19

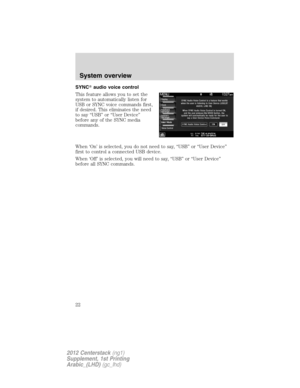

Voice recognition system overview
23
How to use voice commands 25
Adjusting the voice prompt volume 26
Voice recognition tutorial 28
Tutorial voice commands 28
Voice name tags 29
User profiles 29
User profile voice commands 31
Audio features
33
AM/FM 34
HD Radio™ 36

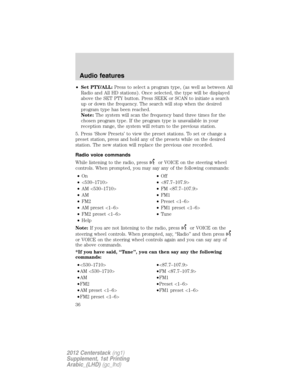

Radio voice commands 36
CD 41
CD voice commands 44
Playing a DVD in the system 44
DVD voice commands 46
Video CD voice commands 46
Disc voice commands 47
Jukebox features 47
Recording (saving) music to your jukebox 48
Accessing the music in your jukebox 48
Table of Contents
1
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

Creating a playlist 50

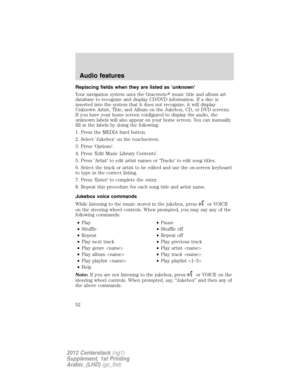

Jukebox voice commands 52
User Device (if equipped) 54
Rear DVD voice commands 56
DVD (if equipped) 56
Climate features (if equipped)
58
Climate voice commands 60
Information menu
61
Accessing your calendar 61
Accessing the help screen 62
Sound menu features
63
General Information
65
Glossary 67
SYNCphone features (if equipped)
69
Quickstart - How to get going 69
Pairing your phone through your navigation system 69
Making a call 71
Saving a contact or phone number as a Quick Dial 72
Accessing your phone book 73
Call history 73
System settings 74
Adding (pairing) a phone 75
Connecting a phone 75
Deleting a phone 76
Advanced settings 77
Turning Bluetooth on/off 78
Setting a ring tone 79
Message notification 80

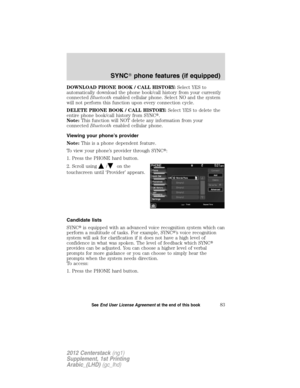

Automatically download your phone book 81
Modifying your phone book and call history 82
Turning prompts on/off 83
Returning to factory defaults 84
Table of Contents
2
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

Performing a master reset 85
Installing new vehicle applications 86
Accessing SYNCsystem information 86
Text messaging with your navigation system 87
Forwarding a text message 91
Voice commands in phone mode 92
SYNCmedia features (if equipped)
94
Connecting your digital media player to SYNC94
SYNCmedia features 95
What’s playing? 96
Supported player, media formats and metadata information 96
Accessing and using your USB port 96
Streaming music from your phone 97

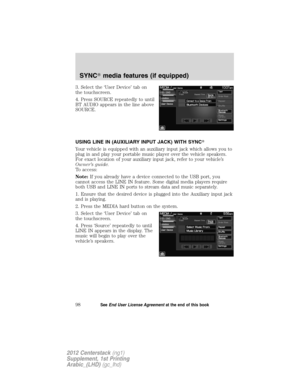

Using the Auxiliary input jack (Line in) 98
Using the play all feature 99
Selecting and playing specific artists 100
Selecting and playing specific albums 101
Selecting different genres 101
Accessing your playlists 102
Playing a specific track 103
Exploring the USB device 103
Accessing BT devices 104

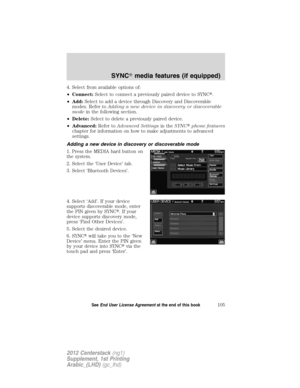

Adding a new device in discovery or discoverable mode 105
Voice commands in media mode 106
SYNCEnd user license agreement
108
Index
11 6
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2010 Ford Motor Company
Table of Contents
3
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

MOBILE MEDIA NAVIGATION SYSTEM
Your vehicle is equipped with a mobile media navigation system which
allows you to listen to, record and save music, play DVDs (audio and
video), and operate climate control functions (if equipped).
Your system has a large range of features, yet is easy to use. The display
screen is the primary means for operating the system through the use of
its vertically tabbed menus, text screens and menu displays. Screen
selections are made by touching the desired area on the touchscreen.
The “tabs” along the left side of the screen represent the major
components of the system. The status bars at the top and bottom of the
screen will display for the majority of the time once the system is turned
on and ready for operation. The top status bar will contain menu names,
icons, and a clock. The lower status bar contains climate information (if
equipped), icons and advisory messages. Please refer toStatus barsin
theSystem Overviewchapter for more information. Navigation guidance
is shown on the display touchscreen and is supplemented with voice
prompts.
DRIVING RESTRICTIONS
In order to prevent the system from distracting you while driving, access
to certain functions are restricted when the vehicle is traveling above
5 mph (8 km/h). Restricted functions include:
•Touchscreen keyboard
•Scrolling of long lists
•Jukebox restrictions such as creating/editing playlists, sorting playlists,
editing track, artist and album names
•Uploading photographs
Note:If your vehicle is equipped with SYNC, similar features will be
restricted also.
When the vehicle speed is reduced to 5 mph (8 km/h) or less, system
restrictions are lifted and you have full access to the system.
Introduction
4
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

PRIVACY INFORMATION
When a cellular phone is connected to SYNC, SYNCcreates a profile
within your vehicle that is linked to that cellular phone. This profile is
created in order to offer you more cellular features and to operate more
efficiently. Among other things, this profile may contain data about your
cellular phone book, text messages (read and unread), and call history,
including history of calls when your cell phone was not connected to
SYNC. In addition, if you connect a media device, SYNCcreates and
retains an index of media content supported by SYNC. SYNCalso
records a short development log of approximately 10 minutes of all
recent SYNCactivity. The log profile and other SYNCdata may be
used to improve SYNCand help diagnose any problems that may occur.
The cellular profile, media device index, and development log will remain
in the vehicle unless you delete it and are generally accessible only in
the vehicle when the cellular phone or media player is connected. If you
no longer plan to use SYNCor the vehicle, we recommend you perform
a Master Reset to erase all information stored in SYNC.
SYNCdata cannot be accessed without special equipment and access to
the vehicle’s SYNCmodule. Ford Motor Company and Ford of Canada
will not access SYNCdata for any purpose other than as described
absent consent, a court order, or where required by law enforcement,
other government authorities, or other third parties acting with lawful
authority. Other parties may seek to access the information
independently of Ford Motor Company and Ford of Canada. For further
privacy information, see the sections on 911 Assist™ (if equipped),
Vehicle Health Report (if equipped), and Traffic, Directions and
Information (if equipped).
QUICK START
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Introduction
5
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

TO PLAY A RADIO STATION
1. Ensure that the system is on.
2. Press the RADIO hard button.
3. Select the ‘AM’ or ‘FM’ tab on the
touchscreen.
•Turn the TUNE knob to the right/left to go up/down the frequency
band in individual increments.
•Or, press SEEK to find the next strong station up/down the frequency
band.
Note:Since RDS is always ON if the PTY (Program type) is selected, the
station selection will be limited to that specific genre. In satellite radio
mode (if activated), the SEEK function is limited to the selected genre.
TO LOAD A CD OR DVD:
1. Insert a CD or DVD into the slot.
2. A CD will begin to play. A DVD will play audio and video if the vehicle
is in Park (P). Otherwise, only the audio will play.
Note:This system only plays NTSC-format DVDs; PAL format is not
supported.
3. Use the touch controls on the
screen to advance tracks, scan,
pause, view the track list, etc.
Introduction
6
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

TO PLAY A PREVIOUSLY LOADED CD OR DVD:
1. Ensure that the system is on.
2. Press the MEDIA hard button on the system.
3. Select CD/DVD tab on the
touchscreen (if there is not a CD or
DVD loaded into the system, the tab
will be disabled and NO DISC will
appear in the status bar when you
try to select it).
4. A CD will begin to play. A DVD
will begin to play audio and video if
the vehicle is in P (Park).
Otherwise, only audio will play.

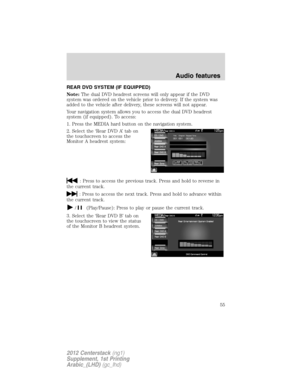

TO PLAY A PREVIOUSLY LOADED DVD IN THE FAMILY
ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)
1. Press the MEDIA hard button on the navigation system.
2. Press the Rear DVD A or Rear
DVD B tab to access the desired
monitor system.
The previously loaded DVD will begin to play in the system.
Introduction
7
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

USING THE AUXILIARY INPUT JACK:
Your vehicle is equipped with an auxiliary input jack which allows a
portable audio device to be listened to through your vehicle’s audio
system. To access the auxiliary input jack mode:
1. Press the MEDIA hard button on
the system.
2. Select the ‘LINE IN’ tab on the
touchscreen.
Once a 3.5 mm input jack is plugged into the Line In jack, sound from
the device will be heard through the vehicle speakers.
For information on the auxiliary input jack location, please refer to
Auxiliary input jackin theEntertainmentchapter in yourOwner’s
Guide.
USING SYNC(IF EQUIPPED)
Your vehicle may be equipped with
SYNC— a hands-free
communication and entertainment
system which allows you to connect
and use a portable media player
through a USB port located in your
vehicle, pair aBluetoothenabled
cellular phone, and operate these
devices through your vehicle. Please
refer to theSYNCmediachapter
for more information on using portable media players with SYNCand
refer to theSYNCphonechapter for information on pairing your
Bluetoothenabled cellular phone and using the phone features.
Introduction
