2012 FORD FIESTA ignition

and put the vehicle’s transmission into the P (Park) gear position
(automatic transmission only) to continue to receive cool air from your
A/C system.
For maximum cooling performance in MAX A/C mode:
1. Select MAX A/C.
2. Select the coolest temperature setting.
3. Set the fan to the highest speed initially. As the interior starts to cool
down, adjust the fan speed to maintain comfort.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
REAR WINDOW DEFROSTER
R
The rear defroster control is located on the climate control panel and
works to clear the rear window of fog and thin ice.
The engine must be running to operate the rear window defroster.
Press
Rto turn the rear window defroster on. An indicator light on the
control will illuminate when active.
Note:The rear defroster will turn on automatically when the outside
temperature is below 41° F (5° C).
The rear window defroster turns off automatically after a predetermined
amount of time, if a low battery condition is detected or when the
ignition is turned off or to the accessory position. To manually turn off
the rear window defroster at any time, press the control again.
If your vehicle is equipped with both rear defroster and heated mirrors,
the same control will activate both. Refer toHeated outside mirrorsin
theDriver Controlschapter.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
Climate Controls
102
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the low beam headlamps
on.
High beams
Pull the lever fully past the detent
to activate. Pull the lever fully again
to deactivate.
Flash-to-pass
Pull the lever toward you slightly to activate and release to deactivate.
Headlamp exit delay
Switch the ignition off and pull the lever toward you slightly to activate.
You will hear a short tone.
The headlamps will turn off automatically after 3 minutes with any door
open or 30 seconds after the last door has been closed. With all doors
closed, but within the 30 second delay, opening any door will result in
the three minute timer starting again.
The headlamp exit delay can be cancelled by either pulling the lever
towards the steering wheel again or by turning the ignition switch on.
Lights
104
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the headlamp control is in the off or parking lamp position.
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
lit components in the vehicle during
headlamp and parking lamp
operation.
•Tap the top or bottom of the
control to brighten/dim all interior
lit components incrementally, or
•Press and hold at the first position the top or bottom of the control
until the desired lighting level is reached.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
Lights
105
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Dome lamps and map lamps, rear lamps
Press the buttons to turn the map
lamps on/off.
Ambient lighting (if equipped)
Illuminates footwells, cupholders
and the instrument panel with a
choice of several colors. The
ambient lighting control switch is
located on the instrument panel. To
activate, press and release the
control to cycle through the color
choices plus the off state.
The lights come on whenever the ignition is in either the on or accessory
position.
Note:The ambient lights will stay on until the ignition is placed in the
off position and either of the front doors are opened or the accessory
delay timer expires.
Battery saver feature (interior lamps)
The battery saver feature will turn off the interior lamps 10 minutes after
the ignition has been turned to the 1 (off) position and one of the
vehicle doors has been opened.
Note:The battery saver feature will turn off the map lamps after
30 minutes if left in the on position.
Lights
108
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage speed control, tap the brake pedal or clutch pedal (if
equipped) or press CAN.
Disengaging the speed control will not erase the previous set speed.
Note:When you use the clutch pedal to disengage the speed control,
the engine speed may briefly increase, this is normal.
Resuming a set speed
Press and release RES. This will automatically return the vehicle to the
previously set speed.
Increasing speed while using speed control
To increase the set speed:
•
Press and hold SET+ until you get to the desired speed, then release.
You can also use SET+ to operate the tap-up function. Press and release
SET+ to increase the vehicle set speed in 1 mph (1.6 km/h) increments.
•Use the accelerator pedal to get to the desired speed then press and
release SET+.
Reducing speed while using speed control
To reduce the set speed:
•Press and hold SET– until you get to the desired speed, then release.
You can also use SET– to operate the tap-down function. Press and
release SET– to decrease the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Press the brake pedal or the clutch pedal (if equipped) until the
desired vehicle speed is reached then press SET+.
Turning off speed control
To turn off the speed control, press OFF or turn off the ignition.
Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
Driver Controls
126
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

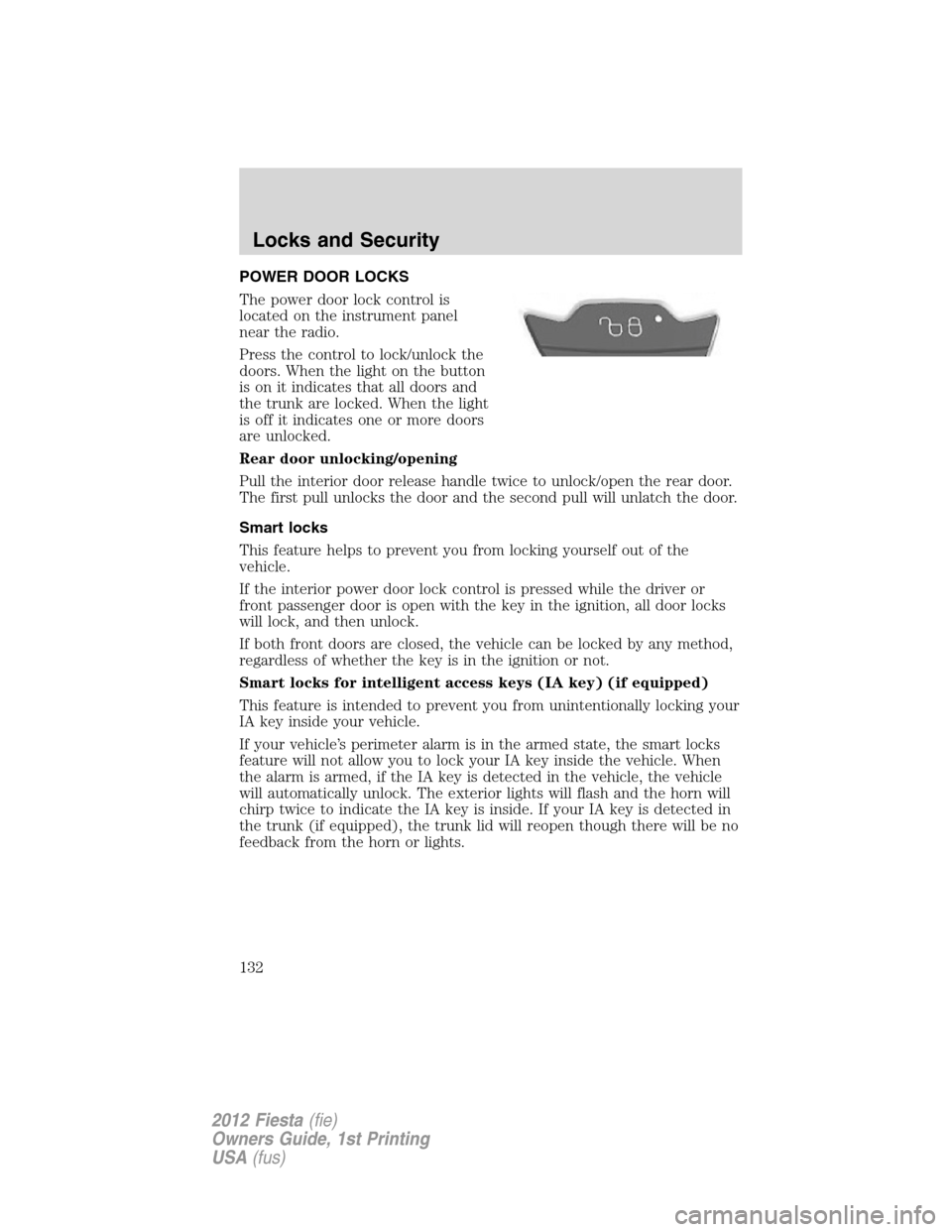

POWER DOOR LOCKS
The power door lock control is
located on the instrument panel
near the radio.
Press the control to lock/unlock the
doors. When the light on the button
is on it indicates that all doors and
the trunk are locked. When the light
is off it indicates one or more doors
are unlocked.
Rear door unlocking/opening
Pull the interior door release handle twice to unlock/open the rear door.
The first pull unlocks the door and the second pull will unlatch the door.
Smart locks
This feature helps to prevent you from locking yourself out of the
vehicle.
If the interior power door lock control is pressed while the driver or
front passenger door is open with the key in the ignition, all door locks
will lock, and then unlock.
If both front doors are closed, the vehicle can be locked by any method,
regardless of whether the key is in the ignition or not.
Smart locks for intelligent access keys (IA key) (if equipped)
This feature is intended to prevent you from unintentionally locking your
IA key inside your vehicle.
If your vehicle’s perimeter alarm is in the armed state, the smart locks
feature will not allow you to lock your IA key inside the vehicle. When
the alarm is armed, if the IA key is detected in the vehicle, the vehicle
will automatically unlock. The exterior lights will flash and the horn will
chirp twice to indicate the IA key is inside. If your IA key is detected in
the trunk (if equipped), the trunk lid will reopen though there will be no
feedback from the horn or lights.
Locks and Security
132
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Central locking/unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
•Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash twice.
•Turn the key clockwise once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash once.
If the central locking function fails
to operate, the doors can be
individually locked using the key in
the position shown.
On the driver’s side, turn the key
clockwise to lock, and on the
passenger’s side turn the key
counterclockwise to lock.
Delayed Locking
If you try to electrically lock the doors while they are open, they will not
lock until the doors are closed. This feature only works when smart locks
are not active. SeeSmart locksin this section for more information
Autolock (if equipped)
The autolock feature will lock all the doors when:
•all doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 5 mph (7 km/h).
If a door(s) is unlocked, the autolock feature will repeat when:
•the vehicle slows below 5 mph (7 km/h) and then attains a speed
greater than 5 mph (7 km/h).
Locks and Security
133
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

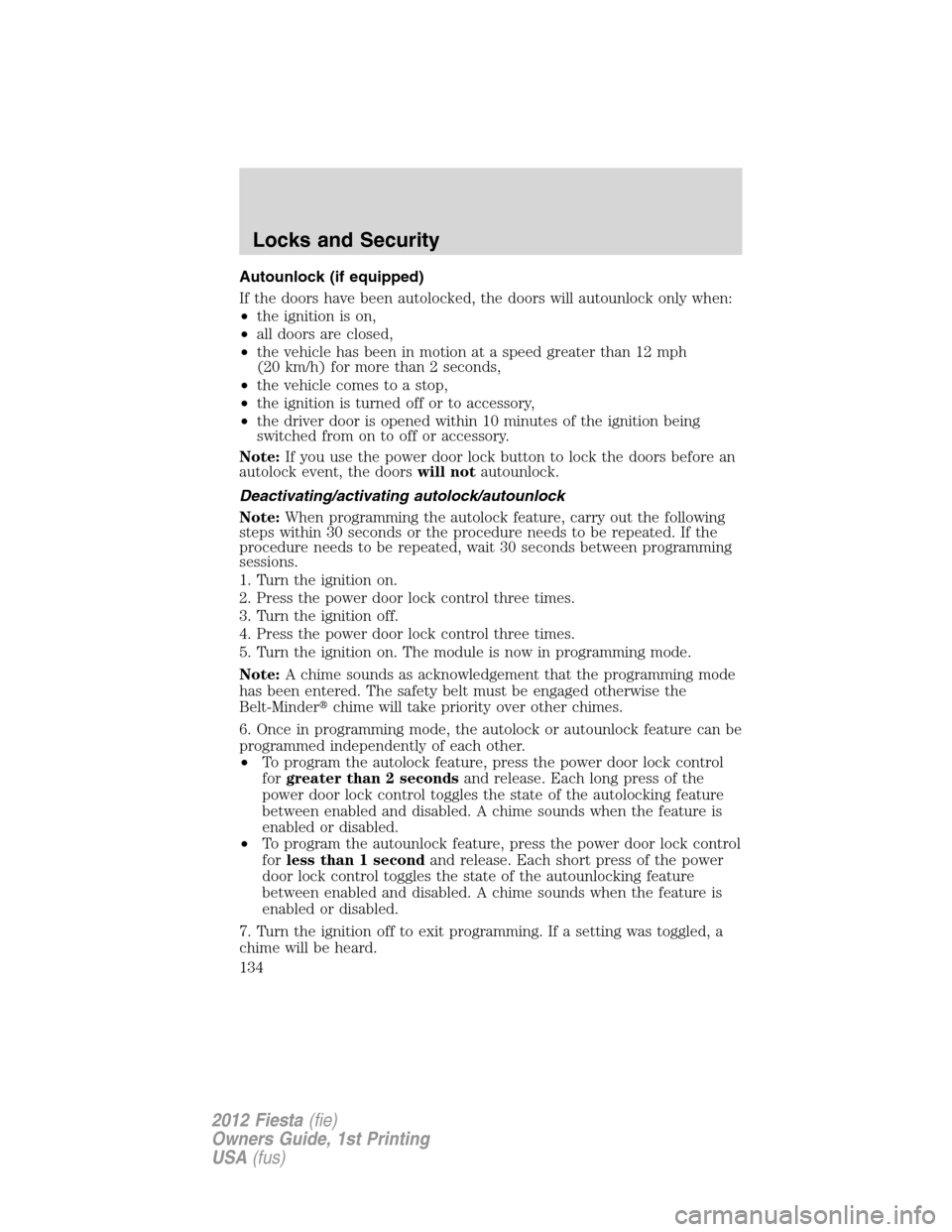

Autounlock (if equipped)
If the doors have been autolocked, the doors will autounlock only when:
•the ignition is on,
•all doors are closed,
•the vehicle has been in motion at a speed greater than 12 mph
(20 km/h) for more than 2 seconds,
•the vehicle comes to a stop,
•the ignition is turned off or to accessory,
•the driver door is opened within 10 minutes of the ignition being
switched from on to off or accessory.
Note:If you use the power door lock button to lock the doors before an
autolock event, the doorswill notautounlock.
Deactivating/activating autolock/autounlock
Note:When programming the autolock feature, carry out the following
steps within 30 seconds or the procedure needs to be repeated. If the
procedure needs to be repeated, wait 30 seconds between programming
sessions.
1. Turn the ignition on.
2. Press the power door lock control three times.
3. Turn the ignition off.
4. Press the power door lock control three times.
5. Turn the ignition on. The module is now in programming mode.
Note:A chime sounds as acknowledgement that the programming mode
has been entered. The safety belt must be engaged otherwise the
Belt-Minderchime will take priority over other chimes.
6. Once in programming mode, the autolock or autounlock feature can be
programmed independently of each other.
•To program the autolock feature, press the power door lock control
forgreater than 2 secondsand release. Each long press of the
power door lock control toggles the state of the autolocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
•To program the autounlock feature, press the power door lock control
forless than 1 secondand release. Each short press of the power
door lock control toggles the state of the autounlocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
7. Turn the ignition off to exit programming. If a setting was toggled, a
chime will be heard.
Locks and Security
134
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
