2012 FORD FIESTA clock

•Chimes:Move right to enter the menu, then up or down to select
from warning chimes or info chimes. Press OK to confirm.
Clock:Select Clock then move right to enter the menu. Scroll up or
down to select from to select from:
•Set time:Move right to enter the menu and adjust the time.
•Set date:Move right to enter the menu and adjust the date.
•24 hour mode:Move right to enter the menu to choose 24-hour
mode.
The clock can also be set through the audio system. SeeAudio systems
in theEntertainment Systemschapter for more information.
Display:Select Display then move right to enter the menu. Scroll up or
down to select from:
•Units of measure:Move right to enter the menu then move up or
down to select metric or standard.
•Language:Move right to enter the menu then move up or down to
select the desired language.
Messages:Select messages, then move up/down to view stored
messages.
Compass (if equipped):If your vehicle is equipped with SYNC, the
compass heading is displayed to the left of the clock in the upper portion
of the multifunction display.
Information messages
: The message indicator will illuminate when there is a new message
stored in the multifunction display.
Message Warning Lamp at
Instrument ClusterSystem
ABS MALFUNCTION
SERVICE NOW
ABS
ESP OFF— ABS
ESP MALFUNCTION
NEXT SERVICE— ABS
BRAKE SYSTEM
MALFUNCTION
STOP SAFELYBRAKE or
Brakes
ALARM SYSTEM
MALFUNCTION
NEXT SERVICE—Anti-theft security
system
Instrument Cluster
19
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

AUDIO SYSTEMS
AM/FM stereo or AM/FM stereo single CD/MP3 (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
One hour mode:Press the ON/OFF control to operate the system with
the ignition turned off; the system will automatically turn off after one
hour.
Setting the clock:Press the H or M buttons on the outside of the
multifunction display to access the clock settings. Once you are in the
clock setting, press the H or M button repeatedly until the desired
number appears. Press OK to confirm and close.
1431512
12
13
11
10
9
78
6
4
5
Entertainment Systems
23
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

•Audio:Scroll to select Audio and then move right or press OK to
enter the menu. Scroll to select from:
•SCV:Scroll to select Speed Compensated Volume (SCV) and press
OK to enter the menu. SCV automatically adjusts the system’s
volume to compensate for speed and wind noise. You can set the
system between off and +7.
•Sound:Scroll to select Sound and press OK to enter the menu.
Scroll to select from Treble, Bass, Middle, Fade and Balance
options. When the desired option is chosen, scroll to increase or
decrease the levels. sound settings can be set for each audio
source independently.
•Occupancy mode:Scroll to select Occupancy mode and move
right or press OK to enter. Then, scroll to select from Optimize All
or Optimize Driver. Occupancy mode optimizes sound quality for
the chosen seating position. Press OK to confirm your selection.
•DSP Equalizer:Scroll to select DSP Equalizer and move right or
press OK to enter the menu. Scroll to select from Rock, Pop,
Classic, Voice and Equalizer off. Press OK to confirm your
selection.
•RDS:Scroll to select RDS and then move right or press OK to
enter the menu. Scroll to select RDS off or RDS on. Press OK to
confirm your selection.
•Vehicle:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Clock:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Display:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Messages:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
10.AUX:Press to access LINE IN (auxiliary input jack) mode.
11.SIRIUS:Press repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
12.RADIO:Press repeatedly to select AM1/AM2AST//FM1/FM2AST
frequency bands. Press RADIO to return to the radio base screen when
browsing. While listening to radio, you can navigate to other presets and
modes by pressing
/. When the desired selection is chosen, press
OK to tune to the selection or press RADIO to go back to current
station.
Entertainment Systems
26
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

AM/FM stereo single CD/MP3 SYNCcompatible (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
One hour mode:Press the ON/OFF control to operate the system with
the ignition turned off; the system will automatically turn off after one
hour.
Setting the clock:Press the H or M buttons on the outside of the
multifunction to access the clock settings. Once you are in the clock
setting, press the H or M button repeatedly until the desired number
appears. Press OK to confirm and close.
1431512
12
13
11
10
9
78
620191718
16
4
5
Entertainment Systems
28
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

•Audio:Scroll to select Audio and then move right or press OK to
enter the menu. Scroll to select from:
•SCV:Scroll to select Speed Compensated Volume (SCV) and press
OK to enter the menu. SCV automatically adjusts the system’s
volume to compensate for speed and wind noise. You can set the
system between off and +7.
•Sound:Scroll to select Sound and move right or press OK to enter
the menu. Scroll to select from Treble, Bass, Middle, Fade and
Balance options. When the desired option is chosen, scroll to
increase or decrease the levels. Sound settings can be set for each
audio source independently.
•Occupancy mode:Select Occupancy mode and then move right or
press OK to enter the menu. Scroll to select from optimize All
Seats or Driver’s Seat. Occupancy mode optimizes sound quality for
the chosen seating position. Press OK to confirm your selection.
•DSP Equalizer:Scroll to select DSP Equalizer and then move
right or press OK to enter the menu. Scroll to select from Rock,
Pop, Classic, Voice and Equalizer off. Press OK to confirm your
selection.
•Vehicle:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Clock:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Display:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Messages:Press
/to view the saved vehicle messages.
•RDS:Scroll to select RDS and then move right or press OK to enter
the menu. Scroll to select RDS off or RDS on. Press OK to confirm
your selection.
5.Memory presets:To save a station, tune to the desired station. Press
and hold a preset button until the information pop-up timer expires and
stored preset # pop-up appears.
6.
Fast forward:Press to access the next track or available radio
station. Press and hold to fast forward through the current track or to
quickly advance through the radio band in individual increments.
7.On/Off/Volume:Press to turn the system on or off. Turn to adjust the
volume.
Entertainment Systems
30
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
On the wall or screen you will
observe a flat zone of high intensity
light located at the top of the right
hand portion of the beam pattern. If
the top edge of the high intensity
light zone is not at the horizontal
reference line, the headlamp will
need to be adjusted.
4. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver or 13 mm
wrench/socket, turn the adjuster
either clockwise (to adjust down) or
counterclockwise (to adjust up).
The horizontal edge of the brighter
light should touch the horizontal
reference line.
5. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
Lights
106
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Replacing the low beam headlamps
Note:The low beam headlamp is the outboard lamp.
Note:Never hold a bulb by the glass. This is particularly valid for
halogen bulbs as the intensity of the light may be reduced if the hands
touch the bulb. If the glass has been handled, clean it with alcohol.
1. Remove the bulb cover.
2. Turn the bulb holder
counterclockwise and remove it.
3. Disconnect the electrical connector.
4. Reverse the procedure to install the new bulb
Replacing the high beam headlamps
Note:The high beam headlamp is the inboard lamp.
Note:Never hold a bulb by the glass. This is particularly valid for
halogen bulbs as the intensity of the light may be reduced if the hands
touch the bulb. If the glass has been handled, clean it with alcohol.
Lights
112
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

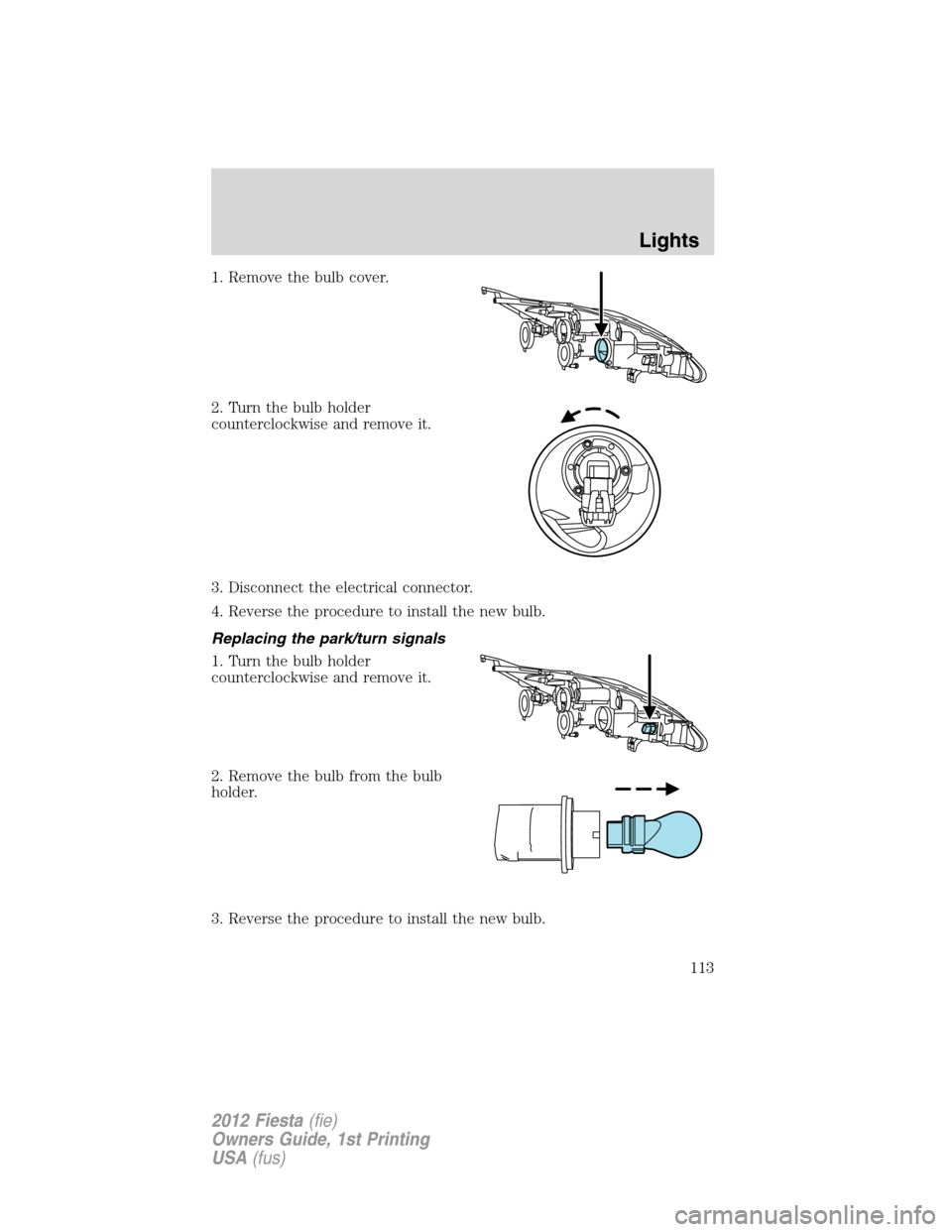

1. Remove the bulb cover.
2. Turn the bulb holder
counterclockwise and remove it.
3. Disconnect the electrical connector.
4. Reverse the procedure to install the new bulb.
Replacing the park/turn signals
1. Turn the bulb holder
counterclockwise and remove it.
2. Remove the bulb from the bulb
holder.
3. Reverse the procedure to install the new bulb.
Lights
113
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
