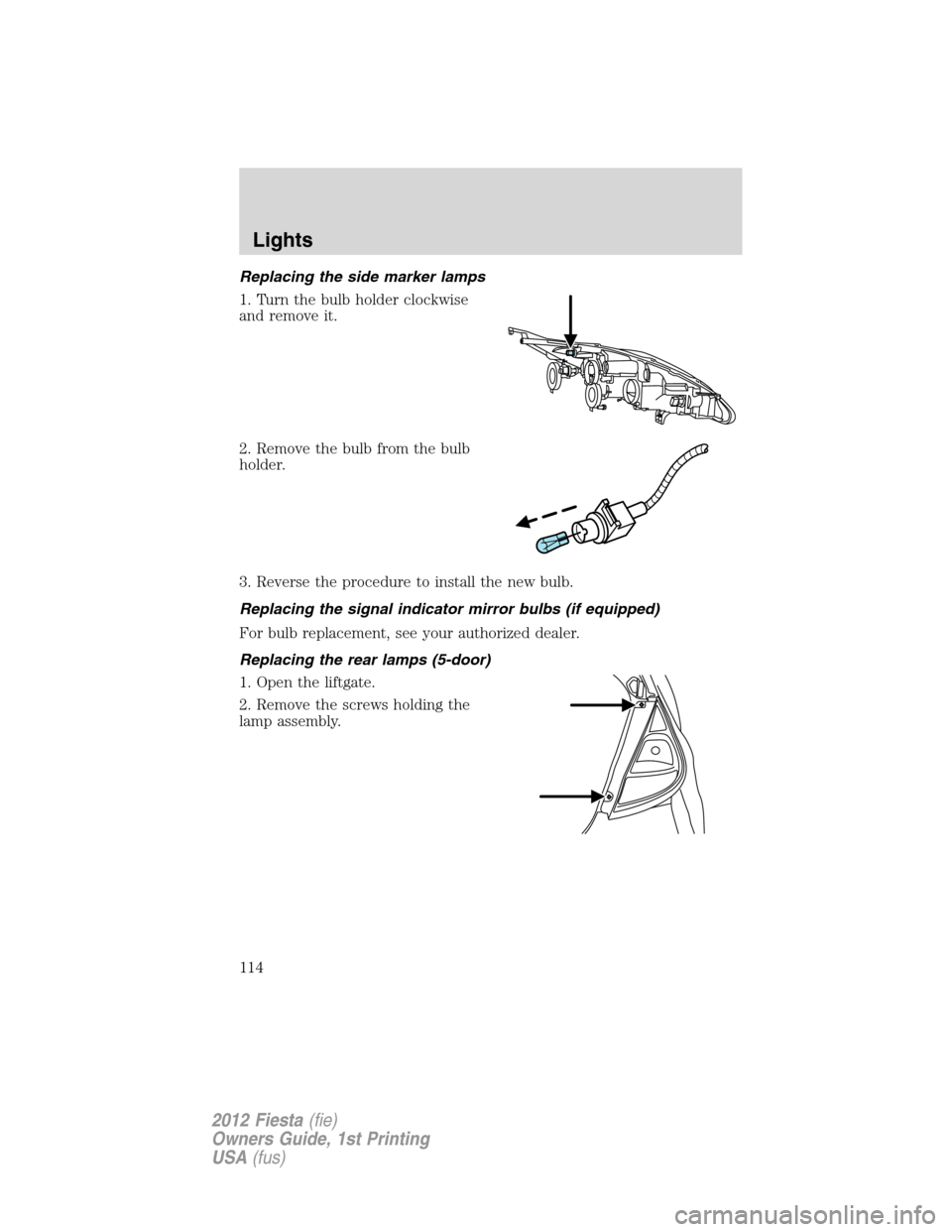

Replacing the side marker lamps
1. Turn the bulb holder clockwise
and remove it.
2. Remove the bulb from the bulb
holder.
3. Reverse the procedure to install the new bulb.
Replacing the signal indicator mirror bulbs (if equipped)
For bulb replacement, see your authorized dealer.
Replacing the rear lamps (5-door)
1. Open the liftgate.
2. Remove the screws holding the
lamp assembly.
Lights
114
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

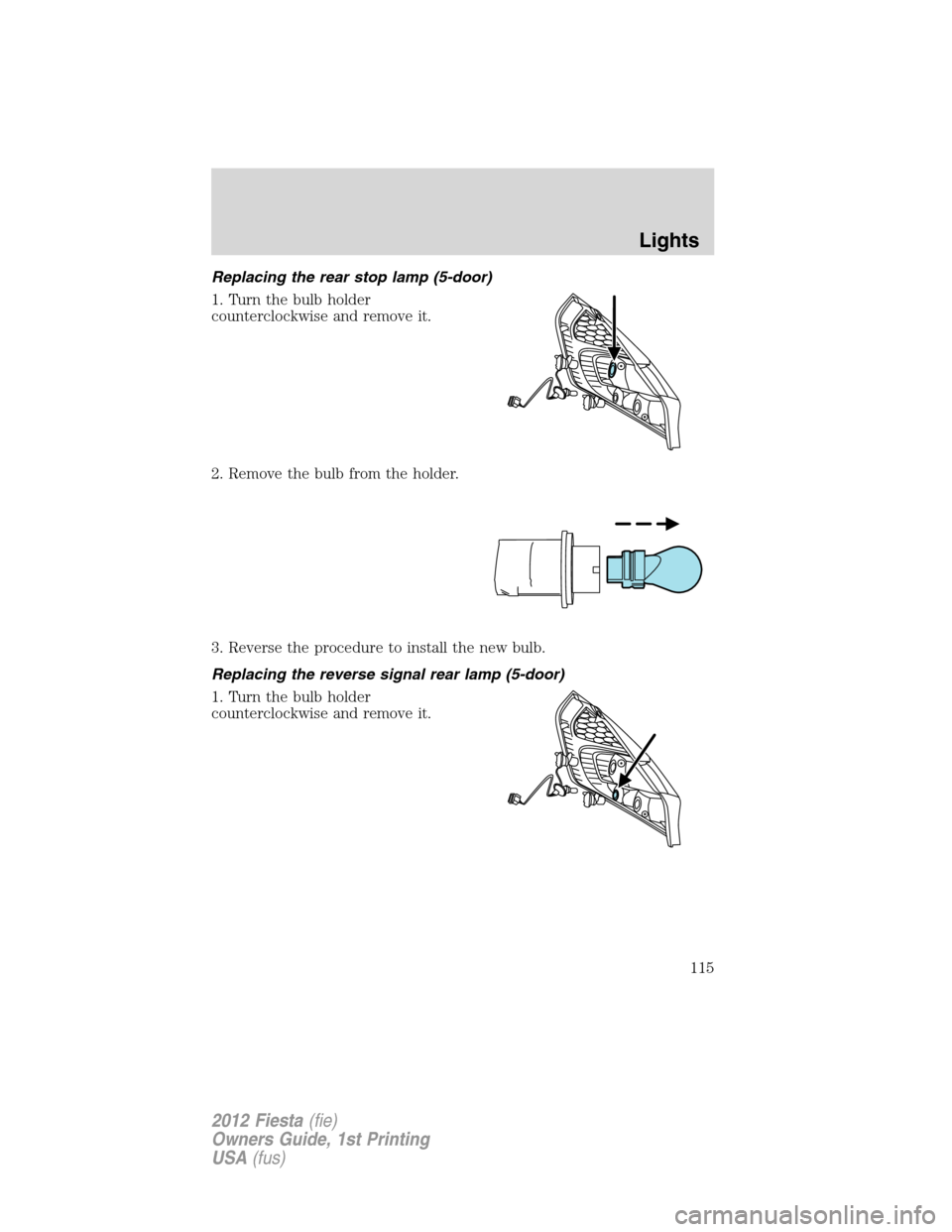

Replacing the rear stop lamp (5-door)
1. Turn the bulb holder
counterclockwise and remove it.
2. Remove the bulb from the holder.
3. Reverse the procedure to install the new bulb.
Replacing the reverse signal rear lamp (5-door)
1. Turn the bulb holder
counterclockwise and remove it.
Lights
115
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

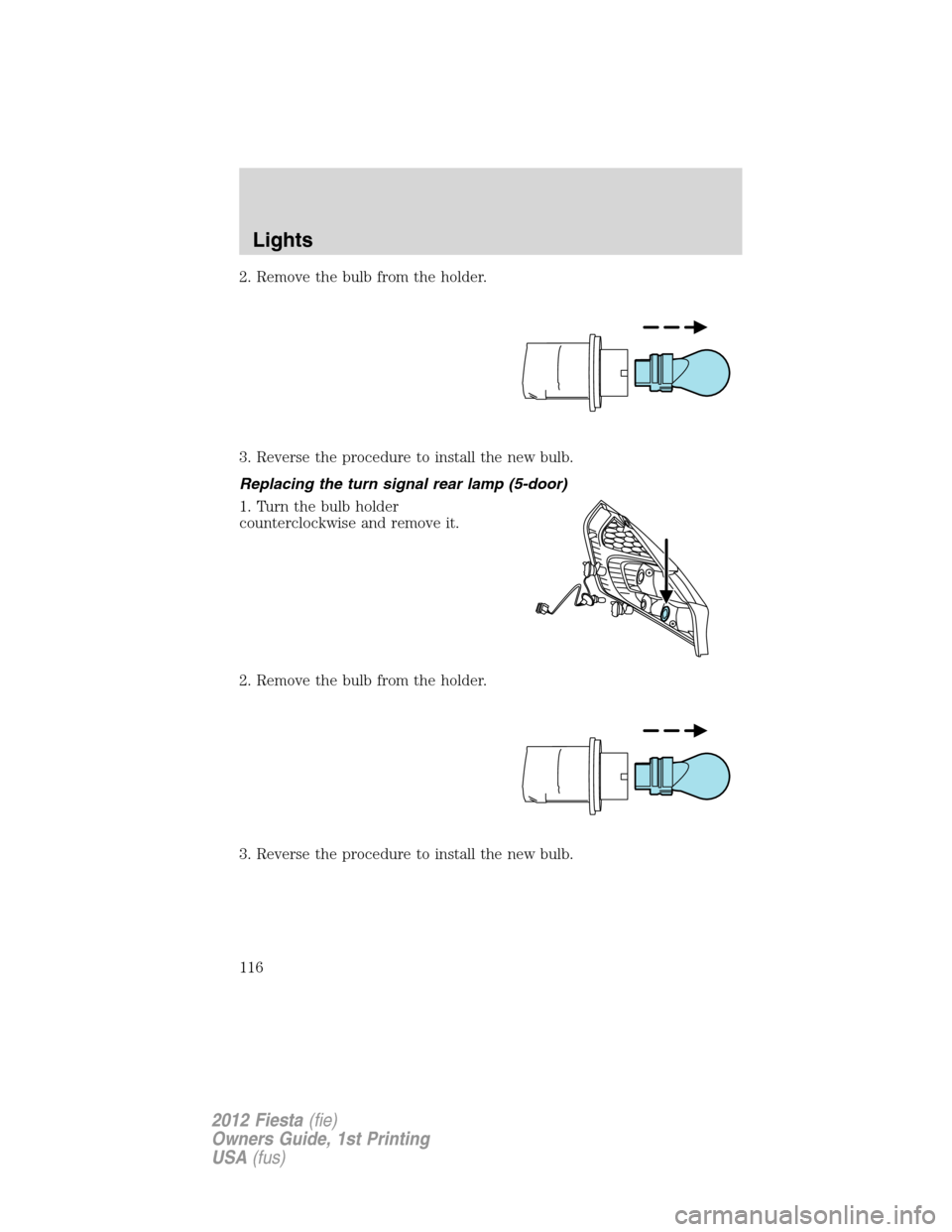

2. Remove the bulb from the holder.
3. Reverse the procedure to install the new bulb.
Replacing the turn signal rear lamp (5-door)
1. Turn the bulb holder
counterclockwise and remove it.
2. Remove the bulb from the holder.
3. Reverse the procedure to install the new bulb.
Lights
116
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

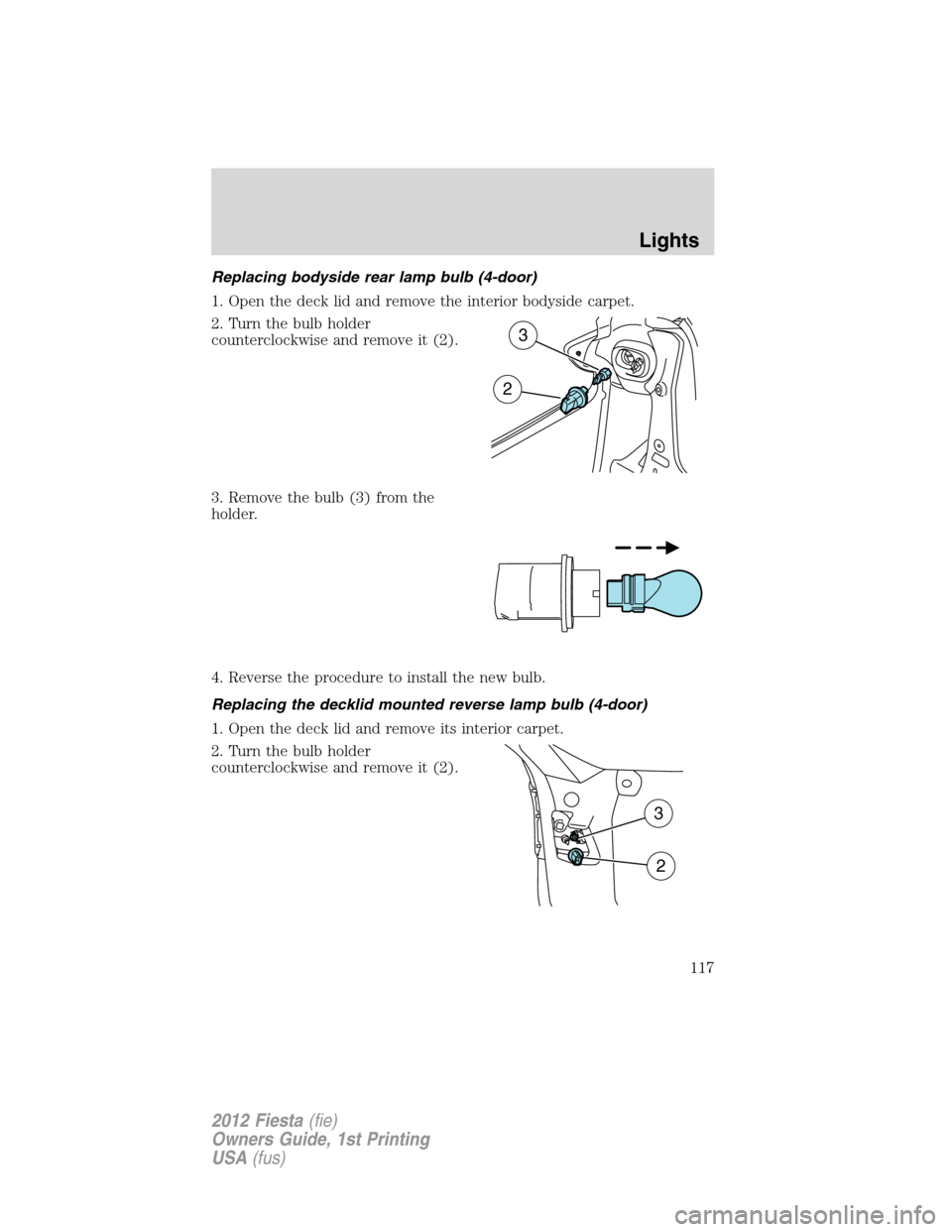

Replacing bodyside rear lamp bulb (4-door)
1. Open the deck lid and remove the interior bodyside carpet.
2. Turn the bulb holder
counterclockwise and remove it (2).
3. Remove the bulb (3) from the
holder.
4. Reverse the procedure to install the new bulb.
Replacing the decklid mounted reverse lamp bulb (4-door)
1. Open the deck lid and remove its interior carpet.
2. Turn the bulb holder
counterclockwise and remove it (2).
3
2
3
2
Lights
117
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

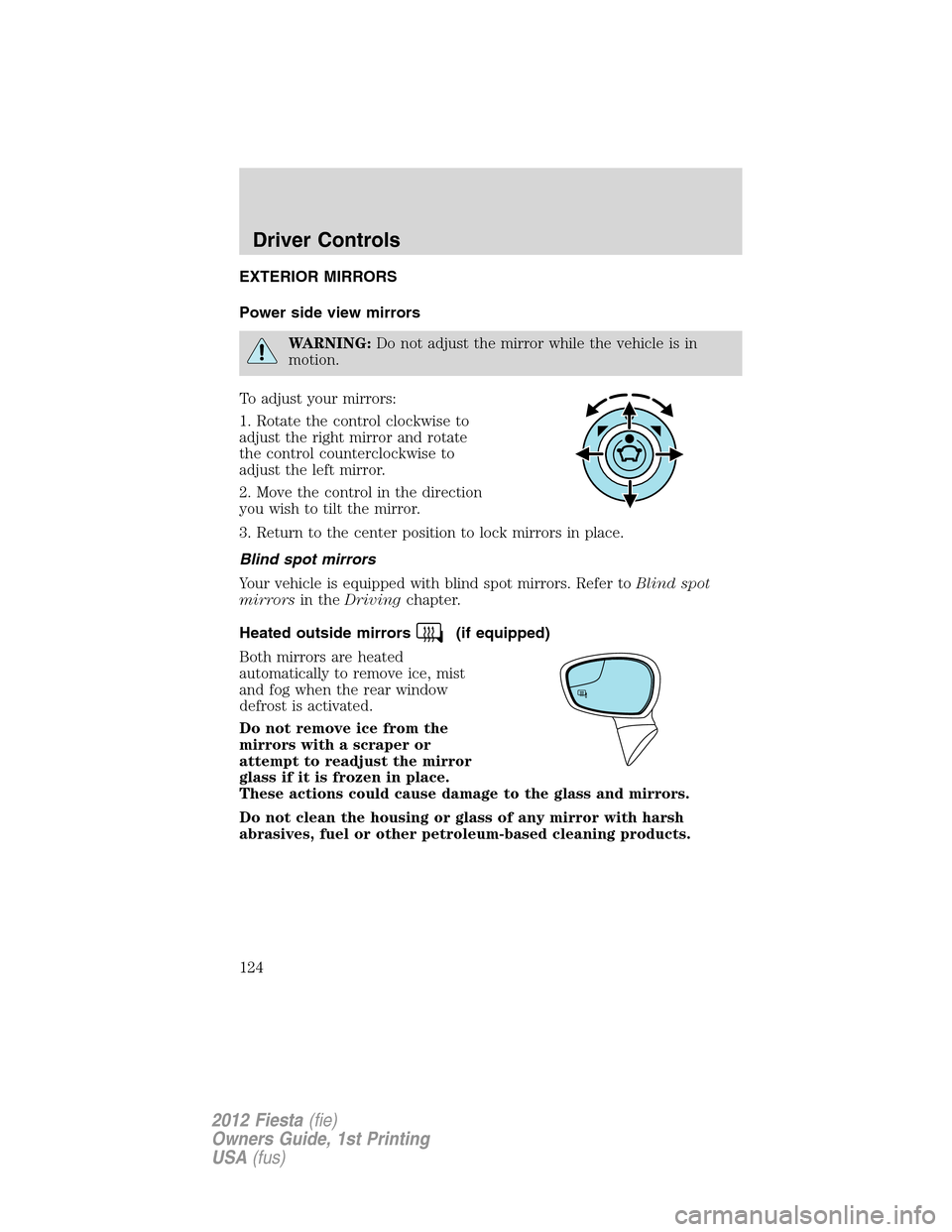

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Blind spot mirrors
Your vehicle is equipped with blind spot mirrors. Refer toBlind spot
mirrorsin theDrivingchapter.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
124
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

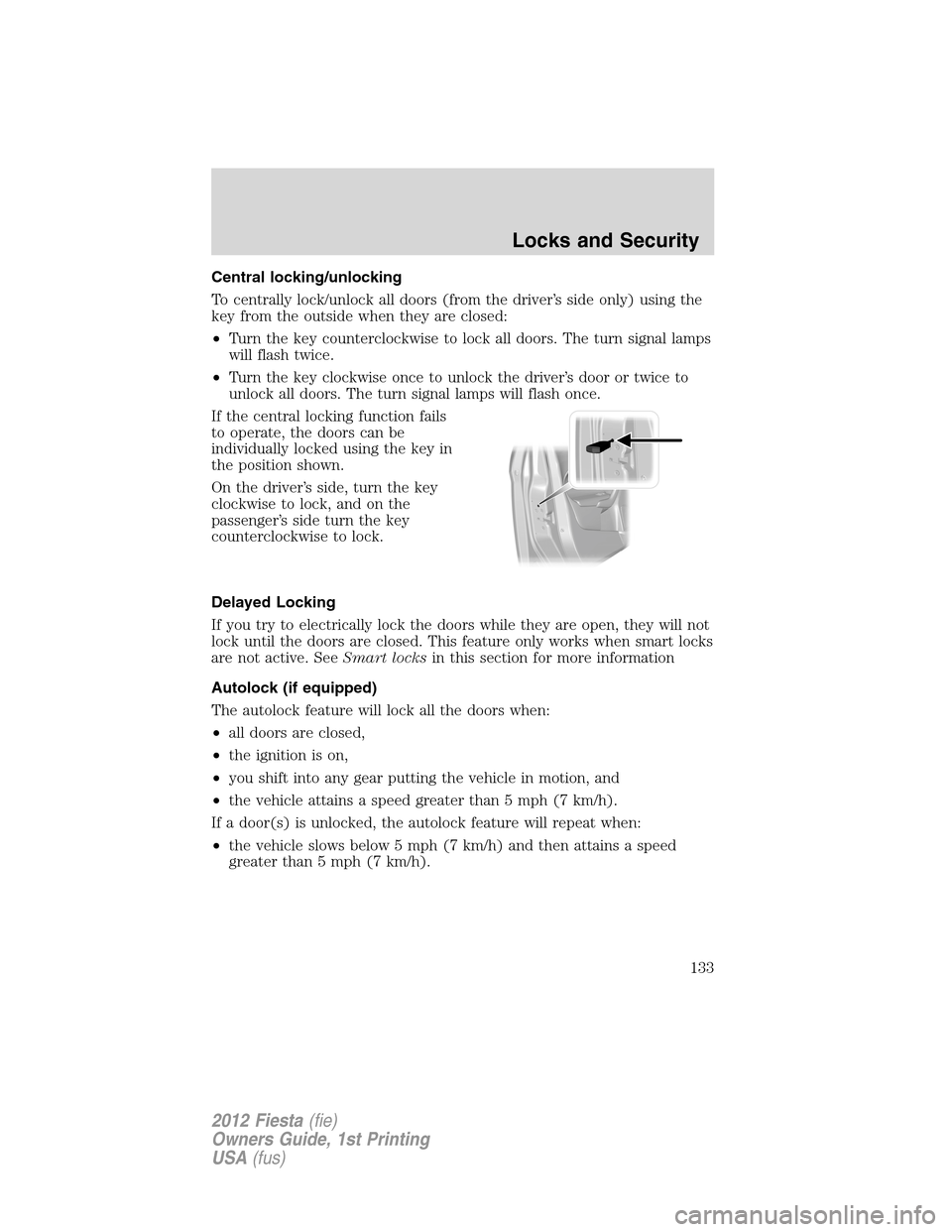

Central locking/unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
•Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash twice.
•Turn the key clockwise once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash once.
If the central locking function fails
to operate, the doors can be
individually locked using the key in
the position shown.
On the driver’s side, turn the key
clockwise to lock, and on the
passenger’s side turn the key
counterclockwise to lock.
Delayed Locking
If you try to electrically lock the doors while they are open, they will not
lock until the doors are closed. This feature only works when smart locks
are not active. SeeSmart locksin this section for more information
Autolock (if equipped)
The autolock feature will lock all the doors when:
•all doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 5 mph (7 km/h).
If a door(s) is unlocked, the autolock feature will repeat when:
•the vehicle slows below 5 mph (7 km/h) and then attains a speed
greater than 5 mph (7 km/h).
Locks and Security
133
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door will not automatically set the lock for
both doors.
•On the driver side, turn counterclockwise to lock and clockwise to
unlock.
•On the passenger side, turn clockwise to lock and counterclockwise to
unlock.
INTERIOR LUGGAGE COMPARTMENT RELEASE (4–DOOR ONLY)
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
Locks and Security
135
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

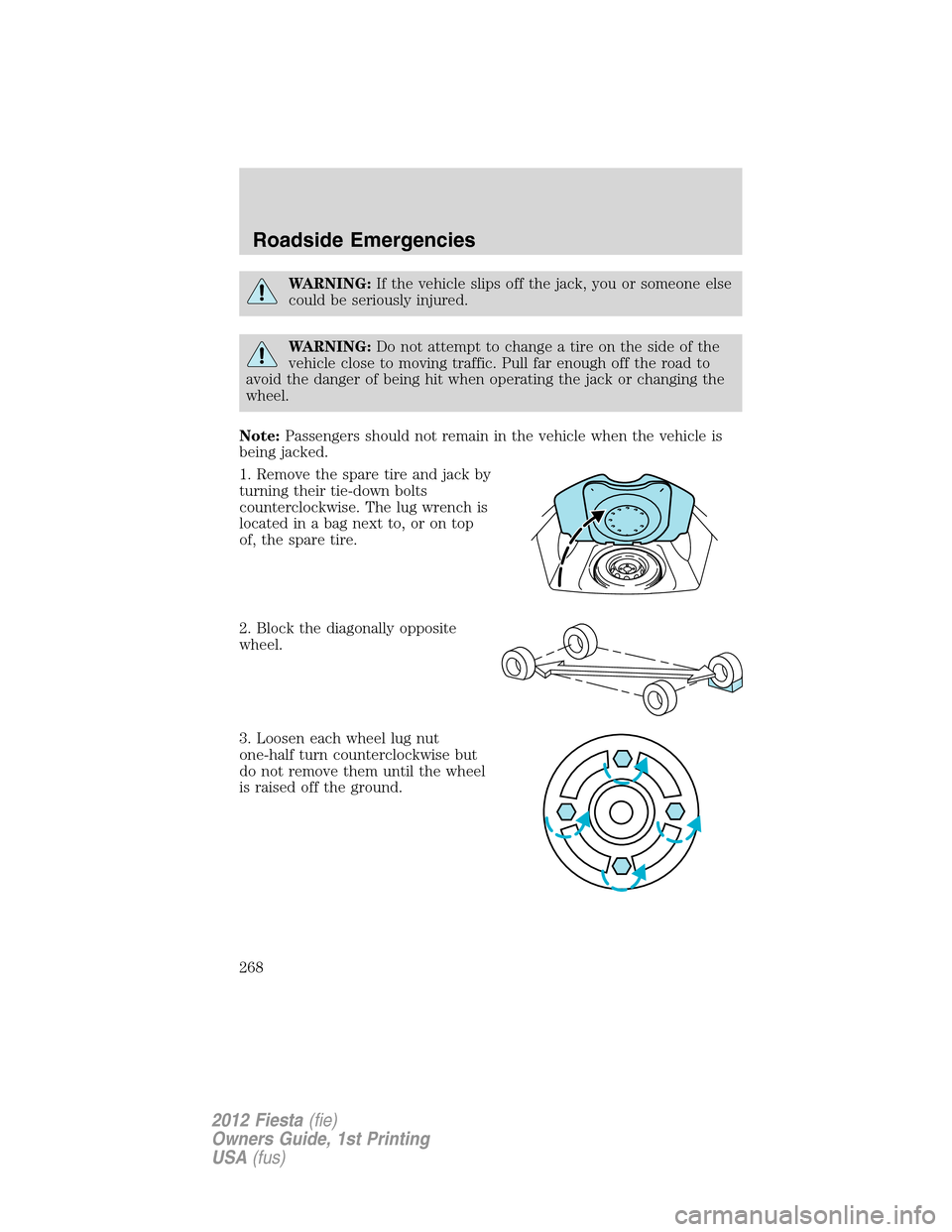

WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
1. Remove the spare tire and jack by
turning their tie-down bolts
counterclockwise. The lug wrench is
located in a bag next to, or on top
of, the spare tire.
2. Block the diagonally opposite
wheel.
3. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
