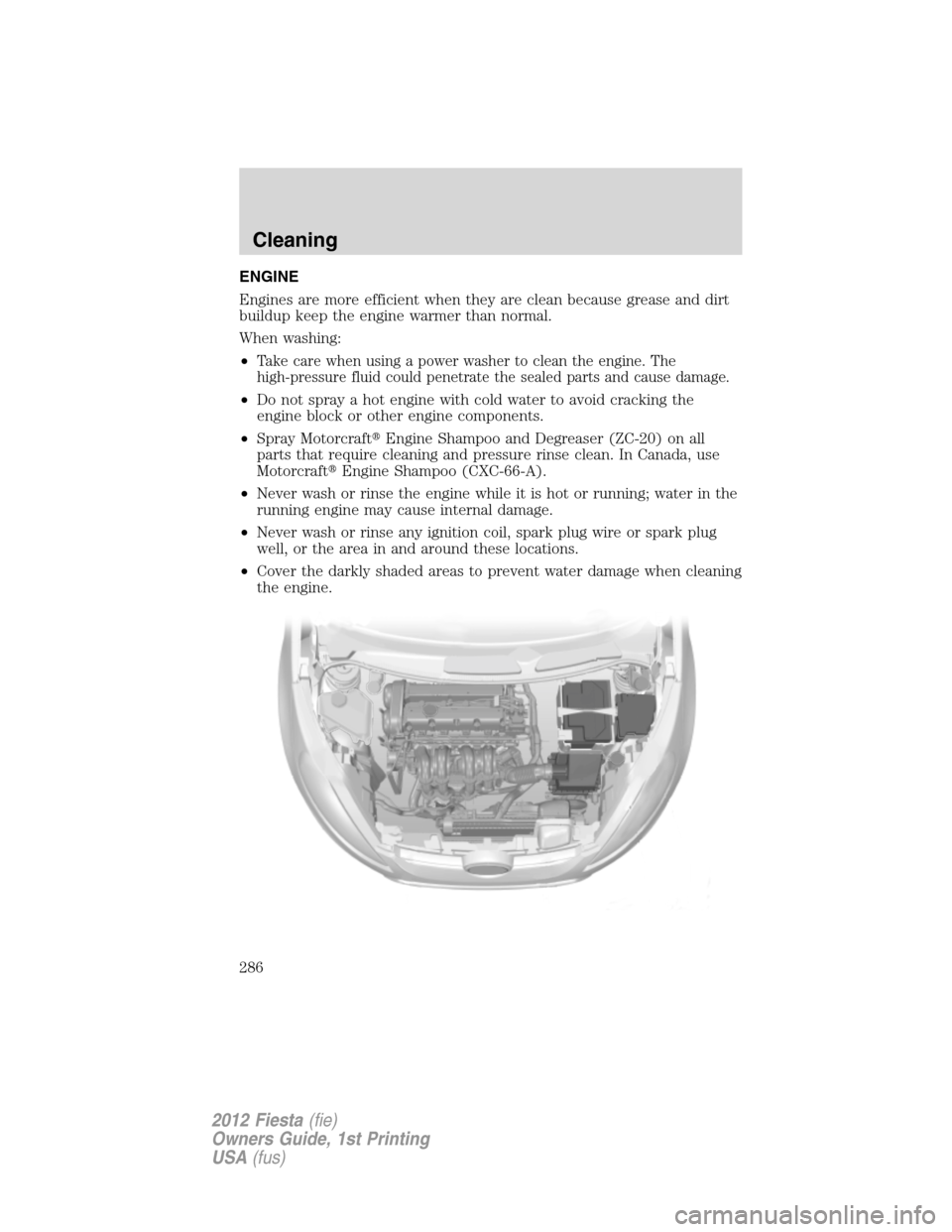

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal.
When washing:
•
Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray MotorcraftEngine Shampoo and Degreaser (ZC-20) on all
parts that require cleaning and pressure rinse clean. In Canada, use
MotorcraftEngine Shampoo (CXC-66-A).
•Never wash or rinse the engine while it is hot or running; water in the
running engine may cause internal damage.
•Never wash or rinse any ignition coil, spark plug wire or spark plug
well, or the area in and around these locations.
•Cover the darkly shaded areas to prevent water damage when cleaning
the engine.
Cleaning
286
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
Fuel quality
If you are experiencing starting, rough idle or hesitation driveability
problems during a cold start, try a different brand of “Regular” unleaded
gasoline.
Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
rating. These products have not been approved for your engine and
could cause damage to the fuel system. Repairs to correct the effects of
using an aftermarket product in your fuel may not be covered by your
warranty.
Many of the world’s automakers approved the World-Wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-Wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-Wide Fuel Charter.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the right
fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than
1 gallon (3.8L) may be required.
•The service engine soon
indicator may come on. For more
information on the service engine soon indicator, refer toWarning
lights and chimesin theInstrument Clusterchapter.
Maintenance and Specifications
308
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

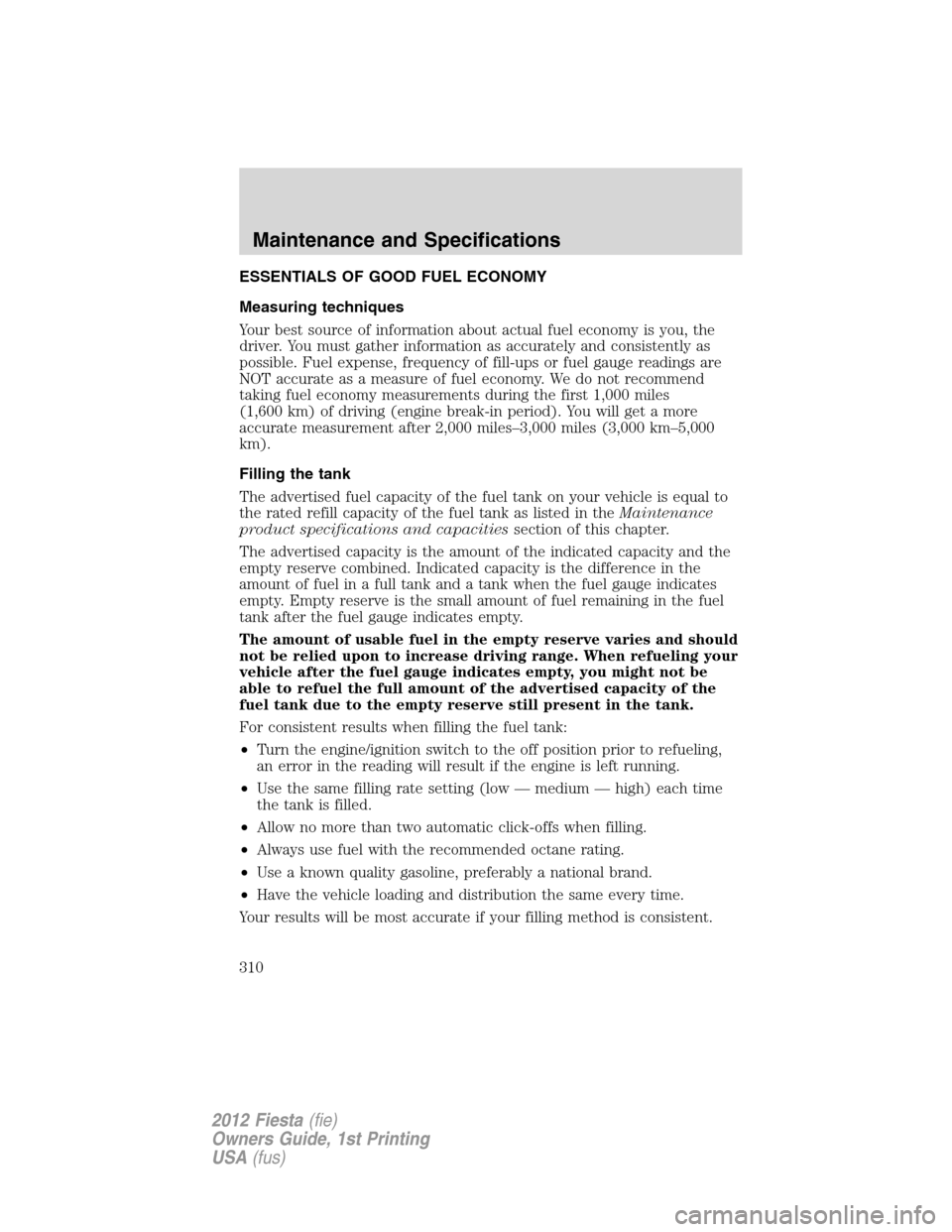

ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles–3,000 miles (3,000 km–5,000
km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theMaintenance
product specifications and capacitiessection of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
•Use the same filling rate setting (low — medium — high) each time
the tank is filled.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Have the vehicle loading and distribution the same every time.
Your results will be most accurate if your filling method is consistent.
Maintenance and Specifications
310
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

EMISSION CONTROL SYSTEM
WARNING:Do not park, idle, or drive your vehicle in dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.
WARNING:Exhaust leaks may result in entry of harmful and
potentially lethal fumes into the passenger compartment.
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with
applicable exhaust emission standards. To make sure that the catalytic
converter and other emission control components continue to work
properly:
•Use only the specified fuel listed.
•Avoid running out of fuel.
•Do not turn off the ignition while your vehicle is moving, especially at
high speeds.
•Have the items listed inscheduled maintenance information
performed according to the specified schedule.
The scheduled maintenance items listed inscheduled maintenance
informationare essential to the life and performance of your vehicle
and to its emissions system.
If other than Ford, Motorcraftor Ford-authorized parts are used for
maintenance replacements or for service of components affecting
emission control, such non-Ford parts should be equivalent to genuine
Ford Motor Company parts in performance and durability.
Illumination of the service engine soon
indicator, charging system
warning light or the temperature warning light, fluid leaks, strange odors,
smoke or loss of engine power could indicate that the emission control
system is not working properly.
An improperly operating or damaged exhaust system may allow exhaust
to enter the vehicle. Have a damaged or improperly operating exhaust
system inspected and repaired immediately.
Maintenance and Specifications
313
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the service engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If the service engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer toOn-board
diagnostics (OBD-II)in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
Maintenance and Specifications
315
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 1.6L engine
Cubic inches 97
Required fuel Minimum 87 octane
Firing order 1–3–4–2
Ignition system Distributorless Ignition System
(D.I.S.)
Compression ratio 11:1
Spark plug gap .029 -.033 inch
(0.75 - 0.85 mm)
Maintenance and Specifications
323
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

lubrication specifications .......321
refill capacities ........................321
service points ..................293–294
Engine block heater .................236
Engine fan .................................293
Engine oil ..................................295
checking and adding ..............295
dipstick ....................................295
filter, specifications ........296, 320
recommendations ...................296
refill capacities ........................321
specifications ..........................321
Event data recording ....................6
Exhaust fumes ..........................235
F
Fan, Engine Cooling .........291, 293
Floor mats .........................128, 130
Fluid capacities .........................321
Fuel ............................................304
calculating fuel economy .......310
cap ...........................................306
capacity ...................................321
choosing the right fuel ...........307
detergent in fuel .....................308
filler funnel .............................308
filling your vehicle
with fuel ..................304, 306, 310
filter, specifications ........304, 320
fuel pump shut-off ..................257
improving fuel economy ........310
octane rating ...........307, 323–324
quality ......................................308
running out of fuel .........270, 308
safety information relating to
automotive fuels .....................304
Fuses ..................................257–258G
Gas cap (see Fuel cap) ............306
Gas mileage
(see Fuel economy) .................310
Gauges .........................................17
H
Hazard flashers .........................256
Headlamps .................................104
aiming ......................................105
bulb specifications ..................109
daytime running lights ...........105
high beam ...............................104
replacing bulbs .......................110
turning on and off ..................104
Head restraints .........................146
Heating
heating and air conditioning
system .....................................100
Hill start assist ..........................251
Hood ..........................................292
I
Ignition .......................230, 323–324
Infant seats
(see Safety seats) .....................188
Inspection/maintenance (I/M)
testing ........................................315
Instrument panel
cleaning ...................................288
cluster ........................................12
lighting up panel and
interior .....................................105
Intelligent Access Key ..............131
Intelligent Access with push
button start ...............................137
Index
352
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

J
Jack ............................................265
positioning ...............................265
storage .....................................265
Joining two calls
(multiparty/conference call) ......51
Jump-starting your vehicle ......271
K
Keyless entry system
autolock ...........................133–134
Keys ...................................130, 144
positions of the ignition .........230
L
Lamps
bulb replacement
specifications chart ................109
daytime running light .............105
headlamps ...............................104
instrument panel, dimming ...105
interior lamps .........107–108, 110
replacing bulbs .......................110
LATCH anchors .........................192
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........238
Load limits .................................221
Locks
autolock ...........................133–134
childproof ................................135
Lubricant specifications ...........321
Lug nuts ....................................270
M
Manual transmission .................249fluid capacities ........................321
lubricant specifications ..........321
reverse .....................................250
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ............................84
Media menu layout .....................78
Message center .....................17–18
warning messages .....................19
Mirrors ...............................123–124
automatic dimming rearview
mirror ......................................123
heated ......................................124
side view mirrors (power) .....124
signal .......................................125
Moon roof ..................................127
Motorcraftparts ..............290, 320
O
Octane rating ............................307
Oil (see Engine oil) ..................295
P
Pairing other phones ..................48
Pairing your phone for the first
time ..............................................47
Parking brake ............................239
Parts
(see Motorcraftparts) ...........320
Passenger Occupant
Classification Sensor .................156
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ............................62
Phone dependent features .........46
Phone menu layout ....................54
Index
353
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
