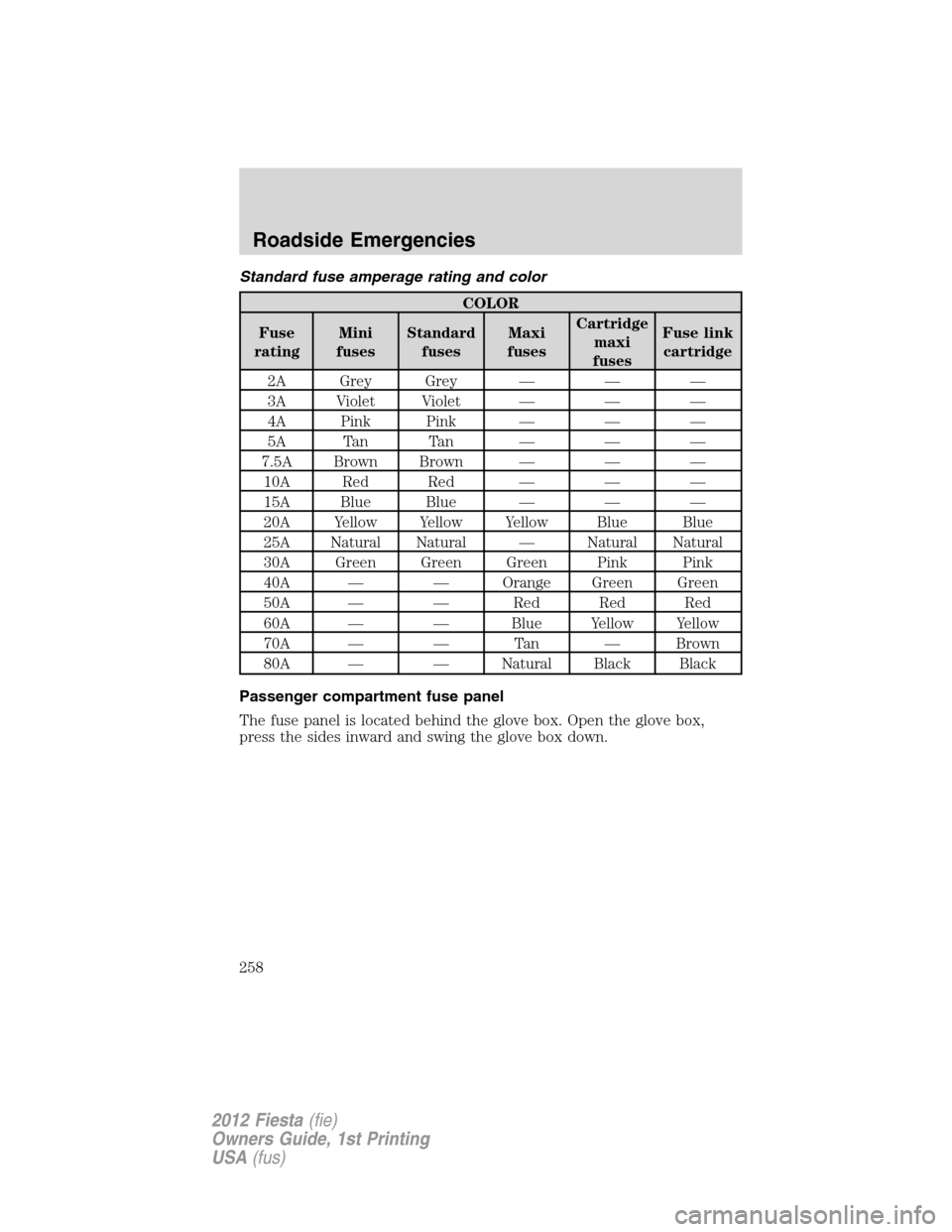

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — Natural Natural
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel is located behind the glove box. Open the glove box,
press the sides inward and swing the glove box down.
Roadside Emergencies
258
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F28 — Not used
F29 — Not used
F30 — Not used
F31 30A Driver and rear power window
switches
F32 20A Passenger compartment fuse
panel battery saver relay
F33 20A Power points
F34 30A Driver and passenger power
window switches
F35 20A Moon roof
F36 — Not used
R1 — Ignition relay
R2 — Left rear stop/turn lamp relay
R3 — Right rear stop/turn lamp relay
R4 — Driver heated seat relay
R5 — Passenger heated seat relay
R6 — IA module – accessory relay
R7 — IA module – ignition relay
R8 — Battery saver relay, Rear power
points
R9 — Not used
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
Roadside Emergencies
261
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F1 40A* Anti-lock brake system (ABS) pump
F2 50A* Transmission control module (TCM)
F3 40A* Engine cooling fan relay and motor
F4 40A* Heater blower relay and motor
F5 60A* Passenger compartment fuse panel
F6 30A* Body control module (BCM) – door
locks
F7 60A* Passenger compartment fuse panel
F8 40A* Powertrain control module (PCM),
Power distribution box
F9 20A* ABS module valve
R11R8
R12R9
R5R3
R6R4
R13R10
R2R1
R15R14
R7
F41F35
F26F17F27F18F28F19F29F20F30F21F31F22F32F23F33F24F34F25
F42F36
F43F37
F44F38
F45F39
F40
F6F1
F7F2
F8F3
F9F4
F10F5
F14F11
F15F12
F16F13
F46
Roadside Emergencies
262
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
