2012 FIAT BRAVO technical specifications

Thousands of miles 18 36 54 72 90 108
Thousands of km 30 60 90 120 150 180
Months 24 48 72 96 120 144
Visually inspect condition of toothed timing drive belt (petrol versions)●●
Check tension of accessory drive belts and adjust if necessary (excluding engines
equipped with automatic tensioner)●●
Check exhaust emissions (petrol versions)●●●●●●
Check engine management system operation (through the diagnosis socket)●●●●●●
Replace accessory drive belt/s●
Replace toothed timing drive belt (petrol versions)
(*)
●
Replace spark plugs (petrol versions)
(#)
●●●●●●
Replace air cleaner cartridge (petrol versions)●●●
Change engine oil and oil filter (petrol versions) (or ever 24 months)
(°**)
●●●●●●
Change brake fluid (or every 24 months)●●●
Change pollen filter (or every 15 months)●●●●●●
(*) Regardless of the distance covered, the timing drive belt must be changed every 4 years for particularly demanding use (cold
climates, town driving, long periods of idling) or at least every 5 years
(#) On the 1.4 T-Jet and 1.4 Turbo MultiAir versions the following are extremely important to ensure correct operation and prevent
serious damage to the engine: only use spark plugs specially tested for T-Jet and MultiAir engines (see paragraph "Engine") of the
same mark and type; strictly comply with the Scheduled Servicing Plan; you are advised to contact a Fiat Dealership
(°**) If the vehicle is mainly used for town driving or has an annual mileage of less than 10,000 km, the engine oil and engine oil filter
should be changed every 12 months.
226GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

PERIODIC CHECKSEvery 1,000 km or before long journeys, check and,
if necessary, restore:
❒engine coolant, brake fluid and windscreen
washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system (headlamps,
direction indicators, hazard warning lights, etc.);
❒operation of screen washer/wiper system and
positioning/wear of windscreen/rear window
wiper blades.
Every 3,000 km, check and top up, if required, the
engine oil level.
HEAVY-DUTY USE OF THE CARIf the car is used mainly under one of the following
conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than 7-8 km) at
sub-zero outside temperatures;
❒engine often idling or driving long distances at
low speeds or long periods of idleness;
you need to perform the following inspections
more frequently than shown in the Scheduled
Servicing Plan:
❒check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and boot locks,
cleanliness and lubrication of linkage;
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

❒visually inspect conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust - fuel
system - brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge and battery fluid level
(electrolyte);
❒visually inspect condition of the accessory drive
belts;
❒check and, if necessary, change engine oil and
replace oil filter;
❒check and, if necessary, replace pollen filter.
CHECKING FLUID LEVELS
When topping up, take care not to mix
up the various types of fluids: they are
not compatible with each other and
could seriously damage the car.
WARNING
Never smoke while working in the
engine compartment : inflammable
gases and vapours may be present ,
constituting a fire risk.
230GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

1.4 16V version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 198
F0Q0817
231GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

1.4 T-Jet version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 199
F0Q0766
232GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

1.4 Turbo MultiAir version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 200
F0Q0763
233GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

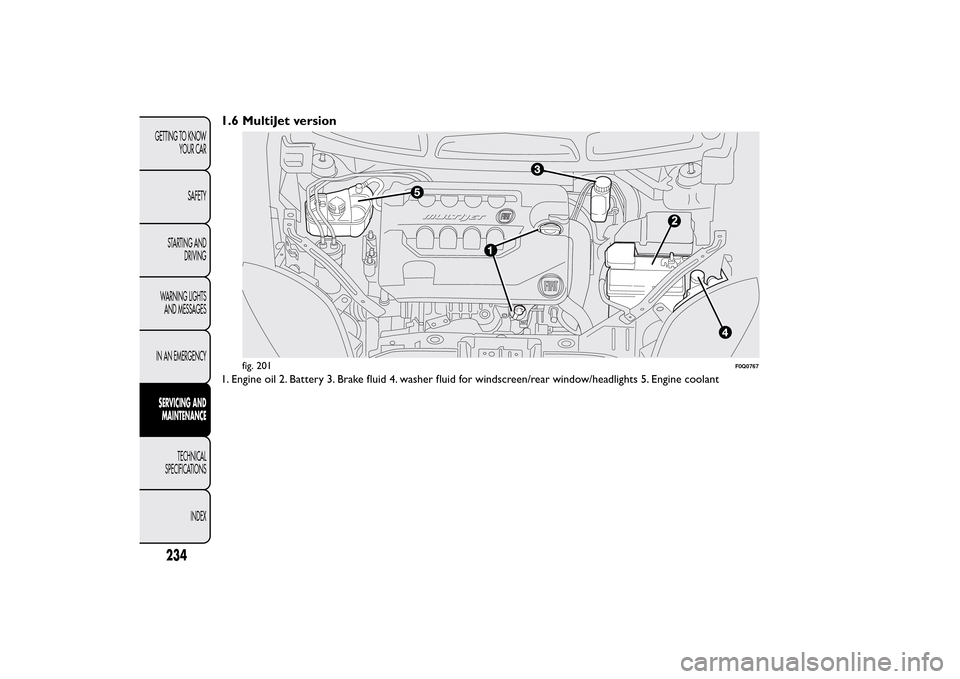

1.6 MultiJet version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 201
F0Q0767
234GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

2.0 MultiJet version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 202
F0Q0768
