Page 206 of 299
3rd
BRAKE LIGHTS
To change the bulb proceed as follows:
❒open the luggage compartment;
❒remove the cover A fig. 170;❒extract the lens unit B fig. 171 and disconnect
the electrical connector;
❒press in the tabs C fig. 171 and remove the bulb
holder;fig. 169
F0Q0712
fig. 171
F0Q0751
fig. 170
F0Q0716
202GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 207 of 299
❒remove the snap-fitted bulb and replace it.
❒refit the cover A fig. 170 and close the luggage
compartment.NUMBER PLATE LIGHTS
To replace the bulbs proceed as follows:
❒operate in the point indicated by the arrows and
remove the lens units A fig. 172;
❒turn the bulb holder B fig. 173 clockwise;
❒remove bulb C and replace it.
fig. 172
F0Q0718
fig. 173
F0Q0719
203GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 208 of 299

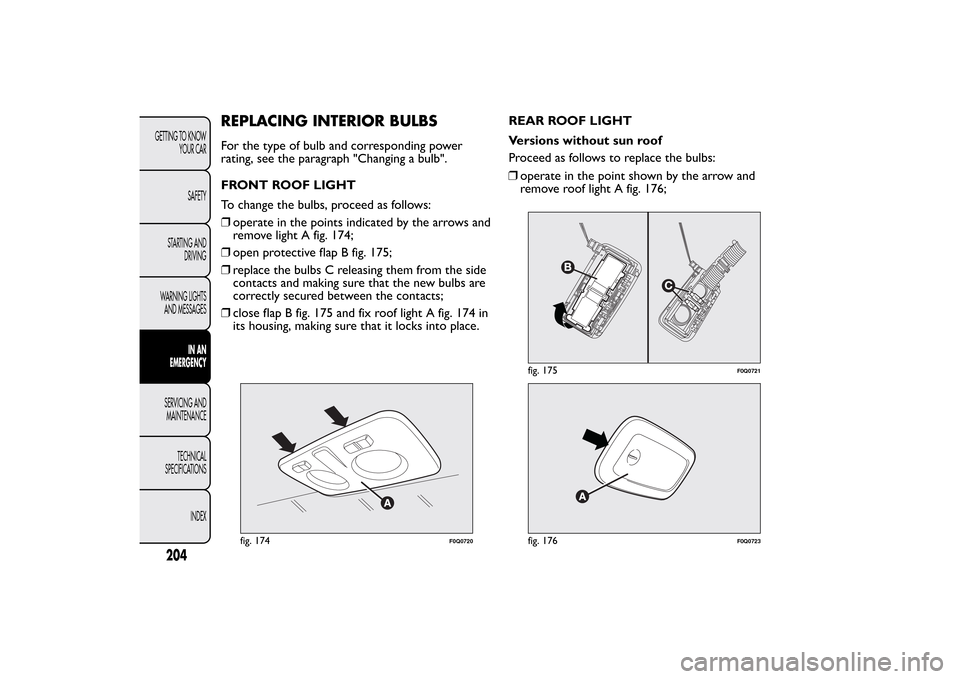

REPLACING INTERIOR BULBSFor the type of bulb and corresponding power
rating, see the paragraph "Changing a bulb".
FRONT ROOF LIGHT
To change the bulbs, proceed as follows:
❒operate in the points indicated by the arrows and
remove light A fig. 174;
❒open protective flap B fig. 175;
❒replace the bulbs C releasing them from the side
contacts and making sure that the new bulbs are
correctly secured between the contacts;
❒close flap B fig. 175 and fix roof light A fig. 174 in
its housing, making sure that it locks into place.REAR ROOF LIGHT
Versions without sun roof
Proceed as follows to replace the bulbs:
fig. 174
F0Q0720
fig. 175
F0Q0721
fig. 176
F0Q0723
204GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒operate in the point shown by the arrow and
remove roof light A fig. 176;
Page 209 of 299

❒replace bulb B fig. 177 releasing it from the side
contacts and making sure the new bulb is
correctly fastened between the contacts.
Versions with sun roof
Proceed as follows to replace the bulbs:
❒operate in the point shown by the arrow and
remove roof light A fig. 178;
❒replace bulb B fig. 179 releasing it from the side
contacts and making sure the new bulb is
correctly fastened between the contacts.
LUGGAGE COMPARTMENT ROOF LIGHT
❒open the luggage compartment;
❒remove the light A fig. 180 levering in the point
shown by the arrow;
❒open protection B fig. 181 and replace the
snap-fitted bulb;❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
fig. 177
F0Q0722
fig. 178
F0Q0741
fig. 179
F0Q0722
205GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 210 of 299
GLOVE COMPARTMENT LIGHT
To change the bulbs, proceed as follows:
❒open the glove compartment and extract roof
light A fig. 182;
❒replace bulb B releasing it from the side contacts
and making sure the new bulb is correctly
fastened between the contacts.
fig. 180
F0Q0724
fig. 181
F0Q0725
fig. 182
F0Q0726
206GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 211 of 299
COURTESY MIRROR LIGHTS
(for versions/markets, where provided)
Replace the bulb as follows:
❒open the mirror cover A fig. 183;❒extract light B levering in the points shown by
the arrows;
❒replace bulb C fig. 184 releasing the side
contacts, insert the new bulb and make sure that
it is correctly locked between the contacts.
fig. 183
F0Q0423
fig. 184
F0Q0424
207GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 212 of 299

REPLACING FUSESINTRODUCTION
Fuses protect the electrical system: they intervene
(blow) in the event of a failure or improper
intervention on the system.
When a device does not work, check the condition
of its protective fuse: the conductor element A
fig. 185 must be intact. If it is not, replace the blown
fuse with another with the same amperage (same
colour).
B = intact fuse;
C = fuse with damaged filament.
To facilitate fuse replacement, use the pliers D
hooked inside the fuse box lid on the dashboard
left-hand side.
Refer to the tables on the following pages to
identify the protective fuse.
WARNING
If the replaced fuse blows again,
contact a Fiat Dealership.
WARNING
Never replace a fuse with metal wires
or other material.
WARNING
Never replace a fuse with another with
a higher amp rating; DANGER OF
FIRE.
fig. 185
F0Q0220
208GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 213 of 299
WARNING
If a general protective fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
contact a Fiat Dealership.
WARNING
Before replacing a fuse, make sure that
the ignition key has been removed
and that all the other services are switched off
and/or disengaged.
WARNING
Contact a Fiat Dealership if a safety
system (airbags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.FUSE LOCATION
The fuses are grouped in three fuse boxes:
❒dashboard fuse box;
❒engine compartment fuse box;
❒luggage compartment fuse box.
