TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAThe identification data of the car are:
❒VIN plate;
❒Chassis marking;
❒Bodywork paint identification plate;
❒Engine marking.VIN PLATE
This plate is fitted to the engine compartment front
crossmember and contains the following data
fig. 216:
BType-approval number.C
Vehicle type identification code.D
Chassis serial number.
EMaximum authorised weight of vehicle fully laden.FMaximum authorised weight of vehicle fully laden
plus trailer.G
Maximum authorised weight on first (front) axle.
H
Maximum authorised weight on second (rear)
axle.
IEngine type.LBodywork version code.M
Number for spare parts.
N
Correct value of smoke coefficient (for diesel
engines).
fig. 216
F0Q0029
252GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 257 of 299
CHASSIS MARKING
This is printed on the passenger compartment
floor, near the front right seat.
Slide flap A fig. 217 forward to access:
The marking includes:
❒car model (ZFA 198000);
❒chassis serial number.
BODYWORK PAINT IDENTIFICATION
PLATE
This is fitted to the inside of the tailgate and bears
the following data fig. 218:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 217
F0Q0667
fig. 218
F0Q0100
253GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Page 258 of 299

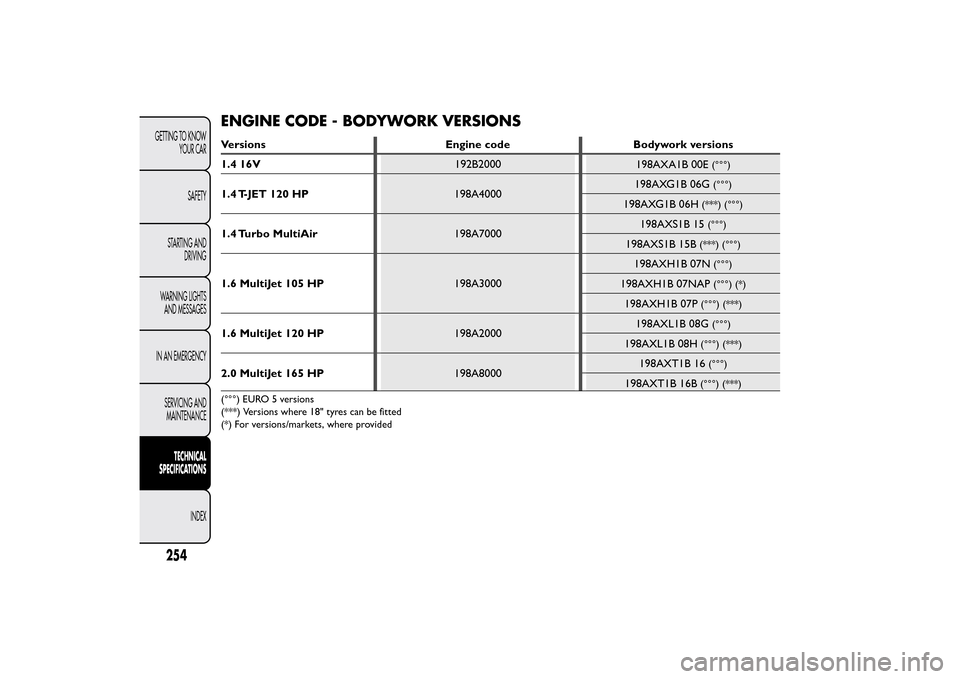

ENGINE CODE - BODYWORK VERSIONSVersions Engine code Bodywork versions
1.4 16V192B2000
198AXA1B 00E
(°°°)
1.4 T-JET 120 HP198A4000198AXG1B 06G
(°°°)
198AXG1B 06H
(***) (°°°)
1.4 Turbo MultiAir198A7000198AXS1B 15
(°°°)
198AXS1B 15B
(***) (°°°)
1.6 MultiJet 105 HP198A3000198AXH1B 07N
(°°°)
198AXH1B 07NAP
(°°°) (*)
198AXH1B 07P
(°°°) (***)
1.6 MultiJet 120 HP198A2000198AXL1B 08G
(°°°)
198AXL1B 08H
(°°°) (***)
2.0 MultiJet 165 HP198A8000198AXT1B 16
(°°°)
198AXT1B 16B
(°°°) (***)
(°°°) EURO 5 versions
(***) Versions where 18" tyres can be fitted
(*) For versions/markets, where provided
254GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 259 of 299
ENGINEVersions 1.4 16V 1.4 T-JET 120 HP 1.4 Turbo MultiAir
Engine code 192B2000 198A4000 198A7000
Cycle Otto Otto Otto
Number and arrangement of
cylinders4 in line 4 in line 4 in line
Piston diameter and travel (mm) 72.0 x 84.0 72.0 x 84.0 72.0 x 84.0
Total displacement (cm3) 1368 1368 1368
Compression ratio 11 9.8 9.8
Maximum power (EC) (kW) 66 88 103
Maximum power (EC) (HP) 90 120 140
corresponding engine speed (rpm) 5500 5000 5000
Maximum torque (EC) (Nm) 128 206 230
Maximum torque (EC) (kgm) 13 21 23.4
corresponding engine speed (rpm) 4500 1750 1750
Spark plugs NGK DCPR7E-N-10 NGK IKR9F8 NGK IKR9F8
Fuel Unleaded petrol 95 RON (Specification EN228)
255GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Page 260 of 299
Versions 1.6 MultiJet 105 HP 1.6 MultiJet 120 HP 2.0 MultiJet 165 HP
Engine code 198A3000 198A2000 198A8000
Cycle Diesel Diesel Diesel
Number and arrangement of
cylinders4 in line 4 in line 4 in line
Piston diameter and travel (mm) 79.5 x 80.5 79.5 x 80.5 83.0 x 90.4
Total displacement (cm3) 1598 1598 1956
Compression ratio 16.5 16.5 16.5
Maximum power (EC) (kW) 77 88 121
Maximum power (EC) (HP) 105 120 165
corresponding engine speed (rpm) 4000 4000 4000
Maximum torque (EC) (Nm) 290 300 350
Maximum torque (EC) (kgm) 29.5 30.6 35.6
corresponding engine speed (rpm) 1500 1500 1750
Fuel Diesel for automotive engines (Specification EN590)
256GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 261 of 299

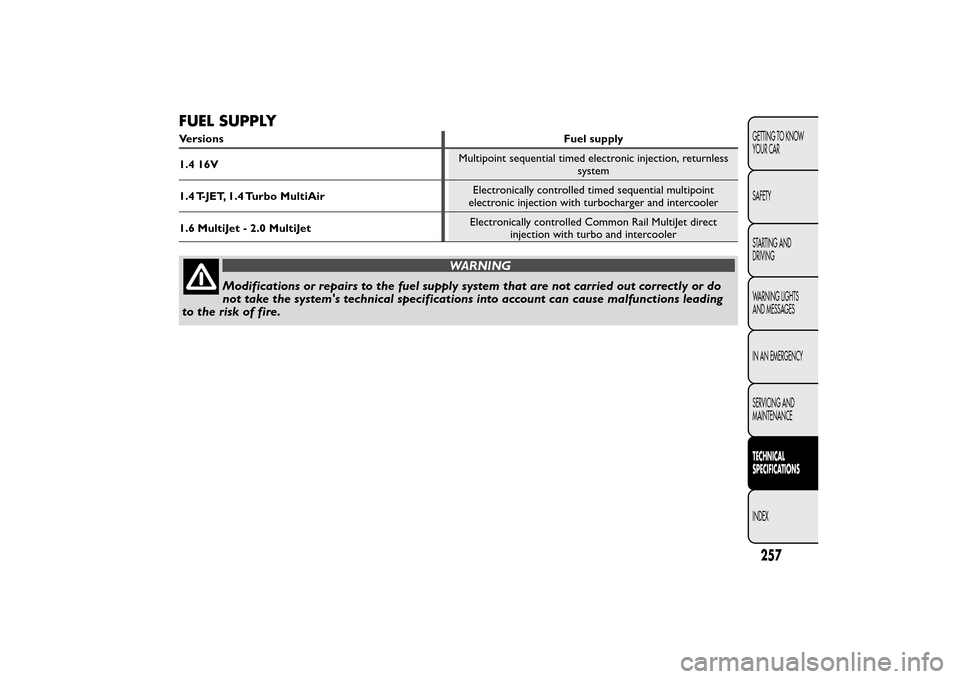

FUEL SUPPLYVersions Fuel supply
1.4 16VMultipoint sequential timed electronic injection, returnless
system
1.4 T-JET, 1.4 Turbo MultiAirElectronically controlled timed sequential multipoint
electronic injection with turbocharger and intercooler
1.6 MultiJet - 2.0 MultiJetElectronically controlled Common Rail MultiJet direct
injection with turbo and intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or do
not take the system's technical specifications into account can cause malfunctions leading
to the risk of fire.
