2012 FIAT BRAVO technical specifications

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. The vehicle registration document also
lists all type-approved tyres.
IMPORTANT If there are any discrepancies
between the Owner Handbook and the registration
document, take the information from the latter.
For safe driving, the car must be fitted with tyres of
the same make and type on all wheels.
IMPORTANT Do not use air chambers with
Tubeless tyres.SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim: - 1
mm +/- 1 mm
The values refer to the car in running order.
260GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

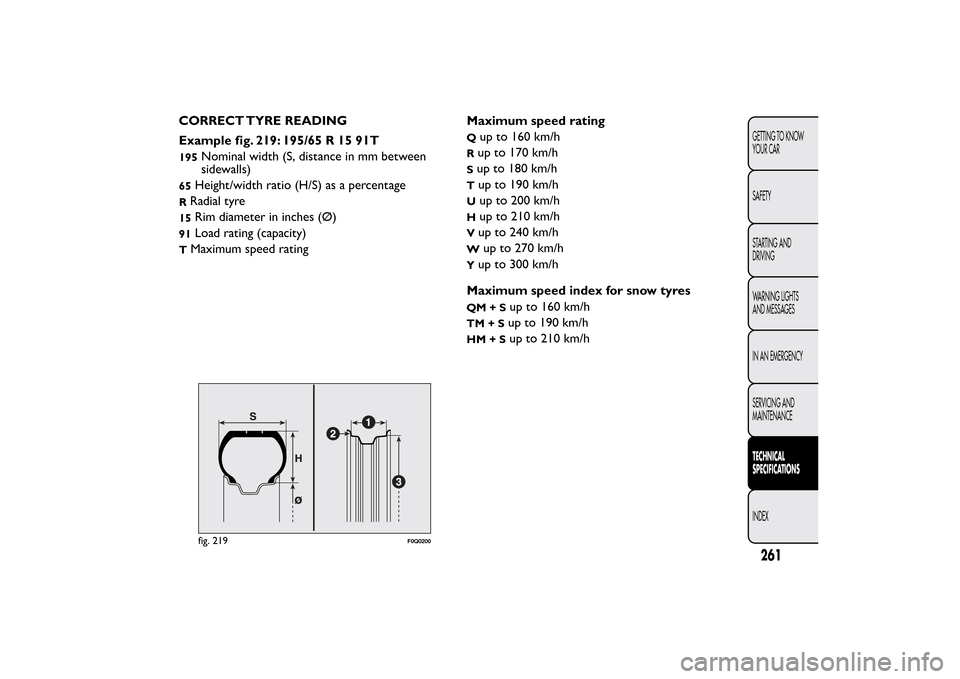

CORRECT TYRE READING
Example fig. 219: 195/65 R 15 91T195
Nominal width (S, distance in mm between
sidewalls)
65
Height/width ratio (H/S) as a percentage
RRadial tyre15
Rim diameter in inches (Ø)
91
Load rating (capacity)
T
Maximum speed ratingMaximum speed rating
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
W
up to 270 km/h
Y
up to 300 km/h
Maximum speed index for snow tyres
QM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
fig. 219
F0Q0200
261GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Load rating (capacity)
60= 250 kg84= 500 kg
61= 257 kg85= 515 kg
62= 265 kg86= 530 kg
63= 272 kg87= 545 kg
64= 280 kg88= 560 kg
65= 290 kg89= 580 kg
66= 300 kg90= 600 kg
67= 307 kg91= 615 kg
68= 315 kg92= 630 kg
69= 325 kg93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg95= 690 kg
72= 355 kg96= 710 kg
73= 365 kg97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg99= 775 kg
76= 400 kg100= 800 kg
77= 412 kg101= 825 kg
78= 425 kg102= 850 kg
79= 437 kg103= 875 kg
80= 450 kg104= 900 kg
Load rating (capacity)
81= 462 kg105= 925 kg
82= 475 kg106= 950 kg
83= 487 kg
CORRECT READING OF THE WHEEL RIM
Example fig. 219:6Jx15ET31.56rim diameter in inches (1).Jrim drop centre outline (side projection where
the tyre bead rests) (2).15
rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the bead of Tubeless
tyres in position on the rim).
ET 31.5
wheel camber (distance between the
disc/rim support plane and the wheel
centre line).
262GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIMS AND TYRES PROVIDED AS STANDARDVersions Rims Tyres Snow tyresSpace-saver wheel (for
versions/markets, where specified)
Rim Tyre
1.4 16V6JX15ET
31.5195/65 R15
91H195/65 R15
91T (M+S)
(°) (°)
7JX16ET31205/55 R16
91H205/55 R16
91T (M+S)
7JX17ET31225/45 R17
91H225/45 R17
91T (M+S)7Jx16ET31
205/55 R16 91H
(**)
(°) On versions equipped with 195/65 R15 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the Fix&Go.
(**) The 205/55 R16 91H tyre has the same specifications as the space-saver wheel: the information in “Replacing a wheel” paragraph
therefore refers to the 205/55 R16 91H tyre.
263GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Versions Rims Tyres Snow tyresSpace-saver wheel (for
versions/markets, where specified)
Rim Tyre
1.4 T-JET 120 HP -
1.4 Turbo MultiAir6J x 15 ET 31.5195/65 R15
91H195/65 R15
91T (M+S)
(°) (°)
7Jx16ET31205/55 R16
91H205/55 R16
91T (M+S)
7Jx17ET31225/45 R17
91W225/45 R17
91T (M+S)
7Jx16ET31
205/55 R16 91H
(**)
71/2Jx18ET
35225/40 R18
92V
(*)
REINFORCED
225/40 R18
92T (M+S)
(°) On versions equipped with 195/65 R15 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the Fix&Go.
(**) The 205/55 R16 91H tyre has the same specifications as the space-saver wheel: the information in “Replacing a wheel” paragraph
therefore refers to the 205/55 R16 91H tyre.
(*) Tyres which cannot be fitted with chains.
264GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Versions Rims Tyres Snow tyresSpace-saver wheel (for
versions/markets, where specified)
Rim Tyre
1.6 MultiJet6J x 15 ET 31.5195/65 R15
91H195/65 R15
91T (M+S)
(°) (°)
7Jx16ET31205/55 R16
91H205/55 R16
91T (M+S)
7Jx17ET31225/45 R17
91V225/45 R17
91T (M+S)
7Jx16ET31205/55 R16 91H
(**)
205/55 R16 91V
(**)
7Jx17ET26225/45 R17
91W225/45 R17
91T (M+S)
7Jx17ET31225/45 R17
91W225/45 R17
91T (M+S)
71/2Jx18ET
35225/40 R18
92V
(*)
REINFORCED
225/40 R18
92T (M+S)
(°) On versions equipped with 195/65 R15 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the Fix&Go.
(**) The 205/55 R16 91H tyre has the same specifications as the space-saver wheel: the information in “Replacing a wheel” paragraph
therefore refers to the 205/55 R16 91H tyre.
(*) Tyres which cannot be fitted with chains.
265GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Versions Rims Tyres Snow tyresSpace-saver wheel (for versions/
markets, where specified)
Rim Tyre
2.0 MultiJet6J x 15 ET 31.5195/65 R15
91V195/65 R15
91T (M+S)
(°) (°)
7Jx16ET31205/55 R16
91V205/55 R16
91T (M+S)
7Jx17ET31225/45 R17
91V225/45 R17
91T (M+S)
7Jx16ET31205/55 R16 91H
(**)
205/55 R16 91V
(**)
7Jx17ET26225/45 R17
91W225/45 R17
91T (M+S)
7Jx17ET31225/45 R17
91W225/45 R17
91T (M+S)
71/2Jx18ET
35225/40 R18
92V
(*)
REINFORCED
225/40 R18
92T (M+S)
(°) On versions equipped with 195/65 R15 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the Fix&Go.
(**) The 205/55 R16 91H tyre has the same specifications as the space-saver wheel: the information in “Replacing a wheel” paragraph
therefore refers to the 205/55 R16 91H tyre.
(*) Tyres which cannot be fitted with chains.IMPORTANT Use of the 225/40 R18 92V REINFORCED tyre requires the adoption of specific technical
solutions. For this reason, these tyres can only be requested when the vehicle is purchased. Do not fit this
tyre after vehicle has been purchased.
266GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TYRE INFLATION PRESSURE WHEN COLD (bar)
Ty r e sNo load/medium load Full load
Front Rear Front Rear
1.4 16V195/65 R15 91H 2.3 2.3 2.6 2.6
205/55 R16 91H 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
1.4 T-JET 120 HP - 1.4 Turbo
MultiAir195/65 R15 91H 2.3 2.3 2.6 2.6
205/55 R16 91H 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
225/40 R18 92V 2.6 2.6 2.9 2.9
1.6 MultiJet195/65 R15 91H 2.3 2.3 2.6 2.6
205/55 R16 91H 2.3 2.3 2.6 2.6
225/45 R17 91V 2.3 2.3 2.6 2.6
225/45 R17 91W 2.3 2.3 2.6 2.6
225/40 R18 92V 2.6 2.6 2.9 2.9
