2012 FIAT 500 GUCCI Owners Manual

Cavity VehicleFuse
Number Mini
Fuse Description
7 F48 20 Amp
YellowPassenger Power
Window
8 F13 7.5 Amp
BrownLeft Low Beam,
Headlamp Leveling
9 F50 7.5 Amp
BrownAirbag
10 F51 5 Amp
Ta nCar Radio Switch,
Climate Control
System, Stop Light,
ClutchCavity Vehicle
Fuse
Number Mini
Fuse Description
11 F37 5 Amp
Ta nStop Light Switch,
Instrument Panel
Node
12 F49 5 Amp
Ta nExterior Mirror,
GPS, Electric Mir-
ror, Parking Sensor
13 F31 5 Amp
Ta nIgnition, Climate
Control
14 F47 20 Amp
YellowDriver Power Win-
dow
7
MAINTAINING YOUR VEHICLE 335

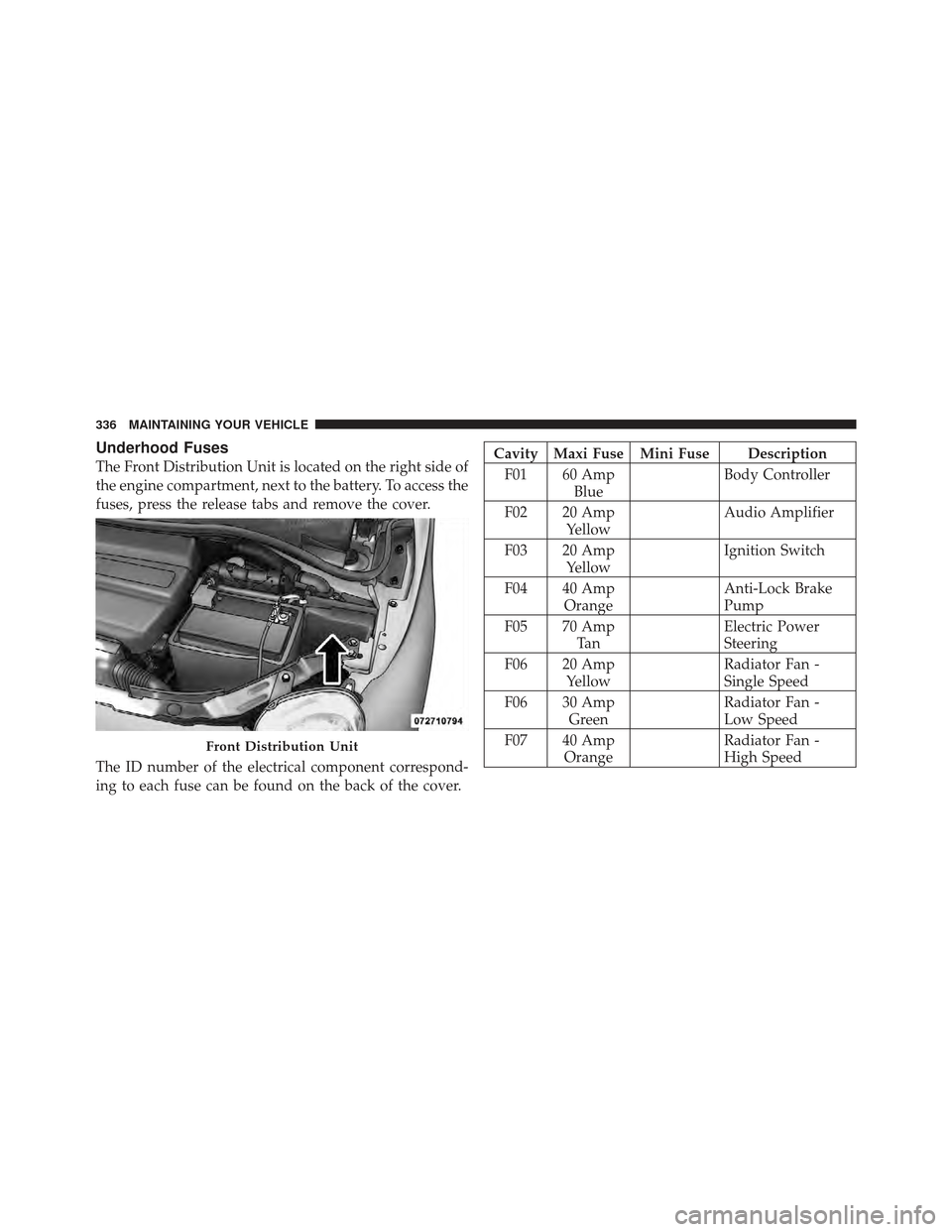

Underhood Fuses
The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, press the release tabs and remove the cover.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.Cavity Maxi Fuse Mini Fuse DescriptionF01 60 Amp Blue Body Controller
F02 20 Amp Yellow Audio Amplifier
F03 20 Amp Yellow Ignition Switch
F04 40 Amp Orange Anti-Lock Brake
Pump
F05 70 Amp Ta n Electric Power
Steering
F06 20 Amp Yellow Radiator Fan -
Single Speed
F06 30 Amp Green Radiator Fan -
Low Speed
F07 40 Amp Orange Radiator Fan -
High Speed
Front Distribution Unit
336 MAINTAINING YOUR VEHICLE

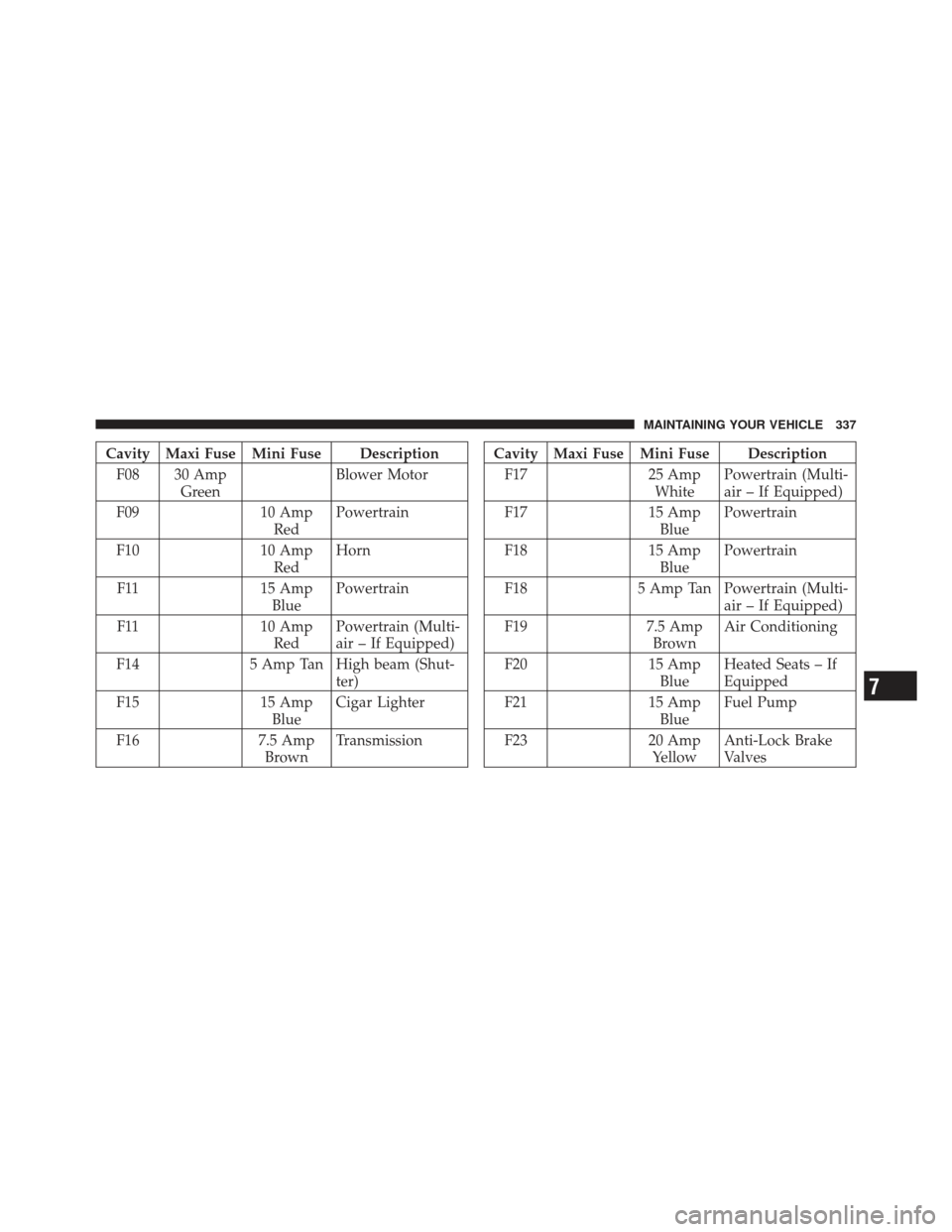

Cavity Maxi Fuse Mini Fuse DescriptionF08 30 Amp Green Blower Motor
F09 10 Amp RedPowertrain
F10 10 Amp RedHorn
F11 15 Amp BluePowertrain
F11 10 Amp
Red Powertrain (Multi-
air – If Equipped)
F14 5 Amp Tan High beam (Shut-
ter)
F15 15 Amp
Blue Cigar Lighter
F16 7.5 Amp
Brown TransmissionCavity Maxi Fuse Mini Fuse Description
F17 25 Amp
White Powertrain (Multi-
air – If Equipped)
F17 15 Amp
Blue Powertrain
F18 15 Amp
Blue Powertrain
F18 5 Amp Tan Powertrain (Multi-
air – If Equipped)
F19 7.5 Amp
Brown Air Conditioning
F20 15 Amp
Blue Heated Seats – If
Equipped
F21 15 Amp
Blue Fuel Pump
F23 20 Amp
Yellow Anti-Lock Brake
Valves
7
MAINTAINING YOUR VEHICLE 337

Cavity Maxi Fuse Mini Fuse DescriptionF24 7.5 Amp
Brown Stability Control
System
F30 15 Amp
Blue Fog Lamps
F82 30 Amp Green Sunroof/
Convertible Top
F84 10 Amp
Red Transmission
F85 15 Amp
Blue Rear Defroster,
Heated Mirrors
F87 5 Amp Tan Lights
F90 5 Amp Tan Heated MirrorsVEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
338 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
Interior LightsBulb Type
Overhead Lamp ........................ C5W
Courtesy Lamp ........................ W5W
Exterior Lights Bulb Type
Front Low and High Beam Headlamp .........HIR2
Front Parking/Daytime Running Lamps .....W21/5W
Front Fog Lamps ........................ H11
Front Side Marker Lamps ................. W3W
Front Turn Signal Lamps ................WY21W
Side Direction Lamps .................... W5W
Rear Turn Signal Lamps .................PY21W
Rear Side Marker Lamps .................. W3W
Rear Tail and Stop Lamps ..............P21W/5W
Rear Backup Lamps .................... W16W
Center High Mounted Stop Lamp ........... W5W
License Plate Lamps ...................... LED
(See Authorized Dealer) NOTE:
Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
Headlamps
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.
7
MAINTAINING YOUR VEHICLE 339

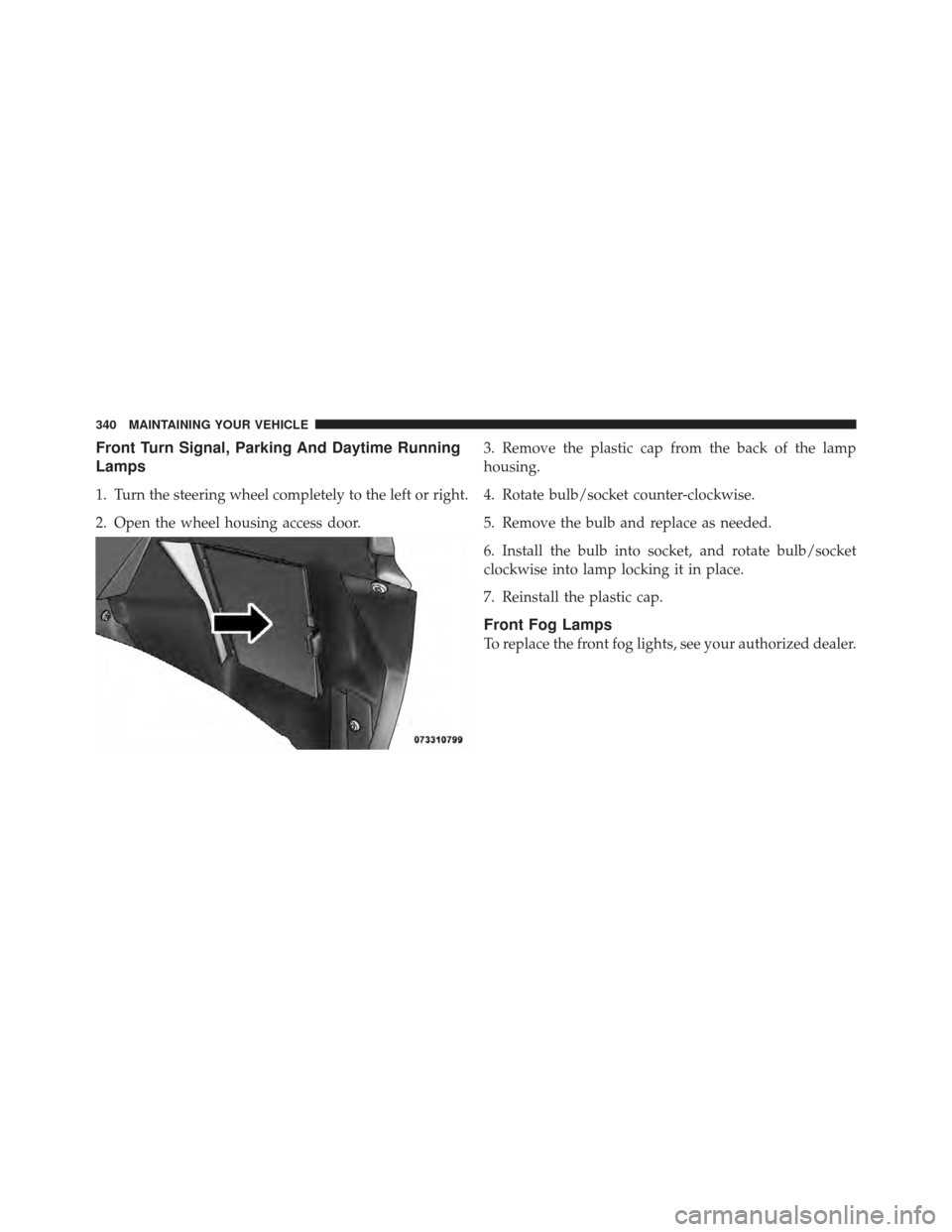

Front Turn Signal, Parking And Daytime Running
Lamps
1. Turn the steering wheel completely to the left or right.
2. Open the wheel housing access door.3. Remove the plastic cap from the back of the lamp
housing.
4. Rotate bulb/socket counter-clockwise.
5. Remove the bulb and replace as needed.
6. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.
7. Reinstall the plastic cap.
Front Fog Lamps
To replace the front fog lights, see your authorized dealer.
340 MAINTAINING YOUR VEHICLE

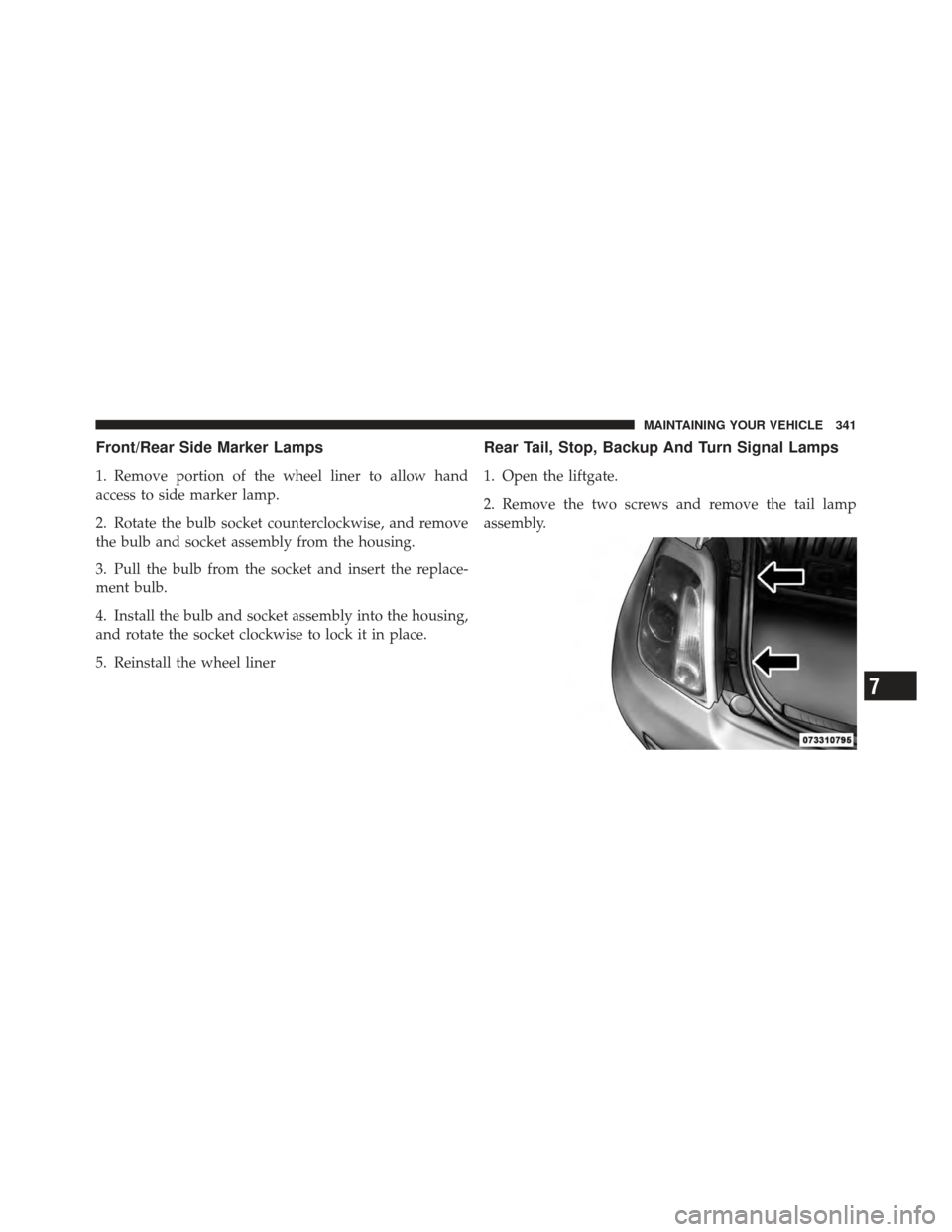

Front/Rear Side Marker Lamps
1. Remove portion of the wheel liner to allow hand
access to side marker lamp.
2. Rotate the bulb socket counterclockwise, and remove
the bulb and socket assembly from the housing.
3. Pull the bulb from the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the wheel liner
Rear Tail, Stop, Backup And Turn Signal Lamps
1. Open the liftgate.
2. Remove the two screws and remove the tail lamp
assembly.
7
MAINTAINING YOUR VEHICLE 341

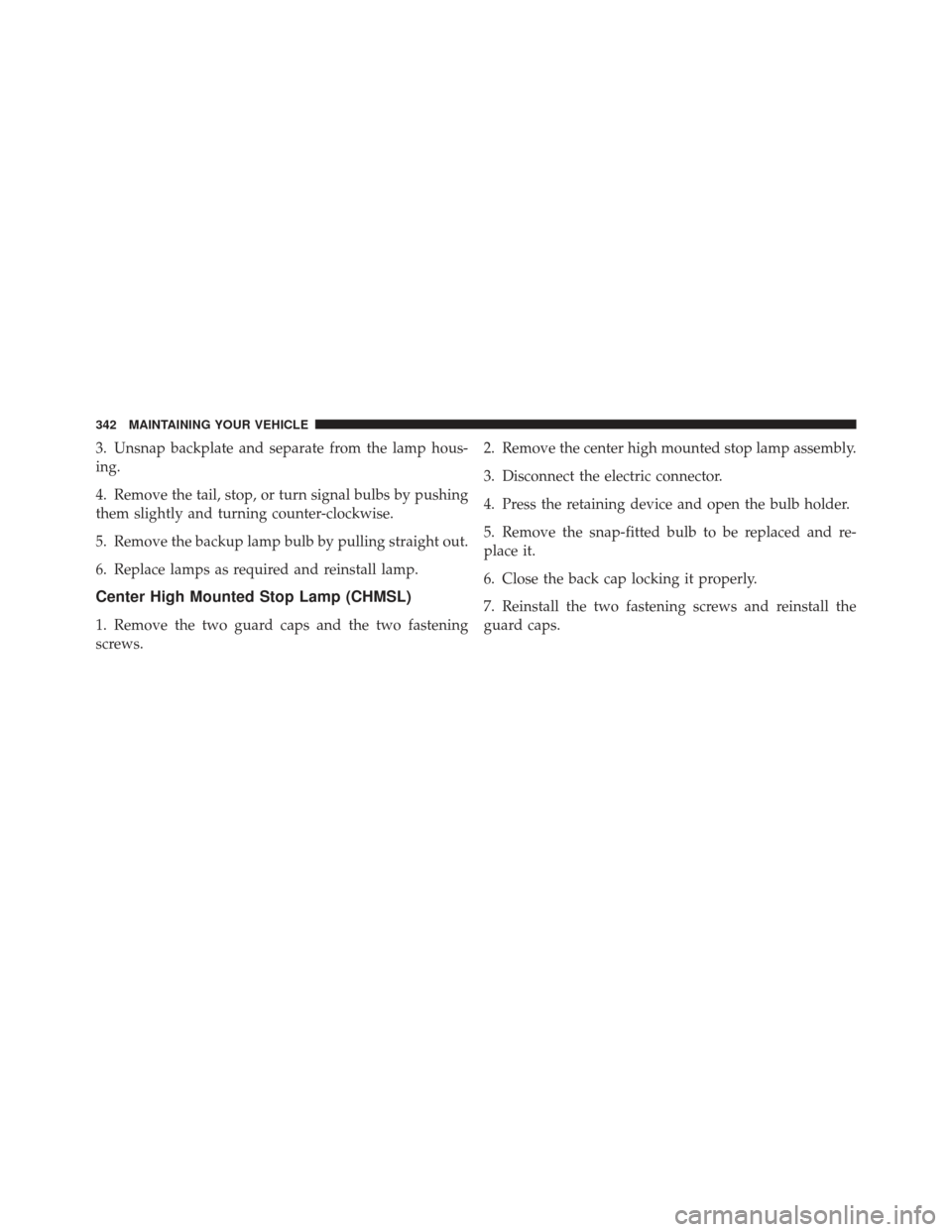

3. Unsnap backplate and separate from the lamp hous-
ing.
4. Remove the tail, stop, or turn signal bulbs by pushing
them slightly and turning counter-clockwise.
5. Remove the backup lamp bulb by pulling straight out.
6. Replace lamps as required and reinstall lamp.
Center High Mounted Stop Lamp (CHMSL)
1. Remove the two guard caps and the two fastening
screws.2. Remove the center high mounted stop lamp assembly.
3. Disconnect the electric connector.
4. Press the retaining device and open the bulb holder.
5. Remove the snap-fitted bulb to be replaced and re-
place it.
6. Close the back cap locking it properly.
7. Reinstall the two fastening screws and reinstall the
guard caps.
342 MAINTAINING YOUR VEHICLE
