3. Turn the ignition switch to the ON/RUN position
without starting the engine.
4. Press and maintain firm pressure on the brake pedal.
5. Using a small screwdriver or similar tool, push and
hold the override release lever in.6. Move the shift lever into the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever override access cover.
TOWING A DISABLED VEHICLE
With Ignition Key
Automatic Transmission
•
Vehicle can be towed with the front wheels elevated.
•Vehicle can be towed on a flatbed truck (all wheels off
the ground).
CAUTION!
DO NOT flat tow any vehicle equipped with an
automatic transmission. Damage to the drivetrain
will result.

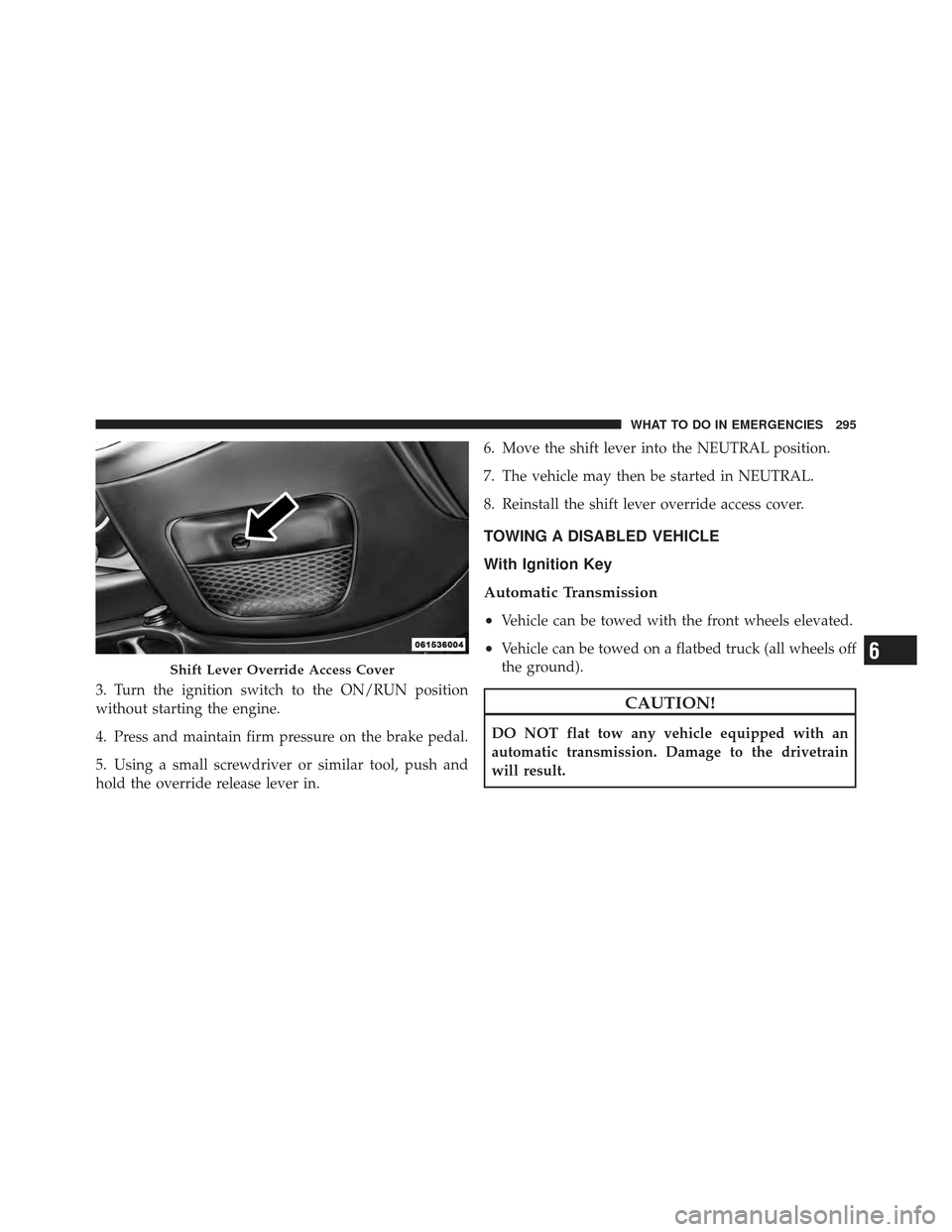

Shift Lever Override Access Cover6
WHAT TO DO IN EMERGENCIES 295

Manual Transmission
•
Vehicle can be flat towed (all four wheels on the
ground) with the transmission in NEUTRAL.
•Vehicle can be towed with the front wheels elevated.
•Vehicle can be towed on a flatbed truck (all wheels off
the ground).
All Transmissions
If it is necessary to use the accessories while being towed
(wipers, defrosters, etc.), the key must be in the ON/
RUN position. Make certain the transmission remains in
NEUTRAL.
CAUTION!
•If the vehicle being towed requires steering, the
ignition switch must be in the ON/RUN position.(Continued)
CAUTION! (Continued)
•Do not attempt to use sling-type equipment when
towing. When securing the vehicle to a flatbed
truck, do not attach to front or rear suspension
components. Damage to your vehicle may result
from improper towing.
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the OFF/LOCK position. A dolly
should be used under the front wheels if the rear wheels
are raised. Proper towing equipment is necessary to
prevent damage to the vehicle.
Battery power is required to release the brake/
transmission interlock system (automatic transmission
only). There is a removable plug in the right side of the
shift lever housing that allows you to insert your finger to
296 WHAT TO DO IN EMERGENCIES

override the system. The ignition key must be in the
ON/RUN position to use the override lever.
CAUTION!
Failure to follow these towing methods can cause
severe transmission damage. Such damage is not
covered by the New Vehicle Limited Warranty.
ENHANCED ACCIDENT RESPONSE SYSTEM
In the event of an impact causing airbag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlock the doors automatically.
After the event occurs, when the system is active, the
message Fuel Cutoff See Handbook is displayed.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com-
partment and fuel tank before resetting the system and
starting the engine.
System Reset Procedure
After an impact causing airbag deployment, the left and
right turn signal lights, located in the instrument panel
cluster, will both be blinking, until the ignition is turned
off.
In order to move your vehicle to the side of the road you
must follow the system reset procedure.
6
WHAT TO DO IN EMERGENCIES 297

Customer Action Customer Will See
1. Turn ignition OFF.
(Turn Signal Switch Must
be placed in Neutral
State).
2. Turn ignition ON. Left Turn Light is OFF. Right Turn Light BLINKS.
3. Turn Right Turn Signal
Switch ON. Right Turn Light is ON
SOLID. Left Turn Light
BLINKS.
4. Turn Left Turn Signal
Switch ON. Left Turn Light is ON
SOLID. Right Turn Light
BLINKS.
5. Turn Right Turn Signal
Switch ON. Right Turn Light is ON
SOLID. Left Turn Light
BLINKS.
6. Turn Left Turn Signal
Switch ON. Left Turn Light is ON
SOLID. Right Turn Light
is ON SOLID.7. Turn Left Turn Signal
Switch OFF. (Turn Signal
Switch Must be placed in
Neutral State).Left Turn Light is OFF.
Right Turn Light is OFF.
8. Turn ignition OFF. System is now reset and the engine may be
started.
9. Turn Hazard Flashers
OFF (Manually).
If a reset procedure step is not completed within 45 sec-
onds, then the turn signal lights will turn off and the reset
procedure must be performed again in order to be
successful.
298 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 1.4L ............. 301
 Onboard Diagnostic System – OBD II ....... 302
 Emissions Inspection And Maintenance
Programs ............................ 302
 Replacement Parts ..................... 304
 Dealer Service ........................ 304
 Maintenance Procedures ................. 305
▫ Engine Oil ......................... 306
▫ Engine Oil Filter ..................... 308 ▫
Engine Air Cleaner Filter ............... 308
▫ Maintenance-Free Battery .............. 309
▫ Air Conditioner Maintenance ............ 311
▫ Body Lubrication .................... 312
▫ Windshield Wiper Blades ............... 312
▫ Adding Washer Fluid ................. 314
▫ Exhaust System ..................... 315
▫ Cooling System ..................... 317
▫ Brake System ....................... 322
7

▫Manual Transmission – If Equipped ....... 325
▫ Automatic Transmission – If Equipped ..... 325
▫ Appearance Care And Protection From
Corrosion .......................... 326
▫ Convertible Top Care – If Equipped ....... 332
 Fuses .............................. 334
▫ Interior Fuses ....................... 334
▫ Underhood Fuses .................... 336
 Vehicle Storage ....................... 338
 Replacement Bulbs .................... 339
 Bulb Replacement ..................... 339
▫ Headlamps ........................ 339 ▫
Front Turn Signal, Parking And Daytime
Running Lamps ..................... 340
▫ Front Fog Lamps .................... 340
▫ Front/Rear Side Marker Lamps .......... 341
▫ Rear Tail, Stop, Backup And Turn Signal
Lamps ............................ 341
▫
Center High Mounted Stop Lamp (CHMSL). . 342
 Fluid Capacities ...................... 343
 Fluids, Lubricants, And Genuine Parts ....... 344
▫ Engine ............................ 344
▫ Chassis ........................... 345
300 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 1.4L
1 — Engine Coolant Reservoir5 — Battery
2 — Engine Oil Dipstick 6 — Air Cleaner Filter
3 — Brake Fluid Reservoir 7 — Engine Oil Fill
4 — Front Distribution Unit (Fuses) 8 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 301

ONBOARD DIAGNOSTIC SYSTEM – OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
302 MAINTAINING YOUR VEHICLE
