2012 FIAT 500 GUCCI Owners Manual

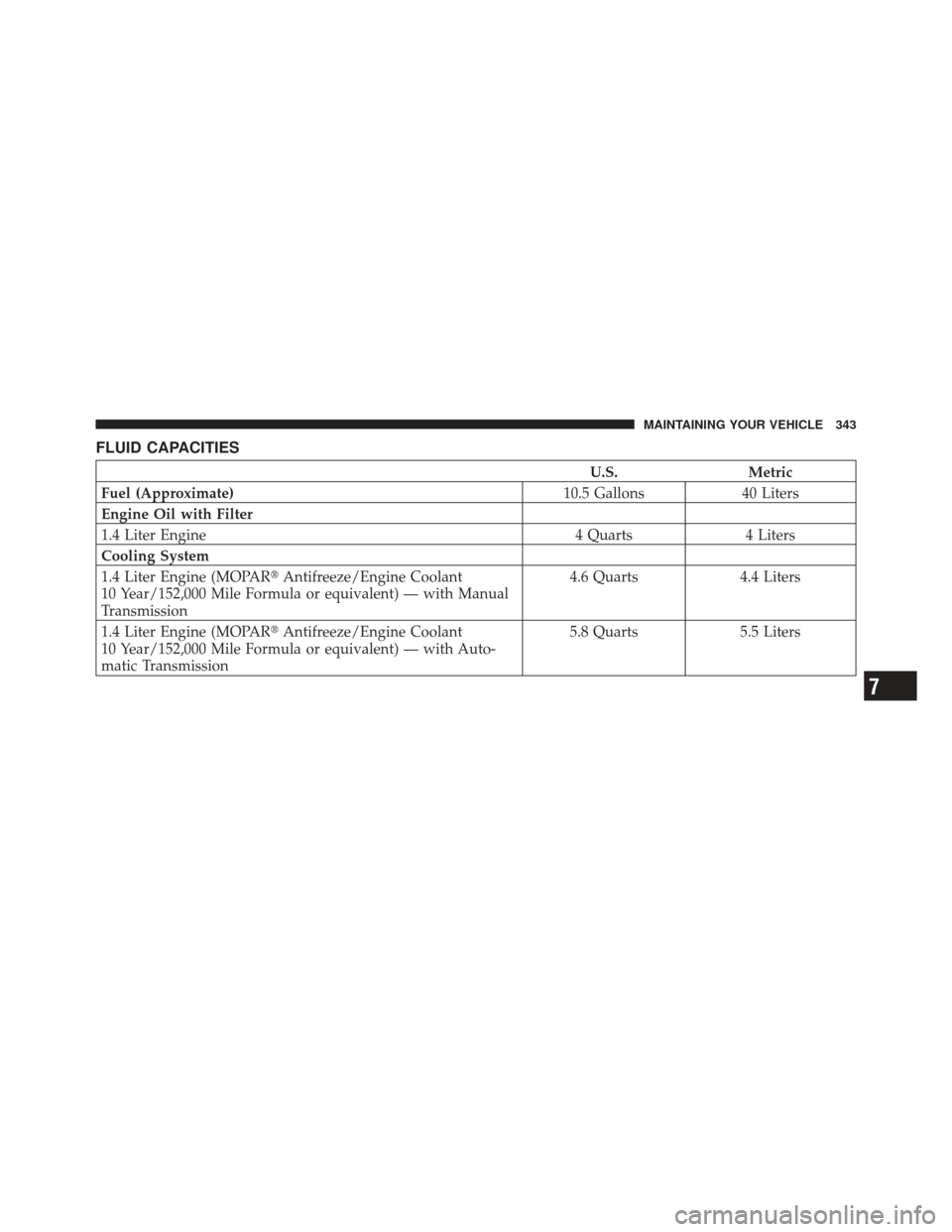

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 10.5 Gallons40 Liters
Engine Oil with Filter
1.4 Liter Engine 4 Quarts4 Liters
Cooling System
1.4 Liter Engine (MOPAR Antifreeze/Engine Coolant
10 Year/152,000 Mile Formula or equivalent) — with Manual
Transmission 4.6 Quarts
4.4 Liters
1.4 Liter Engine (MOPAR Antifreeze/Engine Coolant
10 Year/152,000 Mile Formula or equivalent) — with Auto-
matic Transmission 5.8 Quarts
5.5 Liters
7
MAINTAINING YOUR VEHICLE 343

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 10 Year/152,000 Mile Formula OAT (Or-
ganic Additive Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS-12106.
Engine Oil Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs DCPR7E-N-10 (Gap 0.040 in [1.02 mm])
Fuel Selection 87 Octane Acceptable — 91 Octane Recommended
344 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped MOPAR C635 DDCT/MTX Transmission Fluid
Automatic Transmission – If
Equipped MOPAR
AW-1 Transmission Fluid
Brake Master Cylinder MOPARDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.
7
MAINTAINING YOUR VEHICLE 345

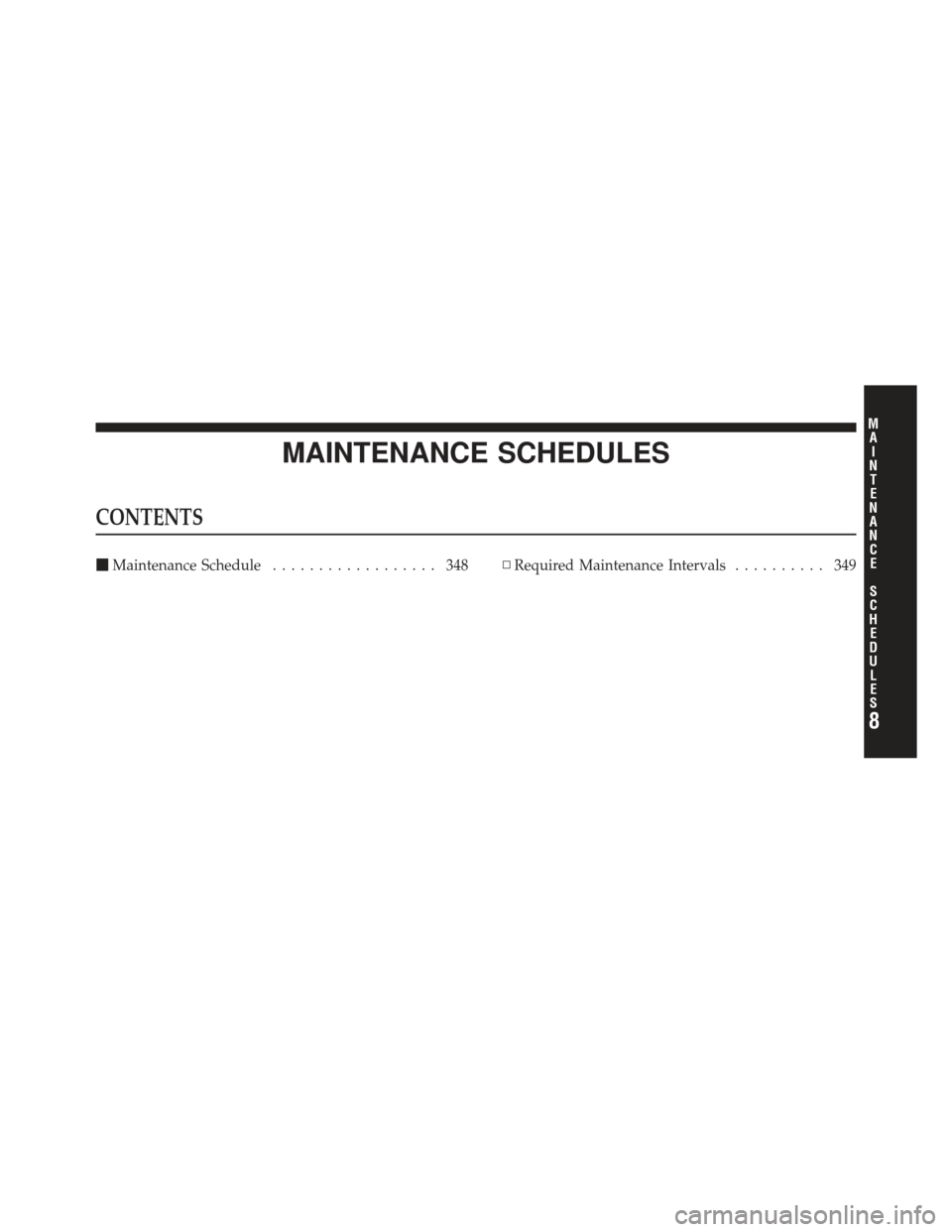

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 348 ▫Required Maintenance Intervals .......... 349
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

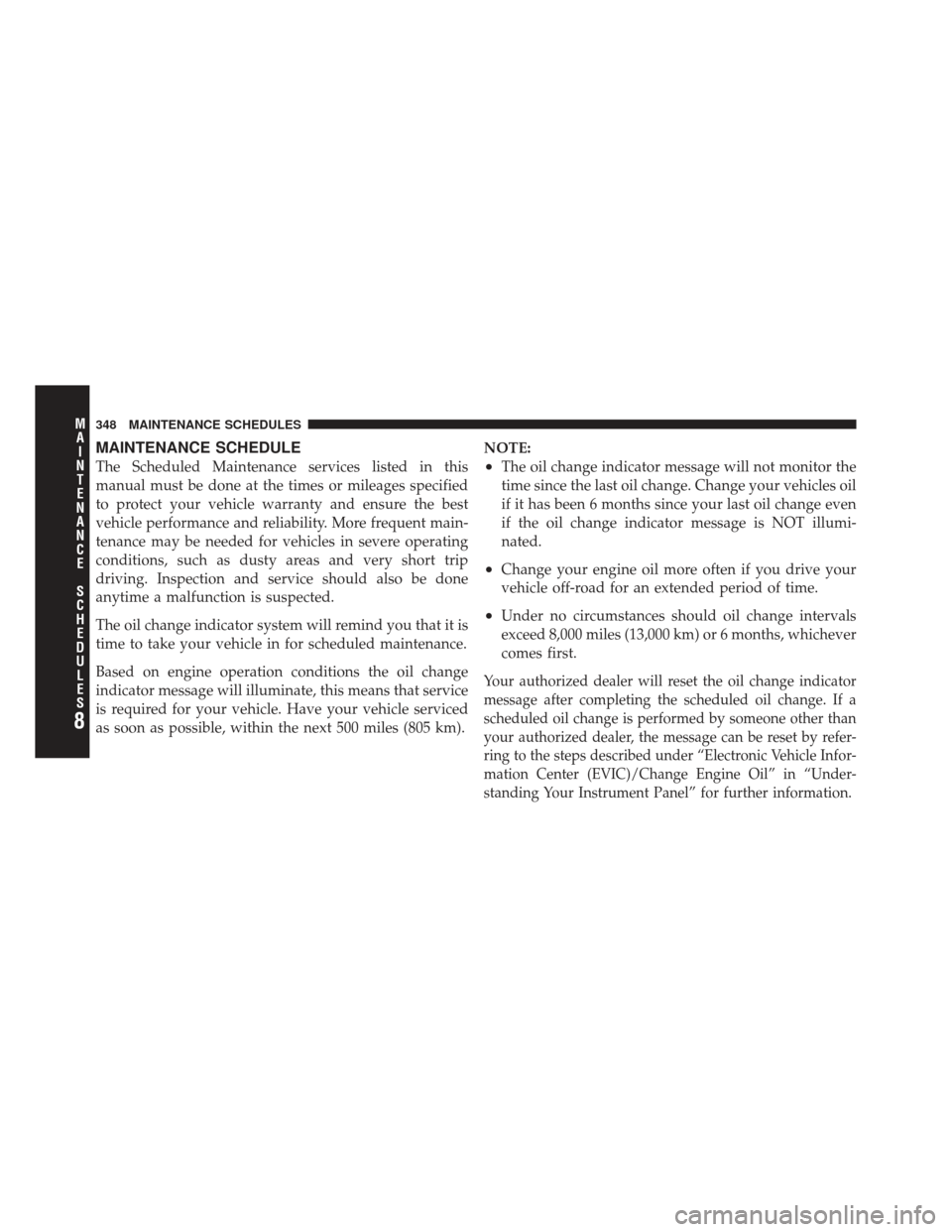

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).NOTE:•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil
if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or 6 months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by refer-
ring to the steps described under “Electronic Vehicle Infor-
mation Center (EVIC)/Change Engine Oil” in “Under-
standing Your Instrument Panel” for further information.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S348 MAINTENANCE SCHEDULES

At Each Stop For Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once A Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of the engine coolant reservoir
and brake master cylinder, and add as needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 349

8,000 Miles (13,000 km) or
6 Months Maintenance Service
Schedule
Included in the Maintenance Program
❏Change the engine oil and engine oil fil-
ter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
8,000 miles (13 000 km).
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
16,000 Miles (26,000 km) or 12 Months Maintenance Service
Schedule
Included in the Maintenance Program
❏Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
16,000 miles (26 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the en-
gine air cleaner filter; replace if necessary.
❏ Inspect exhaust system.
❏ Replace cabin filter.
❏ Clean and lube sun roof tracks.
❏ Inspect brake linings.
❏ Inspect CV joints.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S350 MAINTENANCE SCHEDULES
