2012 FIAT 500 GUCCI Owners Manual

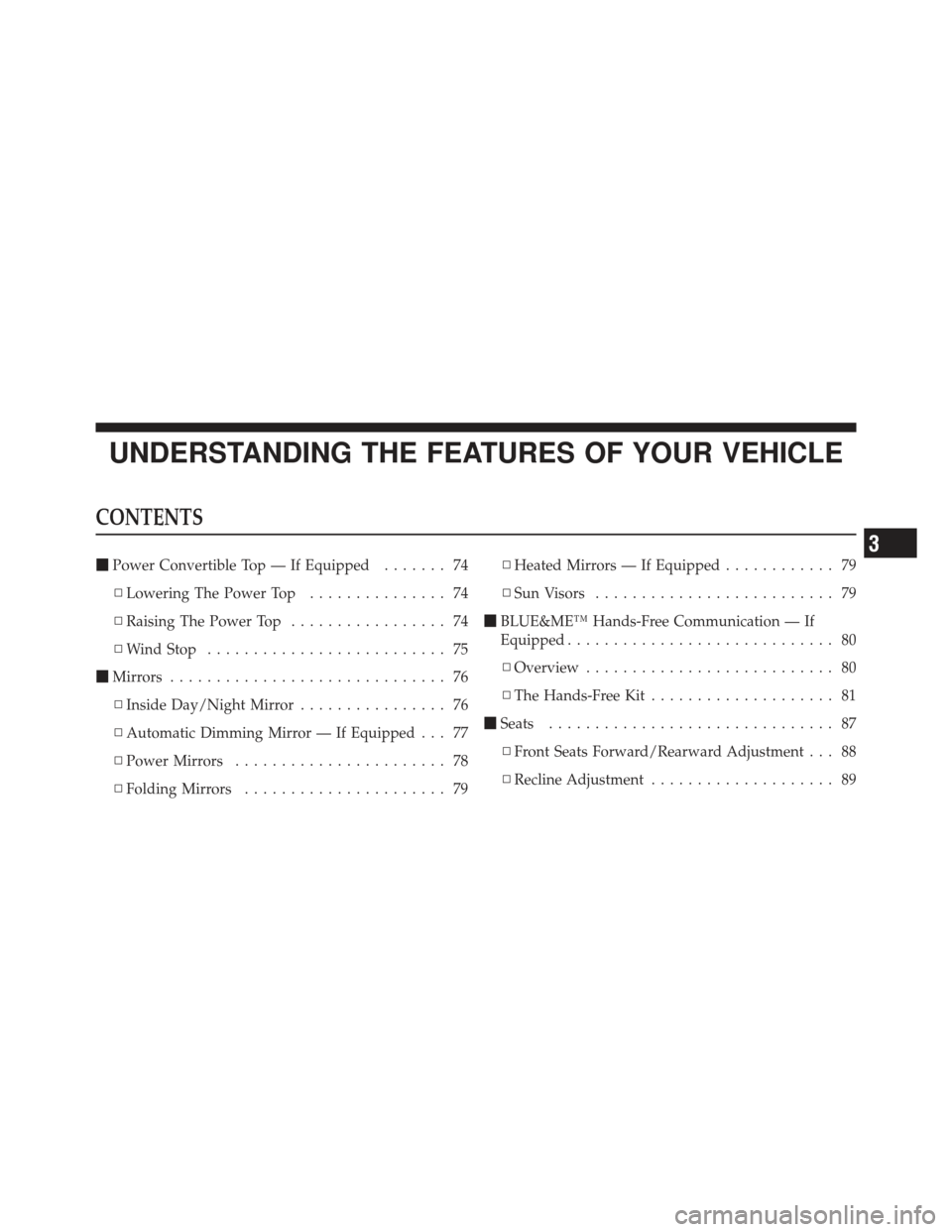

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Power Convertible Top — If Equipped ....... 74
▫ Lowering The Power Top ............... 74
▫ Raising The Power Top ................. 74
▫ Wind Stop .......................... 75
 Mirrors .............................. 76
▫ Inside Day/Night Mirror ................ 76
▫ Automatic Dimming Mirror — If Equipped . . . 77
▫ Power Mirrors ....................... 78
▫ Folding Mirrors ...................... 79 ▫
Heated Mirrors — If Equipped ............ 79
▫ Sun Visors .......................... 79
 BLUE&ME™ Hands-Free Communication — If
Equipped ............................. 80
▫ Overview ........................... 80
▫ The Hands-Free Kit .................... 81
 Seats ............................... 87
▫ Front Seats Forward/Rearward Adjustment . . . 88
▫ Recline Adjustment .................... 89
3

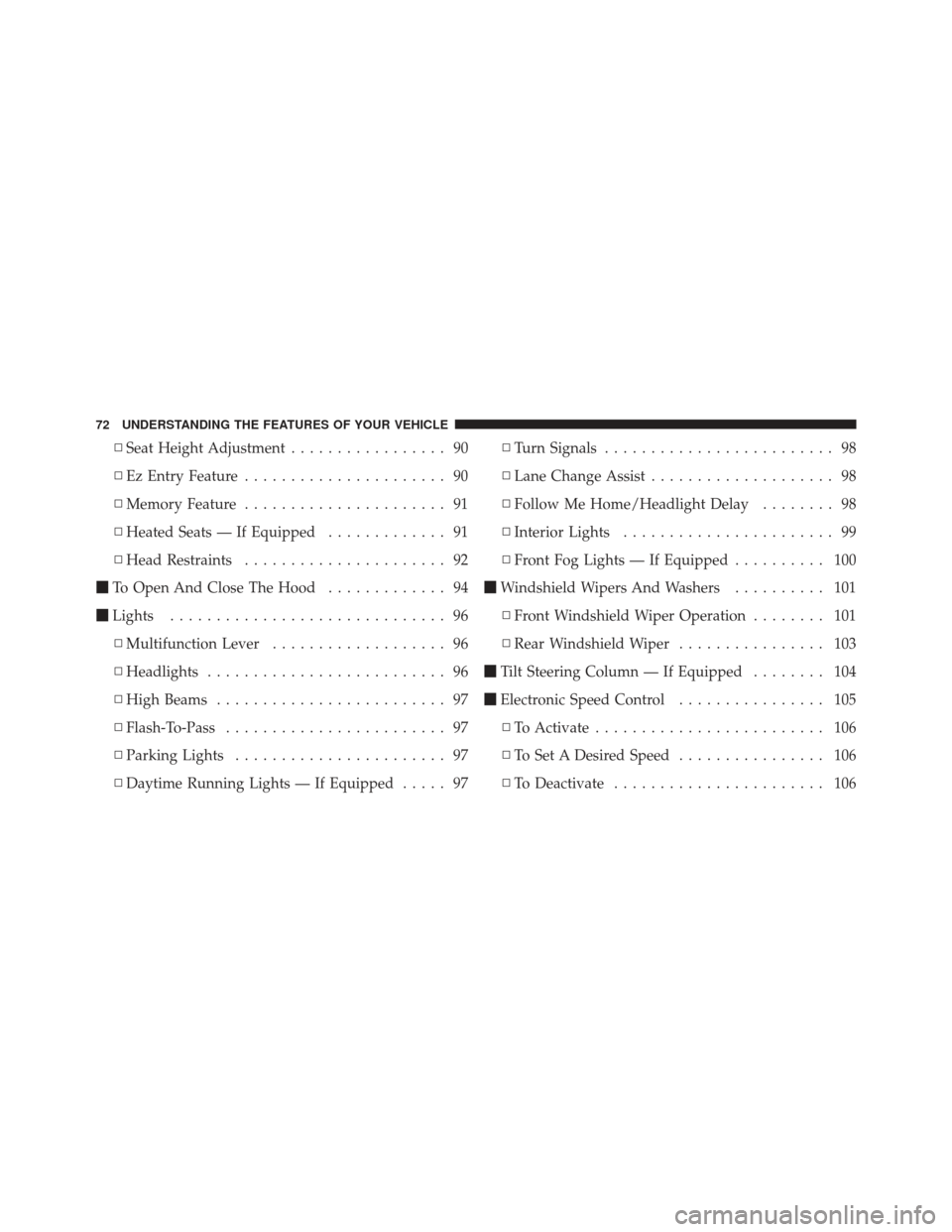

▫Seat Height Adjustment ................. 90
▫ Ez Entry Feature ...................... 90
▫ Memory Feature ...................... 91
▫ Heated Seats — If Equipped ............. 91
▫ Head Restraints ...................... 92
 To Open And Close The Hood ............. 94
 Lights .............................. 96
▫ Multifunction Lever ................... 96
▫ Headlights .......................... 96
▫ High Beams ......................... 97
▫ Flash-To-Pass ........................ 97
▫ Parking Lights ....................... 97
▫ Daytime Running Lights — If Equipped ..... 97▫
Turn Signals ......................... 98
▫ Lane Change Assist .................... 98
▫ Follow Me Home/Headlight Delay ........ 98
▫ Interior Lights ....................... 99
▫ Front Fog Lights — If Equipped .......... 100
 Windshield Wipers And Washers .......... 101
▫ Front Windshield Wiper Operation ........ 101
▫ Rear Windshield Wiper ................ 103
 Tilt Steering Column — If Equipped ........ 104
 Electronic Speed Control ................ 105
▫ To Activate ......................... 106
▫ To Set A Desired Speed ................ 106
▫ To Deactivate ....................... 106
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫To Resume Speed .................... 107
▫ To Vary The Speed Setting .............. 107
▫ To Accelerate For Passing .............. 107
 Rear Park Assist — If Equipped ........... 108
▫ Rear Park Assist Sensors ............... 109
▫ Rear Park Assist Alerts ................ 109
▫ Failure Indications ....................111
▫ Cleaning The Rear Park Assist System ......111
▫ Park Assist System Usage Precautions ......111
 Power Sunroof — If Equipped ............ 114
▫ To Open ........................... 115
▫ To Close ........................... 115
▫ Pinch Protect Override ................ 115 ▫
Wind Buffeting ...................... 115
▫ Emergency Operation ................. 116
▫ Sun Shade — If Equipped .............. 116
 Electrical Power Outlets ................. 117
 Cigar Lighter — If Equipped ............. 119
 Cupholders .......................... 120
 Storage ............................. 121
▫ Glove Box Compartment ............... 121
▫ Passenger Seat Storage — If Equipped ..... 121
 Cargo Area Features ................... 122
 Rear Window Features .................. 123
▫ Rear Window Defroster ................ 123
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73

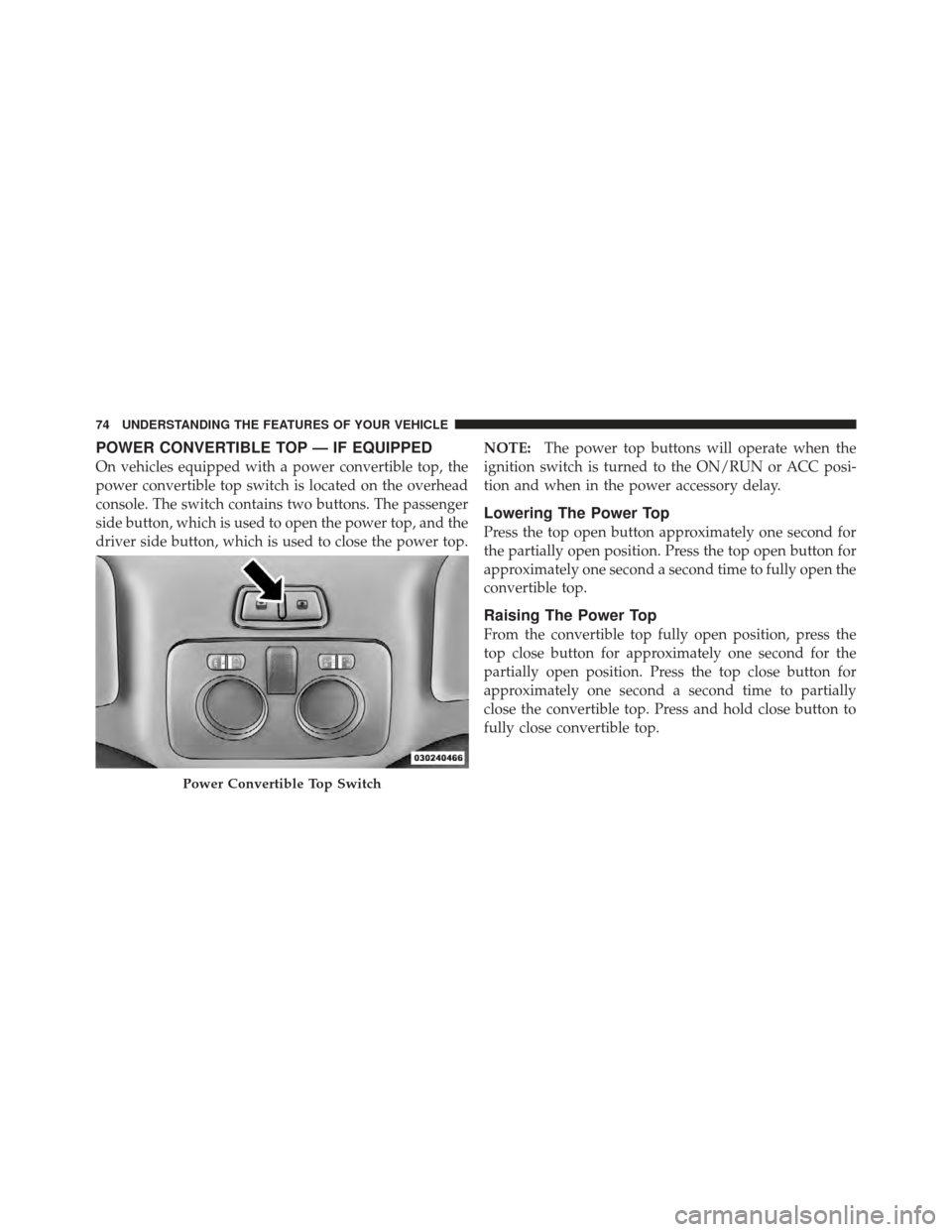

POWER CONVERTIBLE TOP — IF EQUIPPED
On vehicles equipped with a power convertible top, the
power convertible top switch is located on the overhead
console. The switch contains two buttons. The passenger
side button, which is used to open the power top, and the
driver side button, which is used to close the power top.NOTE:
The power top buttons will operate when the
ignition switch is turned to the ON/RUN or ACC posi-
tion and when in the power accessory delay.
Lowering The Power Top
Press the top open button approximately one second for
the partially open position. Press the top open button for
approximately one second a second time to fully open the
convertible top.
Raising The Power Top
From the convertible top fully open position, press the
top close button for approximately one second for the
partially open position. Press the top close button for
approximately one second a second time to partially
close the convertible top. Press and hold close button to
fully close convertible top.
Power Convertible Top Switch
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

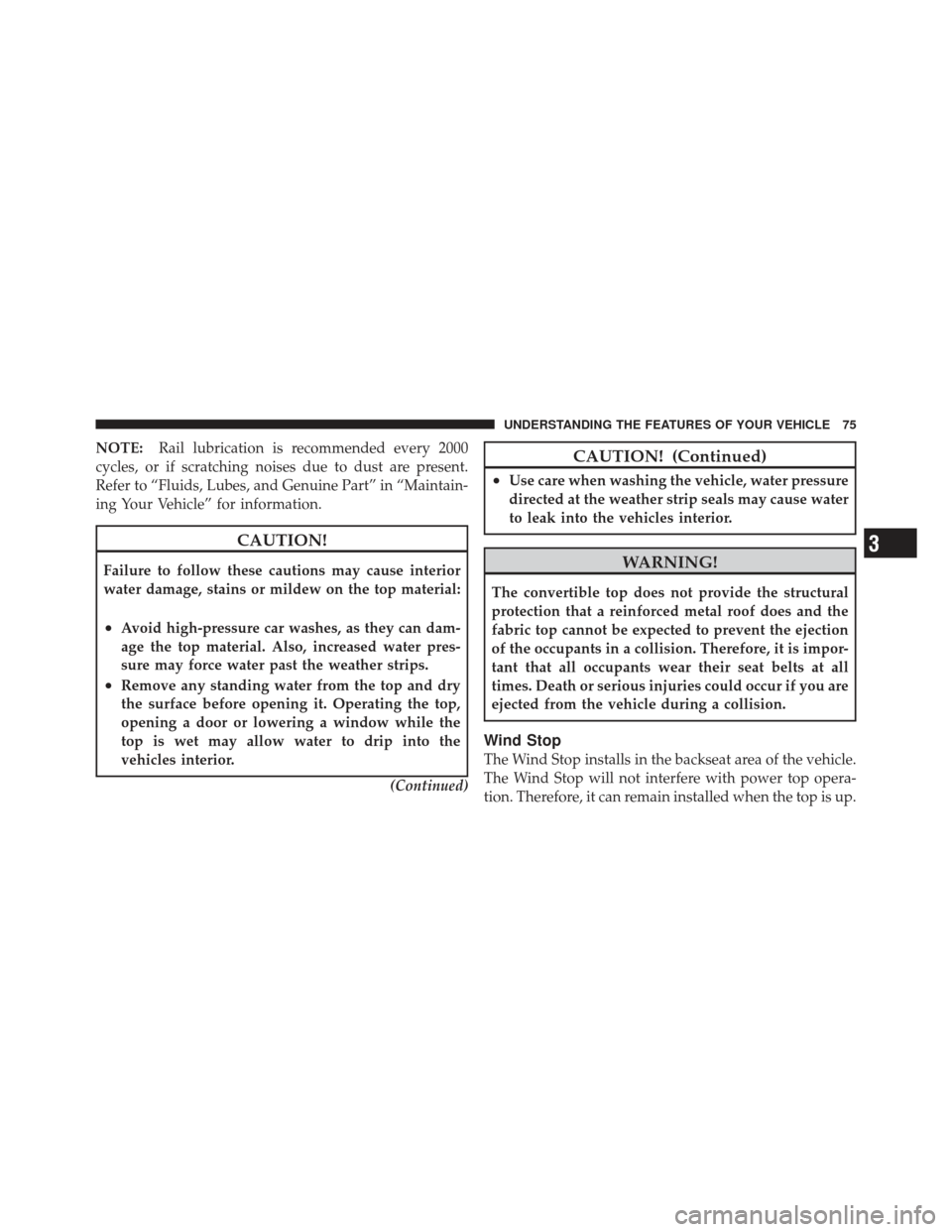

NOTE:Rail lubrication is recommended every 2000
cycles, or if scratching noises due to dust are present.
Refer to “Fluids, Lubes, and Genuine Part” in “Maintain-
ing Your Vehicle” for information.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pres-
sure may force water past the weather strips.
•Remove any standing water from the top and dry
the surface before opening it. Operating the top,
opening a door or lowering a window while the
top is wet may allow water to drip into the
vehicles interior.
(Continued)
CAUTION! (Continued)
•Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicles interior.
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
of the occupants in a collision. Therefore, it is impor-
tant that all occupants wear their seat belts at all
times. Death or serious injuries could occur if you are
ejected from the vehicle during a collision.
Wind Stop
The Wind Stop installs in the backseat area of the vehicle.
The Wind Stop will not interfere with power top opera-
tion. Therefore, it can remain installed when the top is up.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75

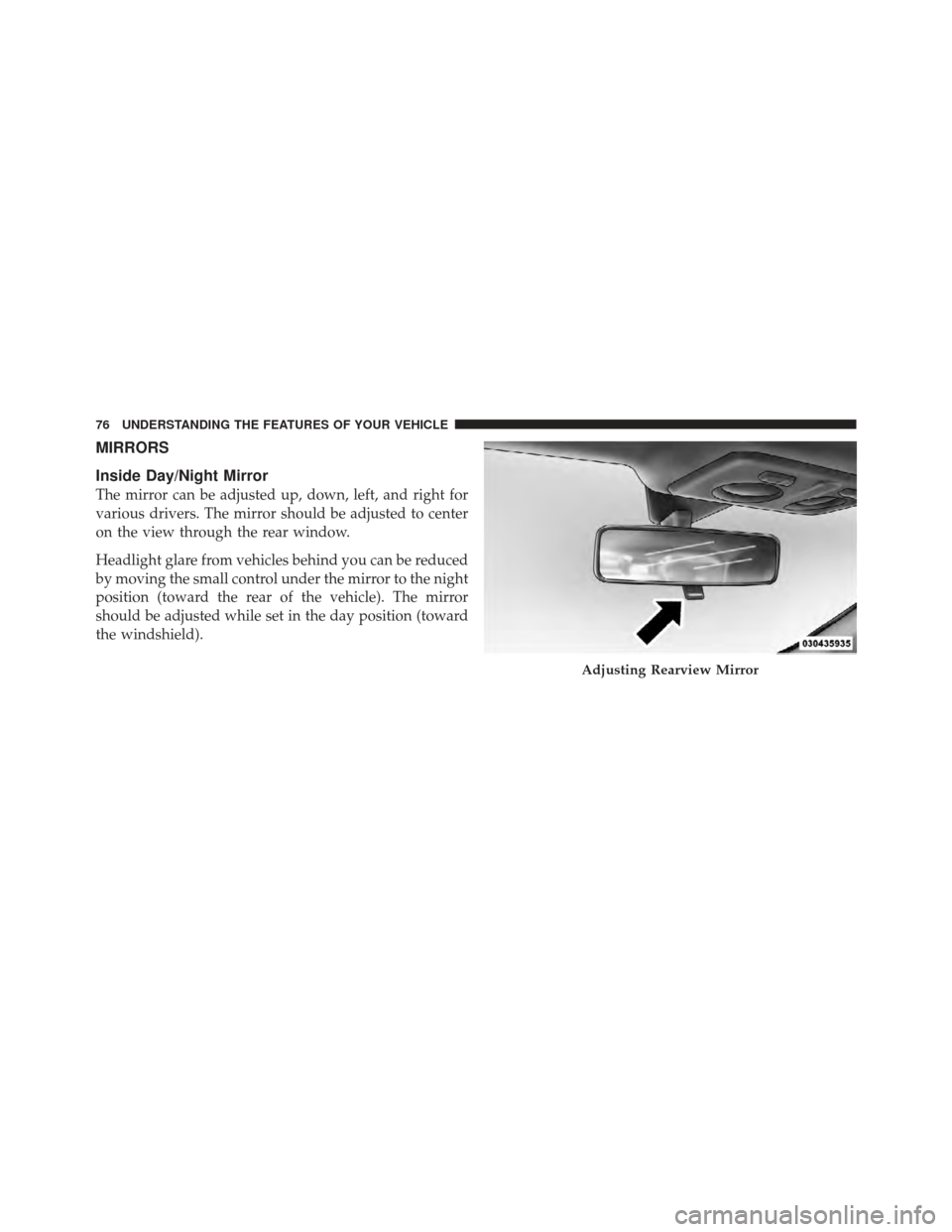

MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).
Adjusting Rearview Mirror
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77

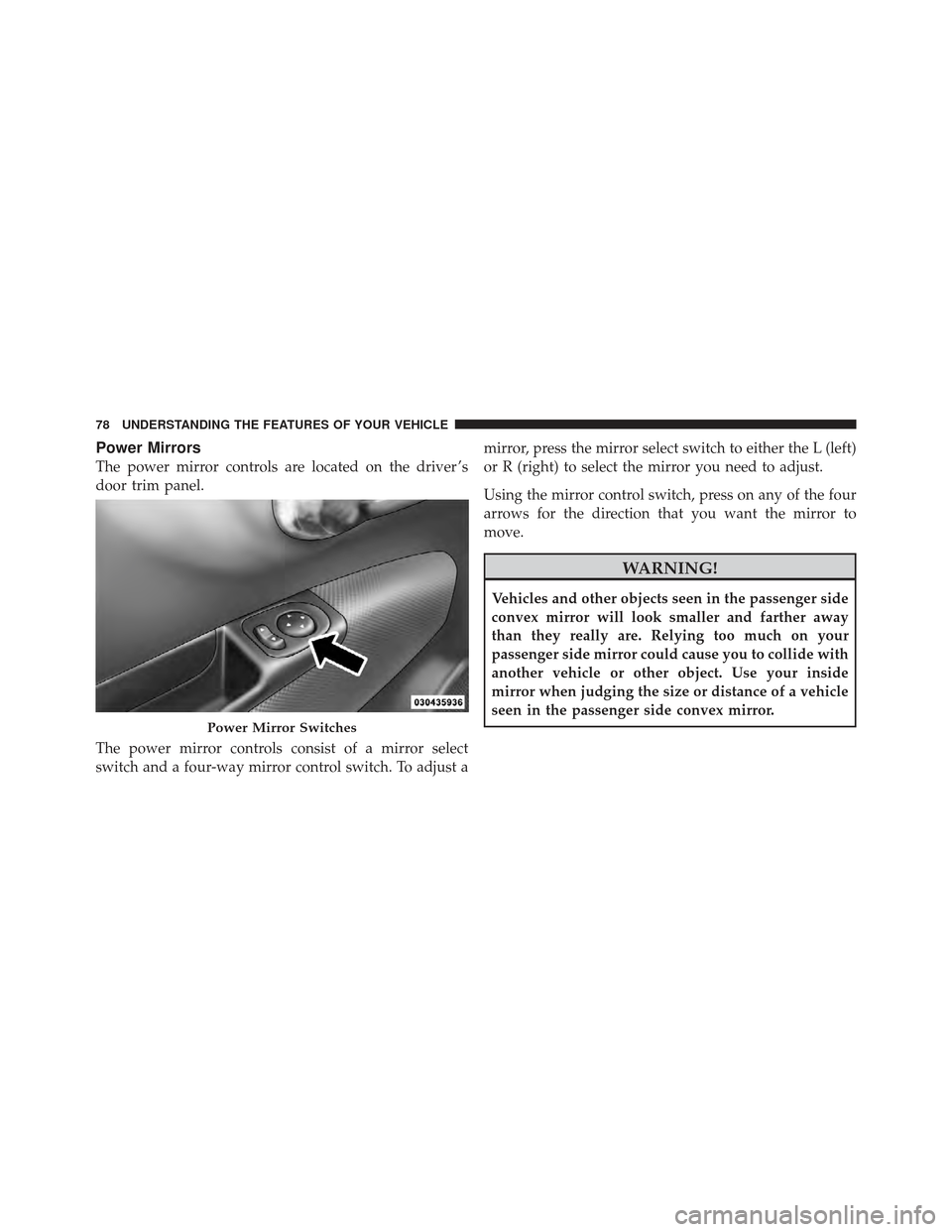

Power Mirrors
The power mirror controls are located on the driver ’s
door trim panel.
The power mirror controls consist of a mirror select
switch and a four-way mirror control switch. To adjust amirror, press the mirror select switch to either the L (left)
or R (right) to select the mirror you need to adjust.
Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side convex mirror.
Power Mirror Switches
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
