300 MAINTAINING YOUR VEHICLE

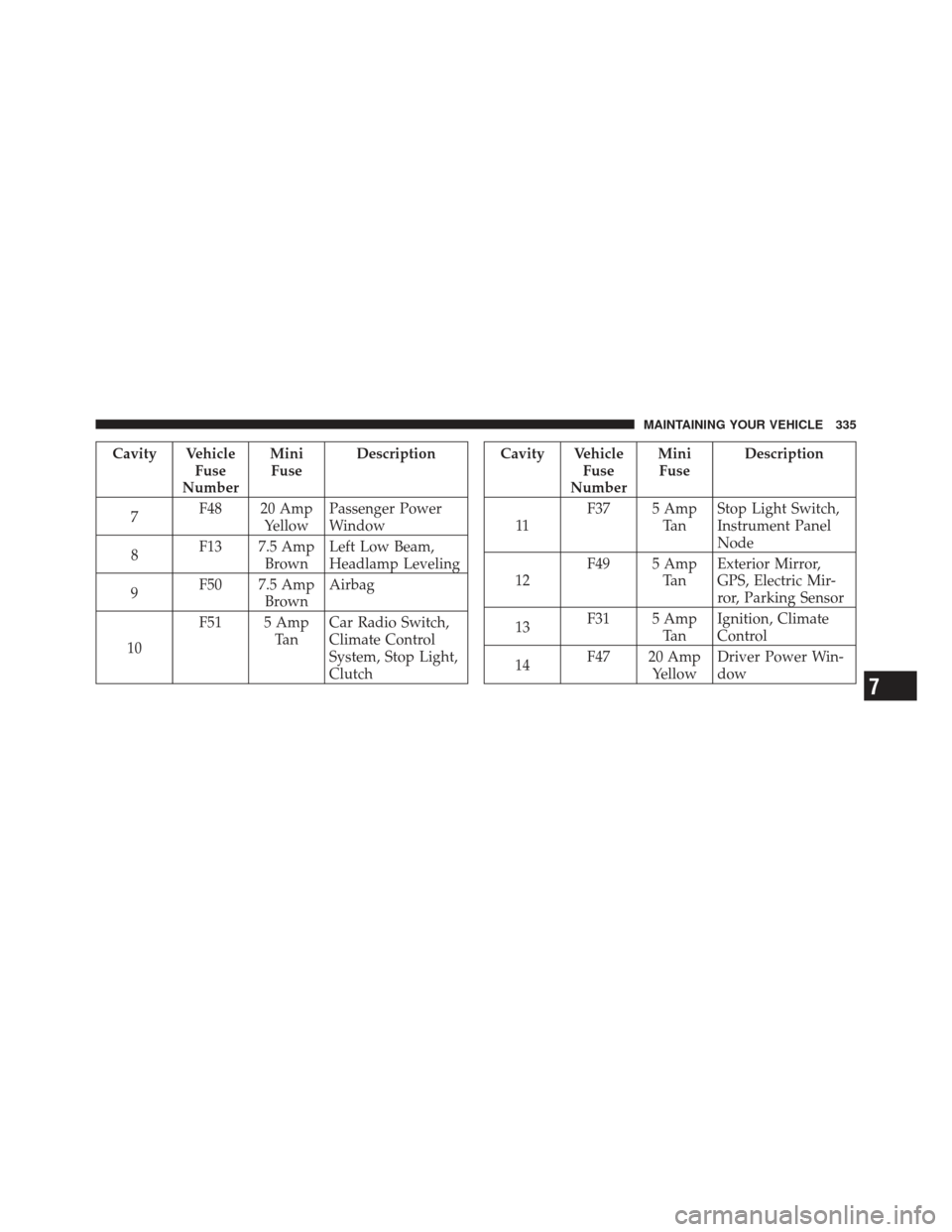

Cavity VehicleFuse
Number Mini
Fuse Description
7 F48 20 Amp
YellowPassenger Power
Window
8 F13 7.5 Amp
BrownLeft Low Beam,
Headlamp Leveling
9 F50 7.5 Amp
BrownAirbag
10 F51 5 Amp
Ta nCar Radio Switch,
Climate Control
System, Stop Light,
ClutchCavity Vehicle
Fuse
Number Mini
Fuse Description
11 F37 5 Amp
Ta nStop Light Switch,
Instrument Panel
Node
12 F49 5 Amp
Ta nExterior Mirror,
GPS, Electric Mir-
ror, Parking Sensor
13 F31 5 Amp
Ta nIgnition, Climate
Control
14 F47 20 Amp
YellowDriver Power Win-
dow
7
MAINTAINING YOUR VEHICLE 335

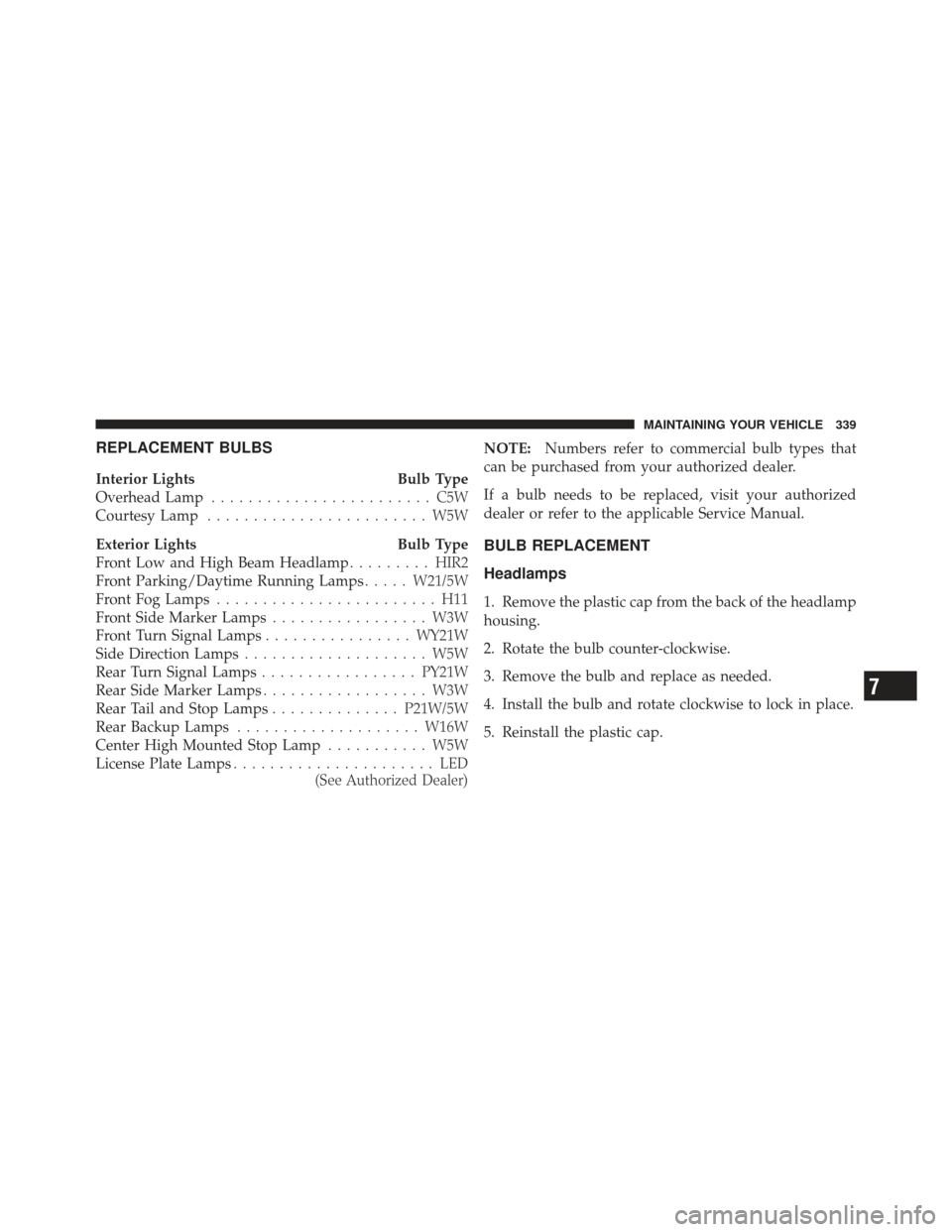

REPLACEMENT BULBS
Interior LightsBulb Type
Overhead Lamp ........................ C5W
Courtesy Lamp ........................ W5W
Exterior Lights Bulb Type
Front Low and High Beam Headlamp .........HIR2
Front Parking/Daytime Running Lamps .....W21/5W
Front Fog Lamps ........................ H11
Front Side Marker Lamps ................. W3W
Front Turn Signal Lamps ................WY21W
Side Direction Lamps .................... W5W
Rear Turn Signal Lamps .................PY21W
Rear Side Marker Lamps .................. W3W
Rear Tail and Stop Lamps ..............P21W/5W
Rear Backup Lamps .................... W16W
Center High Mounted Stop Lamp ........... W5W
License Plate Lamps ...................... LED
(See Authorized Dealer) NOTE:
Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
Headlamps
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.
7
MAINTAINING YOUR VEHICLE 339
