2012 AUDI Q7 ESP

.. Make sure that each of the two guidance fix ­
tures per seat snaps into p lace.
Rem oving the guidance fi xture s
.. Remove the child restrai nt according the
child restra int manufacturer's instruct ions .
.. Push down on the seat cushion so that the
lower anchorages are visib le .
.. Pull
off the guida nee fix t u res from the low­
er anchorages.
.,. Always remove the guidance fixtures and
keep them in a safe place when not in use.
You may find it easier to install child re­
straints equipped with hooks attached to
straps without the guidance f ixtures in place.
If this is the case, remove the guidance fix­
tures by pull ing them
off the anchorages .
H owever, the guidance fixtures can he lp you
to locate the
LATCH anchorages.
_& WARNING
Improper use of tether anchorages or low­
er anchorages can cause serious personal
injury in a crash .
- Always carefully follow the ch ild re­
straint manufacturer 's instruct ions for
proper installation and use of child re­
straint systems.
- Never use the
LATCH or tether anchorag ­
es to attach safety belts o r other kinds of
occupant restraints .
- Child restraint tether attachments and
lower attachments are only designed to
secure a child restraint that has been equipped to use these anchorages.
- Tether anchorages and lower anchorages
are designed to withstand only those
loads imposed by correctly fitted chi ld
restraints. Under no circumsta nces can
they be used safely for adu lt or chi ld
safety belts o r harnesses .
- Never mount more than one ch ild re­
st raint to a sing le tether or to a lower an­
cho rage point. Attach ing two ch ild re­
st raints to a single anchorage point can
ca use the anchorage to fail and cause se­
rious persona l injury in a crash .
Child Safety 215
(D Note
-Remove the g uidance fixtures before
folding the rear seatback to prevent damaging the seat cushion .
- If you leave the guidance f ixtures instal­
led for several days , they could leave a
mark on the upholstery on the seat cush­
ion and backrest in the area that the
guidance fixtures were installed . The up ­
holstery would also be permanently
st retched a round the guidance fixtures.
T hi s app lies especia lly to leather seats.
Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always
follow the child restraint manufacturer's in ­
structions.
F ig. 213 Lowe r anc horages : prope r mount ing
Mountin g
.. Make sure the seatback of the rear seat
bench is in t he upright position and securely
latched in place .
.. Attach both hook-on co nnectors with the
spring catch release on the child safety seat
onto the LATCH lower anchorage so that the
connecto rs lock into place
~ fig. 213.
.. Pull on the connector attachments to make
sure they are properly attached to the LATCH
lower ancho rage .
.. Pull straps tight fo llowing the child re­
straint manufacturer's instructions.
Relea sing
.. Loosen the tension on the straps following
the child restraint manufact urer's instruc ­
tions .

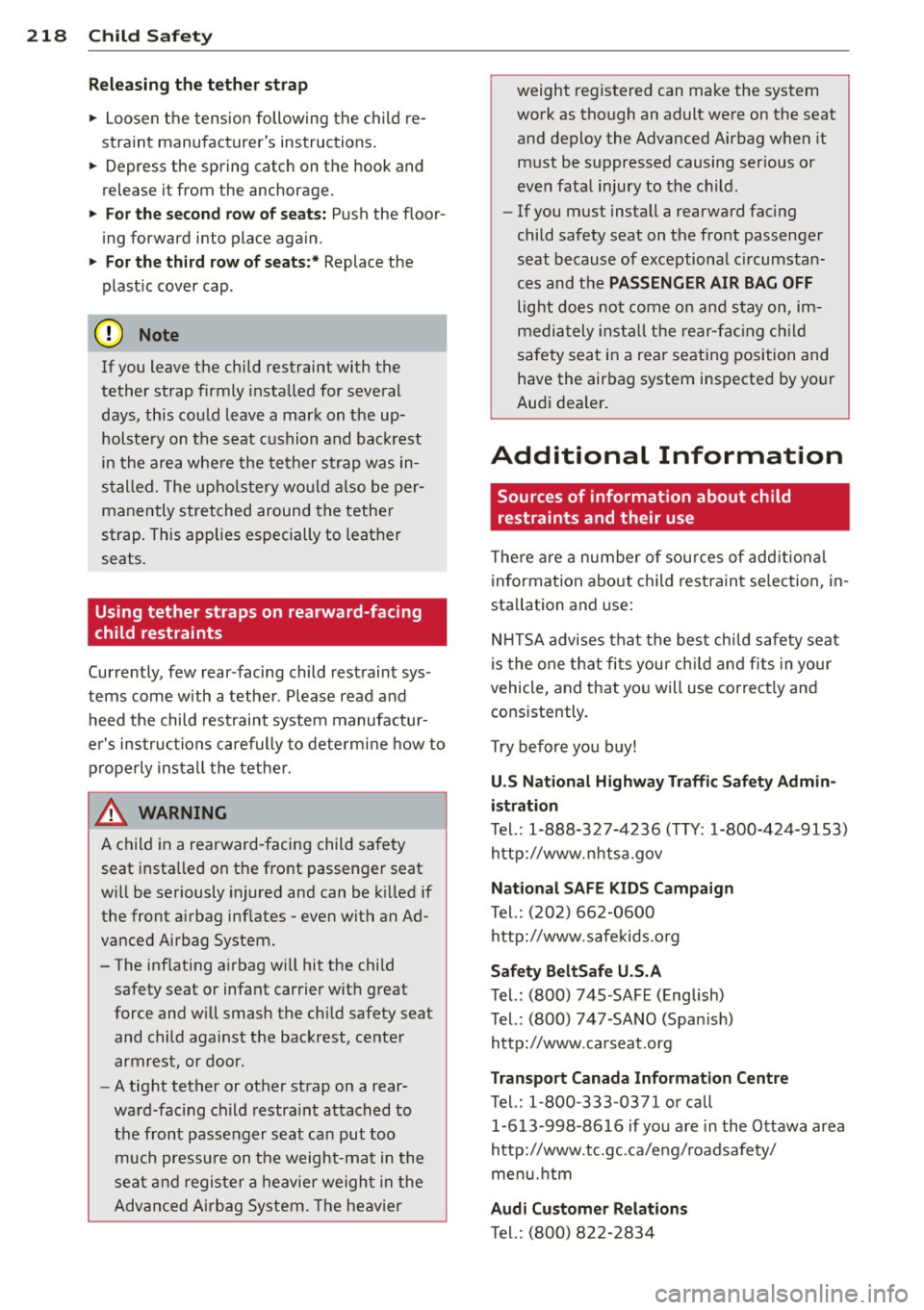

218 Child Safety
Releasing the tether strap
.. Loosen the tension following the child re­
straint manufacturer's instructions.
.. Depress the spring catch on the hook and
release it from the anchorage.
.. For the second row of seats: Push the floor­
ing forward into place again.
.. For the third row of seats:* Replace the
plastic cover cap .
(D Note
If you leave the child restraint with the
tether strap firmly installed for several
days, this could leave a mark on the up­
holstery on the seat cushion and backrest
in the area where the tether strap was in­
stalled. The upholstery would also be per­
manently stretched around the tether
strap. This applies especially to leather
seats.
Using tether straps on rearward-facing
child restraints
Currently , few rear -facing child restraint sys­
tems come with a tether . Please read and
heed the child restraint system manufactur­
er's instructions carefully to determine how to
properly install the tether.
& WARNING
A child in a rearward-facing child safety
seat installed on the front passenger seat
will be seriously injured and can be killed if
the front airbag inflates - even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child safety seat or infant carrier with great
force and will smash the child safety seat and child against the backrest, center
armrest, or door .
- A tight tether or other strap on a rear­
ward-facing child restraint attached to
the front passenger seat can put too much pressure on the weight-mat in the
seat and register a heavier weight in the
Advanced Airbag System. The heavier weight
registered can make the system
work as though an adult were on the seat
and deploy the Advanced Airbag when it
must be suppressed causing serious or
even fatal injury to the child.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
Audi dealer.
Additional Information
Sources of information about child
restraints and their use
There are a number of sources of additional
information about child restraint selection, in­
stallation and use:
NHTSA advises that the best child safety seat
is the one that fits your child and fits in your
vehicle, and that you will use correctly and
consistently.
Try before you buy!
U.S National Highway Traffic Safety Admin­
istration
Tel.: 1-888-327-4236 (TIY: 1-800-424-9153)
http://www.nhtsa.gov
National SAFE KIDS Campaign
Tel.: (202) 662-0600
http://www.safekids .org
Safety BeltSafe U.S.A
Tel.: (800) 7 45 -SAFE (Eng Lish)
Tel.: (800) 747-SANO (Spanish)
http://www.carseat.org
Transport Canada Information Centre
Tel.: 1-800 -333-0371 or call
1-613-998-8616 if you are in the Ottawa area
http://www.tc.gc.ca/eng/roadsafety/
menu.htm
Audi Customer Relations
Tel.: (800) 822-2834

Intelligent technology Notice about data
recorded by vehicle
control modules
Your vehicle is not equipped with an Event Da­
ta Recorder (EDR), installed by some manu­
facturers for the express purpose of capturing
data for retrieval after an accident or crash
event. EDRs are sometimes called "crash re­
corders".
Some state laws restrict the retr ieval or down­
loading of data stored by EDRs that were in­
stalled in a vehicle for the express purpose of
retrieving data after an accident or crash
event without the owner's consent.
Although your vehicle is not equipped with an
EDR, it is equipped with a number of electron­
ic control modules for various vehicle systems
such as, for example, engine function, emis­
sion control, as well as for the airbags and
safety belts.
These electronic control modules also record
vehicle-related data during norma l vehicle op­
eration for diagnostic and repair purposes.
The recording capacity of the electronic con­
trol modules is limited to data (no sound is re­
corded) and only a small amount of data is ac­
tually recorded over a very limited period of
time and stored when a system fault or other
condition is sensed by a control unit. Some of
the data then stored may relate to vehicle
speed, direction, braking as we ll as restraint
system use and performance in the event of a
crash or other condition. Stored data can only be read and downloaded with special equip­
ment.
Intelligent technology 219
Electronic Stability
Control (ESC)
General information
The ESC improves the vehicle stability.
. ..---------..
------- -
Fig. 218 Center console with ESC sw itch
ESC is designed to help you maintain vehicle
control in situations where the car approaches
the limits of "grip", especially when accelerat­
ing and cornering. ESC reduces the risk of
skidding and improves stability under all road
condit ions .
The system operates across the entire speed range in combination with the ABS system. If
the Anti-Lock Brake System (ABS) malfunc­
tions, the ESC will also shut down.
How the system works
The Anti-Lock Brake System (ABS), Electronic
Differential Lock (EDL) and the Anti-Slip Regu­
lation System (ASR) are integrated in the Elec­
tronic Stability Control. In addition to the da­
ta provided by these functions, the ESC con­
trol unit requires additional measurement da­
ta provided by high performance sensors. The
rotational speed of the vehicle about its verti­
cal axis, vehicle acceleration in the fore-and­
aft and lateral directions, the brake pressure and the steering angle are all measured.
T he direction in wh ich the driver wishes to
travel is determined with the aid of the steer­
ing angle and vehicle speed and is continually
compared with the actua l behavior of the ve­
hicle. If the two do not match, for example,
when the vehicle starts hydroplaning on a wet
road, ESC will automatically brake the appro-
priate wheel to correct the problem. ..,_
•
•

-Before descending a steep grade, reduce
speed and shift transmiss ion into a lower
gear or lower driving range. Do not ride
the brakes or hold the pedal down too
long or too often. This could cause the
brakes to get hot and dimin ish braking
efficiency.
- Do not "r ide the brakes" by resting your
foot on the pedal when you do not intend
to bra ke. Th is may cause the brakes to
overheat, prema ture wear and increased
stopping distance .
- Under certain climat ic and operating
condit ions such as passing through wa­
ter, driving in heavy rain or after washing
the vehicle, the effectiveness of the
brakes can be reduced . In winter, ice can
accumulate on the brake pads, linings,
discs and drums. Carefully apply brakes
for a test . Brakes will dry and ice coat­
ings will be cleaned off after a few care­
ful brake applications.
- Driv ing for an extended period of time on
salt-covered roads w ithout us ing your
brakes can also affect braking efficiency .
Clean off accumulated salt coating from
brake discs and pads w ith a few caref ul
brake applicat ions.
- If you damage the front spoiler, or if you
install a different spoiler, be sure the air
flow to the front brakes is not obstruct ­
ed. Otherwise the brake system co uld
overheat reducing the effectiveness of
the entire brake system.
- Failure of one brake circuit will impair
the braking capability resulting in an in­
creased stopp ing distance. Avoid driv ing
the vehicle and have it towed to the near­
est author ized Audi dealer or qualified
workshop .
Brake booster
The brake booster adds extra braking power.
The brake booster works with vacuum pres­
sure which is created only when the engine is
running¢ &,.
Int ellig ent technolog y 223
A WARNING
-Never let the veh icle roll to a stop with
the engine shut off .
- If the brake booster is not working, for
example when towing your vehicle, or because the brake booster has somehow
been damaged, the brake pedal must be
pressed considerably harder to make up
for the la ck of booster assistance .
Functioning of Anti-Lock Brake System
(ABS)
ABS prevents the wheels from locking up un­
der braking.
T he ABS contributes effect ively to vehicle con­
trol s ince it preve nts the whee ls from
locking
when the brakes are applied. This means that
the vehicle remains steerable and is less likely
to skid .
With ABS y ou do not nee d to pump the
bra ke. Just h old t he br ake ped al d own .
However, do not expect the ABS to shorten
braking distance under
all circumstances.
When dr iving on g ravel or on new ly fallen
snow o n top of icy s urfaces, braking dis tance
may be even longer, therefore, under these
circumstances, it is especia lly important that
you drive s low ly and wit h great care.
How the ABS s ystem works
An a utomat ic check is made when a speed of
about 12 mph (20 km/h) is reached . When
th is happens, a pumping noise can be heard.
If an ind iv idual whee l begi ns to rotate too
s low ly in relation to vehicle speed and tends
to lock, the ABS automatically reduces brake
pressure to prevent tha t whee l from locking .
T his automatic adjustment p rocess will cause
a
sli ght vibrati on of the brake pedal and some
no ises to a le rt you that ve hicle speed m ust be
adapted to existing road and traffic condi ­
tions. •
•

224 Intellig ent technol ogy
8_ WARNING
Although the ABS is very effective, always
remember that bra king capability is limit­
ed by t ire traction . Always adjust your dr iv­
ing spee d according to the road and t raffic
co nditions. Do no t let t he extra sa fety af­
forded by the ABS tempt you into ta king
extra risks. The ABS cannot overcome the
laws of physics.
@ Tips
- If ABS is not functioning prope rly, a
warning light will come on. See
¢page 18 .
-If a fault occurs in the ABS, the EDL is al­
so not functioning. This is indicated by
the ABS warning light .
Brake assistant
The brake assistant is designed to achieve the
optimum braking effect .
The brake assistant helps to increase the ef­
fective b rak ing power and thus to achieve a
shorter stopp ing distance. If the driver
presses the brake pedal very quickly, the brake
assistant automatica lly boosts the braking
force to the maximum level, up to the point where the anti-lock brake function (ABS) inter­
venes to stop the wheels from locking. You
should then keep the brake pedal pressed un­
til the veh icle has braked to the required
speed . The brake assistant sw itches itself off
as soo n as you re lease the brake pedal.
Automatic full braking a ssist
This funct ion allows full brak ing in spite of
h igh brake pedal forces (e .g . when the brakes
a re severely stressed because the vehicle is
fully loaded) . The driver notices th is function
throug h a reduction of pedal force and in­
creased pedal trave l. When the brake peda l is
r e leased, fu ll braking assis t switc hes off again
automatically.
I f the re is an ABS fa il ur e, the brake ass ista nt
and automatic full b rak ing ass ist are not avai l­
ab le . The brake assistant wi
ll not be operative if
there is a ma lfunction in the ABS .
8_ WARNING
-Please remember that the accident risk a l-
ways increases if you drive too fast, espe­
cially in corners or on a slippery road, or if
you follow the veh icle ahead of you too
closely. Increased r isk of an accident can­
not be compensated for even by the brake
assistant, so always maintain a safe speed.
Servotronic ® -
advanced power
steering system
The power steering systems uses the power of
the running engine to allow precise steering
with little effort.
The advanced Servotronic ® power steering
system senses the road speed and electron i­
cally adjusts power assistance to provide com­
fortab le and safe steering response exact ly
matched to the vehicle speed .
Power steer ing will not work if the engine is
off . As a result, the steering wheel will be hard
to turn .
The power steering fluid level is checked dur­
ing the scheduled maintenance services .
d) Note
If there is an electronic malfunction, ser­
votronic
will still function like a conven­
tiona l powe r steering system, providing a
constant steering support force that is no
l onger proportionate to the vehicle speed .
This is most not iceable when turning the
stee ring wheel at low speeds (fo r example
when pa rking), - more effort w ill be re­
q uired than us ua l.
- Be aware o f the different than usual
steering response and adjust your steer ­
ing force accordingly.
- Have the problem checked and set r ight
by an Audi dealer as soon as possible .

With the engine running
Although electrical energy is generated when
the vehicle is being driven, the battery can be­
come discharged. This happens most ly when
litt le energy is being generated and a great
deal consumed and the battery's state of
charge is not optimal.
To bring the energy balance back into equili­
brium, consumers which require especia lly
large amounts of energy are temporarily cut
back or switched off. Heating systems in par­
ticular requ ire a great deal of energy. If you
notice, for example, that the heated seats* or
the heated rear window are not heating, they h ave been temporar ily cut back or switched
off. These systems will be available again as
soon as the energy ba lance has been restored.
You will also notice that engine idle speed has
been increased slightly. This is normal and not
a cause for concern . By increasing engine idle
speed the additional energy required is gener­
ated and the battery is charged .
Driver notification in the instrument
cluster display
If battery power drops into the range where it
can limit the ab ility of the engine to start, th is
is shown in the instrument cluster display
with the following driver message:
(•i Low battery charge: battery will be
charged while driving
This notification reminds you that the starting
capability of the engine may be limited. As
soon as you start driving again, the battery
will be recharged and the notification will go
out.
Driver notification appears and goes out
again
If th is driver notification appears after the ig­
nition is turned on or while driving and it goes
out again after a wh ile, the battery has been
adequately recharged.
Intelligent technology 22 7
Driver notification appears and does not
go out again
If this driver notification appears after the ig­
nition is turned on or whi le driving and does
not go out again, the battery's state of charge
is not in the optimal range. Starting ab ility is
restricted . Have the battery checked as soon
as possible by an authorized Aud i dealer or
qualified workshop.
•
•

230 Driving and en vironm ent
- Do not apply an underbody protectant in
the exhaust system area or a fire could
start.
Avoid damaging the
vehicle
When you are driving on poor roads, or over
curbs, steep ramps, etc., make certain that
l ow-lying parts such as spoi lers and exhaust
system parts do not bottom out and get dam­
aged.
This is especially true for vehicles with low­
slung chassis (sports chassis)* and fully load­
ed veh icles .
Operate your vehicle
economically and
minimize pollution
General
Your personal style of driving will determine
the economy of your vehicle, as well as ex­
haust and noise levels.
Fuel economy, environmental impact, and
wear on your engine, brakes and tires largely
depend on three factors:
- your persona l driving style
- operating conditions
- technical lim itations
If you anticipate what you need to do next and
drive economically, you can easily cut your
fuel consumption by 10-15 percent. This sec­
tion will give you some t ips on how you can
help the environment and your pocketbook .
(D Tips
The consumption estimates as published
by ENVIRONMENTAL PROTECTION AGENCY
(EPA) and Transport Canada may not corre­
spond to your actual consumption on the
road, wh ich will vary depending upon vehi­
cle load and speed, road and weather con­
ditions, tr ip length, etc.
Drive smoothly and keep a lookout
ahead
Vehicles use the most fuel when they are ac­
celerating.
.,. Avo id unnecessary accelerating and braking.
Vehicles use the most fuel when they are ac­
ce lerating . If you anticipate what is going to
happen next, you will need to brake less and,
thus, accelerate less. Let the vehicle coast
whenever possible -for examp le when you see
that the next traff ic light is red.
Avoid full throttle
Driving at moderate speeds saves fuel and
improves your mileage.
.,. Try and keep well below your car's maxi -
mum speed .
Accelerating gently reduces fue l consump­
tion, engine wear, and does not disturb the environment.
Fuel consumpt ion, exhaust emissions and en­
gine noise increase disproportionately at high
speeds. If you drive at approximately three
quarters of top speed, fuel consumption will
be reduced by one half. Never drive faster
than the posted speed limit and weather con­ ditions perm it.
Reducing unnecessary idling
Even when your car is just idling it burns up
fuel.
.,. Shut the engine off when you are not d riv­
ing the vehicle .
.,. Do not warm up the vehicle by letting the
eng ine run at idle.
It makes sense to shut off the engine in traffic
jams, when wa it ing for tra ins to pass at rail­
road crossings, o r at traffic lights that have
long waits on red. Turning the engine
off for
just 30-40 seconds saves more fuel than is
burned starting the engine again .
IJII>

It takes a long time for the engine to warm up
fu lly when it is running at idle. However , wear
and nox ious em issions are especially high
when the engine is warming up. So you should drive away as soon as you start the engine and
avoid running at high rpms while the engine is
still warming up .
(D Note
Do not leave engine idling unattended af­
ter starting . If warning lights should come
on to indicate improper operation, they
wou ld go unheeded. Extended idling also
p roduces heat, which cou ld resu lt i n over­
heating or other damage to the vehicle or
other property.
Regular maintenance
A badly tuned engine unnecessarily wastes a lot of fuel.
"' Have your vehicle serv iced at regular inter-
vals.
By having your vehicle regularly serviced by an
author ized Audi dealer helps to ensure that it
r uns p roper ly and economically. The condition
of your vehicle not only affects its safety and
ab ility to hold its value, it also affects
fuel
c on sumpt ion .
Ch eck your oil each tim e yo u fill your tank .
The amount of oil used is related to engine
load and speed .
It is normal for the oil consumption of a new
engine to reach its lowest v alue after a certain
mileage has been dr iven .
You must drive your vehicle about 3,000 miles (S,000 ki lometers) before you can properly
assess o il consumption .
This a lso applies to fuel consumption and en­
gin e output.
0 Note
- Have yo ur vehicle maintained properly
and in accordance wit h the service rec­
ommendations in your War ranty
& Main-
Dri vin g and en vironm ent 231
tenance book let. Lack of proper mainte­
nance as well as improper use of the ve ­
hicle will impair the function of the
em ission contro l system and could lead
to damage.
- Do not alter or remove any component of the Emission Control System unless ap­proved by the manufacturer.
- Do not alter or remove any device, such as heat shie lds, switches, ign ition w ires,
valves, which are designed to protect
your vehicle's Emission Control System and other important vehicle compo­
nents.
Fewer short trips
Fuel consumption will always be relatively
high on short trips .
"' Try to avoid driv ing short distances w ith a
cold engine .
The eng ine and cataly tic converter have to
reach their opt imal
op erat ing temperature t o
reduce fuel consumpt ion and nox ious em is­
s ions effect ively .
Just after starting, a co ld eng ine in a mid-s iz e
car only achieves a fuel economy of 6-8 miles
per gallon (30 -40 l/l00km). After about a
half a mile , fuel economy cl imbs to 12 mpg
(20 l/100 km) . After about
2.5 miles (4 km),
the engine is at i ts p rope r opera ting tempe ra­
tu re and f uel economy has reached a normal
l evel. So you can see that yo u should avo id
short trips whenever possible.
T he
out sid e t emperat ure is also cr itica l in th is
regard. Your car consumes more fue l in the
winter than in the summer.
•
•
