2012.5 Citroen C3 PICASSO RHD Owner's Manual

9
Driving
135





Speed limiter

The controls of this system are grouped
together on stalk A . 1. Speed limiter mode selection thumb wheel. 2.Value decrease button. 3.Value increase button. 4.
Speed limiter on / off button.
The pro
grammed information is grouped
together in the instrument panel screen.
5. Speed limiter on / off indication.6.
Speed limiter mode selection indication.7.
Programmed speed value.


Steering mounted controls Displays in the instrument panel

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).

The speed limiter is switched offby manual foperation of the control.

The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.
To return to the programmed speed, simply slow down to a speed below the programmed speed.
The pro
grammed speed remains in the memory
when the ignition is switched off.
The speed limiter cannot, in any circumstances,
replace the need to respect speed limits, nor can it replace the need for vigilance andresponsibility on the par t of the driver.



System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal in the normalmanner no longer has any effect.

Driving
136
Programming
) Turn thumb wheel 1to the "LIMIT"position: the speed limiter mode is selected but is not switched on(PAUSE).
You do not have to switch the s
peed limiter
on in order to set the speed.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
an
y effect unless you press the pedal firmlypast the ypoint of resistance.eThe speed limiter is deactivated temporarily and the programmed speed, which
is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed.
Leaving limiter mode
)Turn thumb wheel 1
to the "0"position: the speed limiter mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
)Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
You can then change the programmed speed using buttons 2 and 3 :
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4.)Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (PAUSE).)Switch the speed limiter back on by pressing button 4
again.

On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

9
Driving
137
System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The controls of this s
ystem are grouped
together on control stalk A. The programmed information is grouped
together in the instrument panel screen.

Steering mounted controls Displays in the instrument panel

The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h) and the engaging of at least 4th gear.
Th
e cruise control is switched off
manually for by pressing the brake or clutch pedal or
on triggering of the ESP system for safety
reasons.
It is possible to exceed the programmed speed
temporaril
y by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switchin
g off the ignition cancels any programmed speed value. 1
.Cruise control mode selection dial
2. Speed programming / value decreasebutton 3.
Speed programming / value increasebutton 4.
Cruise control off / resume button5
. Cruise control off / resume indication
6. Cruise control mode selection indication
7. Programmed speed value
The cruise control cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.






Cruise control

Driving
138
Programming
) Turn dial 1
to the "CRUISE"position:
the cruise control mode is selectedbut is not switched on (PAUSE).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in
flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Return to normal driving
)Turn dial 1 to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop. )
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m/h)).
)Switch off the cruise control by pressing button 4 : this is confirmed in the screen (PAUSE).
)Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using buttons 2
and 3:- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

9
Driving
139





Rear parking sensors System comprising four proximity sensors, located in the rear bumper.
This detects obstacles
(person, vehicle, tree, gate, etc.) behind the vehicle. However, itcannot detect obstacles located just below thebumper.
Activation
The system is activated as soon as reverse gear is engaged, accompanied by an audiblesignal. The proximity information is given by:


- an audible signal, which becomes more
rapid as the vehicle approaches the
obstacle,

- a
graphic in the multifunction screen, with
blocks which become increasingly closer to
the vehicle (depending on version).

Detection zone

When the distance between the rear of the vehicleand the obstacle is less than thirty centimetres, the
audible signal becomes continuous and the "Danger" symbol appears in the multifunction screen.
On completion of the manoeuvre, when you exit
reverse gear, the system becomes inactive.
An object, such as a stake, a roadworkscone or any other similar object may be detected at the beginning of the manoeuvre,but may no longer be detected when the vehicle comes close to it.
The parking sensors system cannot, in any circumstances, take the place of the vigilance and responsibility of thedriver.

Driving
140
Deactivation
Reactivation
With the engine running, press button Ato deactivate the system permanently. The indicator lamp in the button comes on.
The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehiclefitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure thatthe sensors are not covered with mud,frost or snow.
Press button A again to reactivate the system. The indicator lamp in the button goes off.
If there is an operating fault, when reverse gear
is engaged, the ser vice warning lamp comes
on, accompanied by an audible signal (shortbeep) and a message in the multifunction screen.

9
Driving
141





Reversing camera

A reversing camera is activated automatically
when reverse gear is engaged.
The colour image is provided in the navigationscreen.
The space between the blue lines represents thewidth of your vehicle except for the door mirrors.
The blue lines represent the general direction of the vehicle.
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's
rear bumper. The audible signal becomes
continuous from this limit.
The green lines represent distances of
about 1 and 2 metres beyond the edge of your
vehicle's rear bumper.


Clean the reversing camera regularly using a soft, dry cloth.



The reversing camera cannot in any circumstances be a substitute for thevigilance and responsibility of the driver.

Checks
142

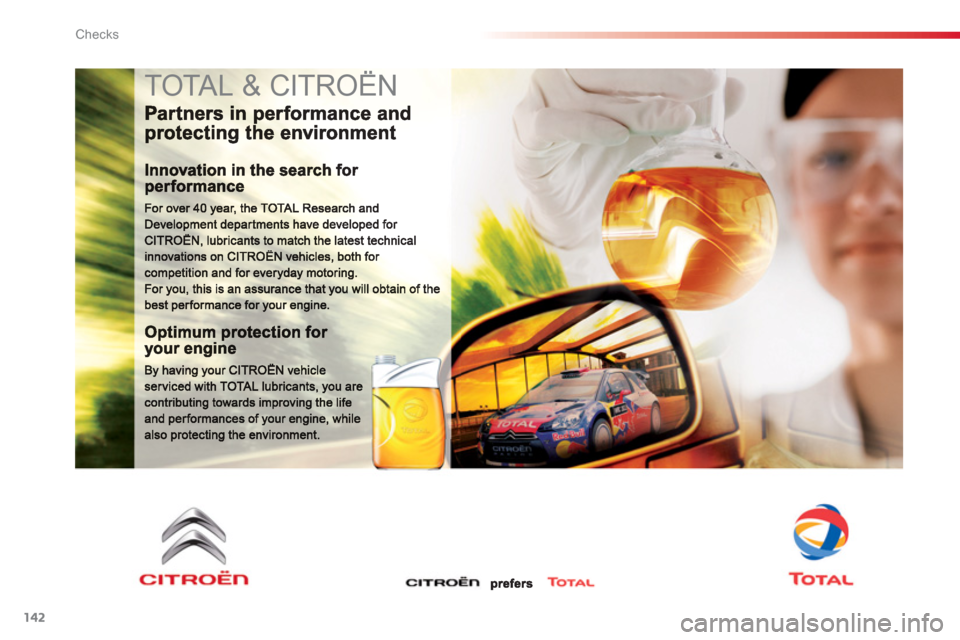

TOTAL & CITROËN
