2011 VOLVO S60 Owner´s Manual

05 Infotainment
General infotainment functions
05
201
NOTE
Sound quality may be affected if the MP3
player is being charged while the system is
in AUX mode. To help prevent this, avoid
charging the MP3 player in a 12-volt socket
while it is being played.
1.
Press MEDIA and turn TUNE to AUX.
Press OK/MENU or wait for several sec-
onds.
2.
Turn TUNE to set the desired volume level
for the AUX socket.
3.
Confirm the change by pressing OK/
MENU or EXIT.
Optimal sound reproductionThe audio system is pre-calibrated for optimal
sound reproduction using digital signal pro-
cessing.
This calibration takes into account factors such
as the speakers, amplifier, cabin acoustics, the
listeners' seating positions, etc., for each com-
bination of vehicle/infotainment system.
There is also a dynamic calibration that takes
into consideration the volume level, radio
reception, and the speed of the vehicle.
The settings that are described in this manual,
(
Bass, Treble, Equalizer etc.) are onlyintended to enable the user to adapt sound
reproduction to his/her personal tastes.

05 Infotainment
Radio
05
202* Option/accessory, for more information, see Introduction.
General functions
RADIO button for selecting the AM, FM1,
FM2, Sirius1* or Sirius2* wavebands.
Number key buttons (0-9)
Navigate among the menu alternatives in
the display by turning TUNE.
Confirm your selection or access the radio
menus by pressing OK/MENU.
Left/right arrow keys: Press and hold to go
to the next available station, press briefly
to tune to a preset station.
RADIO menu selections can be made from the
center console or the steering wheel keypad.
See page 233 for more information about the
infotainment menu system.
Selecting a station (in wavebands AM/
FM1/FM2)
Automatic tuning
1.
Press RADIO. Continue pressing this but-
ton to toggle to the desired waveband
(
AM, FM1, etc.).
2. Release the button and wait several sec-
onds or press OK/MENU.
3. Press the left or right arrow keys on the
center console control panel to search for
the next available station.
List of stations (in wavebands FM1/FM2
only)
The radio automatically compiles a list of the
strongest FM stations whose signals are cur-
rently being received. This enables you to find
stations when driving in areas where radio sta-
tions and their frequencies are unfamiliar.
To access this list:
1.
Select the desired waveband (
FM1orFM2).
2.
Turn TUNE one step in either direction.
This displays the list of stations in the area.
The currently tuned station will be indi-
cated in the list by magnified text.
3.
Turn TUNE again in either direction to
select a station on the list.
NOTE
•This list will only display the frequencies
of the stations currently being received,
not a complete list of all radio frequen-
cies on the currently selected wave-
band.
•If the signal from the currently tuned
station is weak, this may prevent the
radio from updating the list of stations.
If this occurs, press
while the list
of stations is displayed to switch to
manual tuning mode and select a sta-
tion. If the list of stations is no longer
displayed, turn TUNE in either direction
to display the list again and press
.
The list will disappear from the display after
several seconds.
If the station list is no longer displayed, turn
TUNE in either direction and press
on the
number key pad on the center console to
switch to manual tuning (or to switch back from
manual tuning to the "list of stations" function).
Manual tuningBy default, the list of stations of the strongest
stations in the area will be displayed when you
turn TUNE (see the preceding section, "List of
stations"). While the list of stations is displayed,

05 Infotainment
Radio
05

203
press on the number key pad on the cen-
ter console to switch to manual tuning, which
enables you to select a frequency from the
complete list of all radio frequencies available
on the currently selected waveband. In other
words, in manual tuning mode, turning TUNE
one step will change from e.g., 93.3 to 93.5,
etc.).
To manually tune a station:
1.
Press RADIO. Continue pressing this but-
ton to toggle to the desired waveband
(
AM, FM1, etc.) and wait for several sec-
onds or press OK/MENU to confirm.
2.
Turn TUNE to select a frequency
NOTE
The radio is initially set to automatically
search for stations in the area in which you
are driving (see the preceding section, "List
of stations").
However, if you have switched to manual
tuning (by pressing
on the number key
pad on the center console while the list of
stations is displayed), the radio will remain
in manual tuning mode the next time it is
switched on. To switch back to "list of sta-
tions" mode, turn TUNE one step (to display
the full list of stations) and press
.
Please note that if you press
when the
list of stations is not displayed, this will acti-
vate the INFO function (see page 199 for
more information about this function).
Storing preset stationsTen preset stations can be stored for each
waveband (AM, FM1, etc.).
Stored preset stations are selected using the
number key buttons on the center console.
Manually storing preset stations1. Tune to a station (see "Selecting a sta-
tion").
2. Hold in one of the number key buttons.
> The sound will be muted for several sec-
onds and when it returns, the station hasbeen stored on the number key button
used.
A list of preset stations can be displayed. This
function can be activated/deactivated in AM/
FM mode in FM menu
Show presets or in
AM menu
Show presets
ScanThe function automatically searches the cur-
rent waveband for radio stations. When a sta-
tion is found, it is played for several seconds
before scanning is resumed. While the station
is playing it can be stored as a preset in the
usual way (see "Manually storing preset sta-
tions").

To start scanning in AM/FM mode, go to
FM menu
Scan or in AM menu
Scan.
Stop station scanning by pressing EXIT.
NOTE
Storing a station interrupts the SCAN func-
tion.
Radio textSome stations transmit information on pro-
gram content, artists, etc. This information can
be shown on the display.

05 Infotainment
Radio
05
204
Activate/deactivate in FM mode under Radio
text.
HD Radio
E
Ereception (U.S. models
only)
Introduction
Display when the radio is receiving an HD Radio
broadcast
NOTE
HD radio volume may fade in and out at
times due to coverage limitations.
HD radio is a brand name registered by the
Ibiquity digital corporation1. They are thedeveloper of a broadcasting technology called
IBOC or In Band On Channel, which refers to
the method of transmitting a digital radio
broadcast signal centered on the same fre-
quency as the AM or FM station's present fre-
quency.
The IBOC system is referred to as a "hybrid"
since it is both analogue and digital. During
hybrid operation, receivers still continue to
receive the analogue (non-digital) signal. HD
radio receivers incorporate both modes of
reception, where the receiver will automatically
switch to the analogue signal if the digital signal
cannot be decoded or is lost by the receiver.
When you have tuned to an HD Radio station,
the
symbol will appear in the audio sys-
tem display. They symbol is "grayed-out" when
HD Radio is in standby mode and white when
the radio is actively receiving an HD broadcast.
More information about HD radio and IBOC
can be found on Ibiquity's website,
www.hdradio.com and www.ibiquity.com.
Benefits of digital broadcasting
•Better sound (FM sounds near CD quality
and AM as analogue FM).
•Some FM frequencies offer a greater num-
ber of listening choices through “multicast-
ing” (consisting of a frequency's mainchannel and any sub-channels that may
also be available on that particular fre-
quency. See also the section "Sub-chan-
nels" below).
•When receiving a digital signal there is no
multipath disturbance or hisses/pops/
crackling due to outside influences.
How HD broadcasting worksHD Radio works similarly to conventional radio
and broadcasts of this type are available in
many areas of the United States. However,
there are a few key differences:
•Instead of transmitting one analogue sig-
nal, stations send out a bundled signal –
both analogue and digital.
•An HD radio receiver can receive both dig-
ital and analogue broadcasts. Depending
on the terrain and location of the vehicle
(which will influence the signal strength),
the receiver will determine which signal to
receive.
Limitations
•Main channel vs. sub-channels (FM
only): The main channel is the only channel
that can receive in hybrid mode (both dig-
ital and analogue). If a frequency has sub-
channels, they are broadcast in digital
mode only. The main FM channel will be
1HD Radio (TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity
Digital Corp.

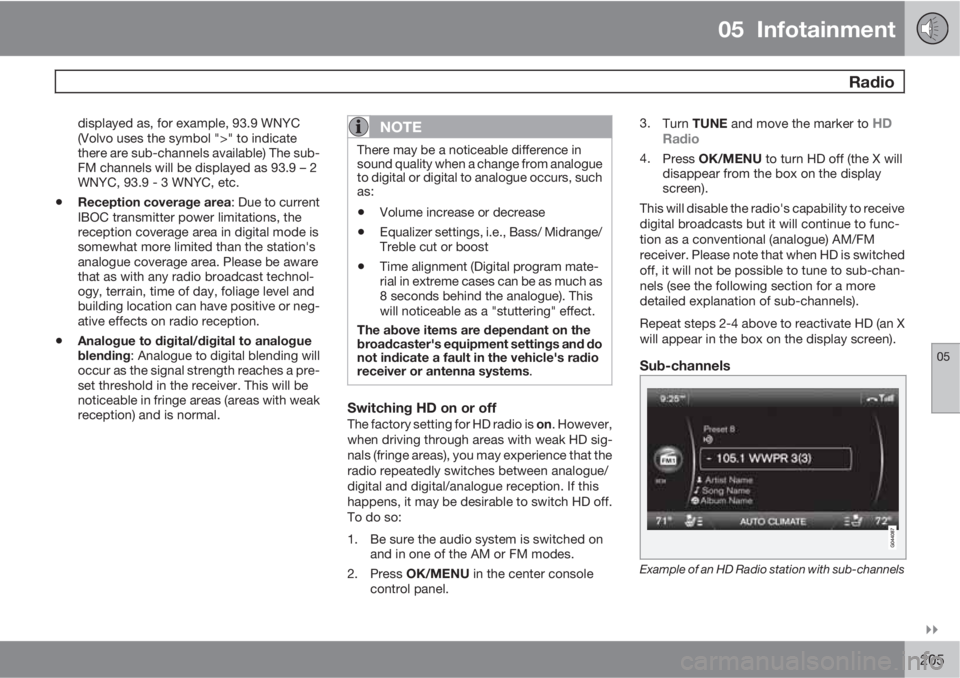

05 Infotainment
Radio
05

205
displayed as, for example, 93.9 WNYC
(Volvo uses the symbol ">" to indicate
there are sub-channels available) The sub-
FM channels will be displayed as 93.9 – 2
WNYC, 93.9 - 3 WNYC, etc.
•Reception coverage area: Due to current
IBOC transmitter power limitations, the
reception coverage area in digital mode is
somewhat more limited than the station's
analogue coverage area. Please be aware
that as with any radio broadcast technol-
ogy, terrain, time of day, foliage level and
building location can have positive or neg-
ative effects on radio reception.
•Analogue to digital/digital to analogue
blending: Analogue to digital blending will
occur as the signal strength reaches a pre-
set threshold in the receiver. This will be
noticeable in fringe areas (areas with weak
reception) and is normal.
NOTE
There may be a noticeable difference in
sound quality when a change from analogue
to digital or digital to analogue occurs, such
as:
•Volume increase or decrease
•Equalizer settings, i.e., Bass/ Midrange/
Treble cut or boost
•Time alignment (Digital program mate-
rial in extreme cases can be as much as
8 seconds behind the analogue). This
will noticeable as a "stuttering" effect.
The above items are dependant on the
broadcaster's equipment settings and do
not indicate a fault in the vehicle's radio
receiver or antenna systems.
Switching HD on or offThe factory setting for HD radio is on. However,
when driving through areas with weak HD sig-
nals (fringe areas), you may experience that the
radio repeatedly switches between analogue/
digital and digital/analogue reception. If this
happens, it may be desirable to switch HD off.
To do so:
1. Be sure the audio system is switched on
and in one of the AM or FM modes.
2.
Press OK/MENU in the center console
control panel.3.
Turn TUNE and move the marker to
HD
Radio
4.
Press OK/MENU to turn HD off (the X will
disappear from the box on the display
screen).
This will disable the radio's capability to receive
digital broadcasts but it will continue to func-
tion as a conventional (analogue) AM/FM
receiver. Please note that when HD is switched
off, it will not be possible to tune to sub-chan-
nels (see the following section for a more
detailed explanation of sub-channels).
Repeat steps 2-4 above to reactivate HD (an X
will appear in the box on the display screen).
Sub-channels
Example of an HD Radio station with sub-channels

05 Infotainment
Radio
05
206* Option/accessory, for more information, see Introduction.
In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
In such cases, the “-” symbol will be displayed
to the left of the frequency number and a num-
ber will be displayed to the right of the fre-
quency number indicating that the currently
tuned frequency has at least one sub-channel.
The "2" in the illustration indicates that you are
currently listening to the first sub-channel on
frequency 93.9.
Selecting sub-channelsTo listen to a station's sub-channel(s), press
the right arrow key on the center console or on
the steering wheel keypad. To go back to the
main channel, press the left arrow key. To go
to subchannel 2 (if available), press the right
arrow key.
If you are currently tuned to a frequency's main
channel, pressing the left arrow key will tune to
the next lower radio frequency.
NOTE
•When the radio has gone into HD mode,
it may take several seconds before the
">" symbol (if the current frequency has
any sub-channels) is displayed to the
right of the frequency. Pressing the
arrow keys before the number is dis-
played will cause the radio to tune to the
next available radio station, not to the
current station's sub-channels.
•When you are no longer in broadcasting
range of the currently tuned sub-chan-
nel,
No HD reception will be dis-
played. The radio will then be muted
and it will be necessary to tune to or
search for a new radio station.
Sub-channels can also be stored as presets,
see page 203 for information on storing sta-
tions.
If you press a sub-channel's preset button, it
may take up to 6 seconds before the channel
becomes audible. If you press this button while
you are out of digital range of the transmitter,
No HD reception will be displayed.
Sirius satellite radio*
Listening to satellite radioThe Sirius satellite system consists of a number
of high elevation satellites in geosynchronous
orbit.
NOTE
•The digital signals from the Sirius satel-
lites are line-of-sight, which means that
physical obstructions such as bridges,
tunnels, etc, may temporarily interfere
with signal reception.
•Avoid any obstructions, such as metal-
lic objects transported on roof racks or
in a ski box, or other antennas that may
impede signals from the SIRIUS satel-
lites.
Selecting Sirius radio mode1. With the infotainment system switched on,
press RADIO.
2.
Continue pressing RADIO (or turn TUNE to
scroll) to select SAT 1 or SAT 2 and press
OK/MENU (or wait for several seconds).
Activating Sirius radio1. Tune to a satellite channel that has no
audio, which means that the channel is
unsubscribed and the text
Subscription

05 Infotainment
Radio
05

207
update is needed is displayed (see also
"Selecting a channel").
2. Call Sirius at 1-888-539-SIRIUS (7474).
3. If you tune to an unsubscribed channel, the
Sirius ID will be displayed. The Sirius ID can
also be accessed from the menu (press
OK/MENU, turn TUNE to scroll to the
Advanced settings menu, press OK/
MENU, scroll to Sirius ID and press OK/
MENU to display the number).
4.
Updating subscription will be displayed
while the subscription is being updated,
after which the display will return to the
normal view.
SIRIUS IDThe SIRIUS ID (sometimes referred to as the
Electronic Serial Number or ESN) is required
when contacting the Sirius Call Center. It is
used to activate your account and when mak-
ing any account transactions.
Selecting a channel category1.
Turn TUNE to display a list of channels.
2.
Press EXIT.
3.
Turn TUNE to scroll through the list of cat-
egories and press OK/MENU to make a
selection.> The channels in the selected category
are displayed.
NOTE
•The category ALL is default, which ena-
bles you to scroll through the entire list
of available satellite channels.
•The channel categories are automati-
cally updated several times a year. This
takes approximately two minutes and
will interrupt normal broadcasting. A
message will be displayed while updat-
ing is in progress. Information on chan-
nel or feature updates is available at
www.sirius.com.
Selecting a channelThere are three ways of tuning in a channel:
•Using the left and right arrow keys to go to
the next channel. Skipped channels (see
page 209) will be excluded.
•By turning the TUNE control and selecting
a channel from the list
•Through direct channel entry.
NOTE
•The numbers of skipped or locked
channels will not be displayed.
•If a channel is locked, the access code
must be entered before the channel can
be selected. See "Unlocking a channel"
on page 209.
Direct channel entryThe Sirius satellite channels are in numerical
order throughout all of the categories. To
access a channel directly:
1.
Turn TUNE to access the channel list.
2. Use the number key buttons to enter the
channel's number.
3.
Press OK/MENU. The radio will tune to this
channel, even if it belongs to a category
other than the currently selected one.
Scanning
SCAN automatically searches through the list
of satellite channels. The search will only be
carried out in the selected category, see
page 203 for more detailed information on the
scan function.
Storing a channelA total of 20 satellite channels can be stored;
10 channels each for Sirius 1 and 2, see

05 Infotainment
Radio
05
208
page 203 for detailed information on storing
channels.
•A long press on one of the number keys
stores the currently tuned channel on that
key.
•A short press on a number key while the
radio is in SAT 1 or SAT 2 mode will tune
to the preset satellite channel stored on
that button, regardless of the currently
selected channel category.
Searching for and storing songs
The Song seek function provides notification
when Sirius is broadcasting the songs selected
in song memory.
Song memory enables you
to store the name of the song for future
advance notification when that song is being
played.
Song seekWhen a satellite radio channel plays one of the
songs stored in the song memory while the
Song seek feature is activated, the listener will
be alerted by a text message and an audible
signal.
Press OK/MENU to listen to the song or EXIT
to cancel.
To activate/deactivate the song seek function:
1.
Press OK/MENU.2.
Turn TUNE to scroll to
Song memory and
press OK/MENU.
3.
Turn TUNE to scroll to
Song seek and
press OK/MENU to activate or deactivate
the function.
NOTE
When the song has ended, the radio will
remain tuned to the channel on which the
song was played.
Song memoryUp to ten songs can be saved in the system's
memory.
To add the currently playing song to the list:
1.
Press OK/MENU.
2.
Scroll to
Song memory and press OK/
MENU.
3.
Scroll to
Add song to memory and press
OK/MENU.
If a new song is selected when the memory is
full, you will be prompted to delete a song from
the list. To do so:
1.
Press OK/MENU.
2.
Turn TUNE to scroll through the list of
songs. Select a song and press OK/
MENU to delete it from the list.
Radio textThis text provides information about the song
that is currently playing. To turn this feature on
or off, press OK/MENU and scroll to
Show
radio text and press OK/MENU to toggle
between on or off.
Advanced Sirius settings
This menu function enables you to make set-
tings on certain Sirius satellite radio functions.
To access this menu:
1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu
and press OK/MENU.
WARNING
Settings should be made when the vehicle
is at a standstill.
The following settings can be made in the Sir-
ius menu:
•Channel skip settings can be made
•Channel lock settings can be made
•The channel access code can be displayed
or changed (see also "Locking a channel"
on page 209)
•Your Sirius ID can be displayed
•Reset Sirius settings
