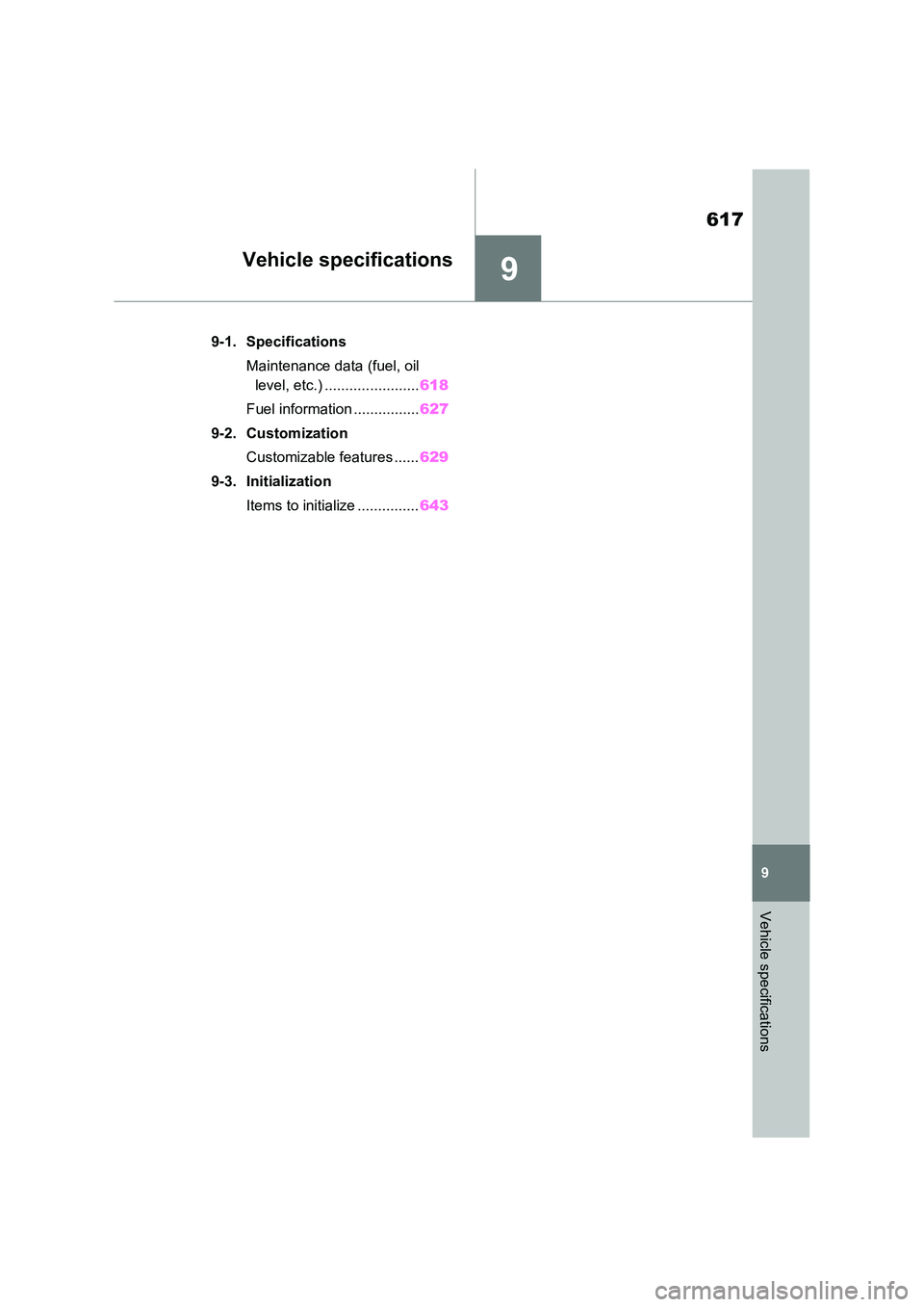

Vehicle specifications
Vehicle specifications
9-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 618
Fuel information ................ 627
9-2. Customization
Customizable features ...... 629
9-3. Initialization
Items to initialize ............... 643

6189-1. Specifications
9-1.Spec ific ations
*: Unladen vehicle
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
On some models, this number is stamped on the top left of the
instrument panel.
Maintenance data (fuel, oil level, etc.)

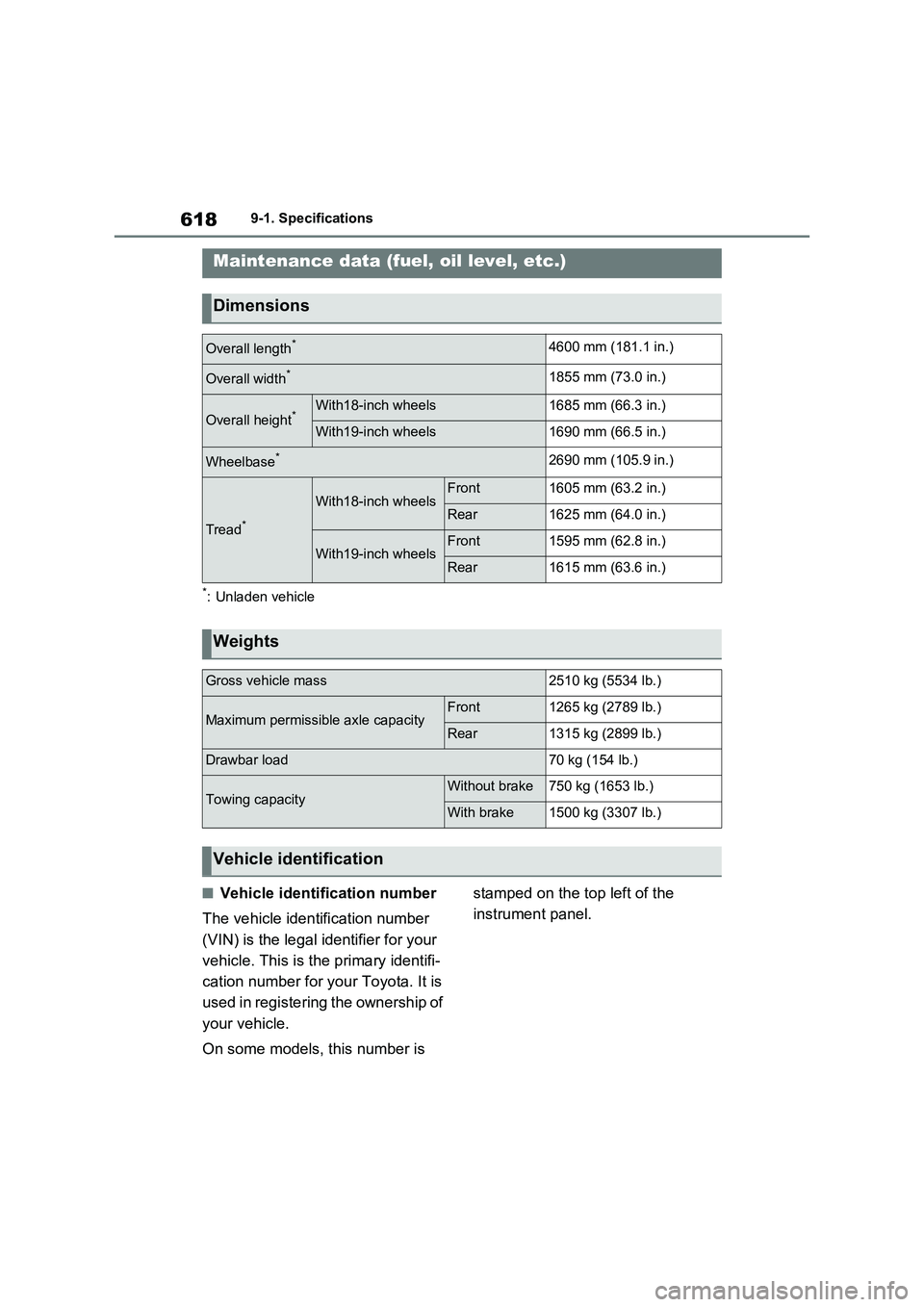

Dimensions
Overall length*4600 mm (181.1 in.)
Overall width*1855 mm (73.0 in.)
Overall height*With18-inch wheels1685 mm (66.3 in.)
With19-inch wheels1690 mm (66.5 in.)
Wheelbase*2690 mm (105.9 in.)
Tread*
With18-inch wheelsFront1605 mm (63.2 in.)
Rear1625 mm (64.0 in.)
With19-inch wheelsFront1595 mm (62.8 in.)
Rear1615 mm (63.6 in.)
Weights
Gross vehicle mass2510 kg (5534 lb.)
Maximum permissible axle capacityFront1265 kg (2789 lb.)
Rear1315 kg (2899 lb.)
Drawbar load70 kg (154 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake1500 kg (3307 lb.)
Vehicle identification

619
9
9-1. Specifications
Vehicle specifications

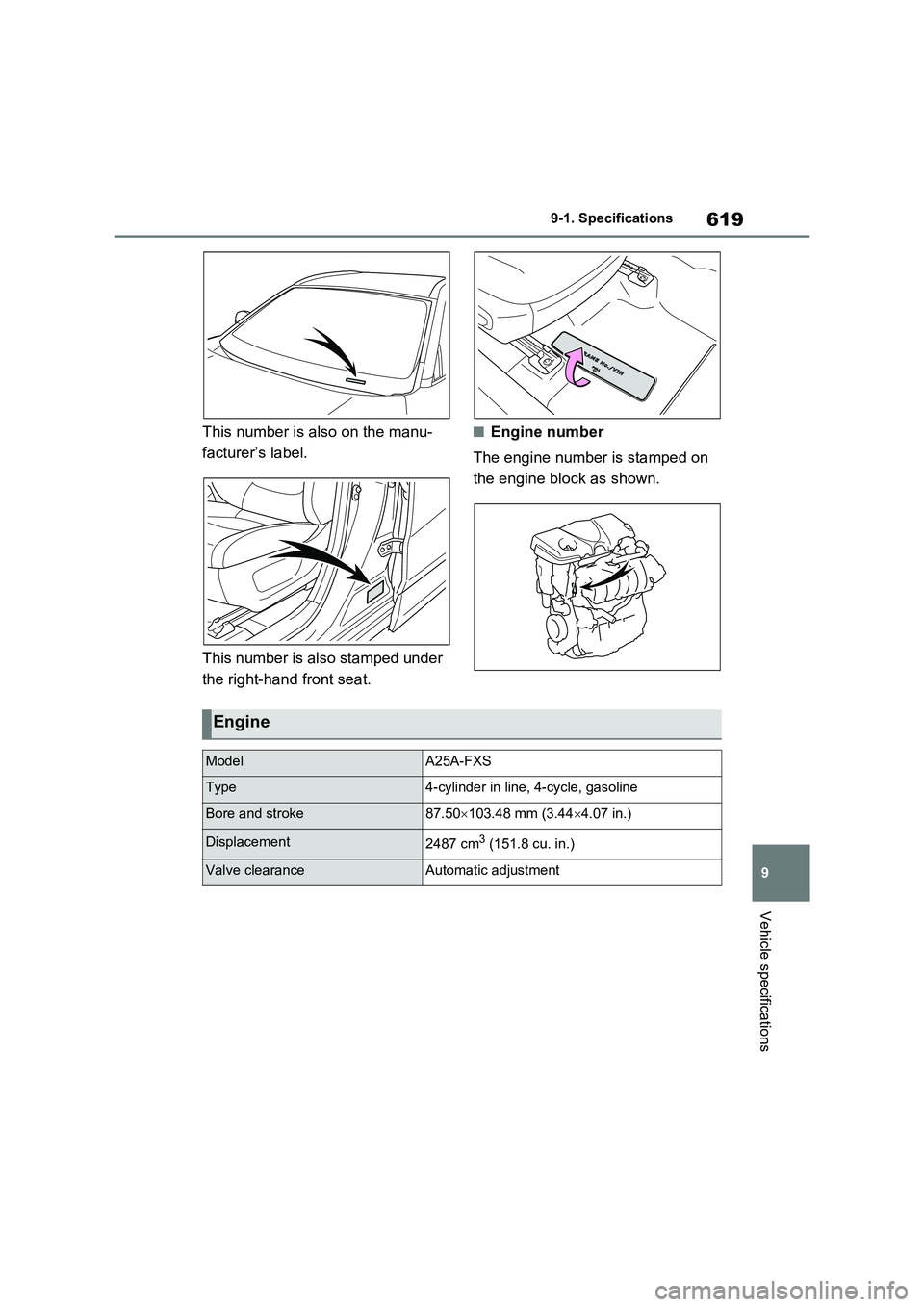

This number is also on the manu-
facturer’s label.
This number is also stamped under
the right-hand front seat.
■Engine number
The engine number is stamped on
the engine block as shown.
Engine
ModelA25A-FXS
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke87.50 103.48 mm (3.444.07 in.)
Displacement2487 cm3 (151.8 cu. in.)
Valve clearanceAutomatic adjustment

6209-1. Specifications
Front
Rear

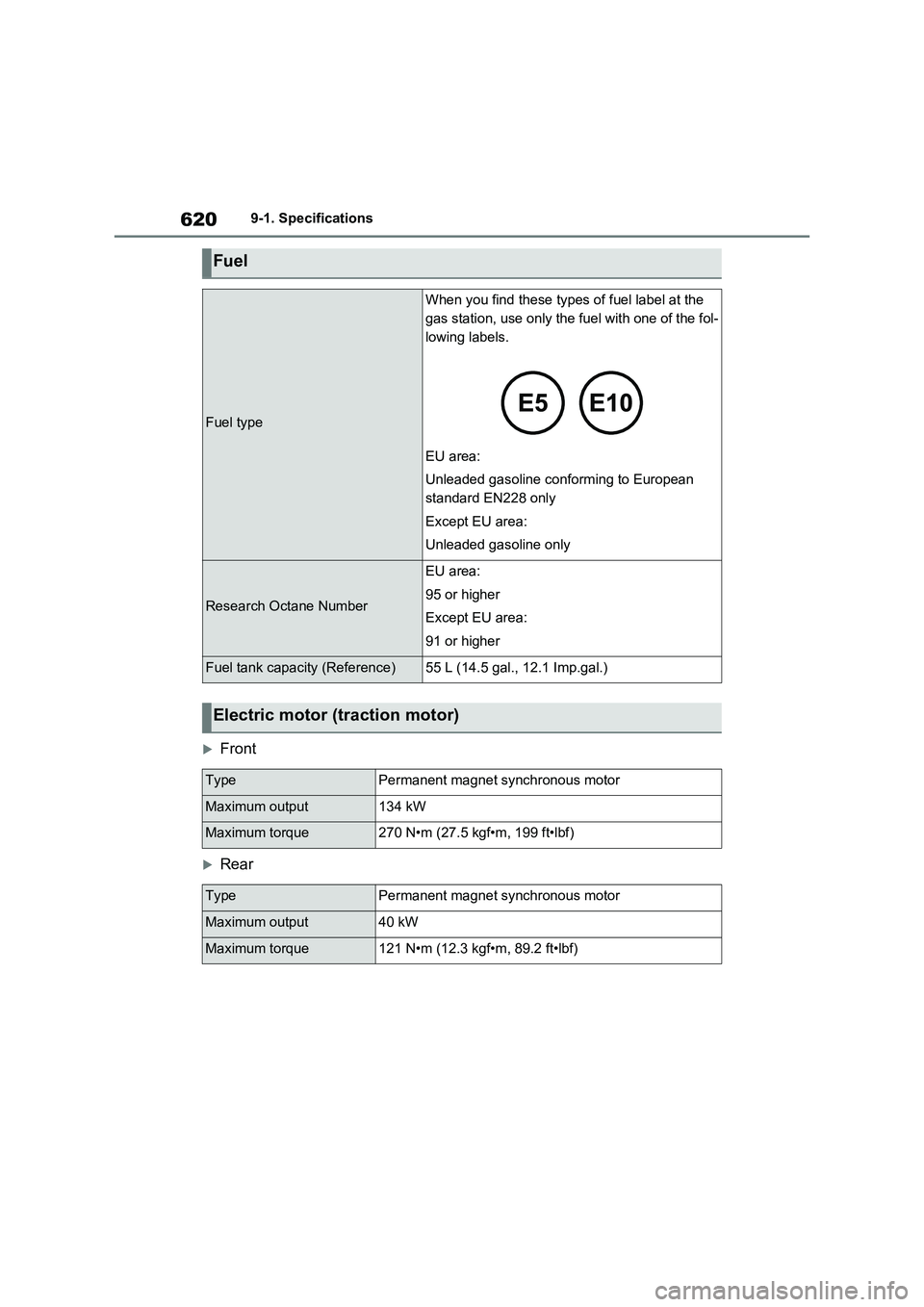

Fuel
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number
EU area:
95 or higher
Except EU area:
91 or higher
Fuel tank capacity (Reference)55 L (14.5 gal., 12.1 Imp.gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output134 kW
Maximum torque270 N•m (27.5 kgf•m, 199 ft•lbf)
TypePermanent magnet synchronous motor
Maximum output40 kW
Maximum torque121 N•m (12.3 kgf•m, 89.2 ft•lbf)

621
9 9-1. Specifications
Vehicle specifications
■Oil capacity (Drain and refill  reference*)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turning off the hybrid system, wait more than
5 minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing” or SN PLUS “Resource-Con-
serving” multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving”, SN
“Resource-Conserving” or SN
PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
Recommended viscosity (SAE):SAE 0W-16 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in cold
weather.
If SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How-
ever, it should be replaced with
SAE 0W-16 at the next oil change.
Preferred
Temperature range anticipated

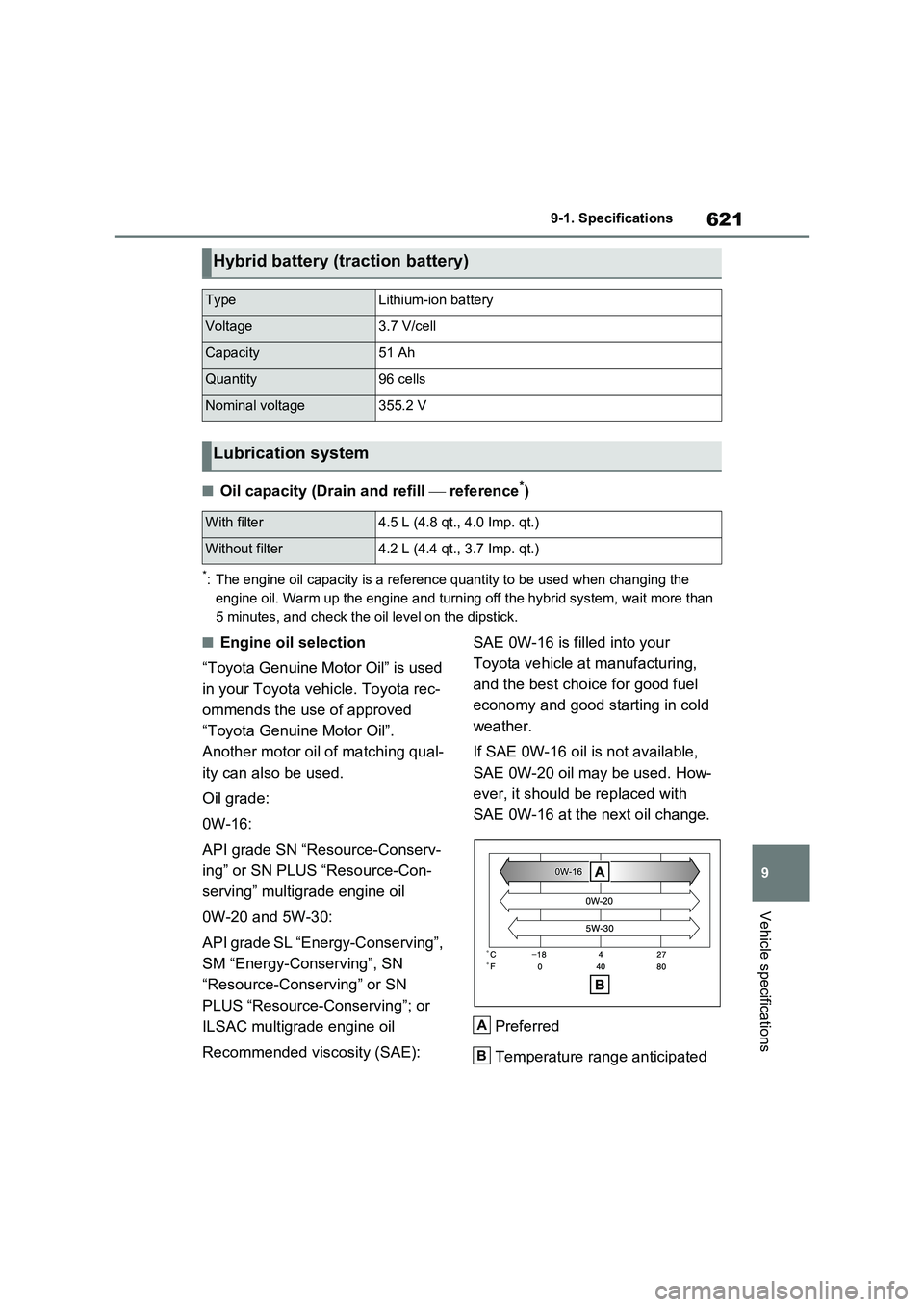

Hybrid battery (traction battery)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity51 Ah
Quantity96 cells
Nominal voltage355.2 V
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.2 L (4.4 qt., 3.7 Imp. qt.)
A
B

6229-1. Specifications
before next oil change
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the
characteristic of the oil which
allows cold startability. Oils with
a lower value before the W allow
for easier starting of the engine
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.

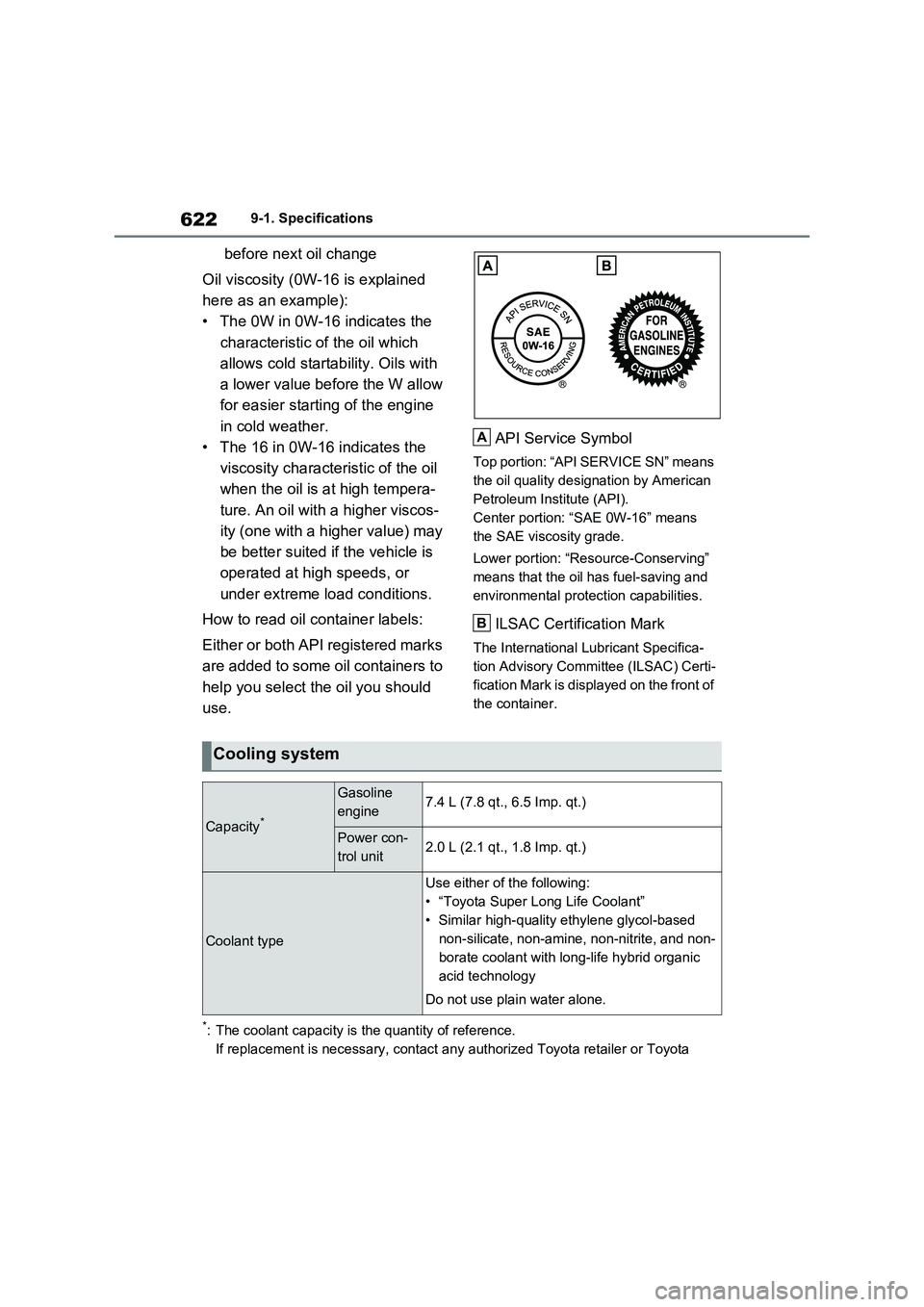

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.API Service Symbol
Top portion: “API SERVICE SN” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
*: The coolant capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
A
B
Cooling system
Capacity*
Gasoline
engine7.4 L (7.8 qt., 6.5 Imp. qt.)
Power con-
trol unit2.0 L (2.1 qt., 1.8 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.

623
9
9-1. Specifications
Vehicle specifications
authorized repairer, or any reliable repairer.
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system (12-volt battery)
Specific voltage reading at 20°C (68°F):
12.0 V or higher
(Turn the power switch to OFF and turn
on the high beam headlights for 30 sec-
onds.)
If the voltage is lower than the standard
value, charge the 12-volt battery.
Charging ratesQuick charge15 A max.
Slow charge5 A max.
Hybrid transmission
Fluid capacity*4.4 L (4.6 qt., 3.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than the above type may cause abnormal noise or
vibration, or ultimately damage the transmission of your vehicle.

6249-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*: Minimum pedal clearance when depressed with a force of 300 N (30.5 kgf, 67.4
lbf) while the hybrid system is operating.
■Full-size tire
Type A

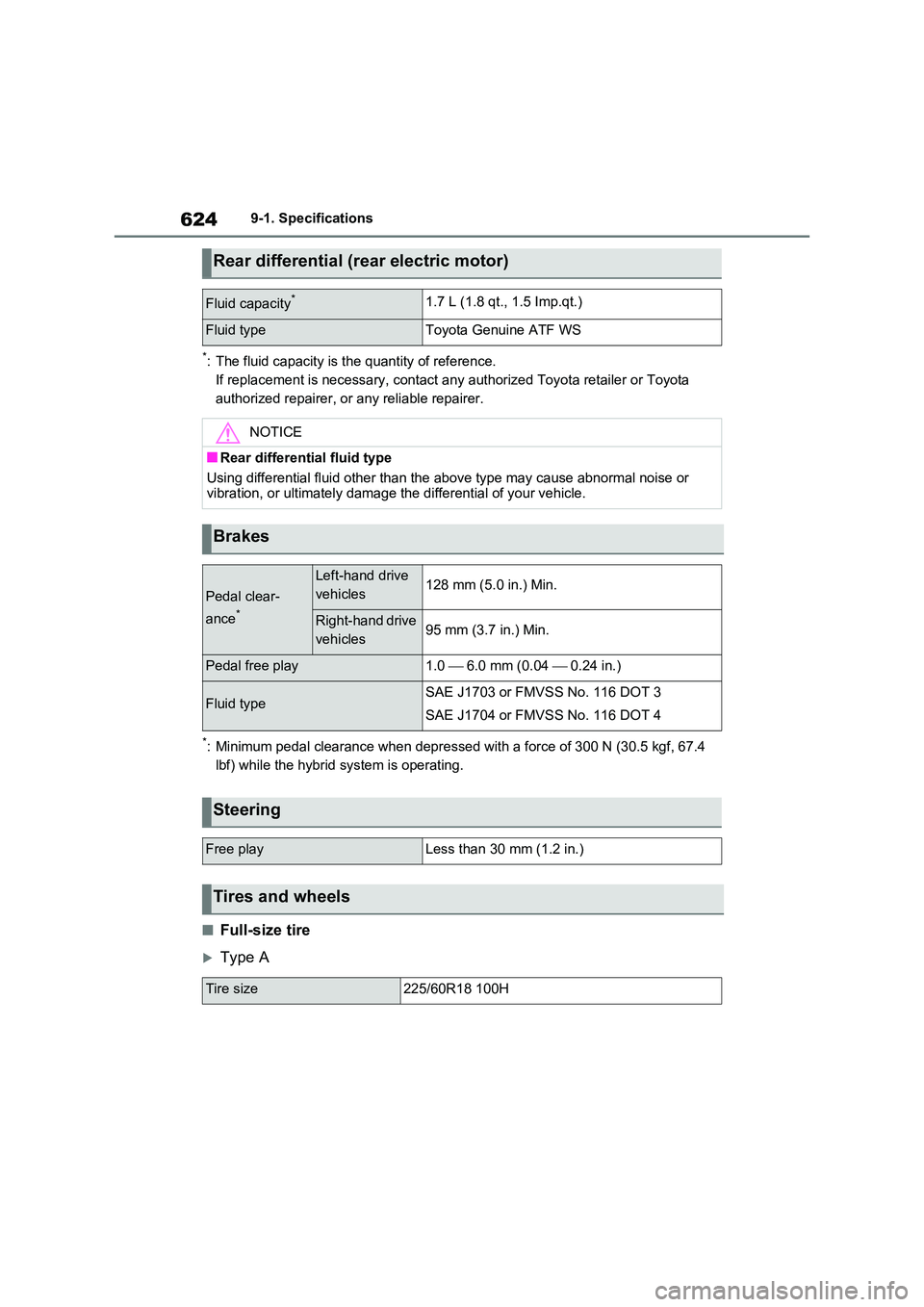

Rear differential (rear electric motor)
Fluid capacity*1.7 L (1.8 qt., 1.5 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Rear differential fluid type
Using differential fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the differential of your vehicle.
Brakes
Pedal clear-
ance*
Left-hand drive
vehicles128 mm (5.0 in.) Min.
Right-hand drive
vehicles95 mm (3.7 in.) Min.
Pedal free play1.0  6.0 mm (0.04  0.24 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size225/60R18 100H
