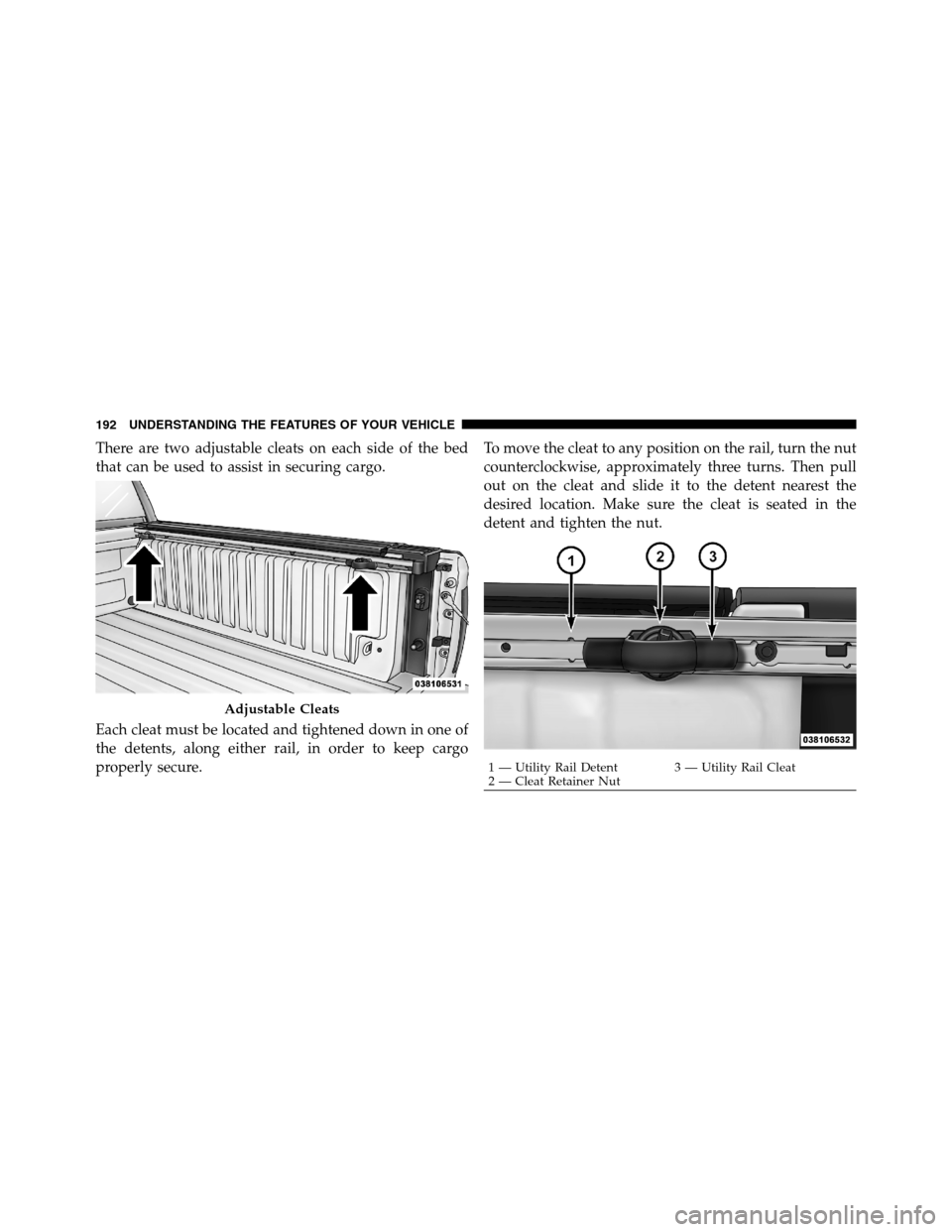

There are two adjustable cleats on each side of the bed
that can be used to assist in securing cargo.
Each cleat must be located and tightened down in one of
the detents, along either rail, in order to keep cargo
properly secure.To move the cleat to any position on the rail, turn the nut
counterclockwise, approximately three turns. Then pull
out on the cleat and slide it to the detent nearest the
desired location. Make sure the cleat is seated in the
detent and tighten the nut.
Adjustable Cleats
1 — Utility Rail Detent 3 — Utility Rail Cleat
2 — Cleat Retainer Nut 192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To remove the cleats from the utility rail, remove the end
cap by pushing up on the locking tab, located on the
bottom of the end cap. Slide the cleat off the end of the
rail.SLIDE-IN CAMPERS
Camper Applications
Certain truck models are not recommended for slide-in
campers. To determine if your vehicle is excluded, please
refer to the “Consumer Information Truck-Camper Load-
ing” document available from your authorized dealer.
For safety reasons, follow all instructions in this impor-
tant document.
NOTE:When a cap or pickup camper is installed on a
vehicle, an alternate Center High-Mounted Stop Light
(CHMSL) must be provided.
EASY-OFF TAILGATE
To simplify mounting of a camper unit with an overhang,
the tailgate can be removed.
NOTE:If your vehicle is equipped with a rear camera
the electrical connector must be disconnected prior to
removing the tailgate.
Utility Rail End Cap
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

Disconnecting the Rear Camera — If Equipped
1. Open the tailgate to access the rear camera connector
bracket located on the rear sill.
2. Remove the connector bracket from the sill by press-
ing inward in the locking tab.3. Disconnect the chassis wiring harness, ensuring the
connector bracket does not fall into the sill.
4. Connect the chassis plug and bracket (provided in the
glove box) to the chassis wiring harness and insert the
bracket back into the sill.
Connector Bracket
Locking Tab
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Connect the tailgate plug (provided in the glove box)
to the tailgate wiring harness to ensure that the terminals
do not corrode.
6. Tape the tailgate harness and bracket against the
forward-facing surface of the tailgate. This will prevent
damaging the connector and bracket when storing or
reinstalling the tailgate.
Removing the Tailgate
1. Disconnect the wiring harness for the rear camera (if
equipped), refer to “Disconnecting the Rear Camera — If
Equipped” in this section.
2. Unlatch the tailgate and remove the support cables by
releasing the lock tang from the pivot.3. Raise the tailgate to a 45 degree angle.
4. Raise the right side of the tailgate until the right side
pivot clears the hanger bracket.
5. Slide the entire tailgate to the right to free the left side
pivot.
Locking Tang
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195

6. Remove the tailgate from the vehicle.
NOTE:Do not carry the tailgate loose in the truck
pickup box.
WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with “Cap
or Slide-In Campers” should extend beyond the
overhanging camper compartment and be free of
leaks.
Locking Tailgate
The lock is located next to the tailgate handle. The
tailgate can be locked using the vehicle key.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
