2011 NISSAN VERSA HATCHBACK Owners Manual

Page 257 of 350

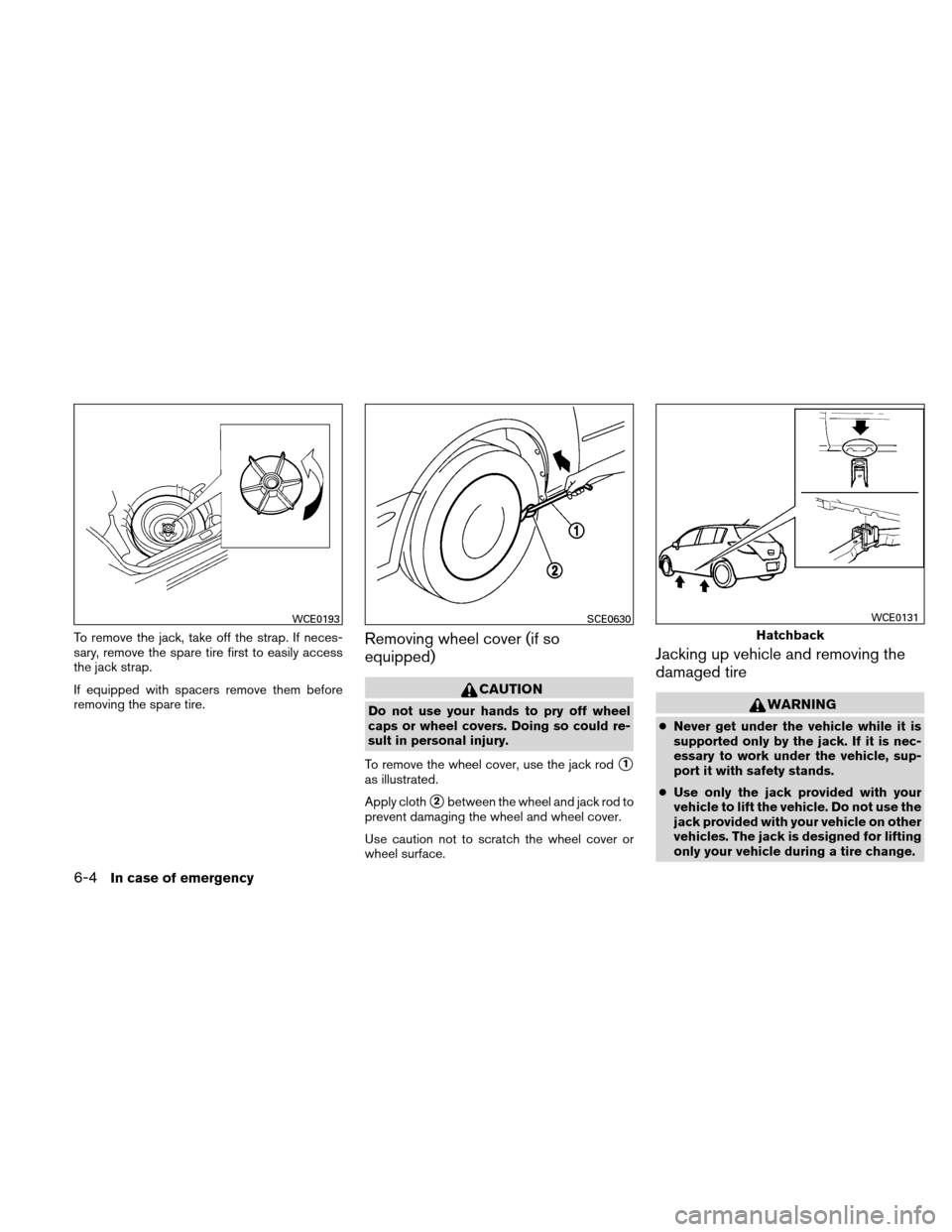

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual To remove the jack, take off the strap. If neces-
sary, remove the spare tire first to easily access
the jack strap.
If equipped with spacers remove them before
removing the spare tire.Removing wheel

Page 258 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual ●Use the correct jack-up points. Never
use any other part of the vehicle for jack
support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not st

Page 259 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual Always refer to the proper illustrations for the
correct placement and jack-up points for your
specific vehicle model and jack type.
Carefully read the caution label attached to
the jack body and the

Page 260 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual 4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated (
A,B,C,D).
Lower the vehicle completely.

Page 261 of 350

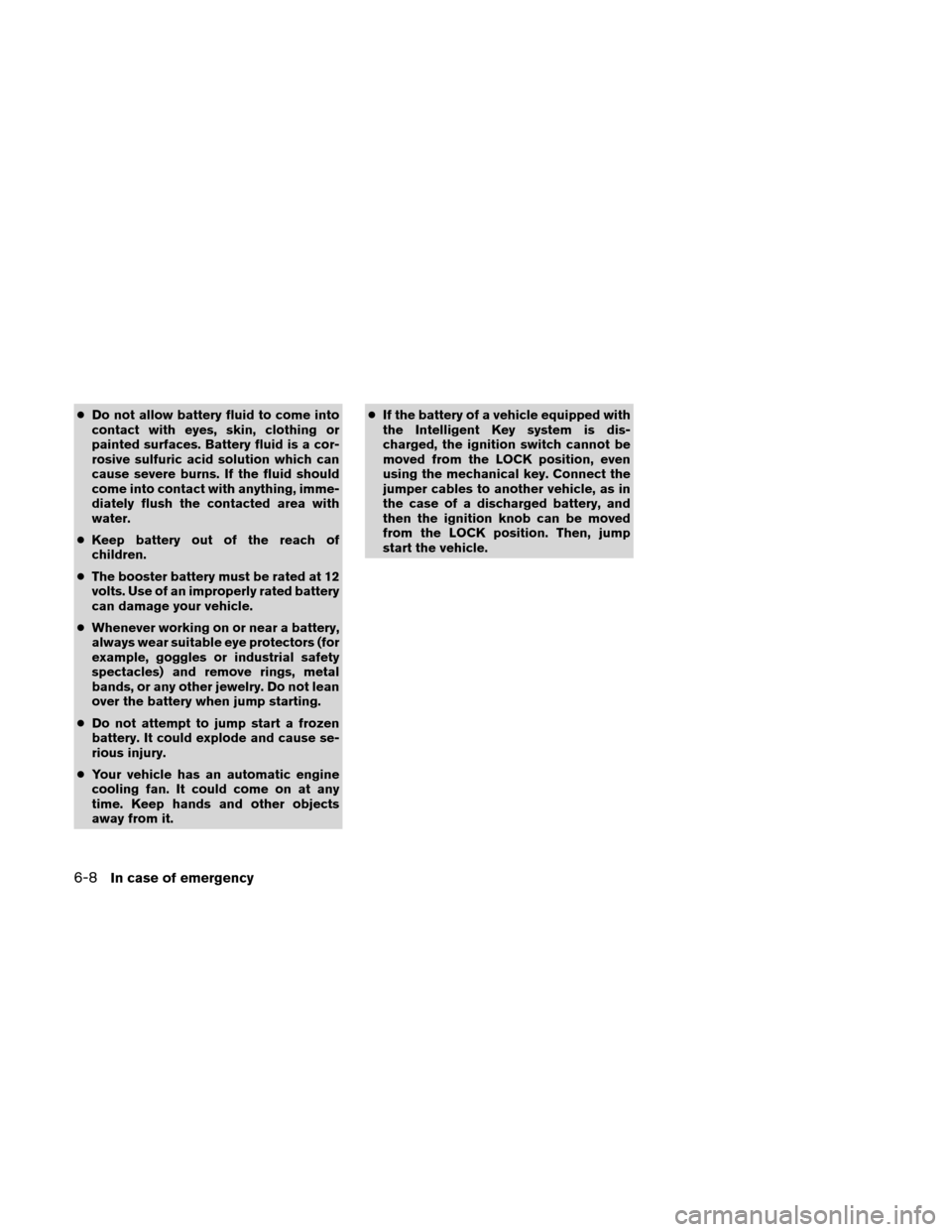

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual ●Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid solution which can
cause severe burns. If the fluid shoul

Page 262 of 350

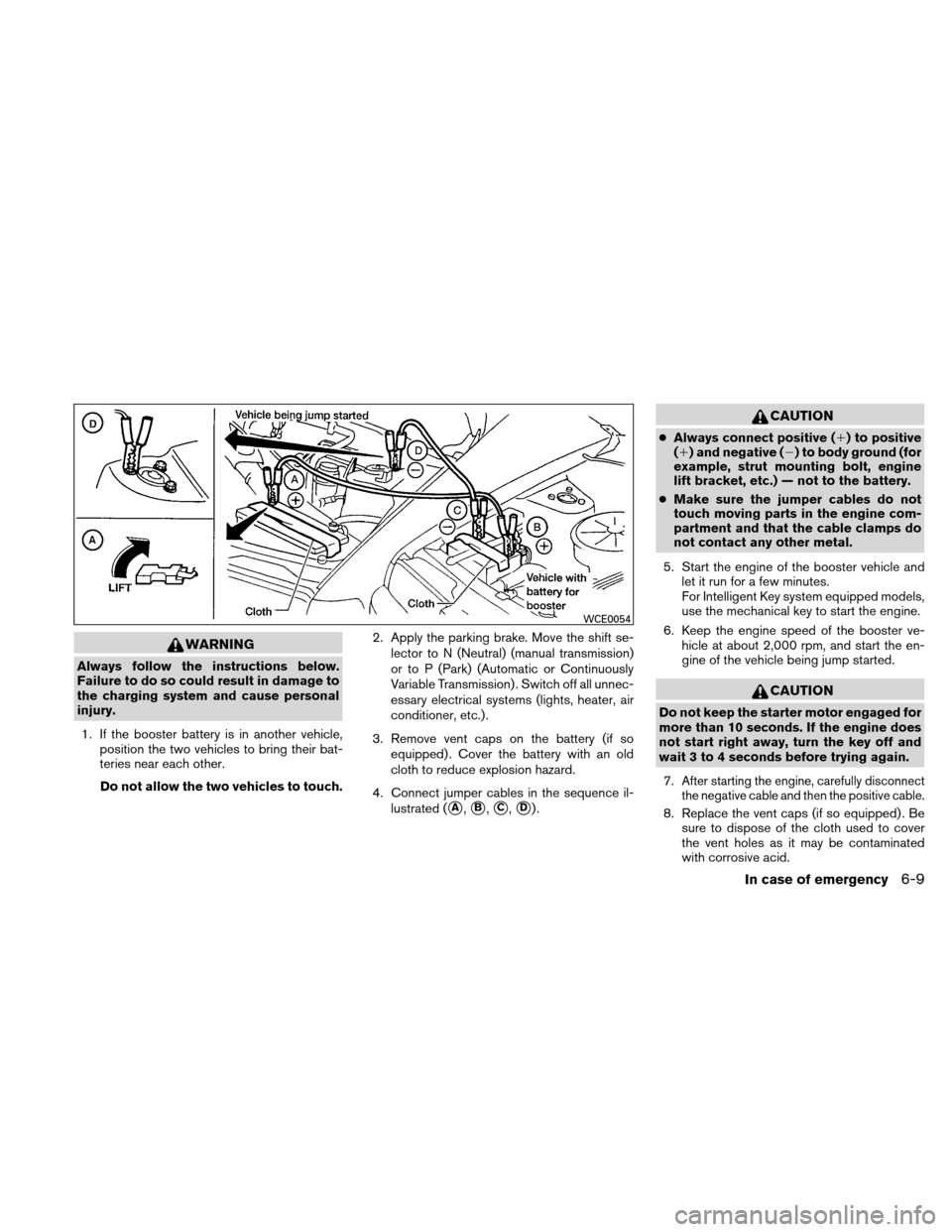

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual WARNING
Always follow the instructions below.
Failure to do so could result in damage to
the charging system and cause personal
injury.1. If the booster battery is in another vehicle, position the two

Page 263 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual CAUTION
●Do not push start this vehicle. The
three-way catalyst may be damaged.
● Automatic Transmission (AT) or Con-
tinuously Variable Transmission (CVT)
models cannot be push-started or tow-
st

Page 264 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual 6. After the engine cools down, check the cool-ant level in the engine coolant reservoir tank
with the engine running. Add coolant to the
engine coolant reservoir tank if necessary.
Have your vehicle
