2011 NISSAN VERSA HATCHBACK Owners Manual

1.CD LOAD button
2. CD insert slot
3. PRESET A·B·C button
4. CD button
5. RADIO button*
6.
CD eject button 7. DISP button
8. CLOCK button
9. SEEK/TRACK/FILE button
10. SCRL button
11. SCAN button
12. AUDIO button 13. Station and CD select (1–6) buttons
14. VOL control knob
15. PUSH PWR button
16. AUX button
17. AUX IN jack
18. RPT/RDM button
19. TUNE/FF·REW/FOLDER button
*No satellite radio reception is available
when the RADIO button is pressed to
access satellite radio stations unless
optional satellite receiver and antenna
are installed and an XM satellite radio
service subscription is active. Satellite
radio can only be installed in vehicles
that were factory pre-wired for satellite
radio. Satellite radio is not available in
Alaska, Hawaii and Guam.
FM/AM/SAT RADIO WITH
COMPACT DISC (CD) CHANGER (if
so equipped)
For all operation precautions, see Audio opera-
tion precautions earlier in this section.
No satellite radio reception is available when the
RADIO button is pressed to access satellite radio
stations unless optional satellite receiver and an-
tenna are installed and an XM satellite radio
LHA0659
4-30Display screen, heater, air conditioner, audio and phone systems

service subscription is active. Satellite radio can
only be installed in vehicles that were factory
pre-wired for satellite radio. Satellite radio is not
available in Alaska, Hawaii and Guam.
Audio main operation
PWR and VOL control:
Turn the ignition key to ACC or ON, and then
press the PWR button while the system is off to
call up the mode (radio or CD) which was playing
immediately before the system was turned off.
To turn the system off, press the PWR button.
Turn the VOL control knob to adjust the volume.
This vehicle may be equipped with Speed Sen-
sitive Volume (SSV) for audio. The audio volume
changes as the driving speed changes.
AUDIO button (BASS, TREBLE, BALANCE,
FADE, SSV and BEEP):
Press the AUDIO button to change the mode as
follows:
Bass→Treble →Balance →Fade →SPD VOL
(SSV if so equipped) →Beep ON/OFF →Audio
→ Bass
To adjust Bass, Treble, Balance and Fade, press
the AUDIO button until the desired mode ap-
pears in the display. Press the
TUNE/FF·REW/FOLDER button to adjust Bass and Treble to the desired level. You can also use
the TUNE/FF·REW/FOLDER button to adjust
Balance and Fade modes. Balance adjusts the
sound between the right and left speakers and
Fade adjusts the sound level between the front
and rear speakers.
To change the SSV mode to OFF, LOW, MID or
HIGH, press the TUNE/FF·REW/FOLDER but-
ton up or down.
To change the Beep to ON or OFF, press the
TUNE/FF·REW/FOLDER button up or down.
This will enable or disable the beep sound heard
during menu selection.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds.
Clock operation
Pressing the CLOCK button displays the clock
with the radio on or off. Press the CLOCK button
again to turn off the clock display.
Clock set
1. Press and hold the CLOCK button until it beeps for more than 1.5 seconds to enter
the clock set mode. 2. The time will start flashing. Press the
SEEK/TRACK/FILE button
orto adjust the hours.
3. Press the TUNE/FF·REW/FOLDER button
orto adjust the minutes.
4. Press the CLOCK button again to exit the clock set mode.
The display will return to the regular clock display
after 10 seconds, or you may press the CLOCK
button again to return to the regular clock display.
DISP (display) button:
The DISP (display) button will show text about
FM stations, CD or MP3 and SAT (satellite, if so
equipped) information in the audio display.
FM display mode
To change the text displayed while listening to an
FM station that broadcasts with Radio Data Sys-
tem (RDS) , press the DISP button. The DISP
button will allow you to change RDS information
as follows: Station call number →Program type
→ Station information →Station call number.
● Station call number displays the radio fre-
quency number of the station.
● Program type displays the type or category
of radio station.
Display screen, heater, air conditioner, audio and phone systems4-31

●Station information displays information the
radio station wants to broadcast.
For additional information, see “Radio data sys-
tem (RDS)” later in this section.
CD display mode
To change the text displayed while playing a CD
with text, press the DISP button. The DISP button
will allow you to scroll through CD text as follows:
Track number and Track time ←→Disc title ←→
Track number and Track title.
● Track number displays the number selected
on the disc.
● Track time displays the amount of time the
track has played.
● Disc title displays the title of the CD being
played.
● Track title displays the title of the selected
CD track.
MP3 display mode
To change the text displayed when listening to an
MP3 with MP3 text (when CD with text is being
used) , press the DISP button. The DISP button
will scroll through the CD text as follows: Track
number and Track time ←→Folder number and Folder title
←→Album title ←→Artist title ←→
Song title ←→Disc title ←→Track number and
Track title.
● Track number and time displays the number
of the track and how long it has been playing.
● Folder number and title displays the number
of the folder and the name.
● Album title displays the album name of the
track playing.
● Artist title displays the artist name of the
track playing.
● Song title displays the song name of the
track playing.
● Disc title displays the disc name of the CD
playing
● Track number and title displays the number
of the track and the name.
Display satellite radio display mode (if so
equipped)
To change the text displayed when listening to
satellite radio (if so equipped) press the DISP
button. The DISP button will scroll through the
broadcast information as follows: Name ←→
Title ←→ Current display mode. To change the default display mode press the
AUDIO button to display mode and press the
TUNE button to select the following display
modes: Channel number
←→Channel name
←→ Name ←→Title. Once the display mode is
selected press the AUDIO button again to store
the setting. If the AUDIO button is not pressed
after 8 seconds the display will refresh with the
last selected display mode setting.
● Channel number mode displays the channel
number of the selected satellite radio sta-
tion.
● Channel name mode displays the channel
name of the selected satellite radio station.
● Name mode displays the name of the artist,
host or weather condition of the selected
satellite radio station.
● Title mode displays the song title, show
name, or temperature of the selected satel-
lite radio station.
SCRL (Scroll) button:
Press the SCRL button to scroll through
CD/MP3 text that is too long to be displayed on
the first line of the display.
4-32Display screen, heater, air conditioner, audio and phone systems

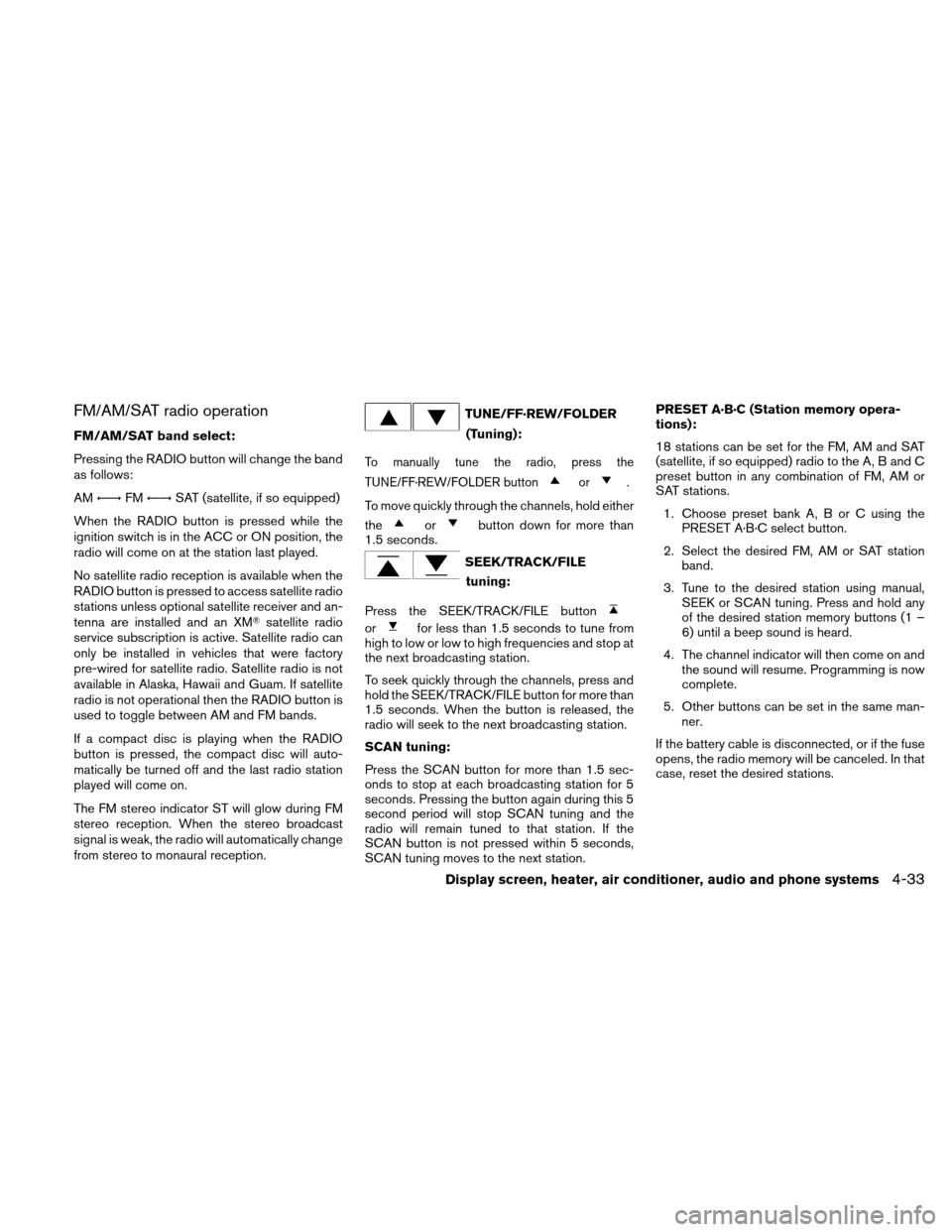

FM/AM/SAT radio operation
FM/AM/SAT band select:
Pressing the RADIO button will change the band
as follows:
AM←→ FM←→ SAT (satellite, if so equipped)
When the RADIO button is pressed while the
ignition switch is in the ACC or ON position, the
radio will come on at the station last played.
No satellite radio reception is available when the
RADIO button is pressed to access satellite radio
stations unless optional satellite receiver and an-
tenna are installed and an XM satellite radio
service subscription is active. Satellite radio can
only be installed in vehicles that were factory
pre-wired for satellite radio. Satellite radio is not
available in Alaska, Hawaii and Guam. If satellite
radio is not operational then the RADIO button is
used to toggle between AM and FM bands.
If a compact disc is playing when the RADIO
button is pressed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.
The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically change
from stereo to monaural reception.
TUNE/FF·REW/FOLDER
(Tuning):
To manually tune the radio, press the
TUNE/FF·REW/FOLDER button
or.
To move quickly through the channels, hold either
the
orbutton down for more than
1.5 seconds.
SEEK/TRACK/FILE
tuning:
Press the SEEK/TRACK/FILE button
orfor less than 1.5 seconds to tune from
high to low or low to high frequencies and stop at
the next broadcasting station.
To seek quickly through the channels, press and
hold the SEEK/TRACK/FILE button for more than
1.5 seconds. When the button is released, the
radio will seek to the next broadcasting station.
SCAN tuning:
Press the SCAN button for more than 1.5 sec-
onds to stop at each broadcasting station for 5
seconds. Pressing the button again during this 5
second period will stop SCAN tuning and the
radio will remain tuned to that station. If the
SCAN button is not pressed within 5 seconds,
SCAN tuning moves to the next station. PRESET A·B·C (Station memory opera-
tions):
18 stations can be set for the FM, AM and SAT
(satellite, if so equipped) radio to the A, B and C
preset button in any combination of FM, AM or
SAT stations.
1. Choose preset bank A, B or C using the PRESET A·B·C select button.
2. Select the desired FM, AM or SAT station band.
3. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.
4. The channel indicator will then come on and the sound will resume. Programming is now
complete.
5. Other buttons can be set in the same man- ner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.
Display screen, heater, air conditioner, audio and phone systems4-33

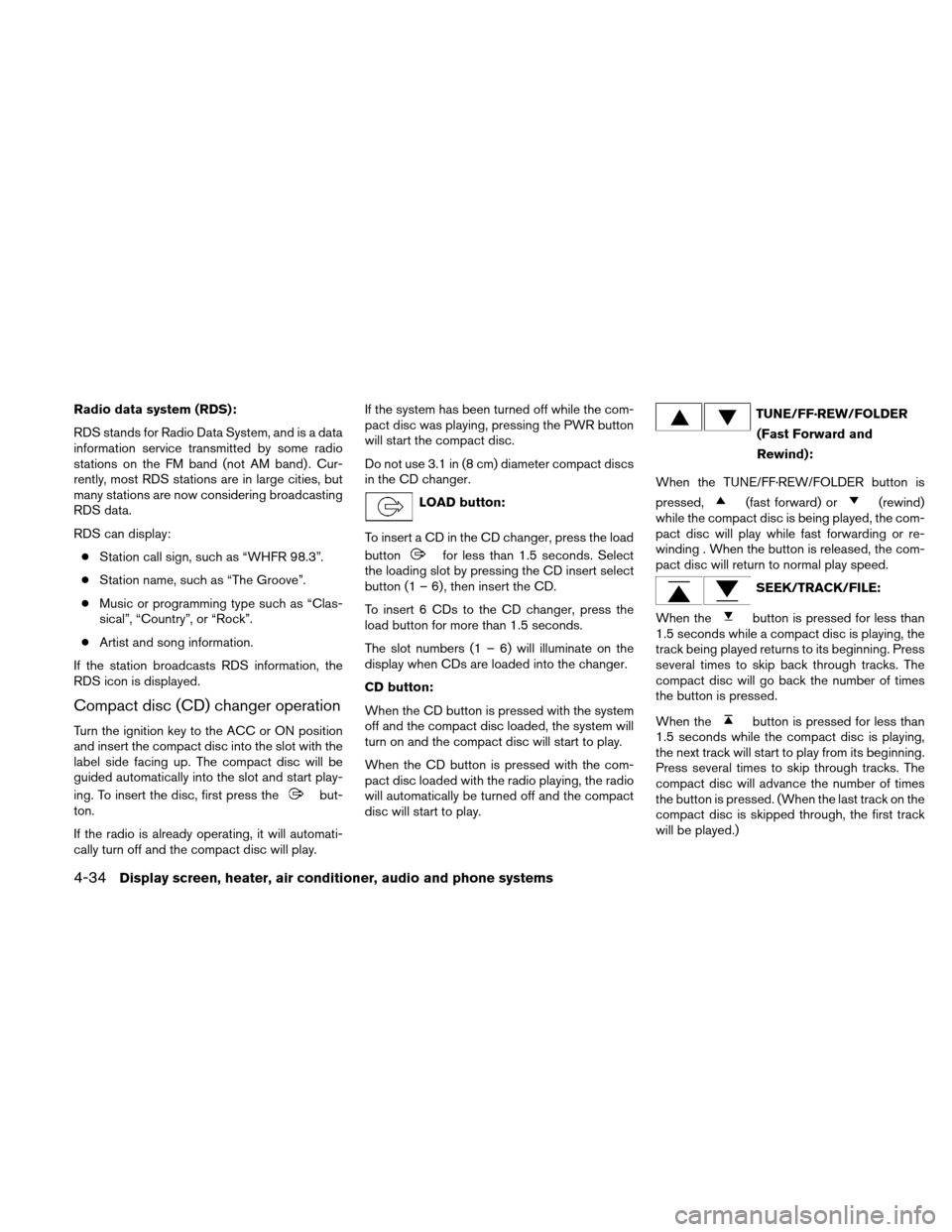

Radio data system (RDS):
RDS stands for Radio Data System, and is a data
information service transmitted by some radio
stations on the FM band (not AM band) . Cur-
rently, most RDS stations are in large cities, but
many stations are now considering broadcasting
RDS data.
RDS can display:● Station call sign, such as “WHFR 98.3”.
● Station name, such as “The Groove”.
● Music or programming type such as “Clas-
sical”, “Country”, or “Rock”.
● Artist and song information.
If the station broadcasts RDS information, the
RDS icon is displayed.
Compact disc (CD) changer operation
Turn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing. To insert the disc, first press the
but-
ton.
If the radio is already operating, it will automati-
cally turn off and the compact disc will play. If the system has been turned off while the com-
pact disc was playing, pressing the PWR button
will start the compact disc.
Do not use 3.1 in (8 cm) diameter compact discs
in the CD changer.
LOAD button:
To insert a CD in the CD changer, press the load
button
for less than 1.5 seconds. Select
the loading slot by pressing the CD insert select
button (1 – 6) , then insert the CD.
To insert 6 CDs to the CD changer, press the
load button for more than 1.5 seconds.
The slot numbers (1 – 6) will illuminate on the
display when CDs are loaded into the changer.
CD button:
When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pressed with the com-
pact disc loaded with the radio playing, the radio
will automatically be turned off and the compact
disc will start to play.
TUNE/FF·REW/FOLDER
(Fast Forward and
Rewind):
When the TUNE/FF·REW/FOLDER button is
pressed,
(fast forward) or(rewind)
while the compact disc is being played, the com-
pact disc will play while fast forwarding or re-
winding . When the button is released, the com-
pact disc will return to normal play speed.
SEEK/TRACK/FILE:
When the
button is pressed for less than
1.5 seconds while a compact disc is playing, the
track being played returns to its beginning. Press
several times to skip back through tracks. The
compact disc will go back the number of times
the button is pressed.
When the
button is pressed for less than
1.5 seconds while the compact disc is playing,
the next track will start to play from its beginning.
Press several times to skip through tracks. The
compact disc will advance the number of times
the button is pressed. (When the last track on the
compact disc is skipped through, the first track
will be played.)
4-34Display screen, heater, air conditioner, audio and phone systems

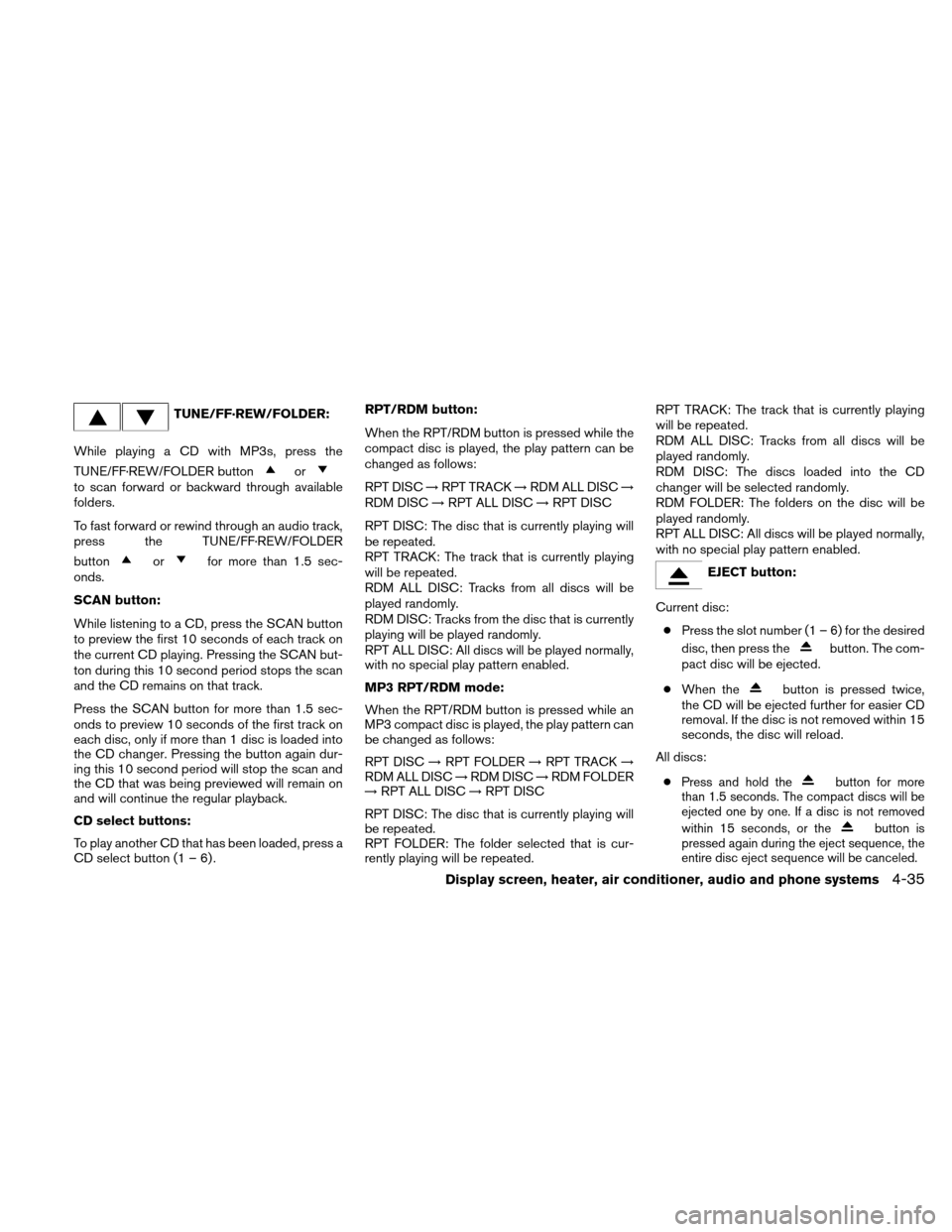

TUNE/FF·REW/FOLDER:
While playing a CD with MP3s, press the
TUNE/FF·REW/FOLDER button
orto scan forward or backward through available
folders.
To fast forward or rewind through an audio track,
press the TUNE/FF·REW/FOLDER
button
orfor more than 1.5 sec-
onds.
SCAN button:
While listening to a CD, press the SCAN button
to preview the first 10 seconds of each track on
the current CD playing. Pressing the SCAN but-
ton during this 10 second period stops the scan
and the CD remains on that track.
Press the SCAN button for more than 1.5 sec-
onds to preview 10 seconds of the first track on
each disc, only if more than 1 disc is loaded into
the CD changer. Pressing the button again dur-
ing this 10 second period will stop the scan and
the CD that was being previewed will remain on
and will continue the regular playback.
CD select buttons:
To play another CD that has been loaded, press a
CD select button (1 – 6) . RPT/RDM button:
When the RPT/RDM button is pressed while the
compact disc is played, the play pattern can be
changed as follows:
RPT DISC
→RPT TRACK →RDM ALL DISC →
RDM DISC →RPT ALL DISC →RPT DISC
RPT DISC: The disc that is currently playing will
be repeated.
RPT TRACK: The track that is currently playing
will be repeated.
RDM ALL DISC: Tracks from all discs will be
played randomly.
RDM DISC: Tracks from the disc that is currently
playing will be played randomly.
RPT ALL DISC: All discs will be played normally,
with no special play pattern enabled.
MP3 RPT/RDM mode:
When the RPT/RDM button is pressed while an
MP3 compact disc is played, the play pattern can
be changed as follows:
RPT DISC →RPT FOLDER →RPT TRACK →
RDM ALL DISC →RDM DISC →RDM FOLDER
→ RPT ALL DISC →RPT DISC
RPT DISC: The disc that is currently playing will
be repeated.
RPT FOLDER: The folder selected that is cur-
rently playing will be repeated. RPT TRACK: The track that is currently playing
will be repeated.
RDM ALL DISC: Tracks from all discs will be
played randomly.
RDM DISC: The discs loaded into the CD
changer will be selected randomly.
RDM FOLDER: The folders on the disc will be
played randomly.
RPT ALL DISC: All discs will be played normally,
with no special play pattern enabled.EJECT button:
Current disc: ● Press the slot number (1 – 6) for the desired
disc, then press the
button. The com-
pact disc will be ejected.
● When the
button is pressed twice,
the CD will be ejected further for easier CD
removal. If the disc is not removed within 15
seconds, the disc will reload.
All discs:
●
Press and hold thebutton for more
than 1.5 seconds. The compact discs will be
ejected one by one. If a disc is not removed
within 15 seconds, or the
button is
pressed again during the eject sequence, the
entire disc eject sequence will be canceled.
Display screen, heater, air conditioner, audio and phone systems4-35

When this button is pressed while the compact
disc is being played, the compact disc will eject
and the last source will be played.
CD IN indicator:
The slot numbers (1 – 6) will illuminate if CDs
have been loaded into the changer in CD mode
only.
AUX (Auxiliary) button:
The AUX jack is located on the CD player. The
AUX audio input jack accepts any standard ana-
log audio input such as from a portable cassette
tape/CD player, MP3 player or a laptop com-
puter.
Press the AUX button to play a compatible device
when it is plugged into the AUX jack.
1.MUTE button
2. DISP/TEXT button
3. FM-AM button
4. CD button
5. CD insert slot 6. iPod button
7. AUX button
8. CLOCK button
9.
CD eject button
10. TUNE/FF-REW/FOLDER button
Type A
LHA1225
4-36Display screen, heater, air conditioner, audio and phone systems

11. SCAN/RPT button
12. AUDIO button
13. AUX IN jack
14. Station select (1 - 6) buttons
15. VOLUME control knob
16. PWR button
17. iPod MENU button
18. BACK button
19. ENTER button
20. SEEK/TRACK button
FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (Type
A) (if so equipped)
For all operation precautions, seeAudio opera-
tion precautions in this section.
No satellite radio reception is available when the
AUX button is pressed to access satellite radio
stations unless an optional satellite receiver and
antenna are installed and an XM satellite radio
service subscription is active. Satellite radio is
not available in Alaska, Hawaii and Guam.
Audio main operation
POWER/VOLUME control:
Place the ignition switch in the ACC or ON
position. Press the PWR button while the system
is off to call up the mode (radio, CD or AUX) that was playing immediately before the system was
turned off. While the system is on, pressing the
PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
MUTE button:
Press the
button to mute the audio sound.
Press the
button again to resume playing
the audio at its previous volume.
AUDIO button (Bass, Treble, Fade, Bal-
ance, SSV, Beep):
Press the AUDIO button to change the mode as
follows:
Bass →Treble →Fade →Balance →Speed
Sensitive Volume (SSV) →Beep ON/OFF →
Normal mode
To adjust Bass, Treble, Fade and Balance, press
the AUDIO button until the desired mode ap-
pears in the display. Press the TUNE
oror SEEKorbutton to ad-
just the selected mode to the desired level. Fade
adjusts the sound level between the front and
rear speakers and Balance adjusts the sound
between the right and left speakers.
To change the Beep to ON or OFF, press the
TUNE button up or down until the desired mode is displayed. This will enable or disable the beep
sound heard during menu selection.
To change the Speed Sensitive Volume (SSV)
mode to OFF, LOW, MID or HIGH, press the
TUNE button
oruntil the desired
setting is displayed.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 5 sec-
onds.
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/FF-REW/FOLDER button to en-
able CLK-ON mode.
1. Press and hold the CLOCK button until the clock display starts to flash.
2. Press the SEEK/TRACK button
orto adjust the hours.
3. Press the TUNE/FF-REW/FOLDER button
orto adjust the minutes.
Display screen, heater, air conditioner, audio and phone systems4-37
