2011 NISSAN VERSA HATCHBACK Owners Manual

MR18DE
1. Engine oil filler cap (P. 8-10)
2. Brake and clutch (*1) fluid reservoir(P. 8-15)
3. Air cleaner (P. 8-21)
4. Battery (P. 8-17)
5. Fuse/fusible link box (P. 8-24)
6. Automatic/Continuously variable
transmission fluid (ATF) dipstick (*2)
(P. 8-14)
7. Radiator cap (P. 8-8)
8. Engine oil dipstick (P. 8-10)
9. Engine coolant reservoir (P. 8-8)
10. Drive belt location (P.8-19)
11. Windshield-washer fluid reservoir
(P. 8-16)
*1 For Manual Transmission (M/T) model
*2 For Automatic Transmission (A/T)
model/Continuously Variable
Transmission (CVT) model
See the page number indicated in paren-
theses for operating details.
WDI0733
0-10Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light (if so
equipped) 2-8
or
Brake warning light 2-8
Charge warning light 2-9
Door open warning
light
2-9
Electric power
steering warning
light2-9
Engine oil pressure
warning light
2-10
Warning
light Name Page
High temperature
warning light (red) 2-10
Low fuel warning
light2-10
Low tire pressure
warning light (if so
equipped)2-10
Low windshield-
washer fluid warning
light (if so equipped)2-11
NISSAN Intelligent
Key ™ lock warning
light (M/T models) (if
so equipped)2-11
NISSAN Intelligent
Key ™ warning light
(if so equipped)
2-12
Warning
light Name Page
P position selecting
warning light (for
models with
NISSAN Intelligent
Key™) (if so
equipped) 2-12
Seat belt warning
light and chime
2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
Automatic Transmis-
sion (A/T) / Con-
tinuously Variable
Transmission (CVT)
position indicator
light (if so equipped) 2-13
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-11

Indicatorlight Name Page
Cruise main switch
indicator light (if so
equipped) 2-13
Cruise set switch
indicator light (if so
equipped)2-13
Front passenger air
bag status light
2-13
High beam indicator
light (blue)2-13
Low temperature
indicator light (blue)2-13
Malfunction Indica-
tor Light (MIL)2-14
Overdrive OFF indi-
cator light (A/T /
CVT models)2-14
Indicator
light Name Page
Security indicator
light 2-14
Slip indicator light (if
so equipped)2-15
Turn signal/hazard
indicator lights2-15
Vehicle Dynamic
Control (VDC) off
indicator light (if so
equipped)2-15
0-12Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment ....................1-2
Folding rear seat (if so equipped) .................1-4
Head restraints (Hatchback model and front
seats of Sedan model) ..........................1-6
Adjustable headrest
(rear seats for Sedan model) .....................1-9
Seat belts ....................................... 1-12
Precautions on seat belt usage ..................1-12
Pregnant women .............................. 1-15
Injured persons ................................ 1-15
Three-point type seat belt with retractor ..........1-15
Seat belt extenders ............................ 1-20
Seat belt maintenance ......................... 1-20
Child safety ...................................... 1-21
Infants ........................................ 1-21
Small children ................................. 1-21
Larger children ................................ 1-22
Child restraints ................................... 1-22Precautions on child restraints
..................1-22
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-24
Rear-facing child restraint installation using
LATCH....................................... 1-27
Rear-facing child restraint installation using
the seat belts ................................. 1-29
Forward-facing child restraint installation
using LATCH .................................. 1-32
Forward-facing child restraint installation
using the seat belts ............................ 1-33
Installing top tether strap (hatchback model) ......1-37
Installing top tether strap (sedan model) ..........1-37
Booster seats ................................. 1-38
Supplemental restraint system .....................1-41
Precautions on supplemental restraint
system ....................................... 1-41
Supplemental air bag warning labels .............1-55
Supplemental air bag warning light ..............1-55

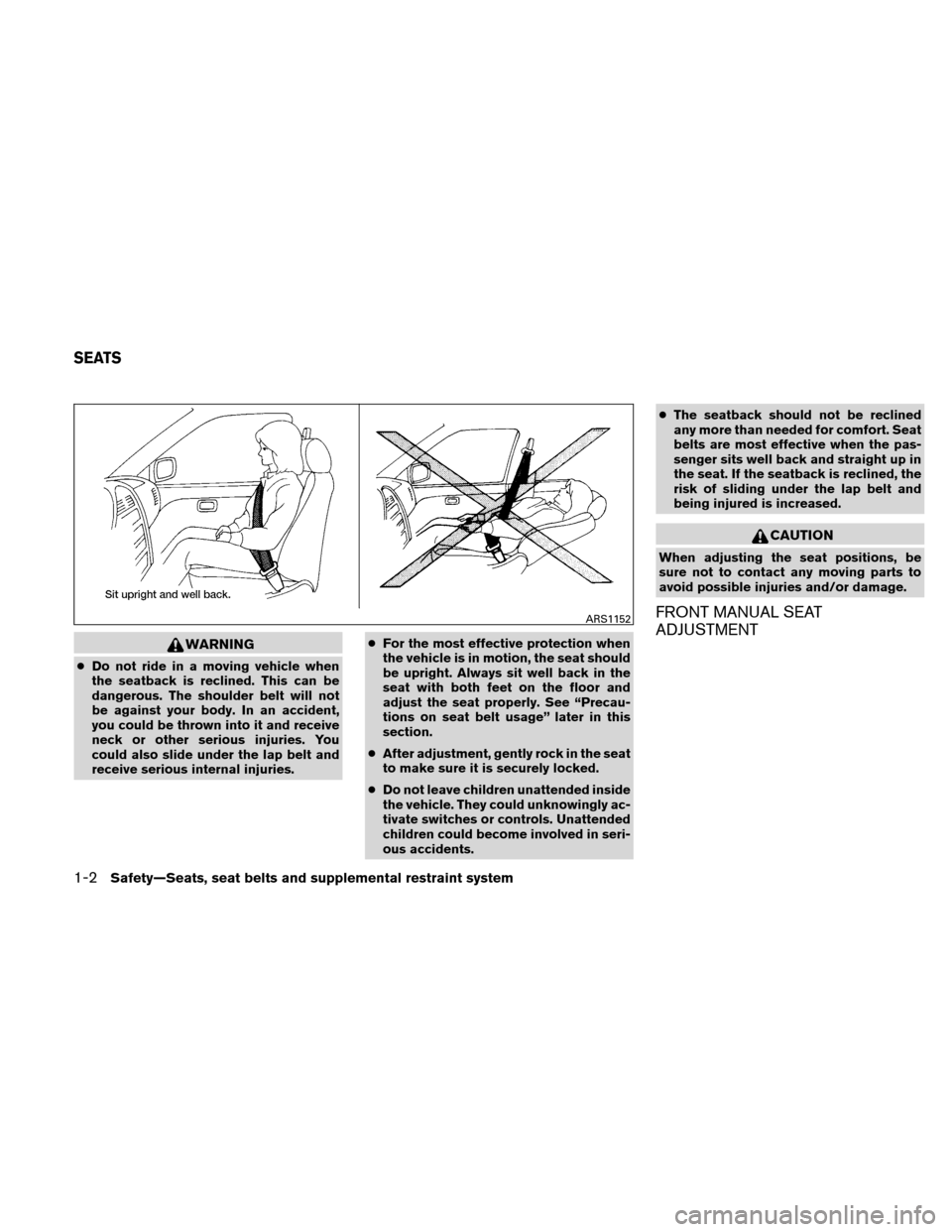

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENTARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park) or N
(Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
WRS0692WRS0693WRS0694
Safety—Seats, seat belts and supplemental restraint system1-3

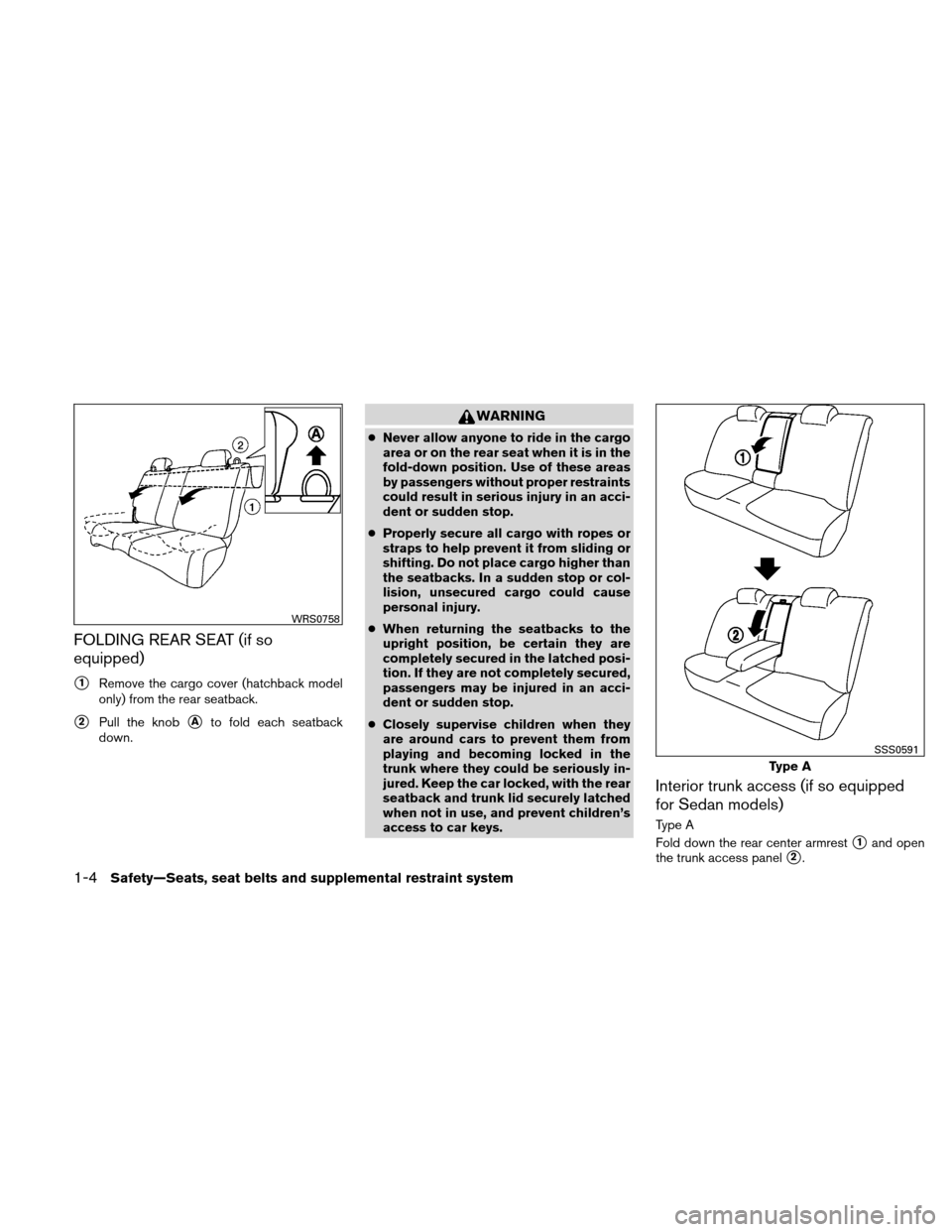

FOLDING REAR SEAT (if so
equipped)
1Remove the cargo cover (hatchback model
only) from the rear seatback.
2Pull the knobAto fold each seatback
down.
WARNING
● Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.
● Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
Interior trunk access (if so equipped
for Sedan models)
Type A
Fold down the rear center armrest
1and open
the trunk access panel
2.
WRS0758
Type A
SSS0591
1-4Safety—Seats, seat belts and supplemental restraint system

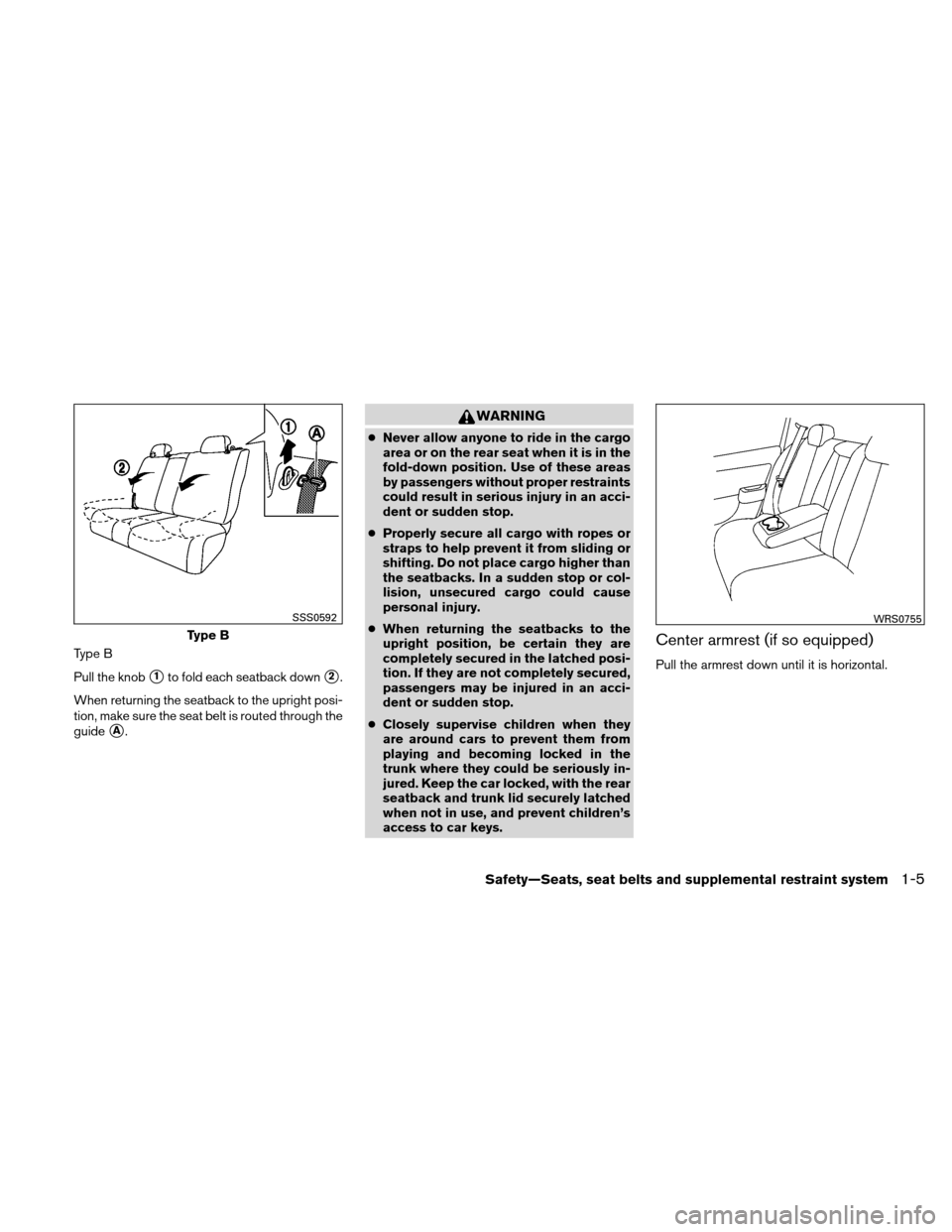

Type B
Pull the knob
1to fold each seatback down2.
When returning the seatback to the upright posi-
tion, make sure the seat belt is routed through the
guide
A.
WARNING
● Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.
● Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
Center armrest (if so equipped)
Pull the armrest down until it is horizontal.
Type B
SSS0592WRS0755
Safety—Seats, seat belts and supplemental restraint system1-5
