2011 NISSAN VERSA HATCHBACK Owners Manual

REARVIEW MIRROR
The night position1reduces glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
OUTSIDE MIRRORS
WARNING
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
Manual control type (if so equipped)
The outside mirror can be moved in any direction
for a better rear view.
WPD0126WPD0170
MIRRORS
3-30Pre-driving checks and adjustments

Electric control type (if so equipped)
The outside mirror remote control will operate
only when the ignition switch is placed in the
ACC or ON position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
Manual folding outside mirrors
Pull the outside mirror toward the door to fold it.
Heated mirrors (Canada only) (if so
equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. Push the
rear window defroster switch to activate the heat-
ing function. Push the switch again to deactivate,
or the heating function will automatically turn off
after approximately 15 minutes.
LPD0237MPA0008
Pre-driving checks and adjustments3-31

MEMO
3-32Pre-driving checks and adjustments

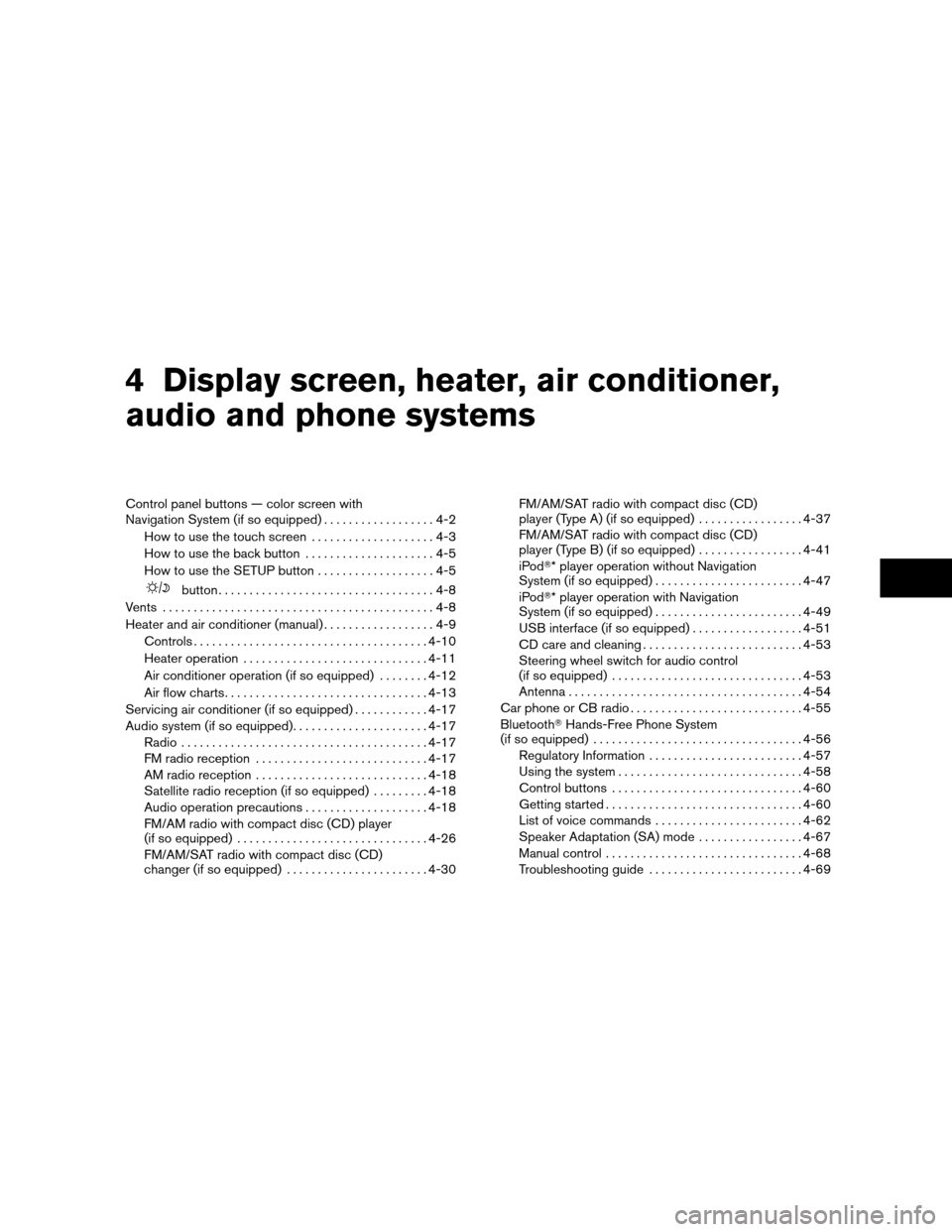

4 Display screen, heater, air conditioner,
audio and phone systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to use the back button .....................4-5
How to use the SETUP button ...................4-5
button...................................4-8
Vents ............................................4-8
Heater and air conditioner (manual) ..................4-9
Controls ...................................... 4-10
Heater operation .............................. 4-11
Air conditioner operation (if so equipped) ........4-12
Air flow charts ................................. 4-13
Servicing air conditioner (if so equipped) ............4-17
Audio system (if so equipped) ......................4-17
Radio ........................................ 4-17
FM radio reception ............................ 4-17
AM radio reception ............................ 4-18
Satellite radio reception (if so equipped) .........4-18
Audio operation precautions ....................4-18
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-26
FM/AM/SAT radio with compact disc (CD)
changer (if so equipped) .......................4-30FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped)
.................4-37
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-41
iPod* player operation without Navigation
System (if so equipped) ........................ 4-47
iPod* player operation with Navigation
System (if so equipped) ........................ 4-49
USB interface (if so equipped) ..................4-51
CD care and cleaning .......................... 4-53
Steering wheel switch for audio control
(if so equipped) ............................... 4-53
Antenna ...................................... 4-54
Car phone or CB radio ............................ 4-55
Bluetooth Hands-Free Phone System
(if so equipped) .................................. 4-56
Regulatory Information ......................... 4-57
Using the system .............................. 4-58
Control buttons ............................... 4-60
Getting started ................................ 4-60
List of voice commands ........................ 4-62
Speaker Adaptation

(SA) mode................. 4-67
Manual control ................................ 4-68
Troubleshooting guide ......................... 4-69

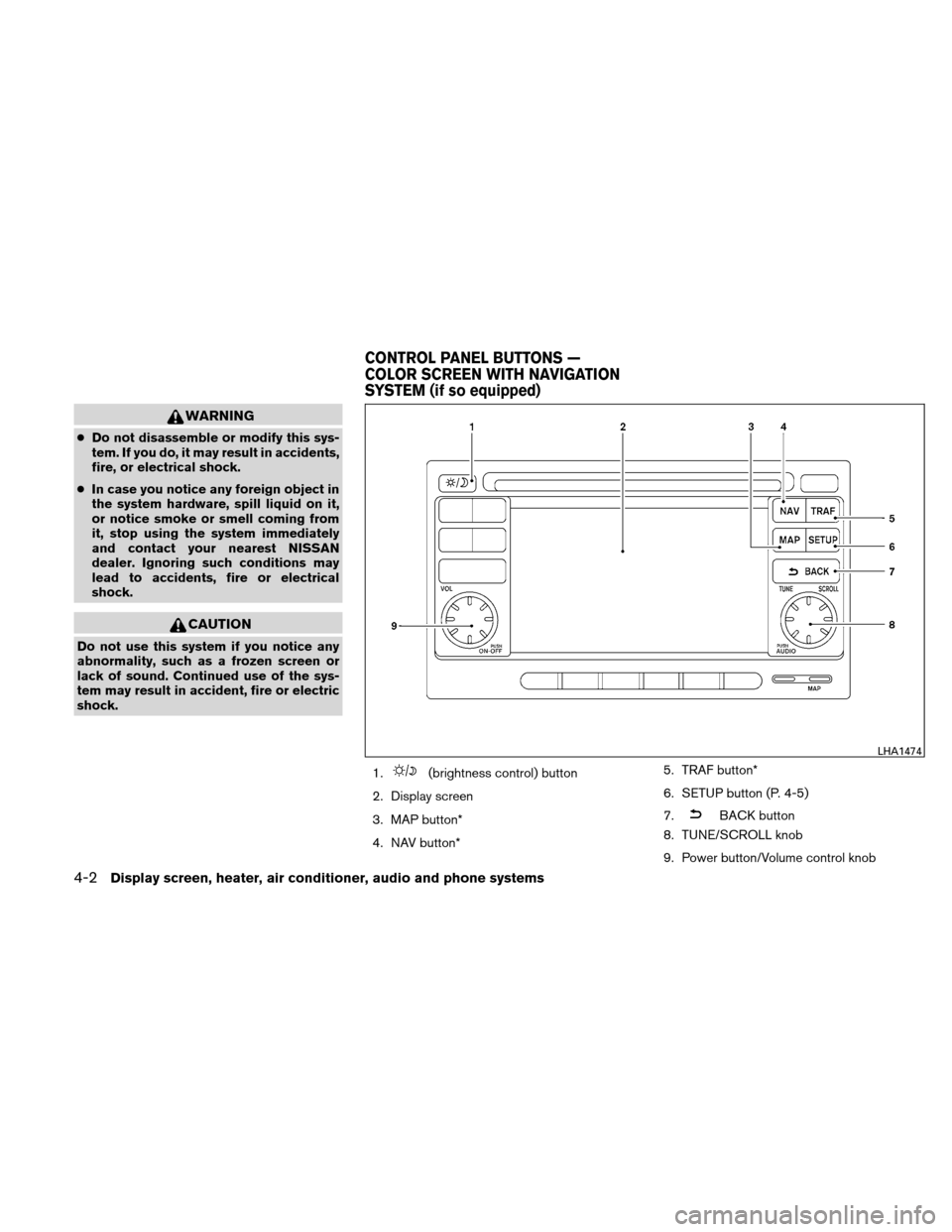

WARNING
●Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
CAUTION
Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the sys-
tem may result in accident, fire or electric
shock.
1.
(brightness control) button
2. Display screen
3. MAP button*
4. NAV button* 5. TRAF button*
6. SETUP button (P. 4-5)
7.
BACK button
8. TUNE/SCROLL knob
9. Power button/Volume control knob
LHA1474
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
4-2Display screen, heater, air conditioner, audio and phone systems

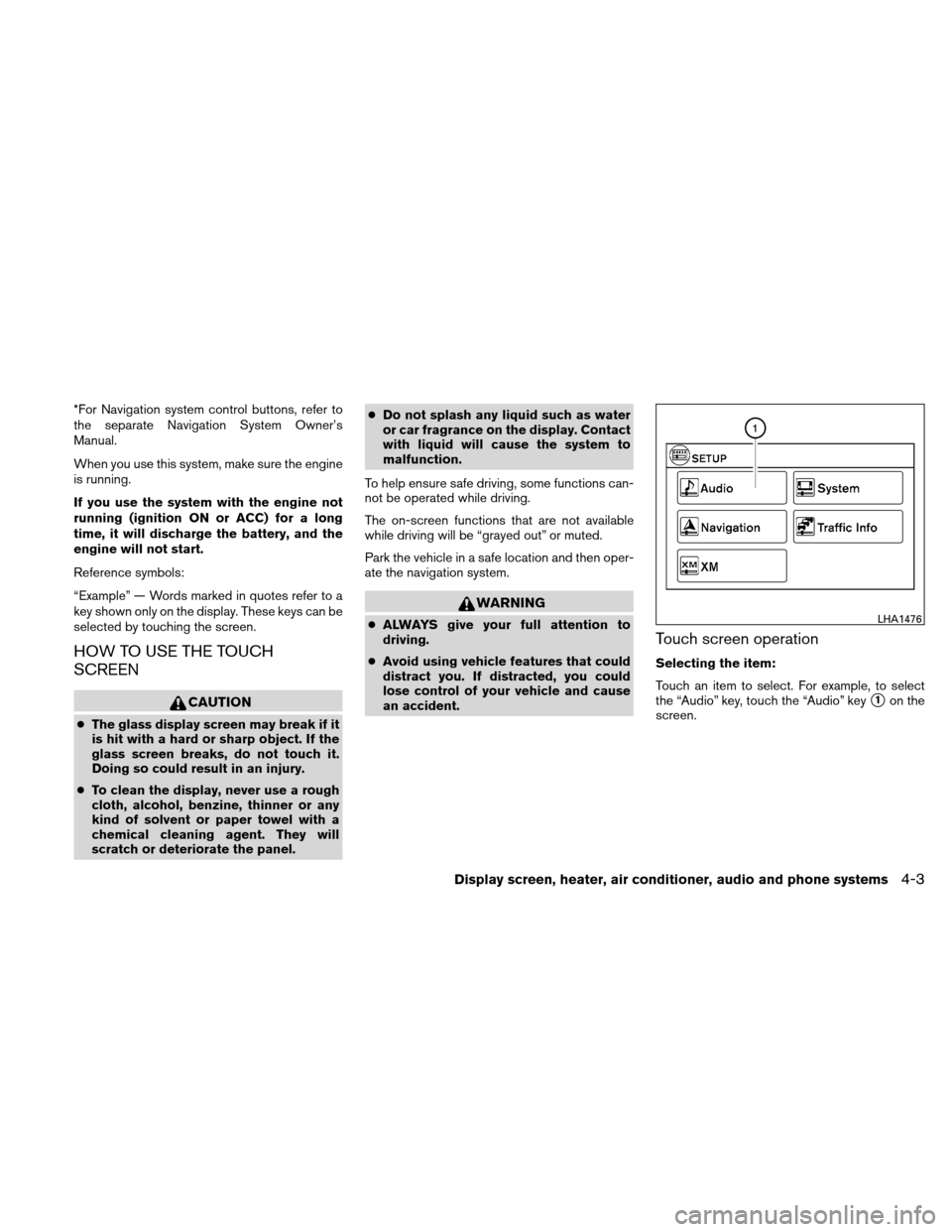

*For Navigation system control buttons, refer to
the separate Navigation System Owner’s
Manual.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.
HOW TO USE THE TOUCH
SCREEN
CAUTION
●The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel. ●
Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.Touch screen operation
Selecting the item:
Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
1on the
screen.
LHA1476
Display screen, heater, air conditioner, audio and phone systems4-3

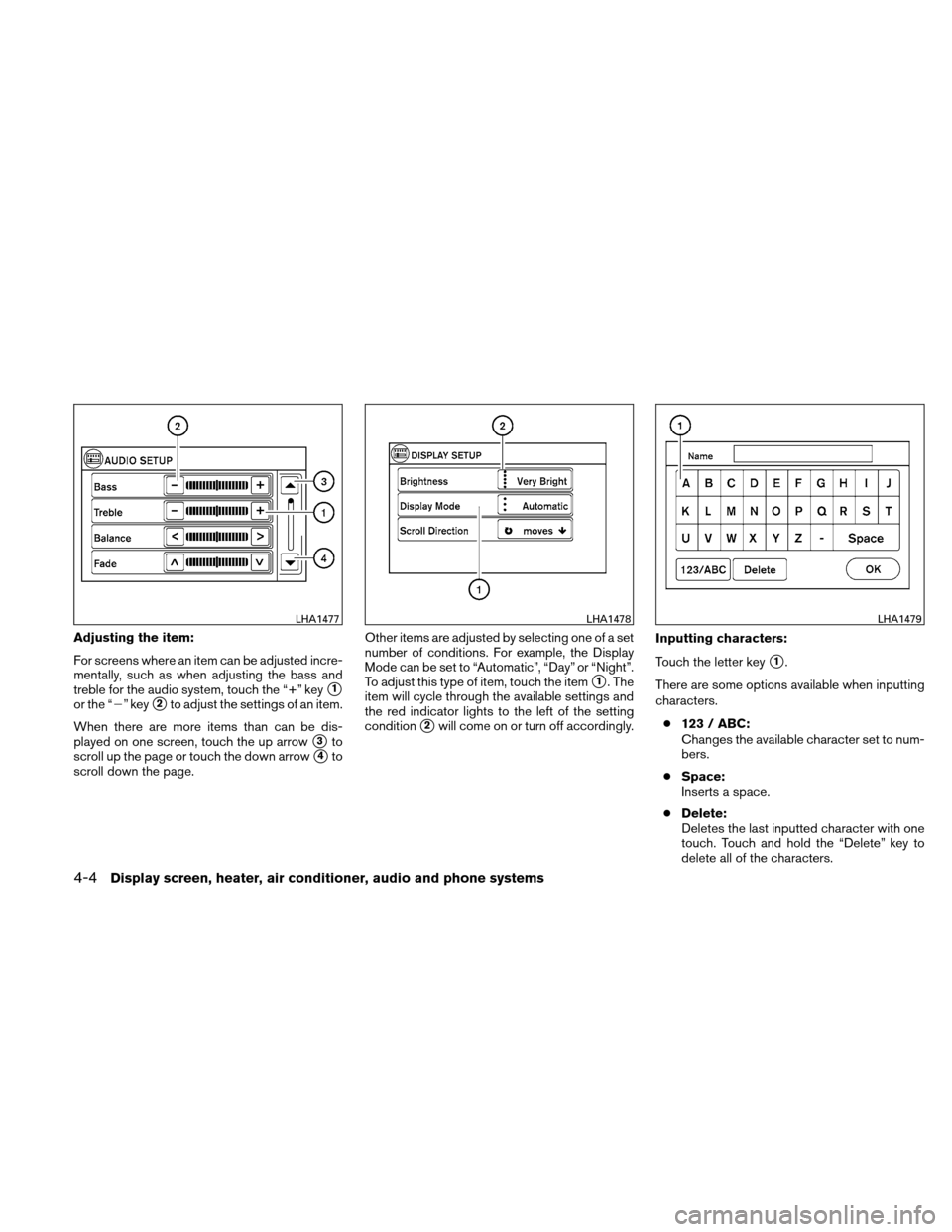

Adjusting the item:
For screens where an item can be adjusted incre-
mentally, such as when adjusting the bass and
treble for the audio system, touch the “+” key
1
or the “” key2to adjust the settings of an item.
When there are more items than can be dis-
played on one screen, touch the up arrow
3to
scroll up the page or touch the down arrow
4to
scroll down the page. Other items are adjusted by selecting one of a set
number of conditions. For example, the Display
Mode can be set to “Automatic”, “Day” or “Night”.
To adjust this type of item, touch the item
1. The
item will cycle through the available settings and
the red indicator lights to the left of the setting
condition
2will come on or turn off accordingly. Inputting characters:
Touch the letter key
1.
There are some options available when inputting
characters. ● 123 / ABC:
Changes the available character set to num-
bers.
● Space:
Inserts a space.
● Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.
LHA1477LHA1478LHA1479
4-4Display screen, heater, air conditioner, audio and phone systems

●OK:
Completes the character input.

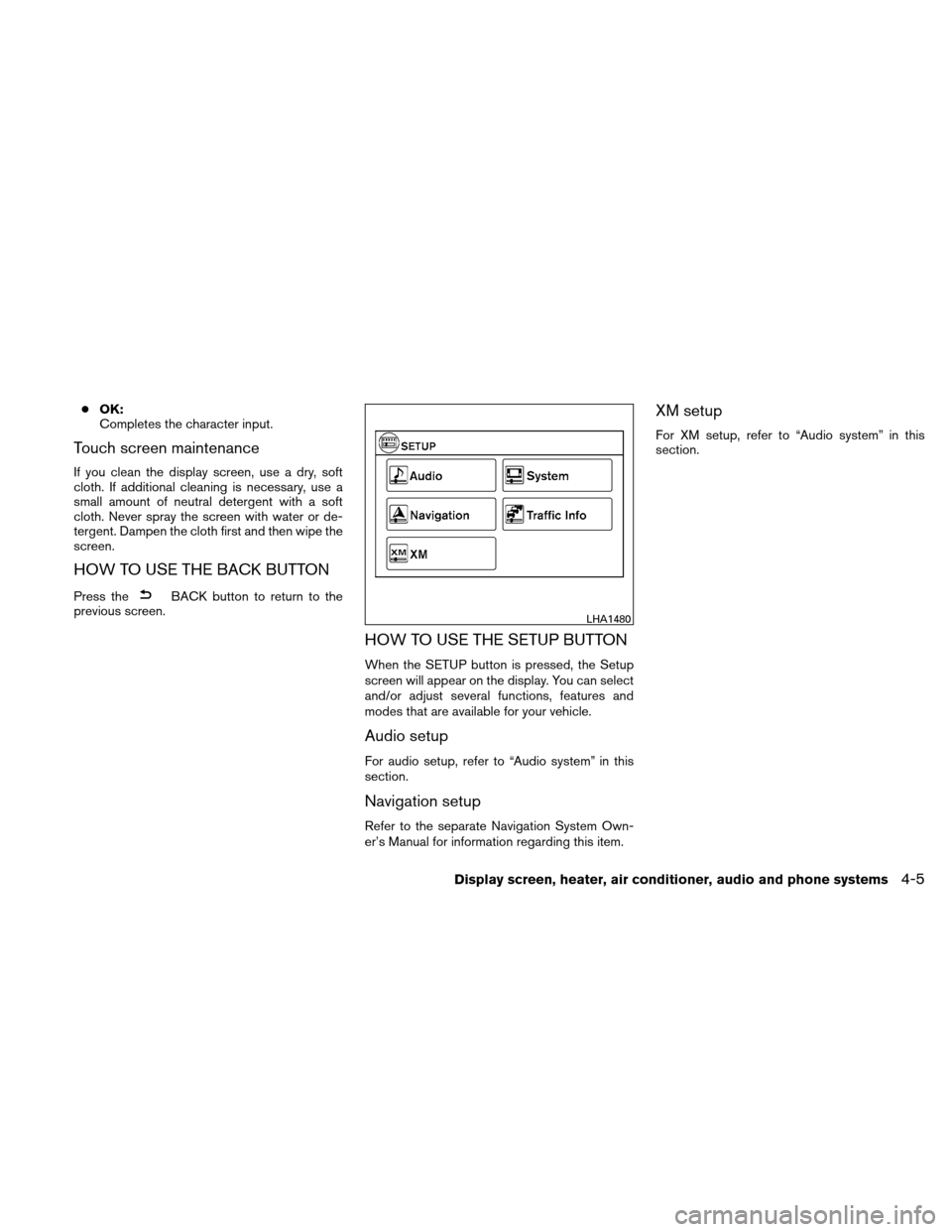

Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first and then wipe the
screen.
HOW TO USE THE BACK BUTTON
Press theBACK button to return to the
previous screen.
HOW TO USE THE SETUP BUTTON
When the SETUP button is pressed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
Audio setup
For audio setup, refer to “Audio system” in this
section.
Navigation setup
Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setup
For XM setup, refer to “Audio system” in this
section.
LHA1480
Display screen, heater, air conditioner, audio and phone systems4-5
