P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-389
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Check the voltage between ECM harness connector and
ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between ECM harness connector and IPDM E/R harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK FUSE
1. Disconnect 15 A fuse (No. 52) from IPDM E/R.
2. Check 15 A fuse for blown.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace 15 A fuse.
5.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
Check the voltage between ECM harness connector and ground
under the following conditions.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector.
ECM Ground Voltage
Connector Terminal
F10 15 Ground Battery voltage
PBIA9569J
ECM IPDM E/R
Continuity
Connector Terminal Connector Terminal
F10 15 E46 46 Existed
ECM Ground Condition Voltage
Connector Terminal
F10 2 Ground Ignition switch: OFF Approximately 0 V
Ignition switch: ON Battery voltage
PBIA9568J
Revision: May 2010
2011 Versa

EC-390
< COMPONENT DIAGNOSIS >[HR16DE]
P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
4. Check the continuity between ECM harnes s connector and IPDM E/R harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PG-28, "Removal and Installation of IPDM E/R".
NO >> Repair or replace harness or connectors.
ECM IPDM E/R
Continuity
Connector Terminal Connector Terminal
F10 2 E43 8 Existed
Revision: May 2010 2011 Versa

P2101 ELECTRIC THROTTLE CONTROL FUNCTIONEC-393
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE CONTROL MOTOR
RELAY INPUT SIGNAL CIRCUIT-I
1. Check the voltage between ECM harness connector and ground under the following conditions.
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 3.
3.CHECK THROTTLE CONTROL MOTO R RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect IPDM E/R harness connector.
4. Check the continuity between ECM harness connector and IPDM E/R harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Check the continuity between ECM harness connector and IPDM E/R harness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
ECM Ground Condition Voltage
Connector Terminal
F10 2 Ground Ignition switch: OFF Approx. 0 V
Ignition switch: ON Battery voltage
PBIA9568J
IPDM E/R
ECM
Continuity
Connector Terminal Connector Terminal
E46 46F10 15 Existed
IPDM E/R ECM
Continuity
Connector Terminal Connector Terminal
E43 8F10 2 Existed
Revision: May 2010 2011 Versa

FUEL PUMPEC-437
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
FUEL PUMP
DescriptionINFOID:0000000005930124
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
start ability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to
operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The EC M stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly dr ive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.
Component Function CheckINFOID:0000000005930125
1.CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.
Is the inspection result normal?
YES >> INSPECTION END
NO >> EC-438, "
Diagnosis Procedure".
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
Fuel pump controlFuel pump relay
↓
Fuel pump
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and cranking Operates.
When engine is stopped Stops in 1.5 seconds.
Except as shown above Sto ps .
Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.
ALBIA0276ZZ
Revision: May 2010 2011 Versa

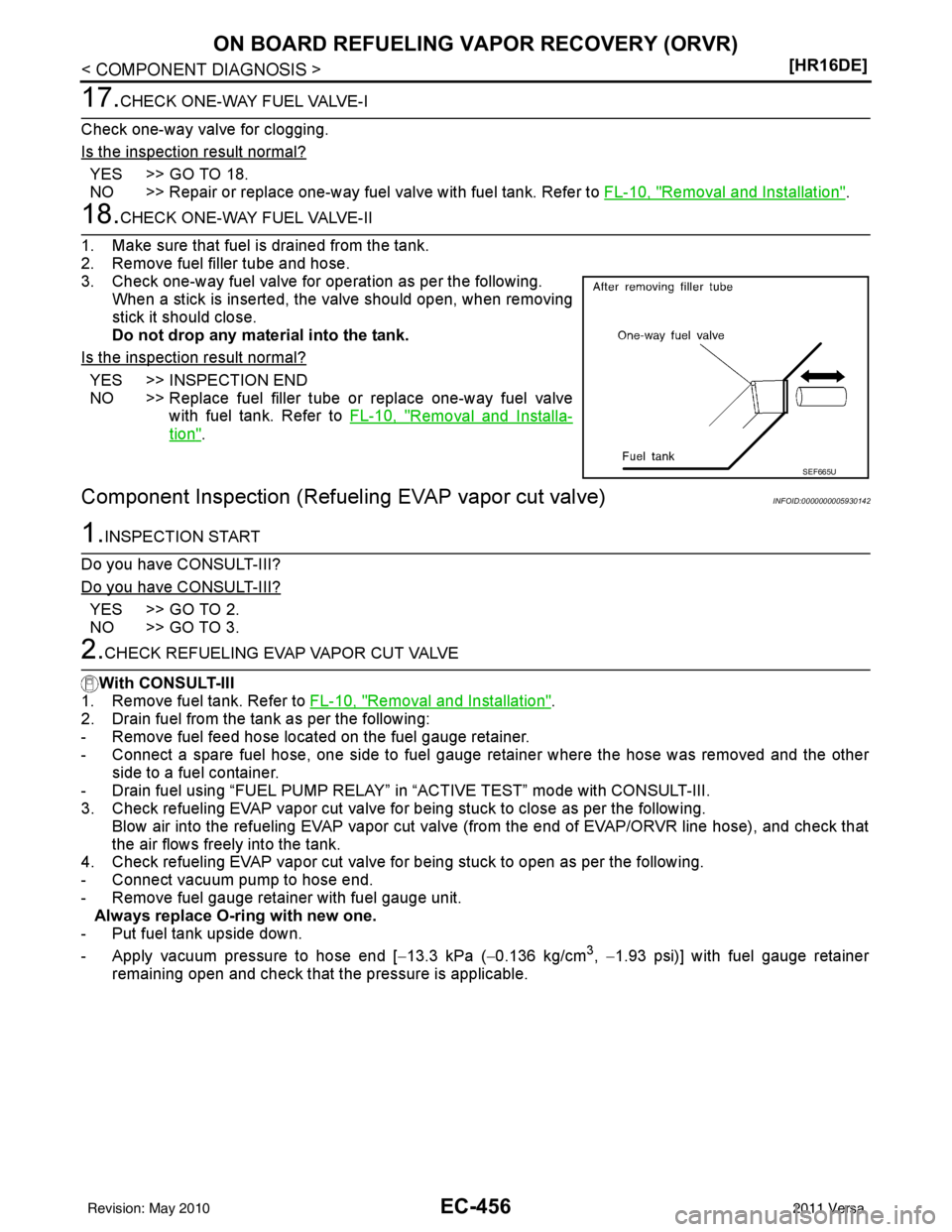

EC-456
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
17.CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or replace one-way fuel valve with fuel tank. Refer to FL-10, "
Removal and Installation".
18.CHECK ONE-WAY FUEL VALVE-II
1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as per the following. When a stick is inserted, the valve should open, when removing
stick it should close.
Do not drop any material into the tank.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace fuel filler tube or replace one-way fuel valve with fuel tank. Refer to FL-10, "
Removal and Installa-
tion".
Component Inspection (Refueling EVAP vapor cut valve)INFOID:0000000005930142
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK REFUELING EVAP VAPOR CUT VALVE
With CONSULT-III
1. Remove fuel tank. Refer to FL-10, "
Removal and Installation".
2. Drain fuel from the tank as per the following:
- Remove fuel feed hose located on the fuel gauge retainer.
- Connect a spare fuel hose, one side to fuel gauge re tainer where the hose was removed and the other
side to a fuel container.
- Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.
3. Check refueling EVAP vapor cut valve for being stuck to close as per the following.
Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as per the following.
- Connect vacuum pump to hose end.
- Remove fuel gauge retainer with fuel gauge unit. Always replace O-ri ng with new one.
- Put fuel tank upside down.
- Apply vacuum pressure to hose end [ −13.3 kPa ( −0.136 kg/cm
3, −1.93 psi)] with fuel gauge retainer
remaining open and check that the pressure is applicable.
SEF665U
Revision: May 2010 2011 Versa

ECM
EC-465
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
PW/ST SIGNAL
• Engine: After warming up, idle the
engine Steering wheel: Not being turned OFF
Steering wheel: Being turned
ON
LOAD SIGNAL • Ignition switch: ON Rear window defogger switch: ON
and/or Lighting switch: 2nd position
ON
Rear window defogger switch and lighting
switch: OFF OFF
IGNITION SW • Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW • Engine: After warming up, idle the
engine Heater fan switch: ON
ON
Heater fan switch: OFF OFF
BRAKE SW • Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1 • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
10 - 20°BTDC
2,000 rpm 25 - 45°BTDC
CAL/LD VALUE • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
10 - 35%
2,500 rpm 10 - 35%
MASS AIRFLOW • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
1.0 - 4.0 g/s
2,500 rpm 2.0 - 10.0 g/s
PURG VOL C/V • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
0%
2,000 rpm 0 - 50%
INT/V TIM (B1) • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
−5 - 5 °CA
2,000 rpm Approx. 0 - 40°CA
INT/V SOL (B1) • Engine: After warming up
• Selector lever position: P or N (A/
T) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
0 - 2%
2,000 rpm Approx. 0 - 90%
AIR COND RLY • Engine: After warming up, idle the
engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor operates) ON
FUEL PUMP RLY • For 1 second after turning ignition switch: ON
• Engine running or cranking
ON
• E
x

cept above OFF
THRTL RELAY • Ignition switch: ON ON
Monitor Item
Condition Values/Status
Revision: May 2010 2011 Versa

EC-468
< ECU DIAGNOSIS >[HR16DE]
ECM
9PEVAP canister purge volume
control solenoid valve [Engine is running]
• Idle speed
• Accelerator pedal: Not depressed even
slightly, after engine starting. BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Engine speed: About 2,000 rpm (More than 100 seconds after starting engine) BATTERY VOLTAGE
(11 - 14 V)
10 11 B
B
ECM ground
[Engine is running]
• Idle speed Body ground
15 Y Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14 V)
[Ignition switch: ON] 0 - 1.0 V
17
18
21
22 R
LG
G
SB Ignition signal No. 1
Ignition signal No. 2
Ignition signal No. 4
Ignition signal No. 3 [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. 0 - 0.3 V
[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm. 0.2 - 0.5 V
23 GR Fuel pump relay [Ignition switch: ON]
• For 1 second after turning ignition switch
ON
[Engine is running] 0 - 1.0 V
[Ignition switch: ON]
• More than 1 second after turning ignition switch ON BATTERY VOLTAGE
(11 - 14 V)
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)PBIB0050E
PBIB0520E
PBIA9265J
PBIA9266J
Revision: May 2010 2011 Versa

ECM
EC-469
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
25
29
30
31
V
Y
O
L Fuel injector No. 4
Fuel injector No. 3
Fuel injector No. 2
Fuel injector No. 1 [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14 V)
28 W EVAP canister vent control
valve [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
32 P ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition
switch OFF 0 - 1.0 V
[Ignition switch: OFF]
• More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14 V)
33 LG Throttle position sensor 1 [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released More than 0.36 V
[Ignition switch: ON]
• Engine stopped
• Selector lever position : D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed Less than 4.75 V
34 O Throttle position sensor 2 [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released Less than 4.75 V
[Ignition switch: ON]
• Engine stopped
• Selector lever position : D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed More than 0.36 V
36 Y Sensor ground
(Throttle position sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
37 W Knock sensor [Engine is running]
• Idle speed
Approximately 2.5 V
38 P Engine coolant temperature
sensor
[Engine is running] Approximately 0 - 4.8 V
Output voltage varies with en-
gine coolant temperature.
40 — Sensor ground
(Knock sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)PBIB0529E
PBIA4943J
Revision: May 2010 2011 Versa
