Type 2A- Tools
B- Jack handle
C- Jack
Club cab A- Tools
B- Jack
C- Jack handle Double cab
Except for vehicles

with rear

retractable power
window
Type 1 A- Tool (wheel nut wrench)
B- Jack handleC- Jack
Type 2 A- Tools
B- Jack handleC- Jack Vehicles with rear retractable power window
Type 1
A- Tool (wheel nut wrench)
B- Jack
C- Jack handle
Type 2 A- Tools
B- Jack
C- Wheel nut wrench
D- Jack handle For emergencies
6-08
6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

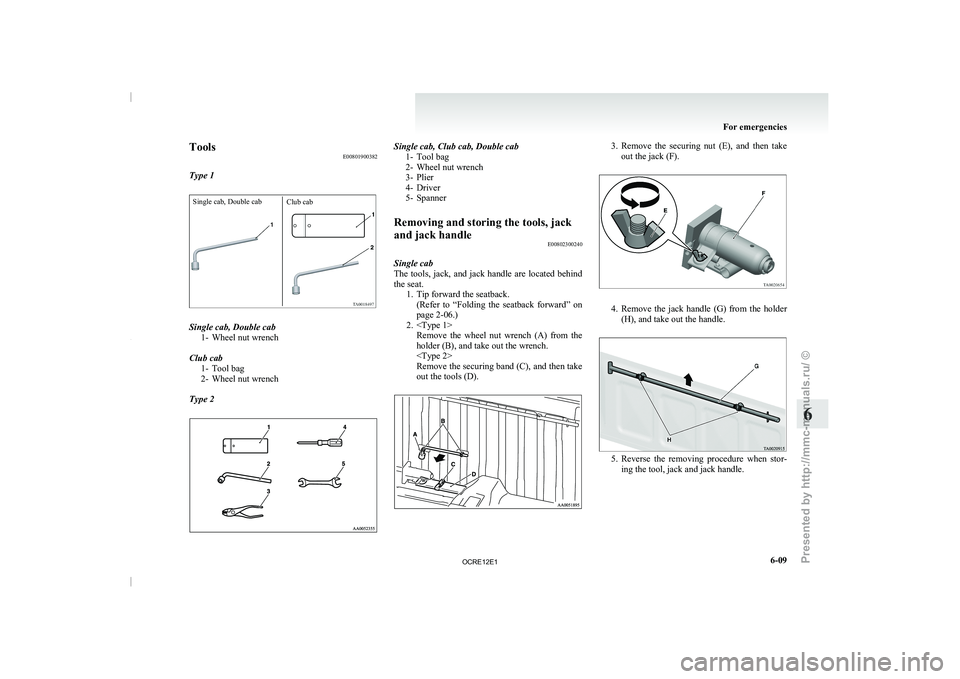

Tools
E00801900382
Type 1Single cab, Double cab Club cabSingle cab, Double cab
1- Wheel nut wrench
Club cab 1- Tool bag
2- Wheel nut wrench
Type 2 Single cab, Club cab, Double cab
1- Tool bag
2- Wheel nut wrench
3- Plier
4- Driver
5-

Spanner
Removing and storing the tools, jack
and jack handle E00802300240
Single cab
The tools, jack,
and jack

handle are located behind
the seat. 1. Tip forward the seatback.(Refer to “Folding the seatback forward” on
page 2-06.)
2. Remove the wheel nut wrench (A) from the
holder (B), and take out the wrench.

Remove the securing band (C), and then take
out the tools (D). 3. Remove the securing nut (E), and then take
out the jack (F). 4. Remove the jack handle (G) from the holder
(H), and take out the handle. 5. Reverse the removing procedure when stor-
ing the tool, jack and jack handle. For emergencies
6-09 6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

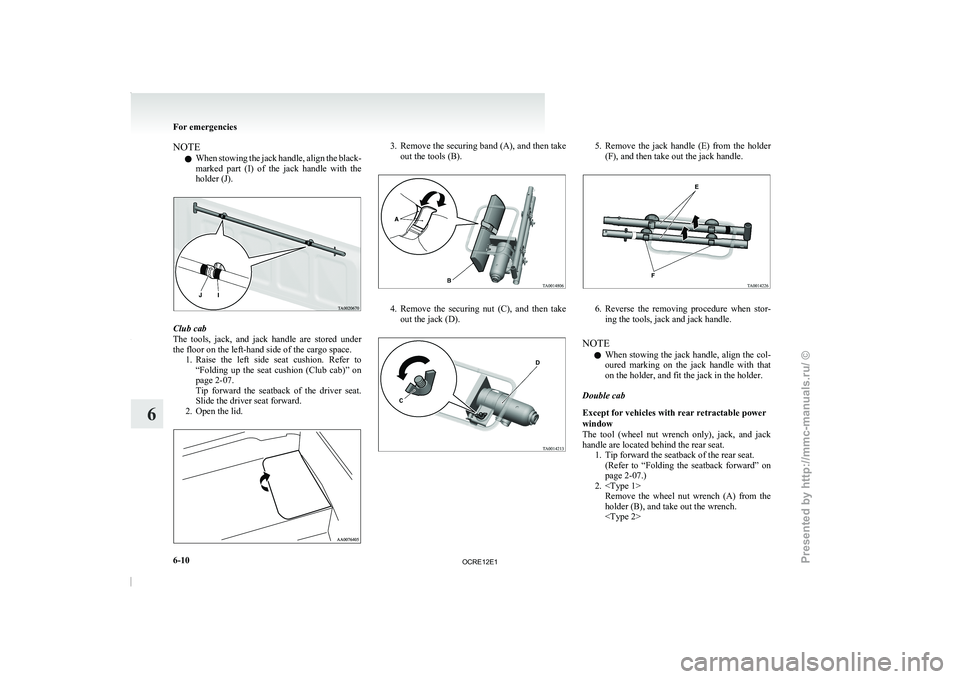

NOTE
l When
stowing the jack handle,
align the black-
marked part (I) of the jack handle with the
holder (J). Club cab
The tools, jack, and
jack

handle are stored under
the floor on the left-hand side of the cargo space. 1. Raise the left side seat cushion. Refer to“Folding up the seat cushion (Club cab)” on
page 2-07.
Tip forward the seatback of the driver seat.
Slide the driver seat forward.
2. Open the lid. 3. Remove the securing band (A), and then take
out the tools (B). 4. Remove the securing nut (C), and then take
out the jack (D). 5. Remove the jack handle (E) from the holder
(F), and then take out the jack handle. 6. Reverse the removing procedure when stor-
ing the tools, jack and jack handle.
NOTE l When stowing the
jack

handle, align the col-
oured marking on the jack handle with that
on the holder, and fit the jack in the holder.
Double cab
Except for vehicles with rear retractable power
window
The tool (wheel nut wrench only), jack, and jack
handle are located behind the rear seat. 1. Tip forward the seatback of the rear seat.(Refer to “Folding the seatback forward” on
page 2-07.)
2. Remove the wheel nut wrench (A) from the
holder (B), and take out the wrench.
For emergencies
6-10
6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

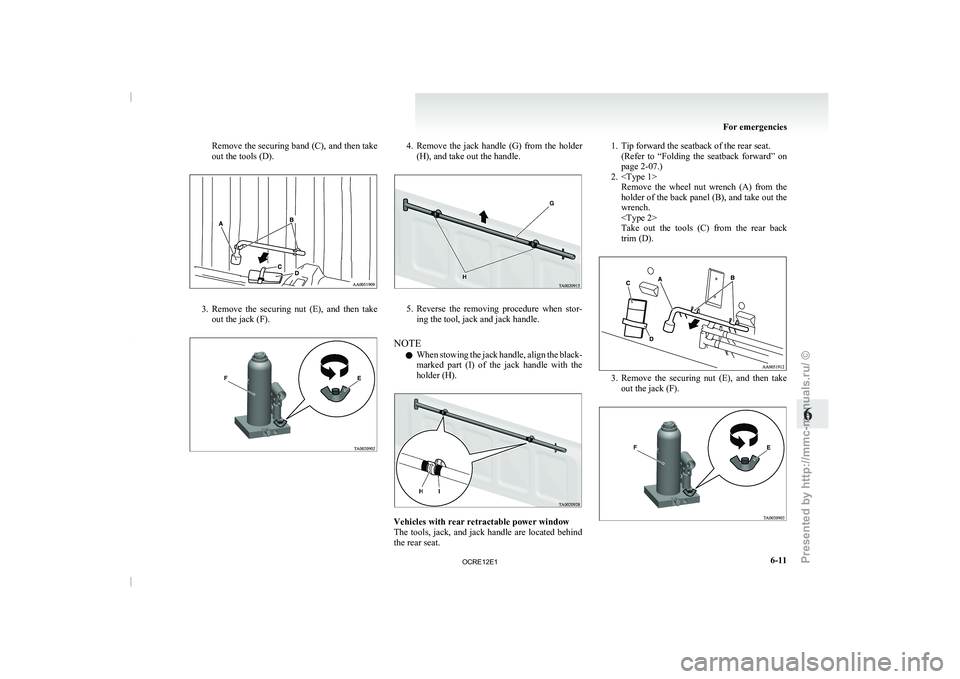

Remove the securing band (C), and then take
out the tools (D).
3. Remove the securing nut (E), and then take
out the jack (F). 4. Remove the jack handle (G) from the holder
(H), and take out the handle. 5. Reverse the removing procedure when stor-
ing the tool, jack and jack handle.
NOTE l When stowing the
jack
handle, align the black-
marked part (I) of the jack handle with the
holder (H). Vehicles with rear retractable power window
The tools, jack, and
jack

handle are located behind
the rear seat. 1. Tip forward the seatback of the rear seat.
(Refer to “Folding the seatback

forward” on
page 2-07.)
2. Remove the wheel nut wrench (A) from the
holder of the back panel (B), and take out the
wrench.

Take out the tools (C) from the rear back
trim (D). 3. Remove the securing nut (E), and then take
out the jack (F). For emergencies
6-11 6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

4. Remove the jack handle (G) from the holder
of the back panel (H), and take out the handle.5. Reverse the removing procedure when stor-
ing the tool, jack and jack handle.
NOTE l When stowing the wheel nut wrench, insert it
into the holder
on

the back panel as illustrated. To use the jack handle (Club cab, Dou-
ble cab with rear retractable power
window only)
E00802400124
1. While pressing the snap pin

(A) on the han-
dle that has a black marking, withdraw and re-
move the inner handle (B). 2. Reverse the inner handle (B) then, while press-
ing the snap pin

(C), insert it into the outer
handle (D) until it is locked by snap pin as il-
lustrated. 3. While pressing the snap pin (F) on the assem-
bled handle (E), insert the white-marked han-
dle (G) until it

is locked by snap pin as illus-
trated. For emergencies
6-12
6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

Jacking up the vehicle
E00801001436
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles
with manual transmission, turn
the ignition key to the “LOCK” position,
move the gearshift lever to the “R” (Reverse)
position.
On vehicles with automatic transmission,
move the selector lever to the “P” (PARK) po-
sition, turn the ignition key to the “LOCK”
position.
4. Turn on the hazard warning flashers and set up a warning triangle, flashing signal lamp,
etc., at an adequate distance from the vehi-
cle, and have all your passengers leave the ve-
hicle.
5. To prevent the vehicle from rolling when it is raised on the jack, place chocks or blocks
(A) at the tyre that is diagonally opposite
from the tyre (B) you are changing. WARNING
l Be sure to apply chocks
or blocks to the
correct tyre when jacking up the vehicle.
If the vehicle moves while jacked up, the
jack could slip out of position, leading to
an accident.
NOTE l The
chocks shown in the

illustration do not
come with your vehicle. It is recommended
that you keep one in the vehicle for use if nee-
ded.
l If chocks are not available, use stones or any
other objects that are large enough to hold
the wheel in position.
6. Get the spare wheel, jack and jack handle ready.
7. Place the jack under one of the jacking points shown in the illustration. Use the jack-
ing point closest to the tyre you wish to
change. 2WD vehicles with 15 inch wheels C- Front jacking point (2WD vehicles with 15
inch wheels)
2WD vehicles with 16 inch wheels and 4WD ve-
hicles D- Front jacking point (2WD vehicles 16 inch
wheels and 4WD vehicles) For emergencies
6-13 6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

E- Rear jacking point
WARNING
l Set the jack only at the positions shown
here. If the jack is set at a wrong position,
it could dent your vehicle or the jack
might fall over and cause personal injury.
l Do not use the jack on a tilted or soft sur-
face. Otherwise, the jack might slip and
cause personal injury. Always use the
jack on a flat, hard surface. Before set-
ting the jack, make sure there are no
sand or pebbles under the jack base.
NOTE l When
jacking up the rear

of the vehicle, turn
the tip of the jack so that the grooved portion
(F) properly meets the designated point. To raise the vehicle
1. Using the jack handle, turn

the release valve
(G) clockwise until it stops. 2. Insert the jack handle in the bracket of the
jack and hook the

notch (H) on the jack han-
dle end to the claw (I) of the bracket. 3. Move the jack handle up and down to raise
the ram until just

before the jack contacts the
jacking point of the vehicle. Ensure that the
jack will properly contact the vehicle jacking
point.
Move the jack handle up and down to raise
the vehicle. NOTE
l This jack is a 2 stage expansion type.
To lower the vehicle 1. Put the notch (J) provided

on the jack handle
end on the valve (K) of the jack. For emergencies
6-14
6

OCRE12E1
Presented by http://mmc-manuals.ru/ \251

2. Using the jack handle, turn the release valve
anticlockwise slowly to lower the ram and re-
move the jack. 3. Press the piston down all the way, and turn
the release valve clockwise as far as possible.
4. Store jack, jack handle and chocks. WARNING
l Be sure to open
the
release valve slowly.
If it is opened quickly, the vehicle will
drop abruptly and the jack may come out
of position, causing a serious accident. CAUTION
l
If the release valve
is
loosened too much
(2 or more turns) in the anticlockwise di-
rection, the jack’s oil will leak and the
jack cannot be used. CAUTION
l
Close the release valve slowly
when lower-
ing the vehicle, or the valve may be dam-
aged.
NOTE l Occasionally
when the vehicle is

jacked up,
the grooved portion of the designated point
will not come off. When this happens, rock
the vehicle to lower the ram.
l If the jack is difficult to remove by hand, in-
sert the jack handle (L) into the bracket (M).
Then using the handle, remove the jack. WARNING
l Stop jacking up the
vehicle
as soon as the
tyre is raised off the ground. It is danger-
ous to raise the vehicle any higher.
l Do not get under your vehicle while using
the jack. WARNING
l Do not bump the raised
vehicle or leave it
sitting on the jack for a long time. Both
are very dangerous.
l Do not use a jack except the one that
came with your vehicle.
l The jack should not be used for any pur-
pose other than to change a tyre.
l No one should be in your vehicle when us-
ing the jack.
l Do not start or run the engine while your
vehicle is on the jack.
l Do not turn the raised wheel. The tyres
still on the ground could turn and make
your vehicle fall off the jack. For emergencies
6-15 6
