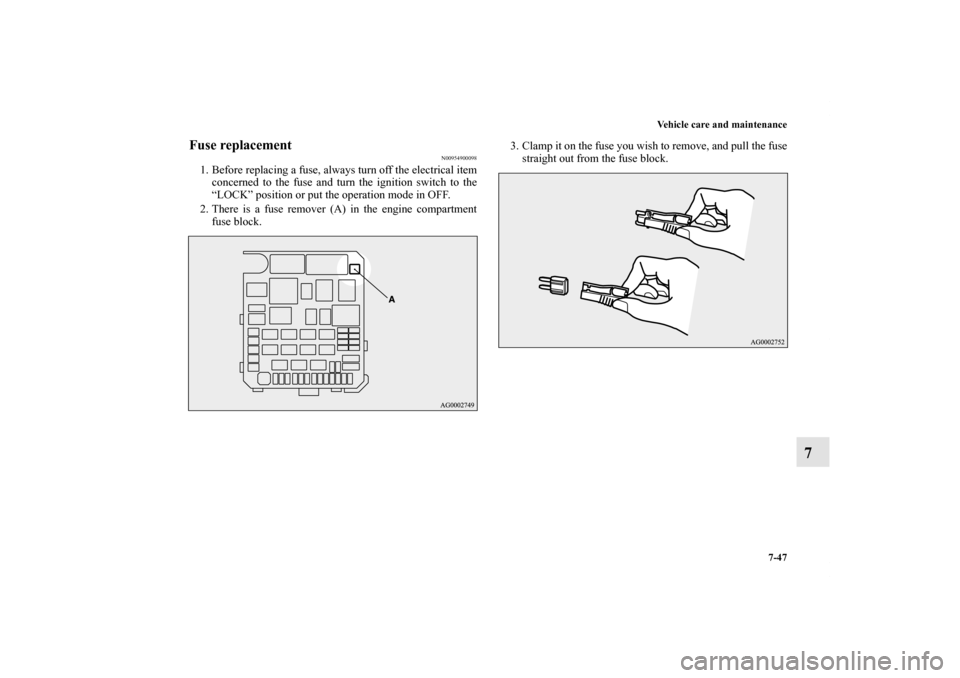

Fuse replacement
N00954900098
1. Before replacing a fuse, always turn off the electrical item
concerned to the fuse and turn the ignition switch to the
“LOCK” position or put the operation mode in OFF.
2. There is a fuse remover (A) in the engine compartment
fuse block.3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
BK0120400US.book 47 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-52 Vehicle care and maintenance
7

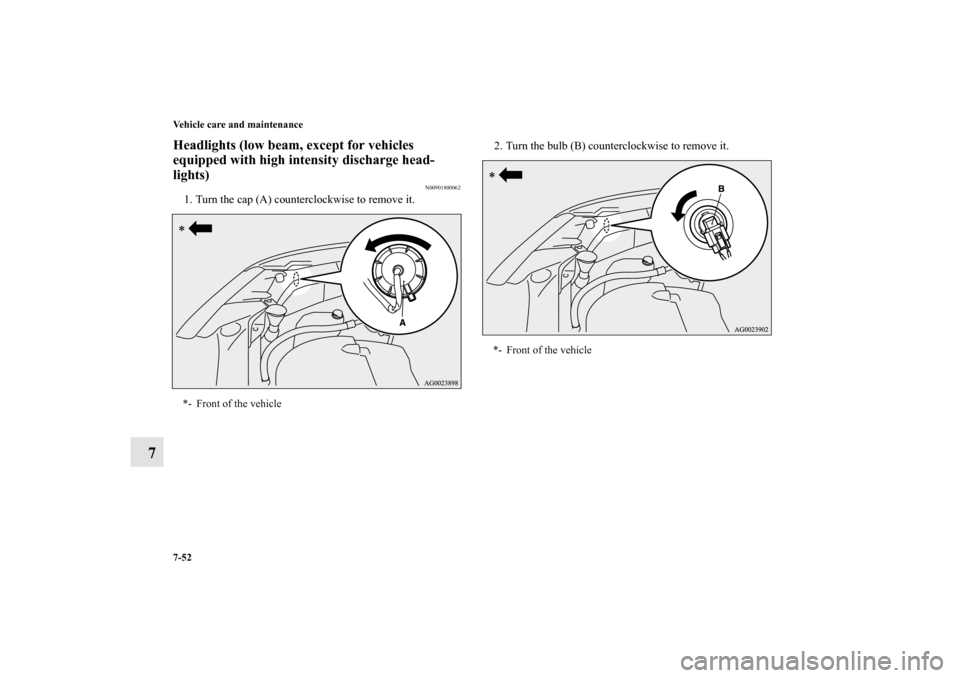

Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800062
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0120400US.book 52 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-54 Vehicle care and maintenance
7

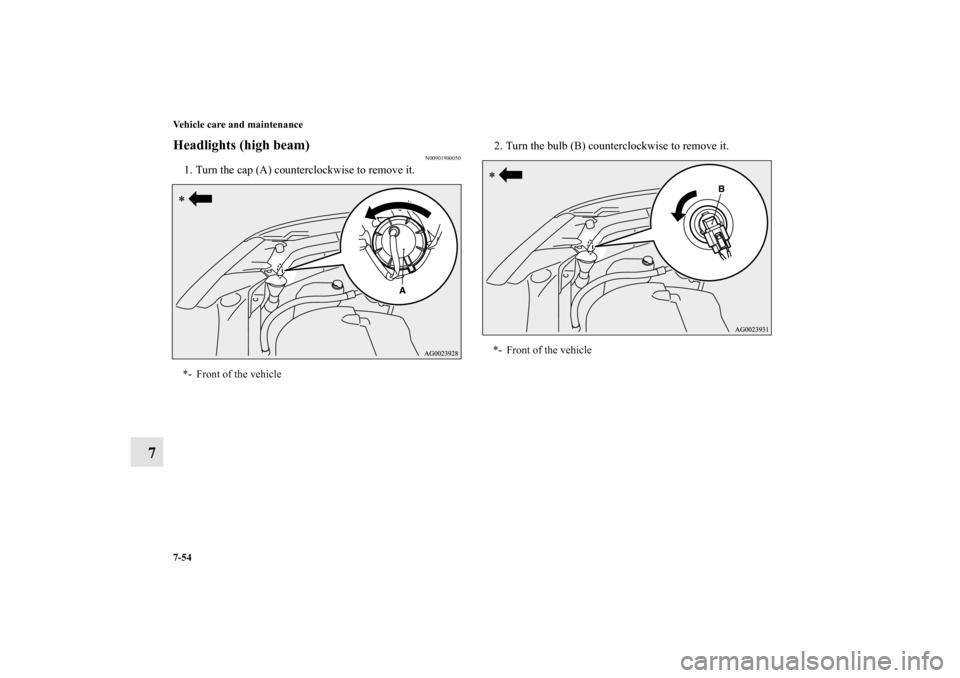

Headlights (high beam)
N00901900050
1. Turn the cap (A) counterclockwise to remove it.2. Turn the bulb (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0120400US.book 54 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-56 Vehicle care and maintenance
7
Headlights (low beam, for vehicles equipped with
high intensity discharge headlights)
N00900300099
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.

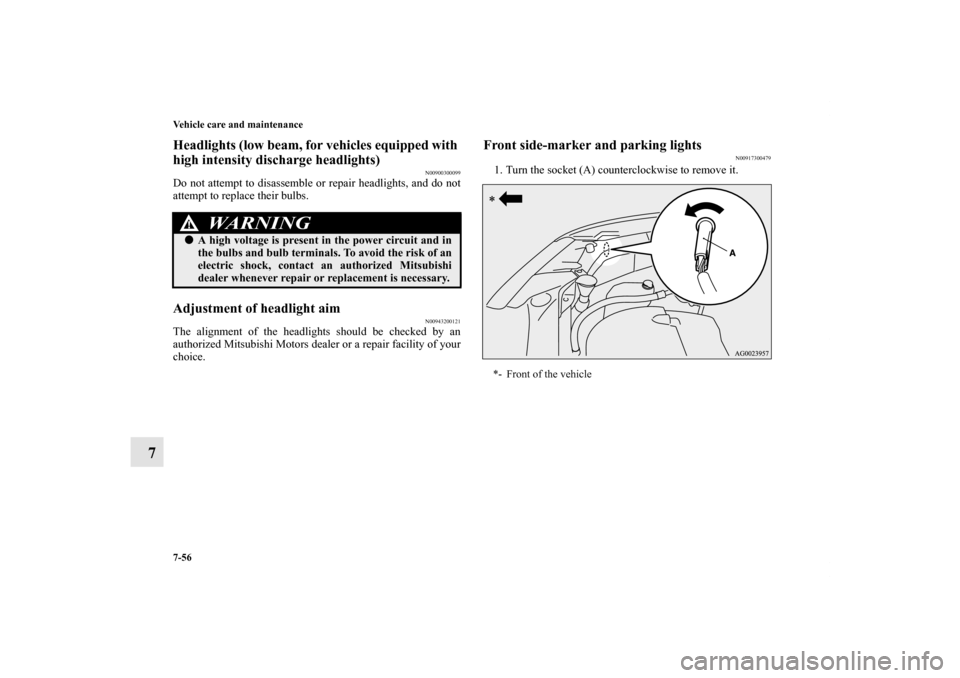

Front side-marker and parking lights
N00917300479
1. Turn the socket (A) counterclockwise to remove it.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
BK0120400US.book 56 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-57
7

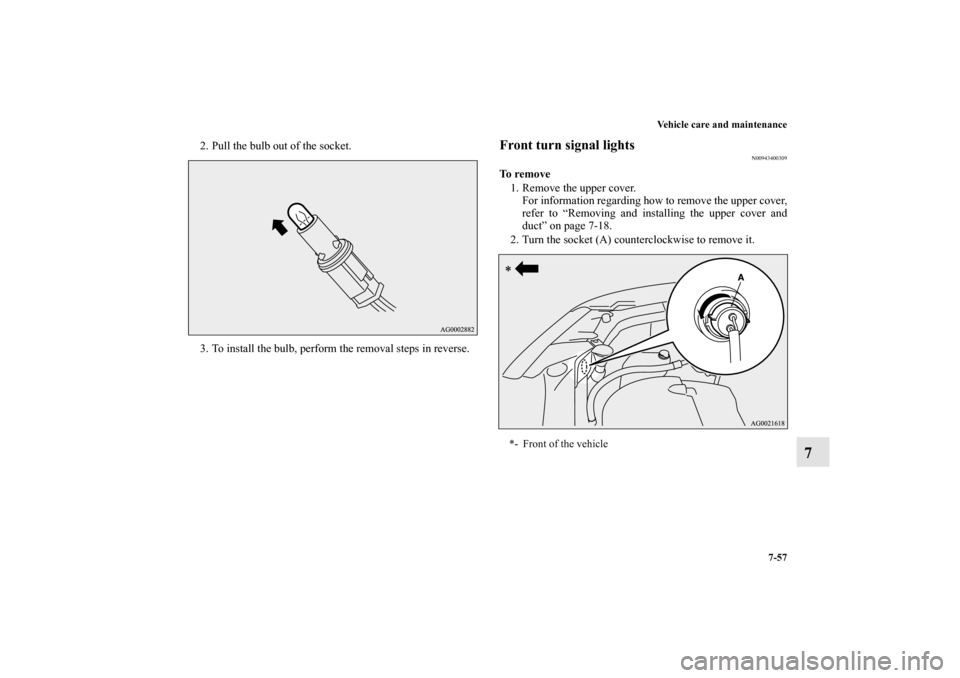

2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.
Front turn signal lights
N00943400309
To r e m o v e
1. Remove the upper cover.
For information regarding how to remove the upper cover,
refer to “Removing and installing the upper cover and
duct” on page 7-18.
2. Turn the socket (A) counterclockwise to remove it.*- Front of the vehicle
BK0120400US.book 57 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-61
7

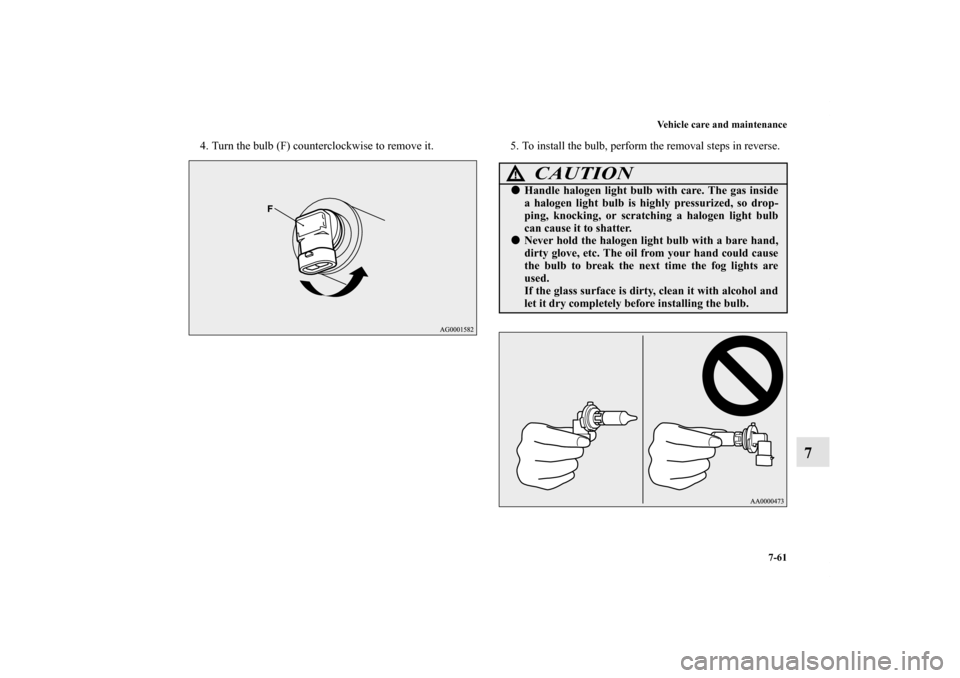

4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0120400US.book 61 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-63
7

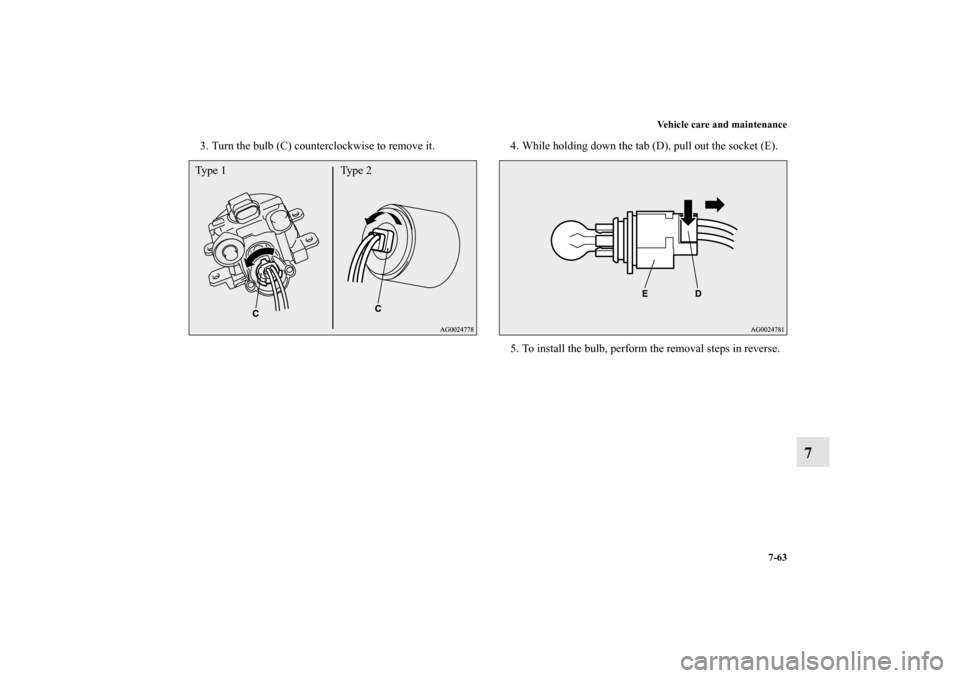

3. Turn the bulb (C) counterclockwise to remove it. 4. While holding down the tab (D), pull out the socket (E).
5. To install the bulb, perform the removal steps in reverse.Type 1 Type 2
BK0120400US.book 63 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-64 Vehicle care and maintenance
7

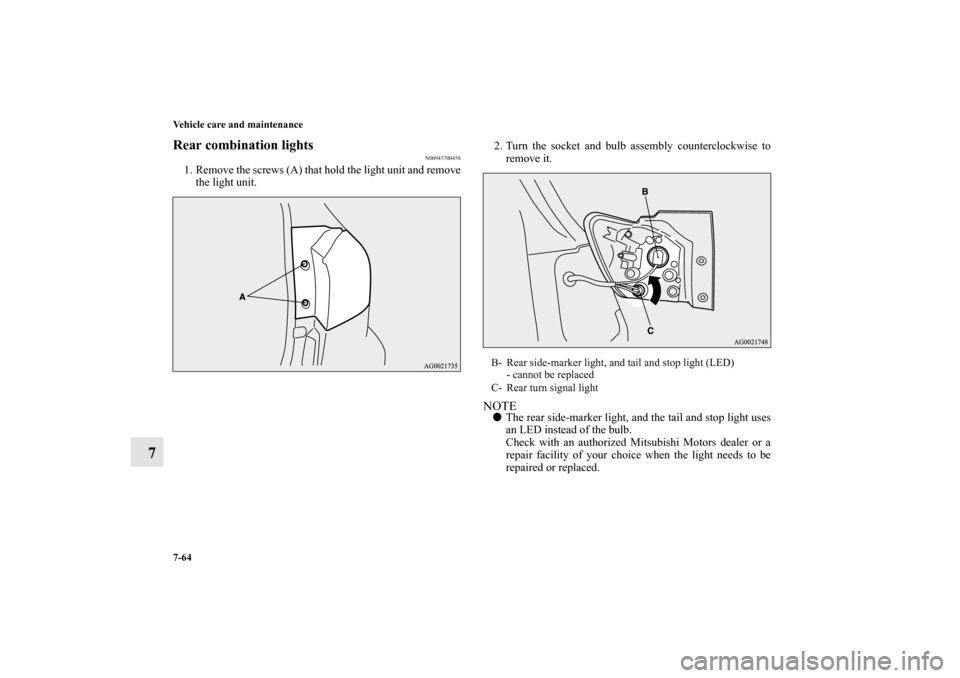

Rear combination lights
N00943700458
1. Remove the screws (A) that hold the light unit and remove
the light unit.2. Turn the socket and bulb assembly counterclockwise to
remove it.
NOTE
The rear side-marker light, and the tail and stop light uses
an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.B- Rear side-marker light, and tail and stop light (LED)
- cannot be replaced
C- Rear turn signal light
