Page 567 of 602
7-66 Vehicle care and maintenance
7

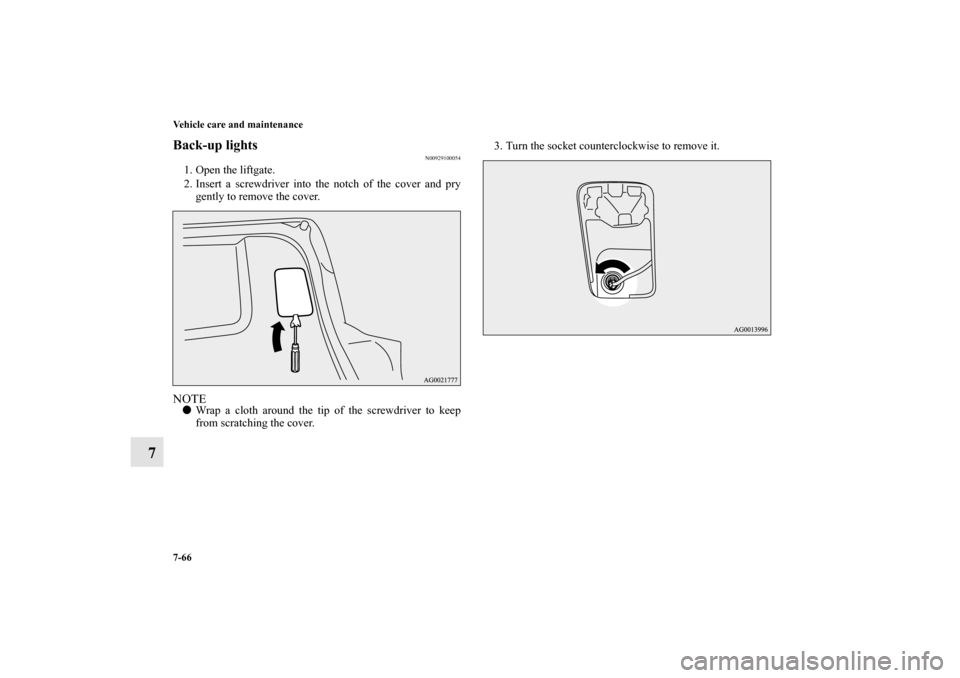

Back-up lights
N00929100054
1. Open the liftgate.
2. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.NOTEWrap a cloth around the tip of the screwdriver to keep
from scratching the cover.3. Turn the socket counterclockwise to remove it.
BK0120400US.book 66 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 569 of 602
7-68 Vehicle care and maintenance
7

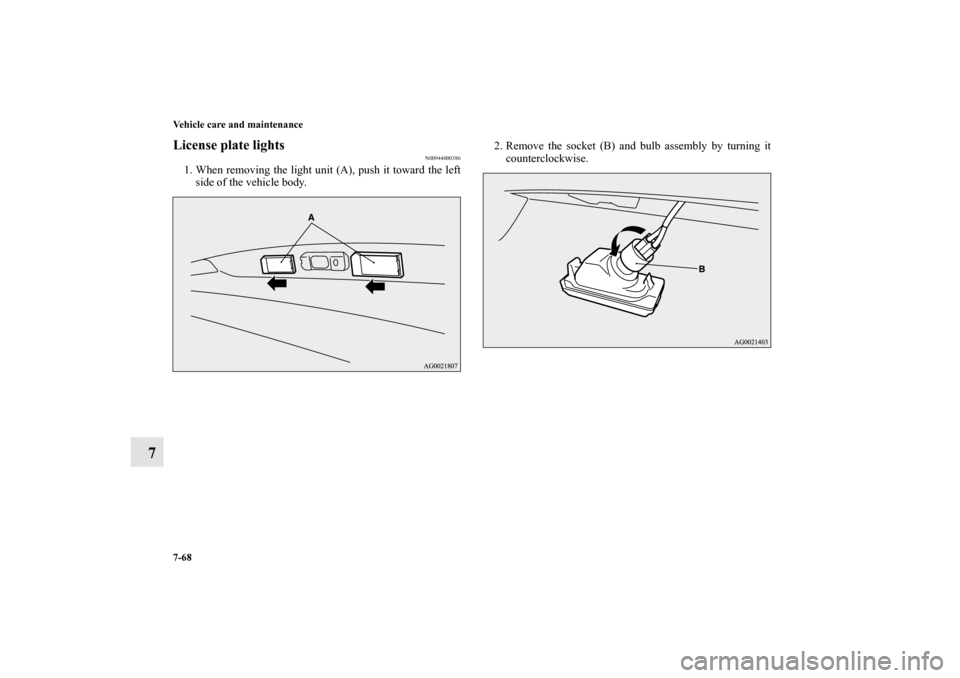

License plate lights
N00944000386
1. When removing the light unit (A), push it toward the left
side of the vehicle body.2. Remove the socket (B) and bulb assembly by turning it
counterclockwise.
BK0120400US.book 68 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 572 of 602
Vehicle care and maintenance
7-71

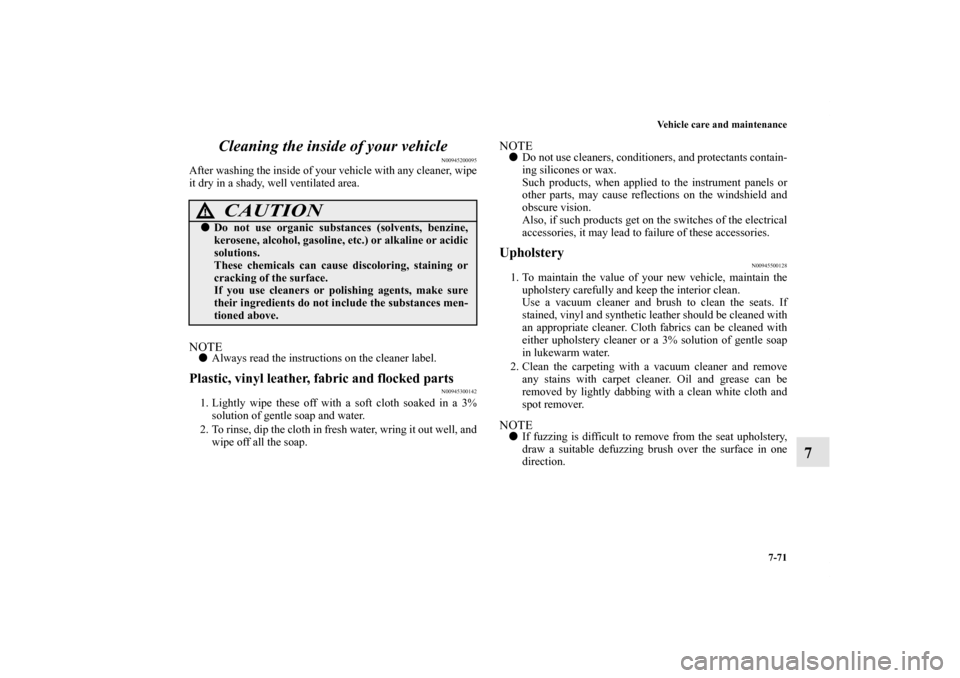

7 Cleaning the inside of your vehicle
N00945200095
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area.NOTEAlways read the instructions on the cleaner label.Plastic, vinyl leather, fabric and flocked parts
N00945300142
1. Lightly wipe these off with a soft cloth soaked in a 3%
solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
NOTEDo not use cleaners, conditioners, and protectants contain-
ing silicones or wax.
Such products, when applied to the instrument panels or
other parts, may cause reflections on the windshield and
obscure vision.
Also, if such products get on the switches of the electrical
accessories, it may lead to failure of these accessories.Upholstery
N00945500128
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3% solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover.NOTEIf fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.
CAUTION
!Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0120400US.book 71 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 586 of 602
Specifications
9-3
9

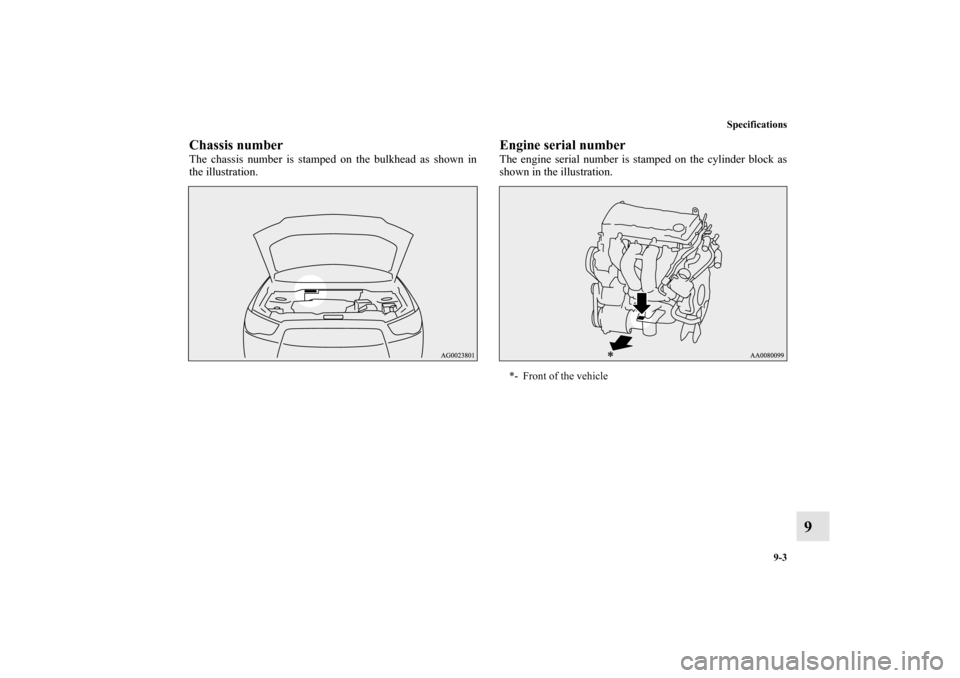

Chassis numberThe chassis number is stamped on the bulkhead as shown in
the illustration.
Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.*- Front of the vehicle
BK0120400US.book 3 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 592 of 602
Specifications
9-9

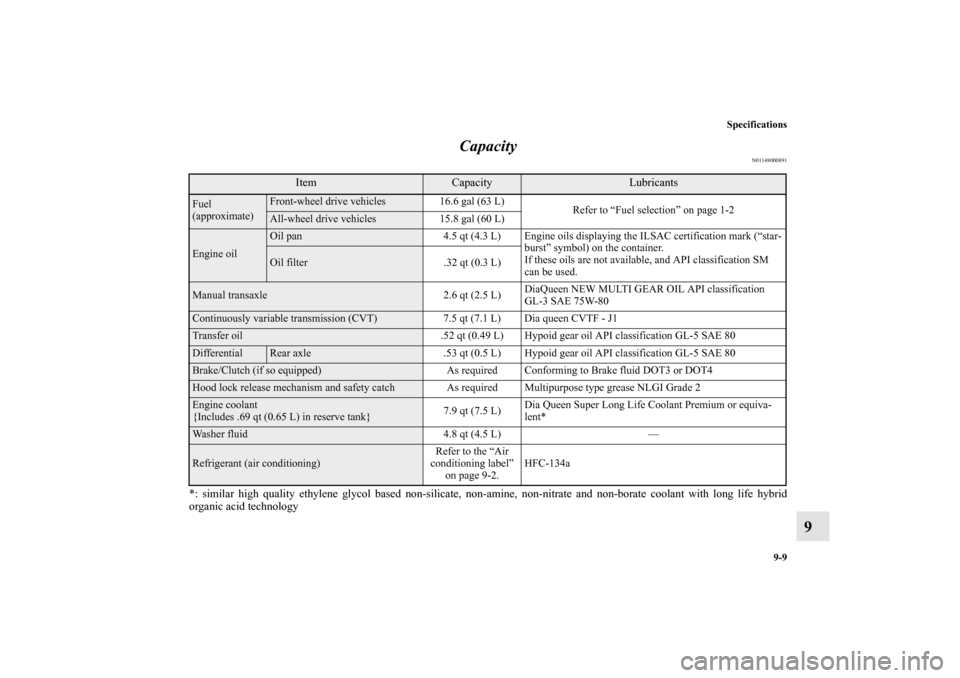

9 Capacity
N01148000891
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.5 qt (4.3 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM
can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classification
GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J1Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Dia Queen Super Long Life Coolant Premium or equiva-
lent*Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0120400US.book 9 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
