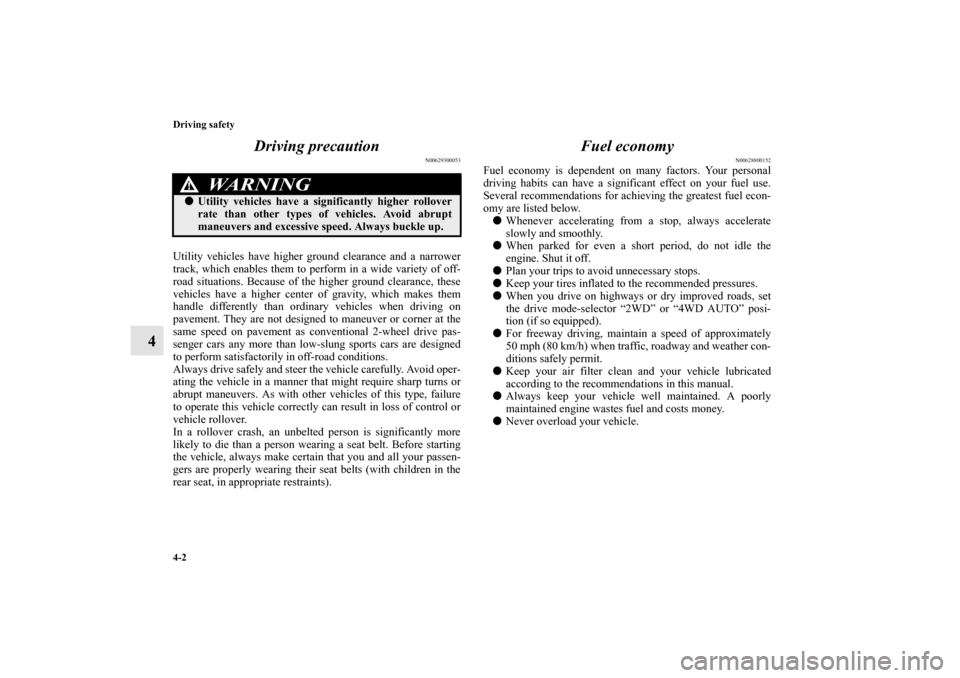

4-2 Driving safety
4Driving precaution
N00629300053
Utility vehicles have higher ground clearance and a narrower
track, which enables them to perform in a wide variety of off-
road situations. Because of the higher ground clearance, these
vehicles have a higher center of gravity, which makes them
handle differently than ordinary vehicles when driving on
pavement. They are not designed to maneuver or corner at the
same speed on pavement as conventional 2-wheel drive pas-
senger cars any more than low-slung sports cars are designed
to perform satisfactorily in off-road conditions.
Always drive safely and steer the vehicle carefully. Avoid oper-
ating the vehicle in a manner that might require sharp turns or
abrupt maneuvers. As with other vehicles of this type, failure
to operate this vehicle correctly can result in loss of control or
vehicle rollover.
In a rollover crash, an unbelted person is significantly more
likely to die than a person wearing a seat belt. Before starting
the vehicle, always make certain that you and all your passen-
gers are properly wearing their seat belts (with children in the
rear seat, in appropriate restraints).
Fuel economy
N00628800152
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.

When parked for even a short period, do not idle the
engine. Shut it off.

Plan your trips to avoid unnecessary stops.

Keep your tires inflated to the recommended pressures.

When you drive on highways or dry improved roads, set
the drive mode-selector “2WD” or “4WD AUTO” posi-
tion (if so equipped).

For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.

Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.

Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.

Never overload your vehicle.
WA R N I N G
!
Utility vehicles have a significantly higher rollover
rate than other types of vehicles. Avoid abrupt
maneuvers and excessive speed. Always buckle up.
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Specifications
9-9
9 Capacity
N01148000891
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.5 qt (4.3 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM
can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classification
GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J1Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Dia Queen Super Long Life Coolant Premium or equiva-
lent*Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0120400US.book 9 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Alphabetical index
3
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-5
Serial number 9-2
Specification 9-7
Engine coolant temperature display 3-136
Engine hood 7-4
Engine switch 3-21
Exhaust system 7-39
F
Floor console box 3-248
Fluid
Automatic transaxle fluid 9-9
Brake fluid 9-9
Continuously variable transmission (CVT) fluid 7-14
,9-9
Engine coolant 7-10
,9-9
Power steering fluid 9-9
Washer fluid 7-16
,9-9
Fluid capacities and lubricants 9-9
Free-hand advanced security transmitter (F.A.S.T.-key) 3-14
Front fog lights
Bulb capacity 7-49
Indicators 3-176
Replacement 7-59
Switch 3-192
Front seat adjustment 2-3
Front side-marker lightsBulb capacity 7-49
Replacement 7-56
Front turn signal light
Replacement 7-57
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-36
Fuel selection 1-2
Tank capacity 9-9
Fuses 7-41
Fusible links 7-40
G
General maintenance
Maintenance 7-37
General vehicle data 9-5
Genuine parts 1-9
Glove compartment 3-246
H
Hazard warning flasher switch 3-192
Hazard warning lights 3-176
Head restraints 2-12
Headlight leveling switch 3-190
Headlights
Bulb capacity 7-49
Dimmer 3-187
Headlight flasher 3-187
