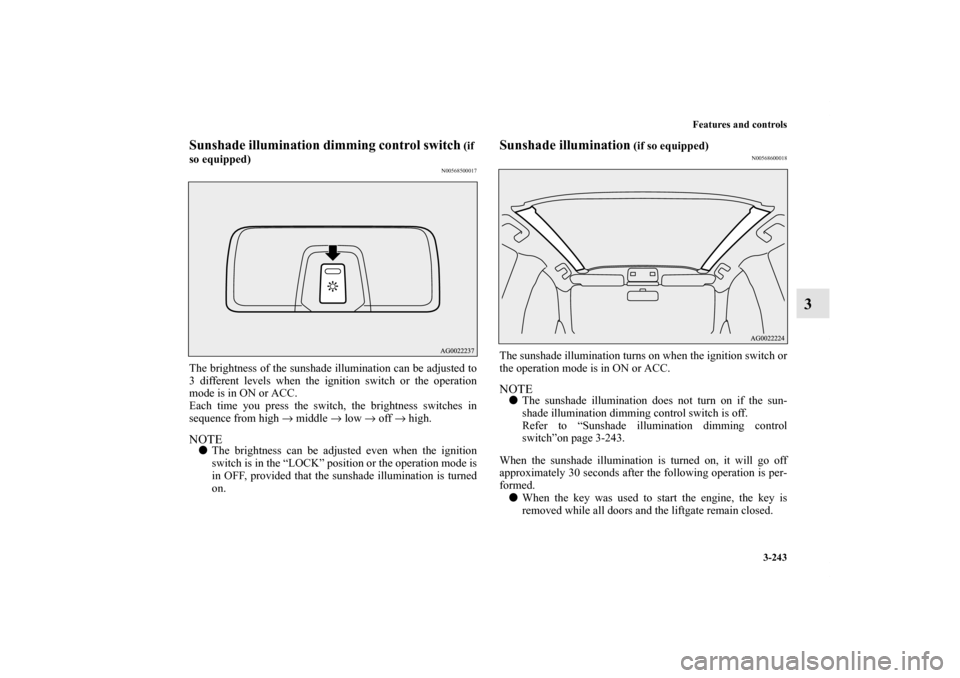

2011 MITSUBISHI OUTLANDER SPORT lock

Features and controls
3-243
3
Sunshade illumination dimming control switch
(if
so equipped)
N00568500017
The brightness of the sunshade illumination can be adjusted to
3 different levels when the ignition switch or the operation
mode is in ON or ACC.
Each time you press the switch, the brightness switches in
sequence from high → middle → low → off → high.NOTE
The brightness can be adjusted even when the ignition
switch is in the “LOCK” position or the operation mode is
in OFF, provided that the sunshade illumination is turned
on.
Sunshade illumination
(if so equipped)
N00568600018
The sunshade illumination turns on when the ignition switch or
the operation mode is in ON or ACC.NOTE
The sunshade illumination does not turn on if the sun-
shade illumination dimming control switch is off.
Refer to “Sunshade illumination dimming control
switch”on page 3-243.
When the sunshade illumination is turned on, it will go off
approximately 30 seconds after the following operation is per-
formed.

When the key was used to start the engine, the key is
removed while all doors and the liftgate remain closed.
BK0120400US.book 243 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

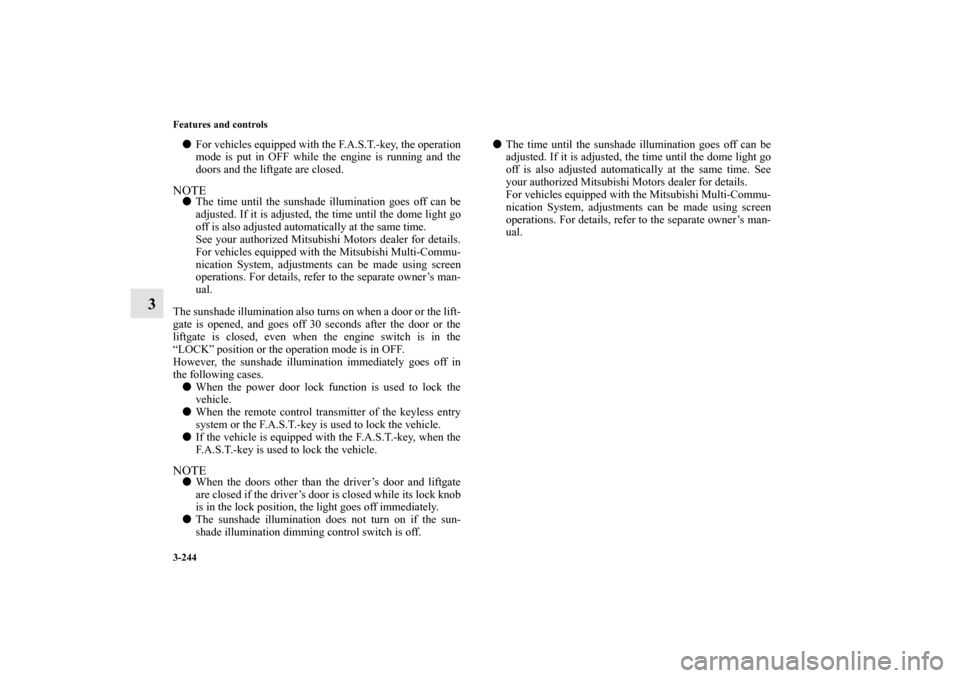

3-244 Features and controls
3

For vehicles equipped with the F.A.S.T.-key, the operation
mode is put in OFF while the engine is running and the
doors and the liftgate are closed.NOTE
The time until the sunshade illumination goes off can be
adjusted. If it is adjusted, the time until the dome light go
off is also adjusted automatically at the same time.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
The sunshade illumination also turns on when a door or the lift-
gate is opened, and goes off 30 seconds after the door or the
liftgate is closed, even when the engine switch is in the
“LOCK” position or the operation mode is in OFF.
However, the sunshade illumination immediately goes off in
the following cases.

When the power door lock function is used to lock the
vehicle.

When the remote control transmitter of the keyless entry
system or the F.A.S.T.-key is used to lock the vehicle.

If the vehicle is equipped with the F.A.S.T.-key, when the
F.A.S.T.-key is used to lock the vehicle.NOTE
When the doors other than the driver’s door and liftgate
are closed if the driver’s door is closed while its lock knob
is in the lock position, the light goes off immediately.

The sunshade illumination does not turn on if the sun-
shade illumination dimming control switch is off.
The time until the sunshade illumination goes off can be
adjusted. If it is adjusted, the time until the dome light go
off is also adjusted automatically at the same time. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
BK0120400US.book 244 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

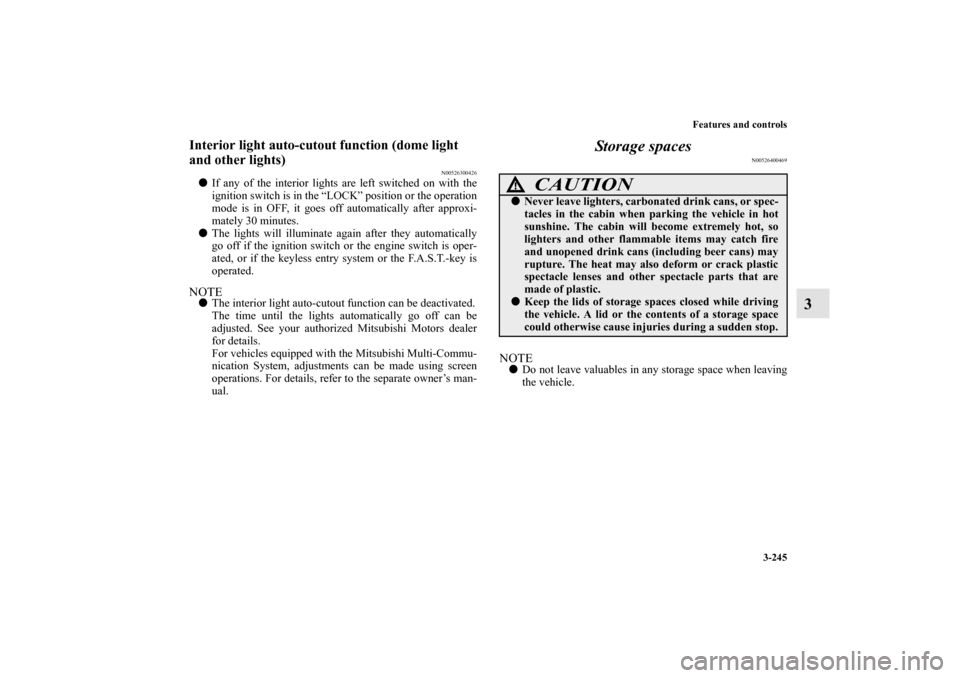

Features and controls
3-245
3
Interior light auto-cutout function (dome light
and other lights)
N00526300426

If any of the interior lights are left switched on with the
ignition switch is in the “LOCK” position or the operation
mode is in OFF, it goes off automatically after approxi-
mately 30 minutes.

The lights will illuminate again after they automatically
go off if the ignition switch or the engine switch is oper-
ated, or if the keyless entry system or the F.A.S.T.-key is
operated.NOTE
The interior light auto-cutout function can be deactivated.
The time until the lights automatically go off can be
adjusted. See your authorized Mitsubishi Motors dealer
for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
Storage spaces
N00526400469
NOTE
Do not leave valuables in any storage space when leaving
the vehicle.
CAUTION
!
Never leave lighters, carbonated drink cans, or spec-
tacles in the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely hot, so
lighters and other flammable items may catch fire
and unopened drink cans (including beer cans) may
rupture. The heat may also deform or crack plastic
spectacle lenses and other spectacle parts that are
made of plastic.
Keep the lids of storage spaces closed while driving
the vehicle. A lid or the contents of a storage space
could otherwise cause injuries during a sudden stop.
BK0120400US.book 245 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

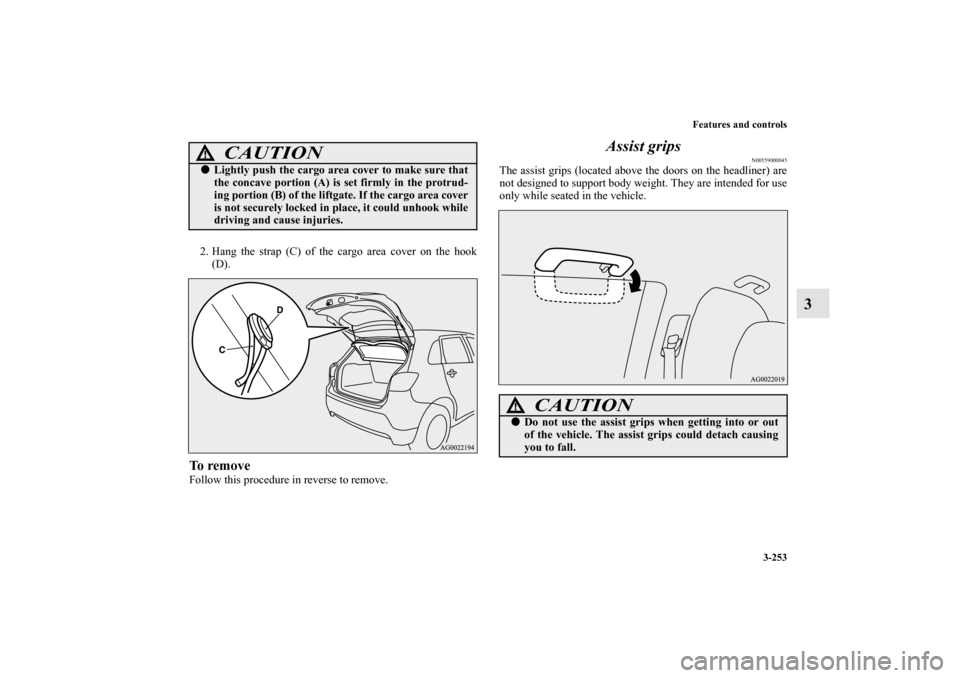

Features and controls
3-253
3
2. Hang the strap (C) of the cargo area cover on the hook
(D).To removeFollow this procedure in reverse to remove.
Assist grips
N00559000045
The assist grips (located above the doors on the headliner) are
not designed to support body weight. They are intended for use
only while seated in the vehicle.
CAUTION
!
Lightly push the cargo area cover to make sure that
the concave portion (A) is set firmly in the protrud-
ing portion (B) of the liftgate. If the cargo area cover
is not securely locked in place, it could unhook while
driving and cause injuries.
CAUTION
!
Do not use the assist grips when getting into or out
of the vehicle. The assist grips could detach causing
you to fall.
BK0120400US.book 253 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

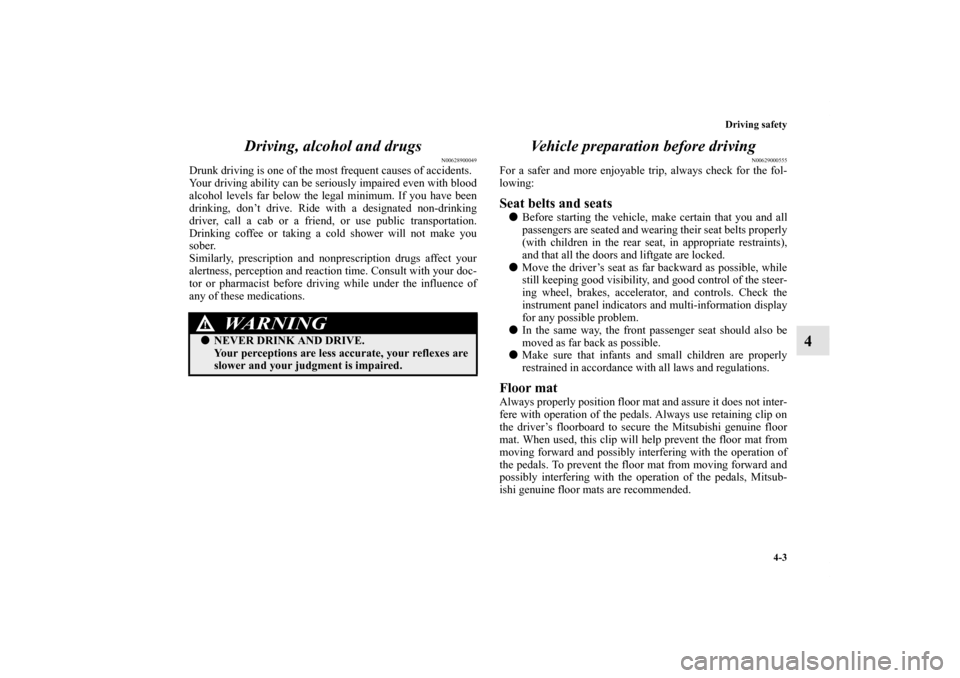

Driving safety
4-3
4 Driving, alcohol and drugs
N00628900049
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
Vehicle preparation before driving
N00629000555
For a safer and more enjoyable trip, always check for the fol-
lowing:Seat belts and seats
Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors and liftgate are locked.

Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators and multi-information display
for any possible problem.

In the same way, the front passenger seat should also be
moved as far back as possible.

Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.Floor matAlways properly position floor mat and assure it does not inter-
fere with operation of the pedals. Always use retaining clip on
the driver’s floorboard to secure the Mitsubishi genuine floor
mat. When used, this clip will help prevent the floor mat from
moving forward and possibly interfering with the operation of
the pedals. To prevent the floor mat from moving forward and
possibly interfering with the operation of the pedals, Mitsub-
ishi genuine floor mats are recommended.
WA R N I N G
!
NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK0120400US.book 3 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

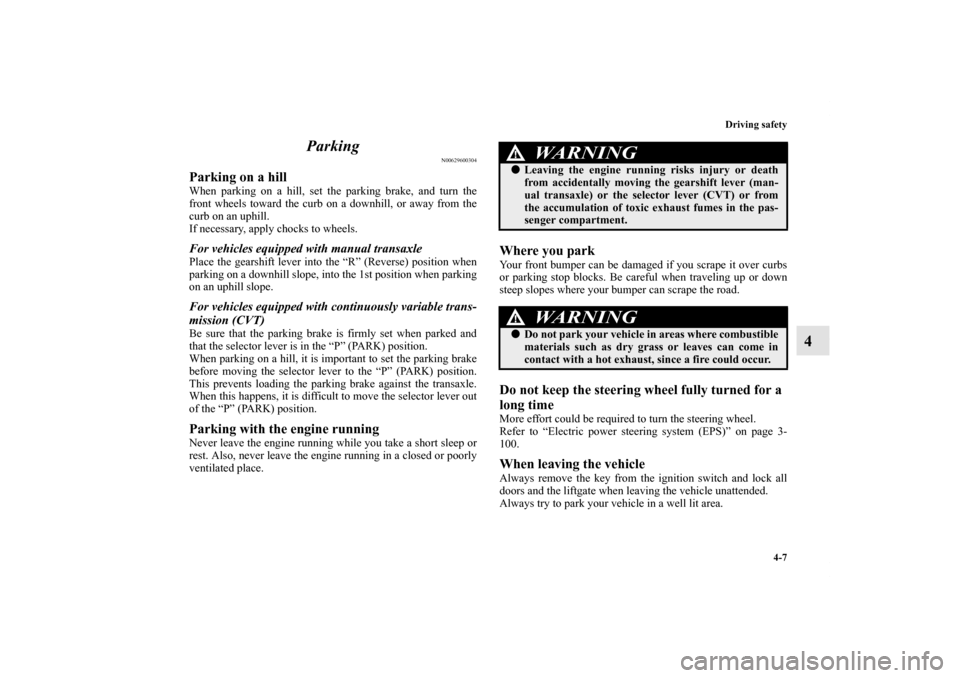

Driving safety
4-7
4 Parking
N00629600304
Parking on a hillWhen parking on a hill, set the parking brake, and turn the
front wheels toward the curb on a downhill, or away from the
curb on an uphill.
If necessary, apply chocks to wheels.For vehicles equipped with manual transaxlePlace the gearshift lever into the “R” (Reverse) position when
parking on a downhill slope, into the 1st position when parking
on an uphill slope.For vehicles equipped with continuously variable trans-
mission (CVT)Be sure that the parking brake is firmly set when parked and
that the selector lever is in the “P” (PARK) position.
When parking on a hill, it is important to set the parking brake
before moving the selector lever to the “P” (PARK) position.
This prevents loading the parking brake against the transaxle.
When this happens, it is difficult to move the selector lever out
of the “P” (PARK) position.Parking with the engine runningNever leave the engine running while you take a short sleep or
rest. Also, never leave the engine running in a closed or poorly
ventilated place.
Where you parkYour front bumper can be damaged if you scrape it over curbs
or parking stop blocks. Be careful when traveling up or down
steep slopes where your bumper can scrape the road.Do not keep the steering wheel fully turned for a
long timeMore effort could be required to turn the steering wheel.
Refer to “Electric power steering system (EPS)” on page 3-
100.When leaving the vehicleAlways remove the key from the ignition switch and lock all
doors and the liftgate when leaving the vehicle unattended.
Always try to park your vehicle in a well lit area.
WA R N I N G
!
Leaving the engine running risks injury or death
from accidentally moving the gearshift lever (man-
ual transaxle) or the selector lever (CVT) or from
the accumulation of toxic exhaust fumes in the pas-
senger compartment.
WA R N I N G
!
Do not park your vehicle in areas where combustible
materials such as dry grass or leaves can come in
contact with a hot exhaust, since a fire could occur.
BK0120400US.book 7 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

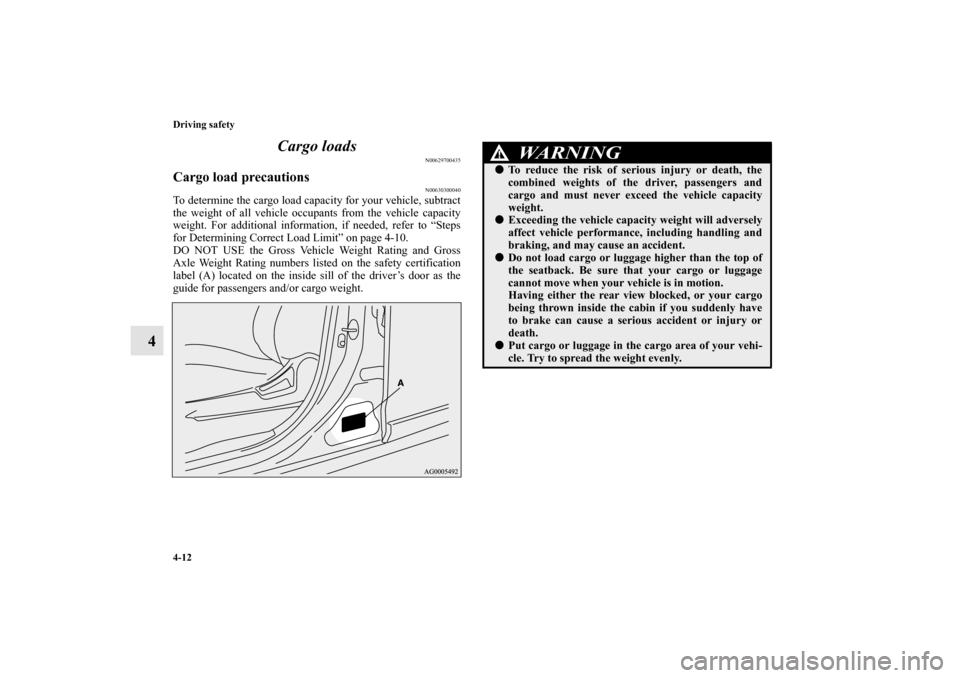

4-12 Driving safety
4Cargo loads
N00629700435
Cargo load precautions
N00630300040
To determine the cargo load capacity for your vehicle, subtract
the weight of all vehicle occupants from the vehicle capacity
weight. For additional information, if needed, refer to “Steps
for Determining Correct Load Limit” on page 4-10.
DO NOT USE the Gross Vehicle Weight Rating and Gross
Axle Weight Rating numbers listed on the safety certification
label (A) located on the inside sill of the driver’s door as the
guide for passengers and/or cargo weight.
WA R N I N G
!
To reduce the risk of serious injury or death, the
combined weights of the driver, passengers and
cargo and must never exceed the vehicle capacity
weight.
Exceeding the vehicle capacity weight will adversely
affect vehicle performance, including handling and
braking, and may cause an accident.
Do not load cargo or luggage higher than the top of
the seatback. Be sure that your cargo or luggage
cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo
being thrown inside the cabin if you suddenly have
to brake can cause a serious accident or injury or
death.
Put cargo or luggage in the cargo area of your vehi-
cle. Try to spread the weight evenly.
BK0120400US.book 12 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

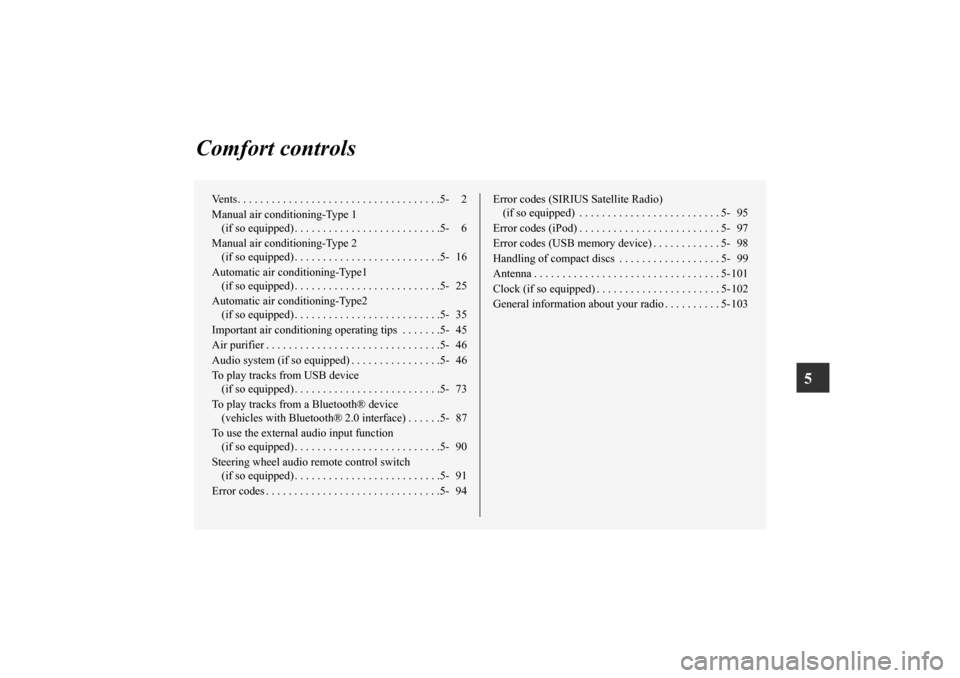

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning-Type 1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning-Type 2
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 16
Automatic air conditioning-Type1
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 25
Automatic air conditioning-Type2
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 35
Important air conditioning operating tips . . . . . . .5- 45
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
Audio system (if so equipped) . . . . . . . . . . . . . . . .5- 46
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 73
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5- 87
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 90
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 91
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 94Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 95
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 97
Error codes (USB memory device) . . . . . . . . . . . . 5- 98
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 99
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 101
Clock (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 5- 102
General information about your radio . . . . . . . . . . 5- 103
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
