3-160 Features and controls

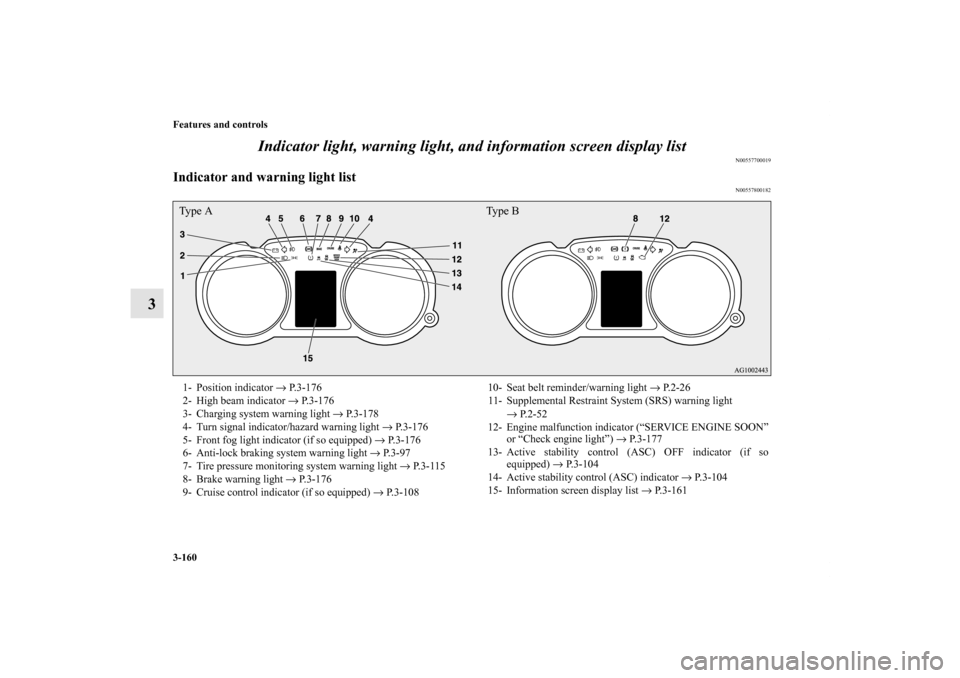

3Indicator light, warning light, and information screen display list
N00557700019
Indicator and warning light list
N00557800182
Type A Type B1- Position indicator → P.3-176
2- High beam indicator → P.3-176
3- Charging system warning light → P.3-178
4- Turn signal indicator/hazard warning light → P.3-176
5- Front fog light indicator (if so equipped) → P.3-176
6- Anti-lock braking system warning light → P.3-97
7- Tire pressure monitoring system warning light → P. 3 - 1 1 5
8- Brake warning light → P. 3 - 1 7 6
9- Cruise control indicator (if so equipped) → P.3-10810- Seat belt reminder/warning light → P. 2 - 2 6
11- Supplemental Restraint System (SRS) warning light
→ P.2-52
12- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-177
13- Active stability control (ASC) OFF indicator (if so
equipped) → P.3-104
14- Active stability control (ASC) indicator → P.3-104
15- Information screen display list → P. 3 - 1 6 1
BK0120400US.book 160 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 261 of 602
3-164 Features and controls
3

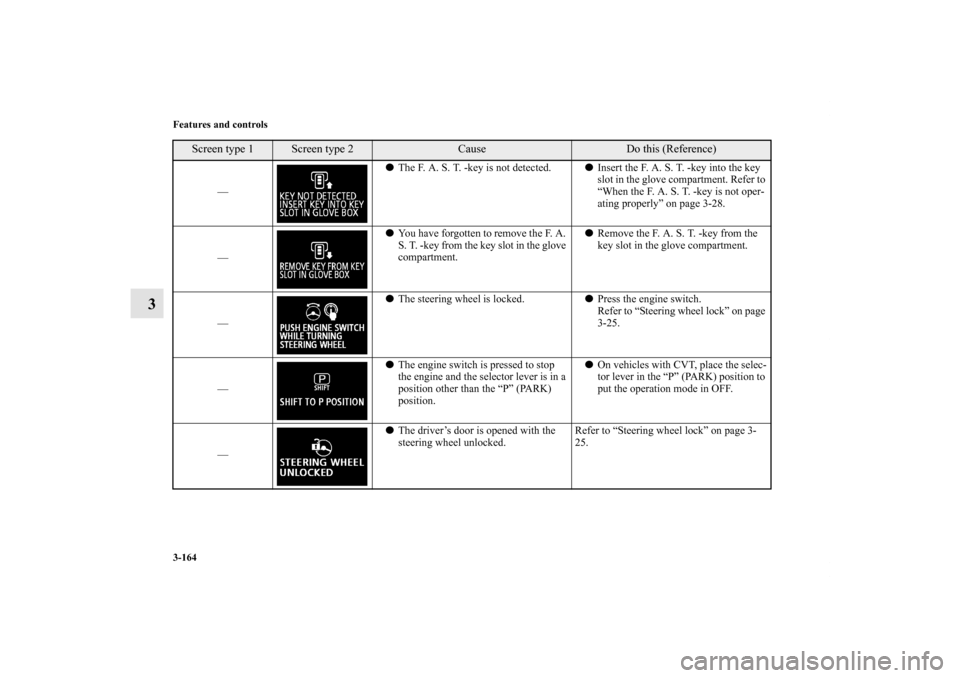

—The F. A. S. T. -key is not detected.Insert the F. A. S. T. -key into the key
slot in the glove compartment. Refer to
“When the F. A. S. T. -key is not oper-
ating properly” on page 3-28.
—You have forgotten to remove the F. A.
S. T. -key from the key slot in the glove
compartment.Remove the F. A. S. T. -key from the
key slot in the glove compartment.
—The steering wheel is locked.Press the engine switch.
Refer to “Steering wheel lock” on page
3-25.
—The engine switch is pressed to stop
the engine and the selector lever is in a
position other than the “P” (PARK)
position.On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position to
put the operation mode in OFF.
—The driver’s door is opened with the
steering wheel unlocked.Refer to “Steering wheel lock” on page 3-
25.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 164 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 265 of 602
3-168 Features and controls
3

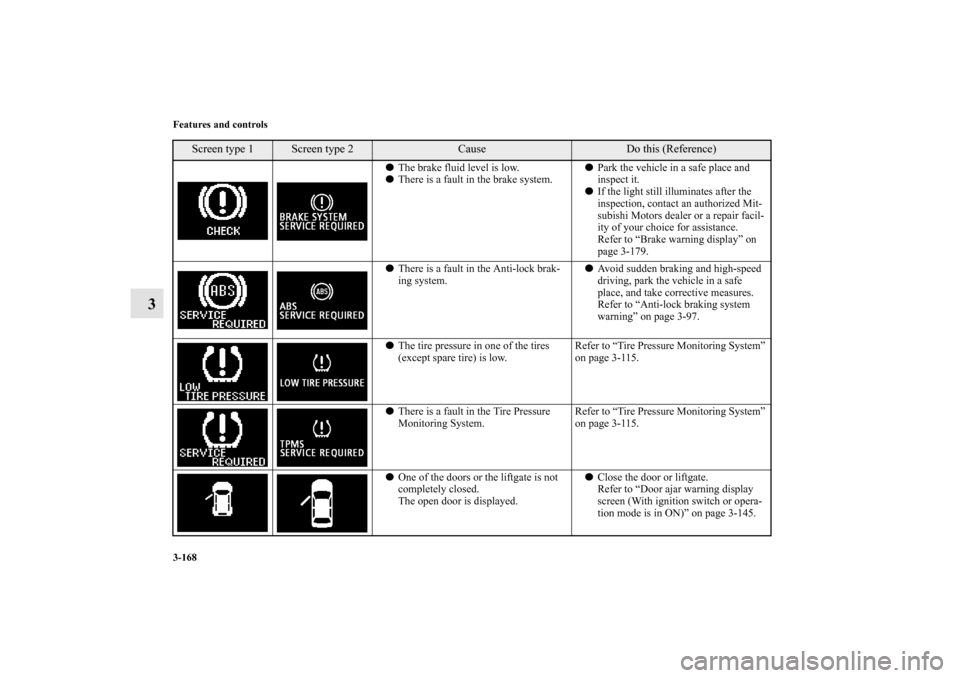

The brake fluid level is low.
There is a fault in the brake system.Park the vehicle in a safe place and
inspect it.
If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-179.
There is a fault in the Anti-lock brak-
ing system.Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-97.
The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire Pressure Monitoring System”
on page 3-115.
There is a fault in the Tire Pressure
Monitoring System.Refer to “Tire Pressure Monitoring System”
on page 3-115.
One of the doors or the liftgate is not
completely closed.
The open door is displayed.Close the door or liftgate.
Refer to “Door ajar warning display
screen (With ignition switch or opera-
tion mode is in ON)” on page 3-145.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 168 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 266 of 602
Features and controls
3-169
3

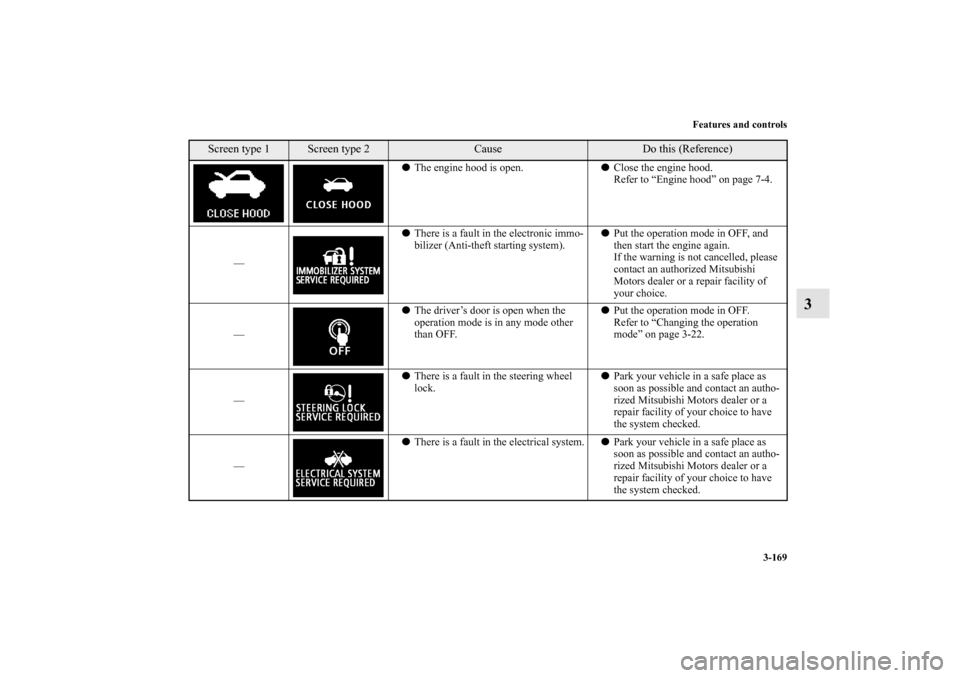

The engine hood is open.Close the engine hood.
Refer to “Engine hood” on page 7-4.
—There is a fault in the electronic immo-
bilizer (Anti-theft starting system).Put the operation mode in OFF, and
then start the engine again.
If the warning is not cancelled, please
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
—The driver’s door is open when the
operation mode is in any mode other
than OFF.Put the operation mode in OFF.
Refer to “Changing the operation
mode” on page 3-22.
—There is a fault in the steering wheel
lock.Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
—There is a fault in the electrical system.Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 169 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 271 of 602
3-174 Features and controls
3

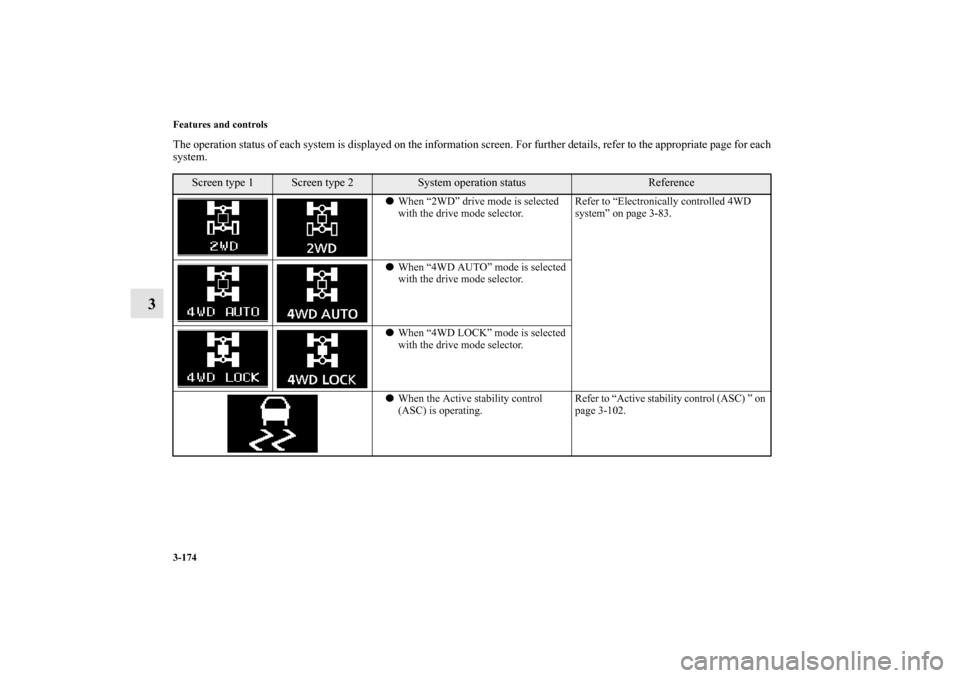

The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Screen type 1
Screen type 2
System operation status
Reference
When “2WD” drive mode is selected
with the drive mode selector.Refer to “Electronically controlled 4WD
system” on page 3-83.
When “4WD AUTO” mode is selected
with the drive mode selector.
When “4WD LOCK” mode is selected
with the drive mode selector.
When the Active stability control
(ASC) is operating.Refer to “Active stability control (ASC) ” on
page 3-102.
BK0120400US.book 174 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 272 of 602
Features and controls
3-175
3
This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-143.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (When the ignition switch or operation mode is
in ON)” on page 3-146.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.
In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “LOCK” position or the operation mode is
put in OFF.
• The multi-information meter switch is held (for about 2 seconds or more).
BK0120400US.book 175 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 274 of 602
Features and controls
3-177
3

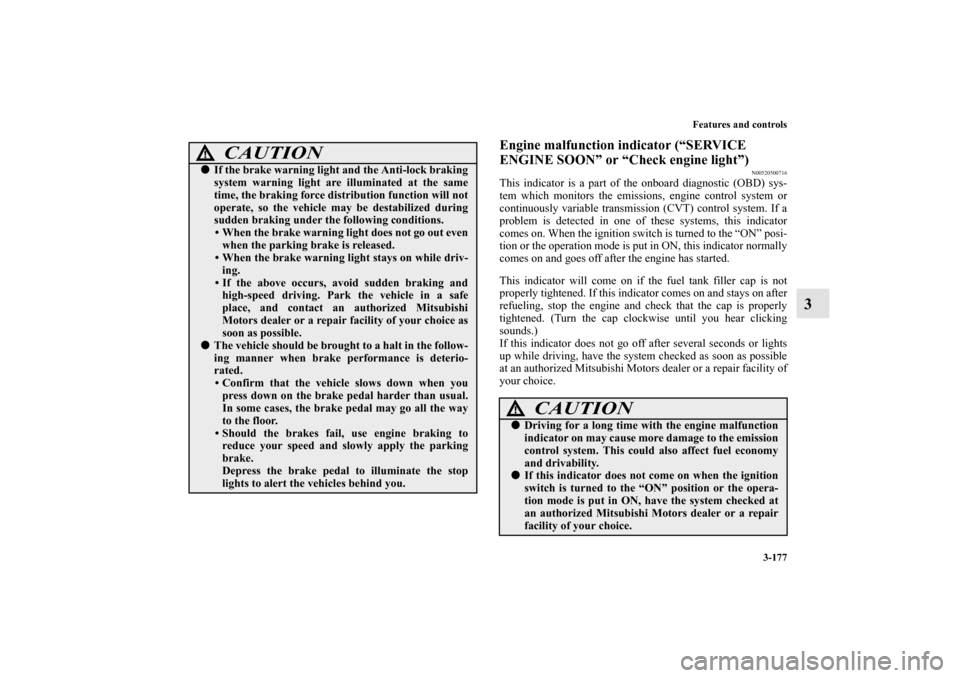

Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500716
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system. If a
problem is detected in one of these systems, this indicator
comes on. When the ignition switch is turned to the “ON” posi-
tion or the operation mode is put in ON, this indicator normally
comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
CAUTION
!If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.
• If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.
The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.
CAUTION
!Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.If this indicator does not come on when the ignition
switch is turned to the “ON” position or the opera-
tion mode is put in ON, have the system checked at
an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0120400US.book 177 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
Page 277 of 602
3-180 Features and controls
3

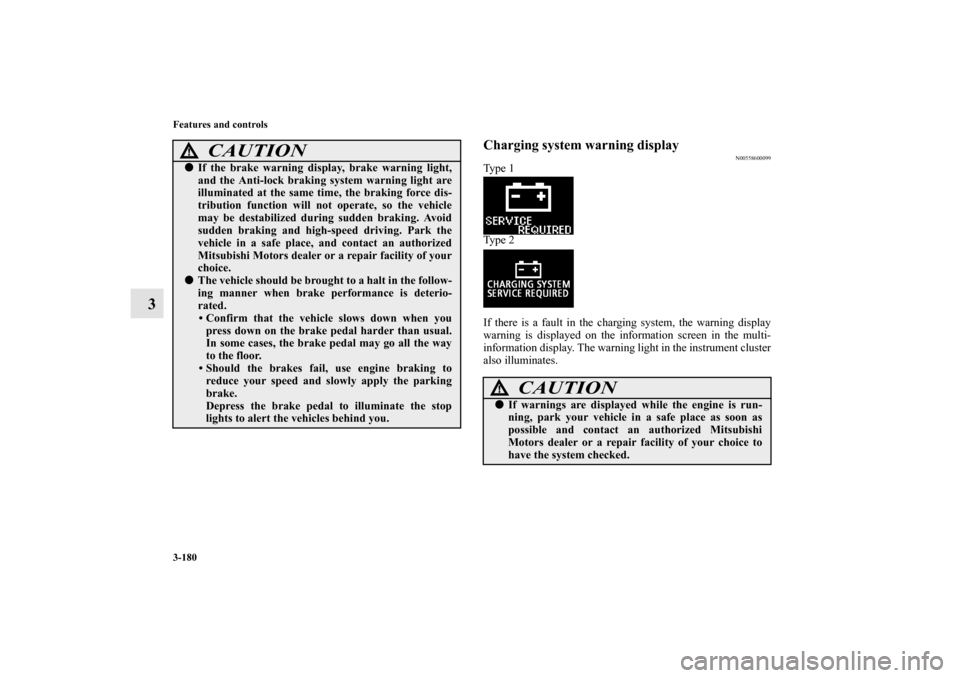

Charging system warning display
N00558600099
Ty p e 1
Ty p e 2
If there is a fault in the charging system, the warning display
warning is displayed on the information screen in the multi-
information display. The warning light in the instrument cluster
also illuminates.
If the brake warning display, brake warning light,
and the Anti-lock braking system warning light are
illuminated at the same time, the braking force dis-
tribution function will not operate, so the vehicle
may be destabilized during sudden braking. Avoid
sudden braking and high-speed driving. Park the
vehicle in a safe place, and contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.CAUTION
!
CAUTION
!If warnings are displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0120400US.book 180 ページ ２０１０年５月１２日 水曜日 午前１０時５０分
