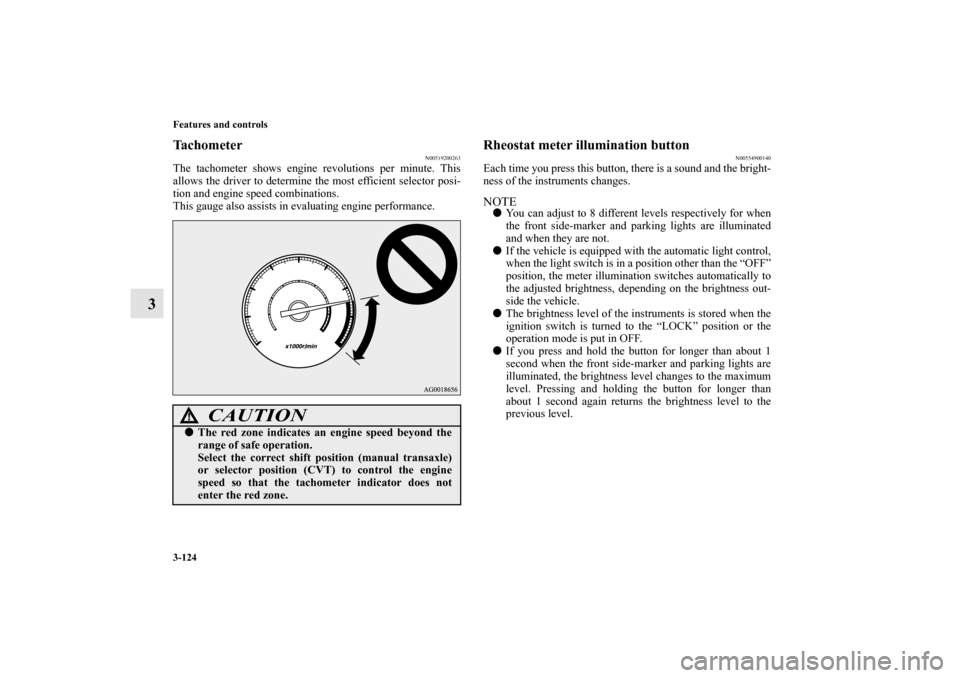

Tachometer
N00519200263
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient selector posi-
tion and engine speed combinations.
This gauge also assists in evaluating engine performance.
Rheostat meter illumination button
N00554900140
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.NOTE
You can adjust to 8 different levels respectively for when
the front side-marker and parking lights are illuminated
and when they are not.

If the vehicle is equipped with the automatic light control,
when the light switch is in a position other than the “OFF”
position, the meter illumination switches automatically to
the adjusted brightness, depending on the brightness out-
side the vehicle.

The brightness level of the instruments is stored when the
ignition switch is turned to the “LOCK” position or the
operation mode is put in OFF.

If you press and hold the button for longer than about 1
second when the front side-marker and parking lights are
illuminated, the brightness level changes to the maximum
level. Pressing and holding the button for longer than
about 1 second again returns the brightness level to the
previous level.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct shift position (manual transaxle)
or selector position (CVT) to control the engine
speed so that the tachometer indicator does not
enter the red zone.
BK0120400US.book 124 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-127
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.

The display screen is different depending on whether the
ignition switch or the operation mode in OFF or ON.
Refer to “Information screen (With ignition switch or
operation mode in OFF)” on page 3-128.
Refer to “Warning display list (With ignition switch or
operation mode in OFF)” on page 3-162.
Refer to “Information screen (With ignition switch turned
from the “LOCK” position to the “ON” position or opera-
tion mode changed from OFF to ON)” on page 3-133.
Refer to “Information screen (With ignition switch or
operation mode in ON)” on page 3-135.
Refer to “Warning display list (With ignition switch or
operation mode in ON)” on page 3-166.

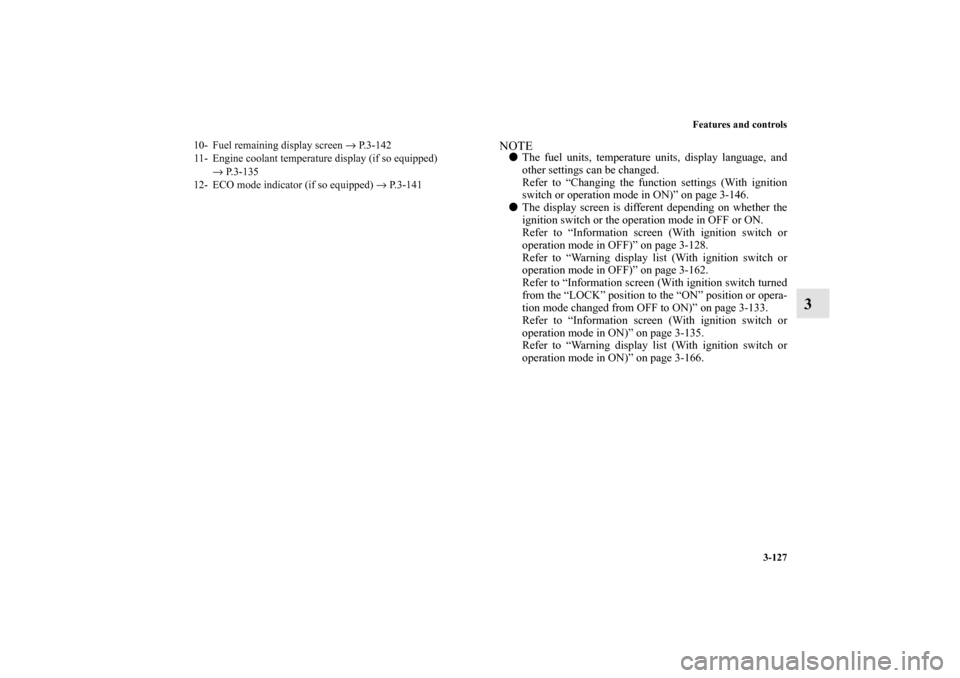

10- Fuel remaining display screen → P.3-142
11- Engine coolant temperature display (if so equipped)
→ P.3-135
12- ECO mode indicator (if so equipped) → P.3-141
BK0120400US.book 127 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-133
3

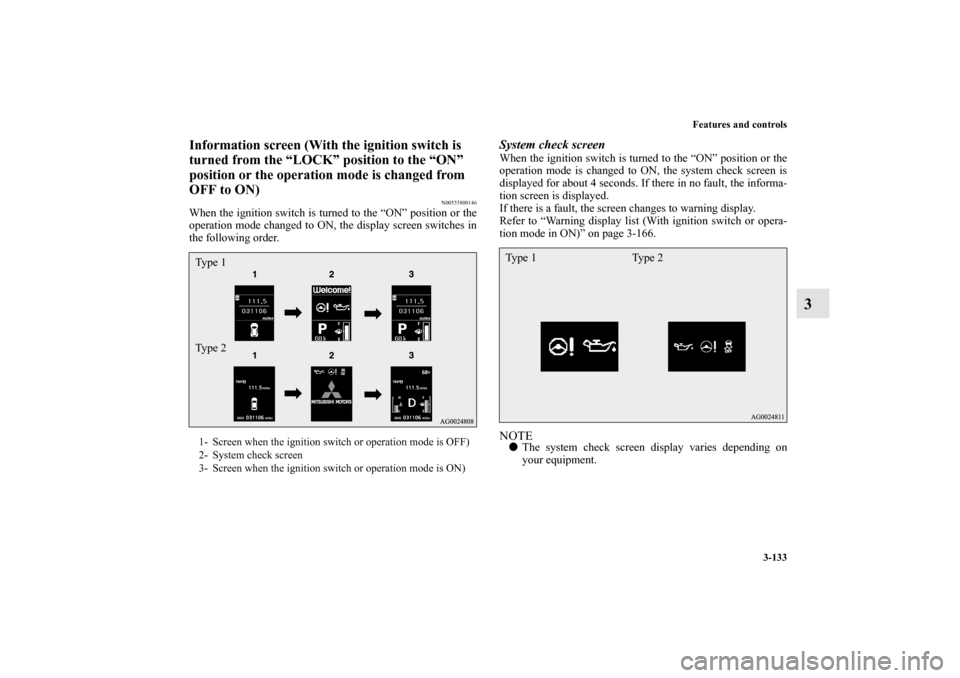

Information screen (With the ignition switch is
turned from the “LOCK” position to the “ON”
position or the operation mode is changed from
OFF to ON)
N00555800146
When the ignition switch is turned to the “ON” position or the
operation mode changed to ON, the display screen switches in
the following order.
System check screenWhen the ignition switch is turned to the “ON” position or the
operation mode is changed to ON, the system check screen is
displayed for about 4 seconds. If there in no fault, the informa-
tion screen is displayed.
If there is a fault, the screen changes to warning display.
Refer to “Warning display list (With ignition switch or opera-
tion mode in ON)” on page 3-166.NOTE
The system check screen display varies depending on
your equipment.
1- Screen when the ignition switch or operation mode is OFF)
2- System check screen
3- Screen when the ignition switch or operation mode is ON)Ty p e 1
Ty p e 2
Ty p e 1 Ty p e 2
BK0120400US.book 133 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-137
3
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive). When this driving range falls
below 30 miles (50 km), “---” is displayed.
Refuel as soon as possible.NOTE
The driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.

When you refuel, the driving range display is updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.

When your vehicle is stopped on an extremely steep hill,
the driving range value may, change. This is due to the
movement of fuel in the tank and does not indicate any
breakdown.

The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
or operation mode in ON)” on page 3-146.Manual reset mode

When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.

When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode

When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.

When the engine switch or the operation mode is in the
following conditions, the average speed display will auto-
matically reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been set to ACC or OFF for about
4 hours or more.
NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
BK0120400US.book 137 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-138 Features and controls
3

“---” is displayed when the average speed cannot be mea-
sured.

The initial (default) setting is “Auto reset mode”.

The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch or operation mode in ON)” on page 3-146.

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display.Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch or operation mode in ON)” on page 3-146.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption. (Type 2)
Manual reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.
When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play will automatically reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been set to ACC or OFF for about
4 hours or more.
NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.
BK0120400US.book 138 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-143
3
NOTE
On hills or curves, the display may be incorrect due to the

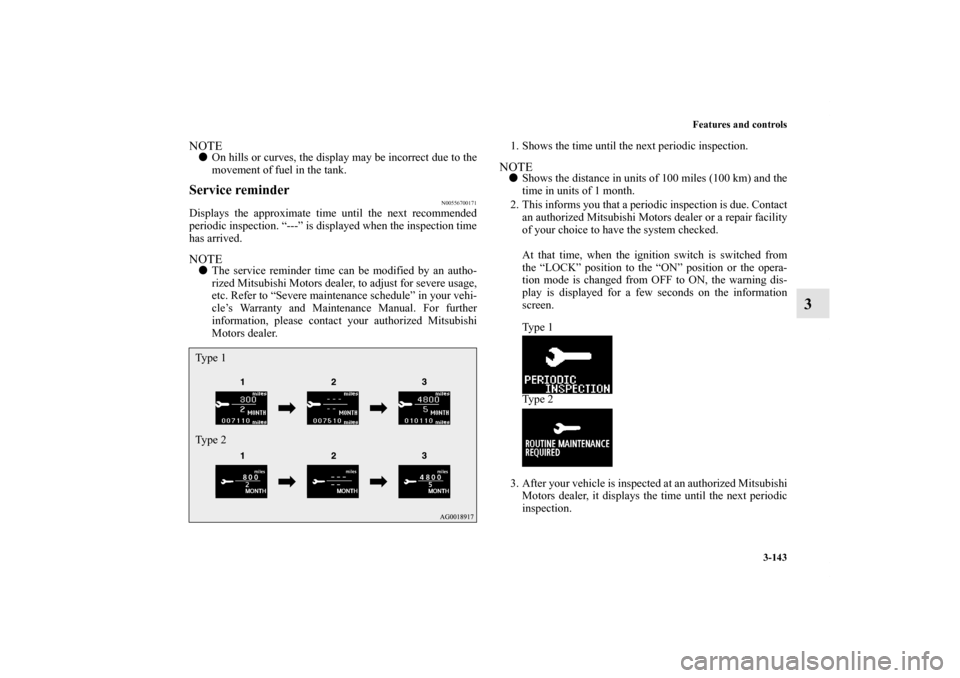

movement of fuel in the tank.Service reminder

N00556700171
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
The service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.1. Shows the time until the next periodic inspection.
NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
At that time, when the ignition switch is switched from
the “LOCK” position to the “ON” position or the opera-
tion mode is changed from OFF to ON, the warning dis-
play is displayed for a few seconds on the information
screen.
Type 1
Type 2
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.
Ty p e 1
Ty p e 2
BK0120400US.book 143 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-144 Features and controls
3
To reset The “---” display can be reset while the ignition switch or the
operation mode is in OFF. When the display is reset, the time
until the next periodic inspection is displayed and the warning
display is no longer displayed when the ignition switch is
switched from the “LOCK” position to the “ON” position or
the operation mode is changed from OFF to ON.
1. When you lightly press the multi-information meter
switch, the information screen switches to the service
reminder display screen.2. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ ” and make it
flash. (If there is no operation for about 10 seconds with
this indicator flashing, the display returns to the previous
screen.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the screen switches from “---”
to “CLEAR”. After that, the time until the next periodic
inspection is shown.Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0120400US.book 144 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-148 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset) → M (Manual reset) → A (Auto reset).
The setting is changed to the selected reset condition.Manual reset mode

If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.

When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “LOCK” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode

When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.

When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play and the average speed display will automatically
reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “LOCK”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been in ACC or OFF for about 4
hours or more.Type 1
Type 2
BK0120400US.book 148 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
