2011 MITSUBISHI GALANT Owners Manual

3-120 Features and controls
3

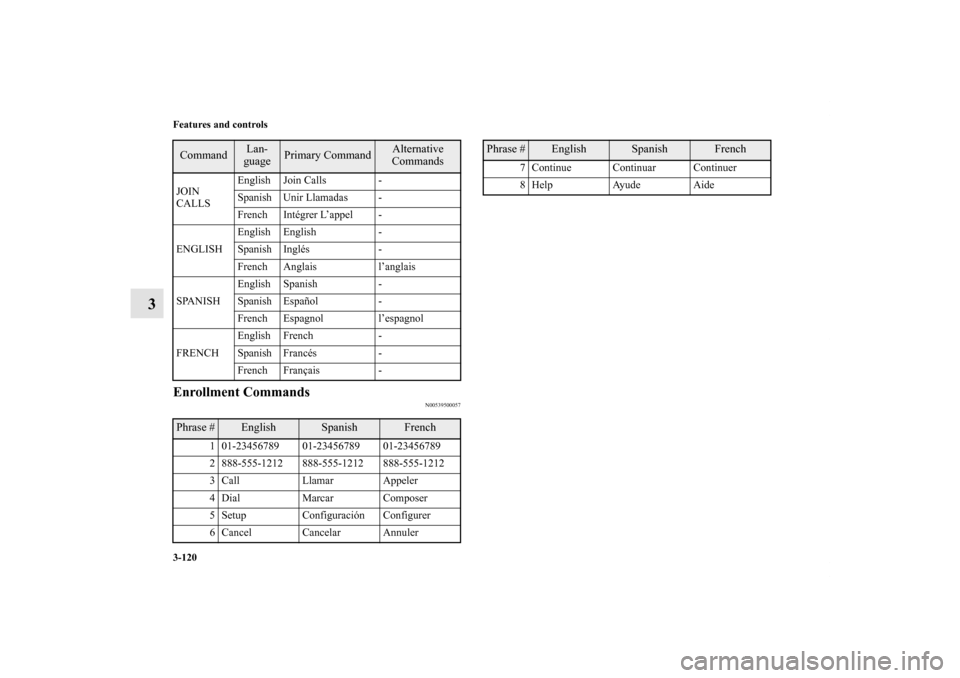

Enrollment Commands
N00539500057
JOIN
CALLSEnglish Join Calls -
Spanish Unir Llamadas -
French Intégrer L’appel -
ENGLISHEnglish English -
Spanish Inglés -
French Anglais l’anglais
SPANISHEnglish Spanish -
Spanish Español -
French Espagnol l’espagnol
FRENCHEnglish French -
Spanish Francés -
French Français -Phrase #
English
Spanish
French
1 01-23456789 01-23456789 01-23456789
2 888-555-1212 888-555-1212 888-555-1212
3 Call Llamar Appeler
4 Dial Marcar Composer
5 Setup Configuración Configurer
6 Cancel Cancelar Annuler
Command
Lan-
guage
Primary Command
Alternative
Commands
7 Continue Continuar Continuer
8 Help Ayude Aide
Phrase #
English
Spanish
French
BK0121200US.book 120 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-121

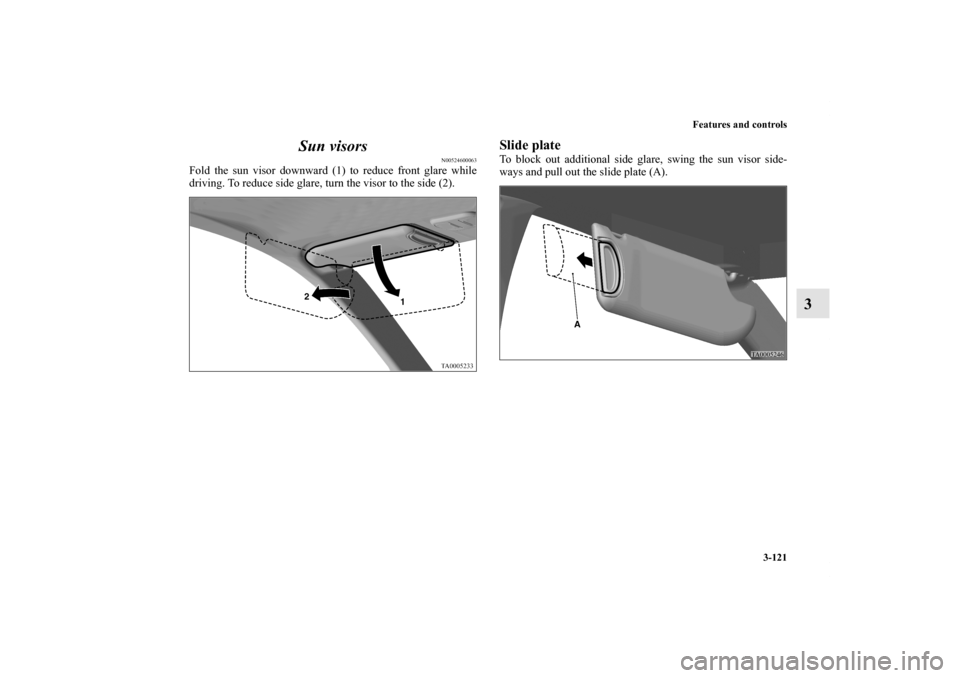

3 Sun visors
N00524600063
Fold the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Slide plateTo block out additional side glare, swing the sun visor side-
ways and pull out the slide plate (A).
BK0121200US.book 121 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-122 Features and controls

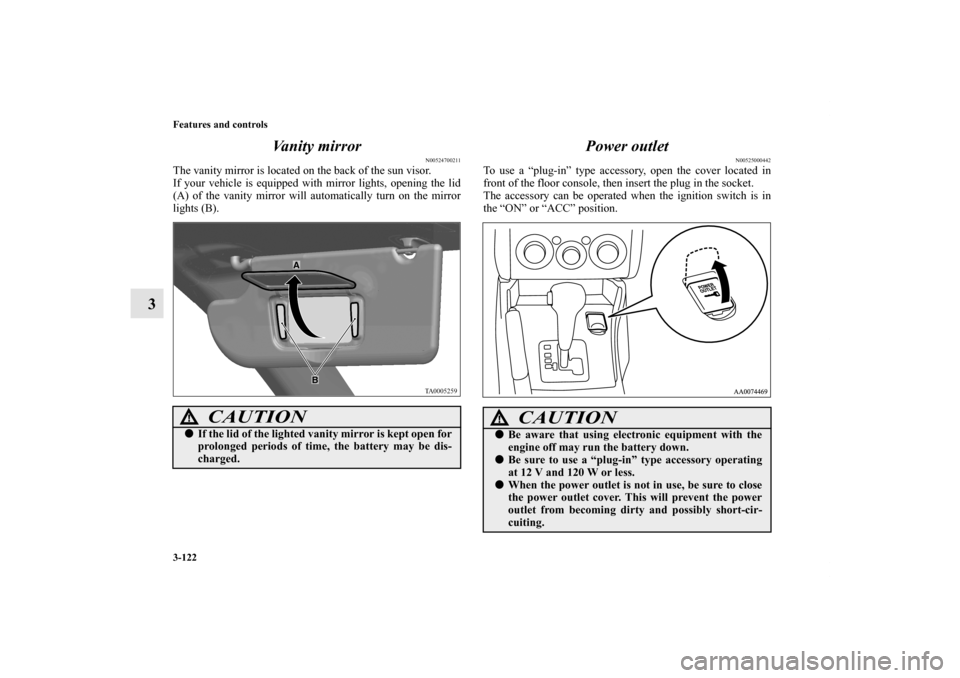

3Vanity mirror
N00524700211
The vanity mirror is located on the back of the sun visor.
If your vehicle is equipped with mirror lights, opening the lid
(A) of the vanity mirror will automatically turn on the mirror
lights (B).
Power outlet
N00525000442
To use a “plug-in” type accessory, open the cover located in
front of the floor console, then insert the plug in the socket.
The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
CAUTION
!
If the lid of the lighted vanity mirror is kept open for
prolonged periods of time, the battery may be dis-
charged.
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When the power outlet is not in use, be sure to close
the power outlet cover. This will prevent the power
outlet from becoming dirty and possibly short-cir-
cuiting.
BK0121200US.book 122 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-123
3 Digital clock
(if so equipped)
N00525100209
When the ignition switch is in the “ACC” or “ON” position,
the time is displayed.How each button works:Set the time by pressing the various buttons as described
below.
NOTE
If the battery cables are disconnected or the battery
becomes discharged, the clock will have to be reset.
H (HOUR)- Press and hold the “H” button until the correct
hour appears.
M (MINUTE)- Press and hold the “M” button until the correct
minute appears.
BK0121200US.book 123 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-124 Features and controls

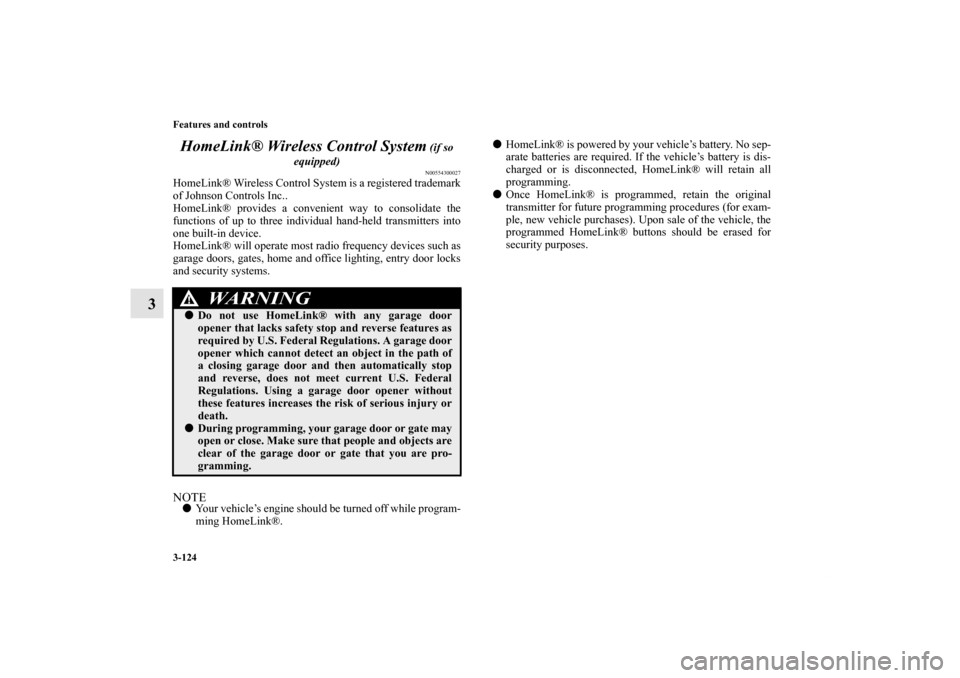

3HomeLink® Wireless Control System
(if so
equipped)N00554300027
HomeLink® Wireless Control System is a registered trademark
of Johnson Controls Inc..
HomeLink® provides a convenient way to consolidate the
functions of up to three individual hand-held transmitters into
one built-in device.
HomeLink® will operate most radio frequency devices such as
garage doors, gates, home and office lighting, entry door locks
and security systems.NOTE
Your vehicle’s engine should be turned off while program-
ming HomeLink®.
HomeLink® is powered by your vehicle’s battery. No sep-
arate batteries are required. If the vehicle’s battery is dis-
charged or is disconnected, HomeLink® will retain all
programming.

Once HomeLink® is programmed, retain the original
transmitter for future programming procedures (for exam-
ple, new vehicle purchases). Upon sale of the vehicle, the
programmed HomeLink® buttons should be erased for
security purposes.
WA R N I N G
!
Do not use HomeLink® with any garage door
opener that lacks safety stop and reverse features as
required by U.S. Federal Regulations. A garage door
opener which cannot detect an object in the path of
a closing garage door and then automatically stop
and reverse, does not meet current U.S. Federal
Regulations. Using a garage door opener without
these features increases the risk of serious injury or
death.
During programming, your garage door or gate may
open or close. Make sure that people and objects are
clear of the garage door or gate that you are pro-
gramming.
BK0121200US.book 124 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-125
3

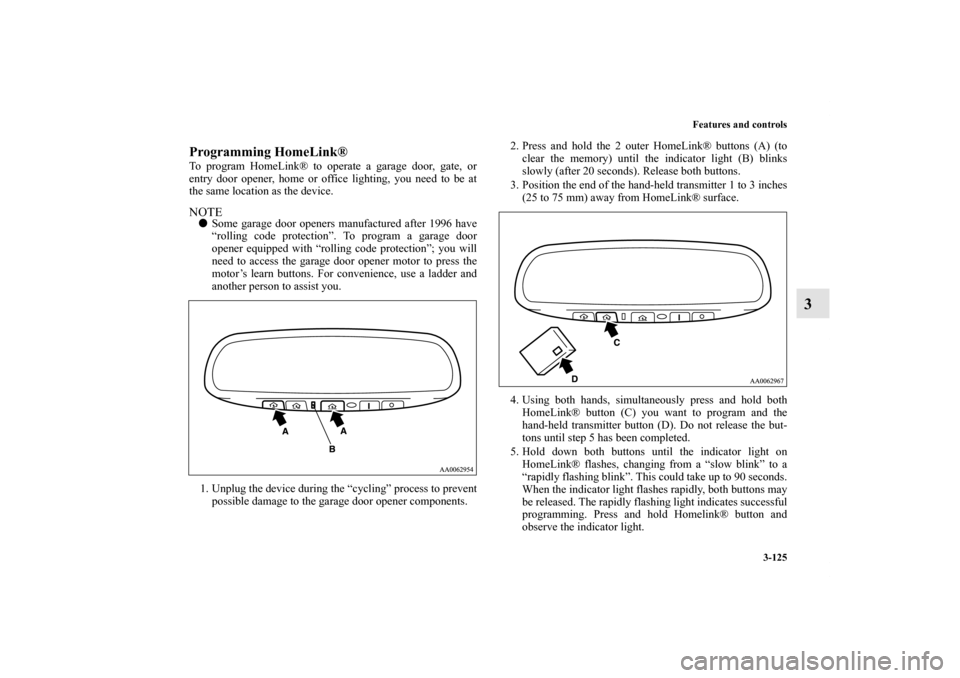

Programming HomeLink®To program HomeLink® to operate a garage door, gate, or
entry door opener, home or office lighting, you need to be at
the same location as the device. NOTE
Some garage door openers manufactured after 1996 have
“rolling code protection”. To program a garage door
opener equipped with “rolling code protection”; you will
need to access the garage door opener motor to press the
motor’s learn buttons. For convenience, use a ladder and
another person to assist you.
1. Unplug the device during the “cycling” process to prevent
possible damage to the garage door opener components.2. Press and hold the 2 outer HomeLink® buttons (A) (to
clear the memory) until the indicator light (B) blinks
slowly (after 20 seconds). Release both buttons.
3. Position the end of the hand-held transmitter 1 to 3 inches
(25 to 75 mm) away from HomeLink® surface.
4. Using both hands, simultaneously press and hold both
HomeLink® button (C) you want to program and the
hand-held transmitter button (D). Do not release the but-
tons until step 5 has been completed.
5. Hold down both buttons until the indicator light on
HomeLink® flashes, changing from a “slow blink” to a
“rapidly flashing blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both buttons may
be released. The rapidly flashing light indicates successful
programming. Press and hold Homelink® button and
observe the indicator light.
BK0121200US.book 125 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-126 Features and controls
3

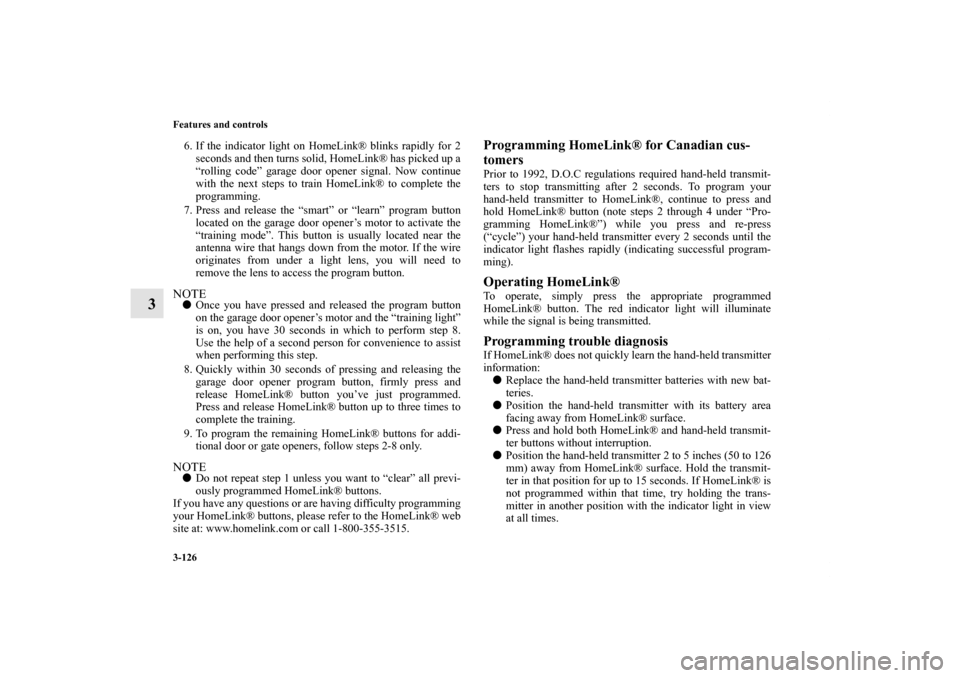

6. If the indicator light on HomeLink® blinks rapidly for 2
seconds and then turns solid, HomeLink® has picked up a
“rolling code” garage door opener signal. Now continue
with the next steps to train HomeLink® to complete the
programming.
7. Press and release the “smart” or “learn” program button
located on the garage door opener’s motor to activate the
“training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire
originates from under a light lens, you will need to
remove the lens to access the program button.NOTE
Once you have pressed and released the program button
on the garage door opener’s motor and the “training light”
is on, you have 30 seconds in which to perform step 8.
Use the help of a second person for convenience to assist
when performing this step.
8. Quickly within 30 seconds of pressing and releasing the
garage door opener program button, firmly press and
release HomeLink® button you’ve just programmed.
Press and release HomeLink® button up to three times to
complete the training.
9. To program the remaining HomeLink® buttons for addi-
tional door or gate openers, follow steps 2-8 only.NOTE
Do not repeat step 1 unless you want to “clear” all previ-
ously programmed HomeLink® buttons.
If you have any questions or are having difficulty programming
your HomeLink® buttons, please refer to the HomeLink® web
site at: www.homelink.com or call 1-800-355-3515.
Programming HomeLink® for Canadian cus-
tomersPrior to 1992, D.O.C regulations required hand-held transmit-
ters to stop transmitting after 2 seconds. To program your
hand-held transmitter to HomeLink®, continue to press and
hold HomeLink® button (note steps 2 through 4 under “Pro-
gramming HomeLink®”) while you press and re-press
(“cycle”) your hand-held transmitter every 2 seconds until the
indicator light flashes rapidly (indicating successful program-
ming).Operating HomeLink® To operate, simply press the appropriate programmed
HomeLink® button. The red indicator light will illuminate
while the signal is being transmitted. Programming trouble diagnosisIf HomeLink® does not quickly learn the hand-held transmitter
information:

Replace the hand-held transmitter batteries with new bat-
teries.

Position the hand-held transmitter with its battery area
facing away from HomeLink® surface.

Press and hold both HomeLink® and hand-held transmit-
ter buttons without interruption.

Position the hand-held transmitter 2 to 5 inches (50 to 126
mm) away from HomeLink® surface. Hold the transmit-
ter in that position for up to 15 seconds. If HomeLink® is
not programmed within that time, try holding the trans-
mitter in another position with the indicator light in view
at all times.
BK0121200US.book 126 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-127
3

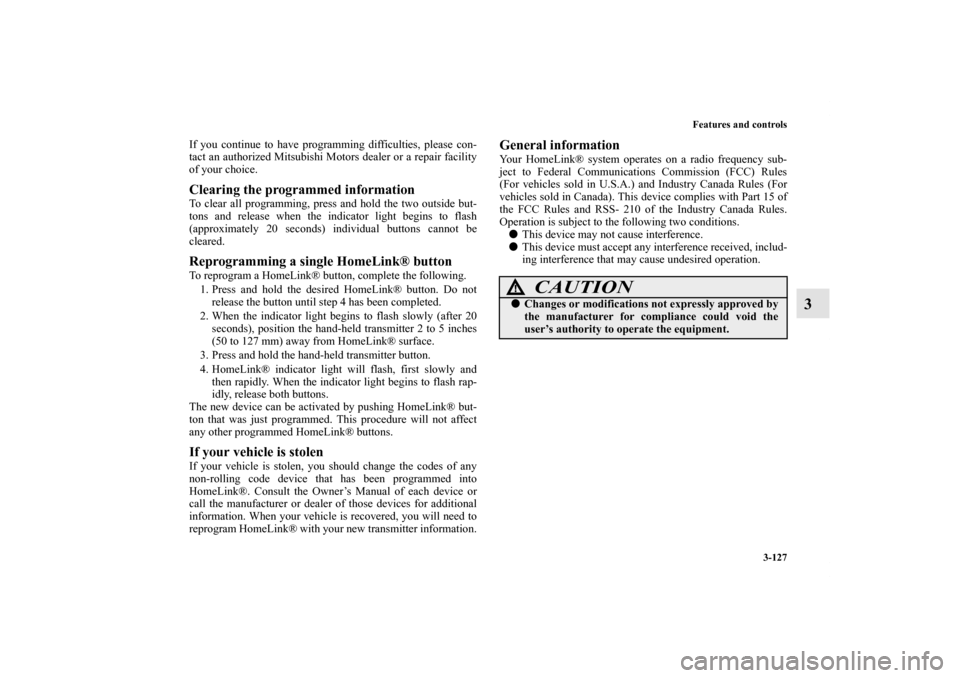

If you continue to have programming difficulties, please con-
tact an authorized Mitsubishi Motors dealer or a repair facility
of your choice. Clearing the programmed informationTo clear all programming, press and hold the two outside but-
tons and release when the indicator light begins to flash
(approximately 20 seconds) individual buttons cannot be
cleared.Reprogramming a single HomeLink® buttonTo reprogram a HomeLink® button, complete the following.
1. Press and hold the desired HomeLink® button. Do not
release the button until step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20
seconds), position the hand-held transmitter 2 to 5 inches
(50 to 127 mm) away from HomeLink® surface.
3. Press and hold the hand-held transmitter button.
4. HomeLink® indicator light will flash, first slowly and
then rapidly. When the indicator light begins to flash rap-
idly, release both buttons.
The new device can be activated by pushing HomeLink® but-
ton that was just programmed. This procedure will not affect
any other programmed HomeLink® buttons.If your vehicle is stolenIf your vehicle is stolen, you should change the codes of any
non-rolling code device that has been programmed into
HomeLink®. Consult the Owner’s Manual of each device or
call the manufacturer or dealer of those devices for additional
information. When your vehicle is recovered, you will need to
reprogram HomeLink® with your new transmitter information.
General informationYour HomeLink® system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS- 210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
