4-10 Driving safety
4

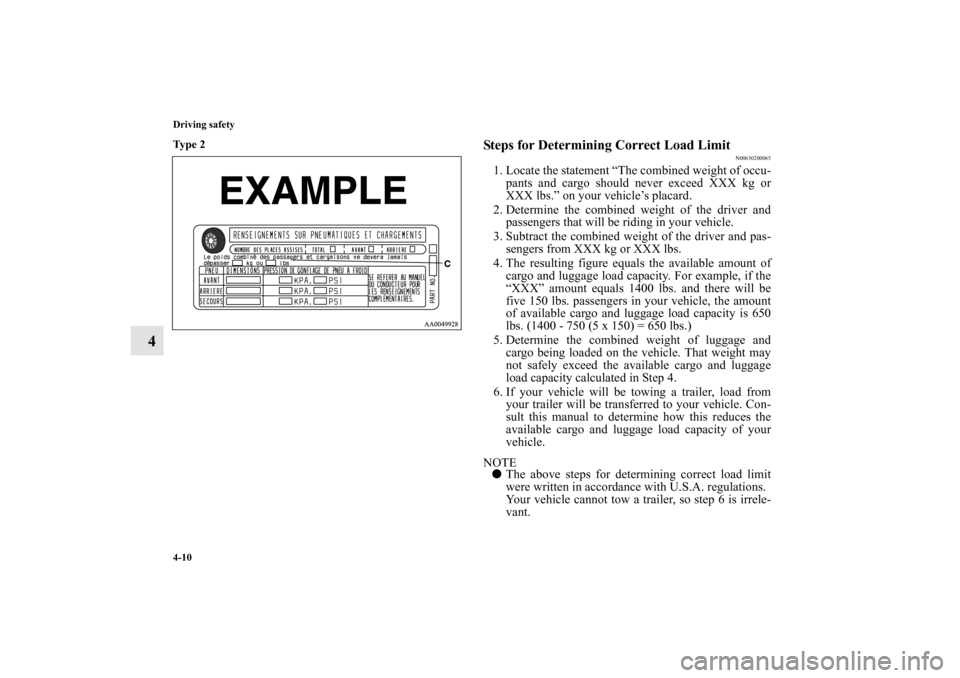

Ty p e 2

Steps for Determining Correct Load Limit
N00630200065
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX kg or
XXX lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and pas-
sengers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be
five 150 lbs. passengers in your vehicle, the amount
of available cargo and luggage load capacity is 650
lbs. (1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight may
not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from
your trailer will be transferred to your vehicle. Con-
sult this manual to determine how this reduces the
available cargo and luggage load capacity of your
vehicle.NOTE

The above steps for determining correct load limit
were written in accordance with U.S.A. regulations.
Your vehicle cannot tow a trailer, so step 6 is irrele-
vant.
BK0121200US.book 10 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Driving safety
4-11
4

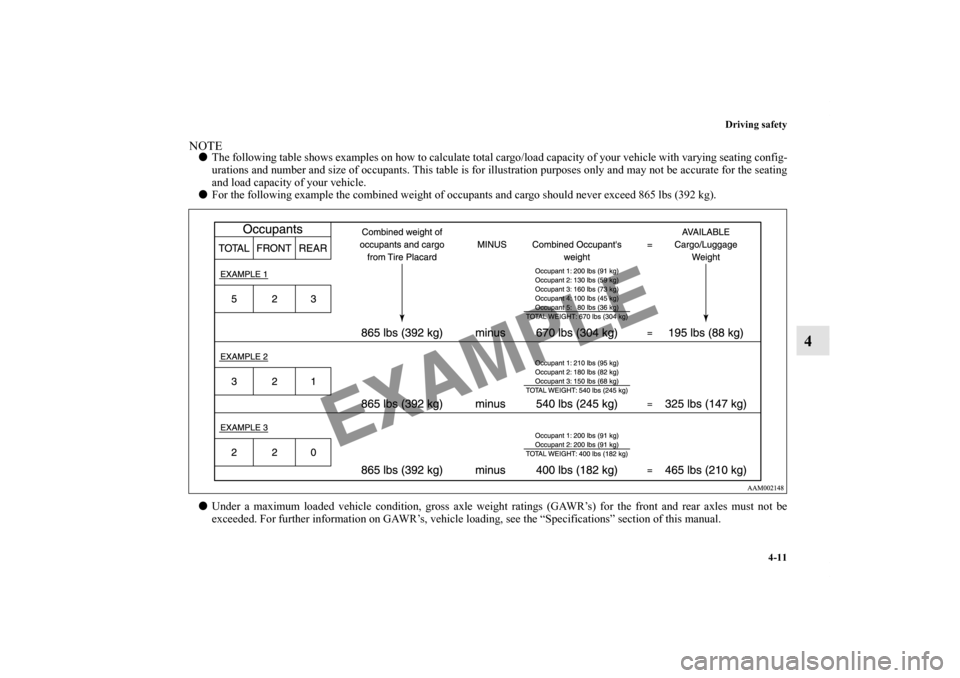

NOTE
The following table shows examples on how to calculate total cargo/load capacity of your vehicle with varying seating config-
urations and number and size of occupants. This table is for illustration purposes only and may not be accurate for the seating
and load capacity of your vehicle.

For the following example the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

Under a maximum loaded vehicle condition, gross axle weight ratings (GAWR’s) for the front and rear axles must not be
exceeded. For further information on GAWR’s, vehicle loading, see the “Specifications” section of this manual.
BK0121200US.book 11 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

4-12 Driving safety

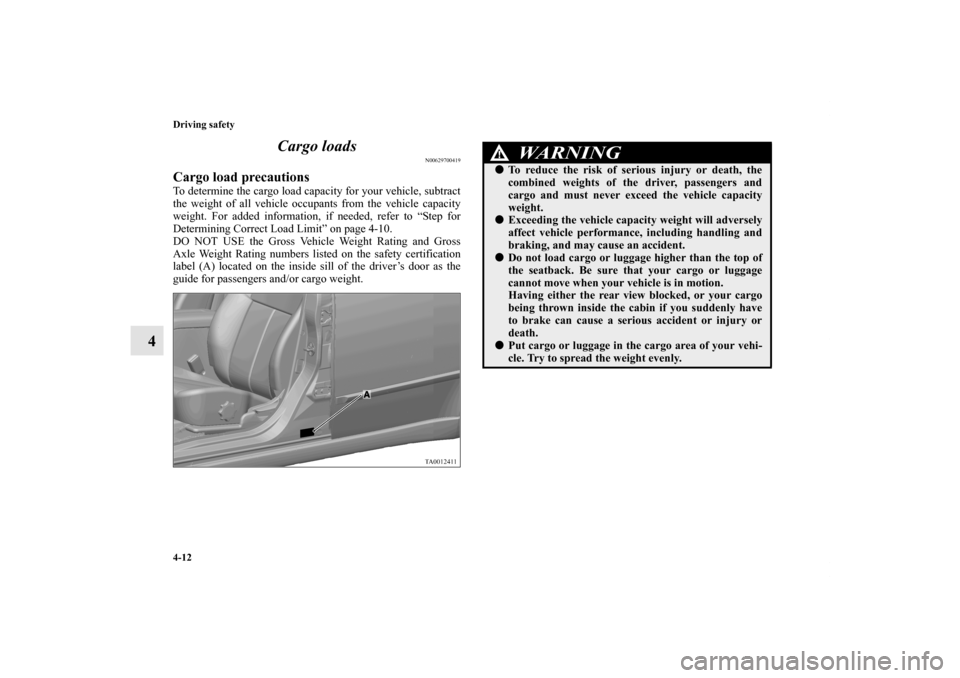

4Cargo loads
N00629700419
Cargo load precautionsTo determine the cargo load capacity for your vehicle, subtract
the weight of all vehicle occupants from the vehicle capacity
weight. For added information, if needed, refer to “Step for
Determining Correct Load Limit” on page 4-10.
DO NOT USE the Gross Vehicle Weight Rating and Gross
Axle Weight Rating numbers listed on the safety certification
label (A) located on the inside sill of the driver’s door as the
guide for passengers and/or cargo weight.
WA R N I N G
!
To reduce the risk of serious injury or death, the
combined weights of the driver, passengers and
cargo and must never exceed the vehicle capacity
weight.
Exceeding the vehicle capacity weight will adversely
affect vehicle performance, including handling and
braking, and may cause an accident.
Do not load cargo or luggage higher than the top of
the seatback. Be sure that your cargo or luggage
cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo
being thrown inside the cabin if you suddenly have
to brake can cause a serious accident or injury or
death.
Put cargo or luggage in the cargo area of your vehi-
cle. Try to spread the weight evenly.
BK0121200US.book 12 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Driving safety
4-13

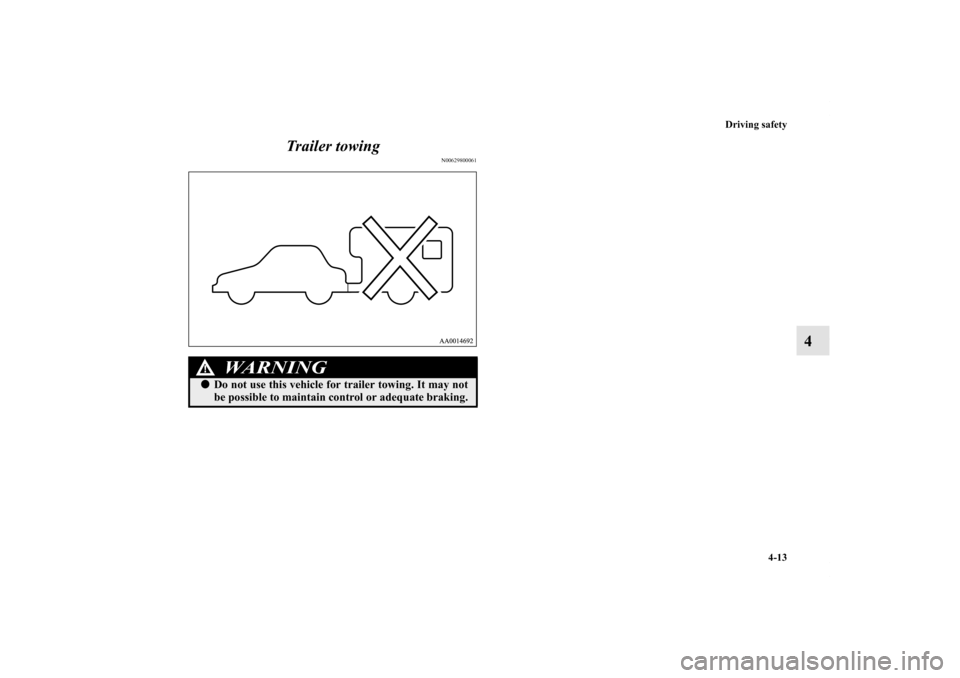

4 Trailer towing
N00629800061
WA R N I N G
!
Do not use this vehicle for trailer towing. It may not
be possible to maintain control or adequate braking.
BK0121200US.book 13 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

BK0121200US.book 14 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

5

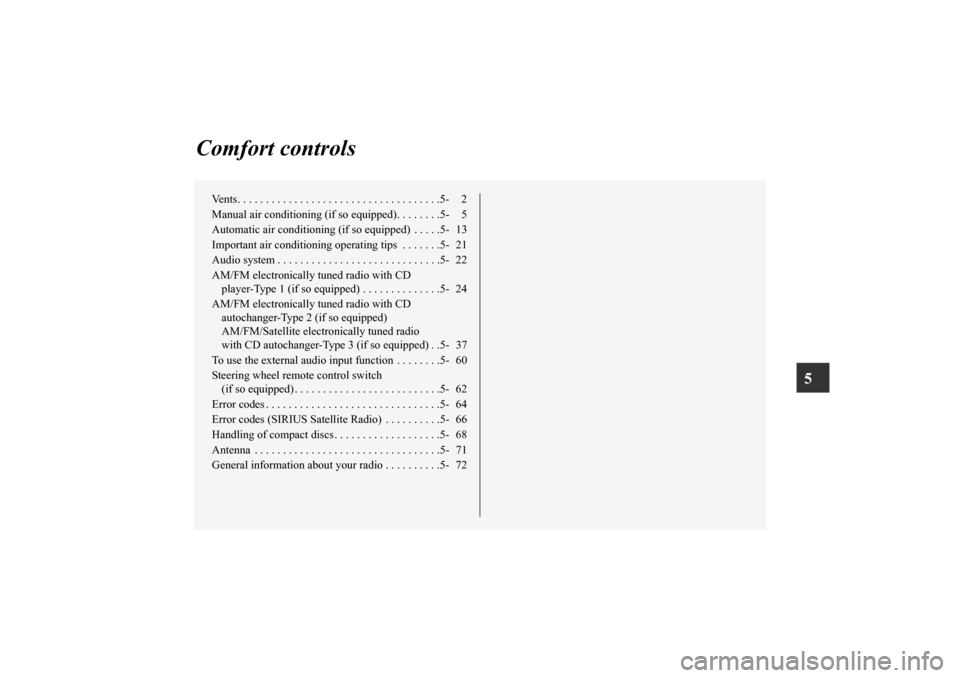

Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning (if so equipped). . . . . . . .5- 5
Automatic air conditioning (if so equipped) . . . . .5- 13
Important air conditioning operating tips . . . . . . .5- 21
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 22
AM/FM electronically tuned radio with CD
player-Type 1 (if so equipped) . . . . . . . . . . . . . .5- 24
AM/FM electronically tuned radio with CD
autochanger-Type 2 (if so equipped)
AM/FM/Satellite electronically tuned radio
with CD autochanger-Type 3 (if so equipped) . .5- 37
To use the external audio input function . . . . . . . .5- 60
Steering wheel remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 62
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 64
Error codes (SIRIUS Satellite Radio) . . . . . . . . . .5- 66
Handling of compact discs . . . . . . . . . . . . . . . . . . .5- 68
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 71
General information about your radio . . . . . . . . . .5- 72
BK0121200US.book 1 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

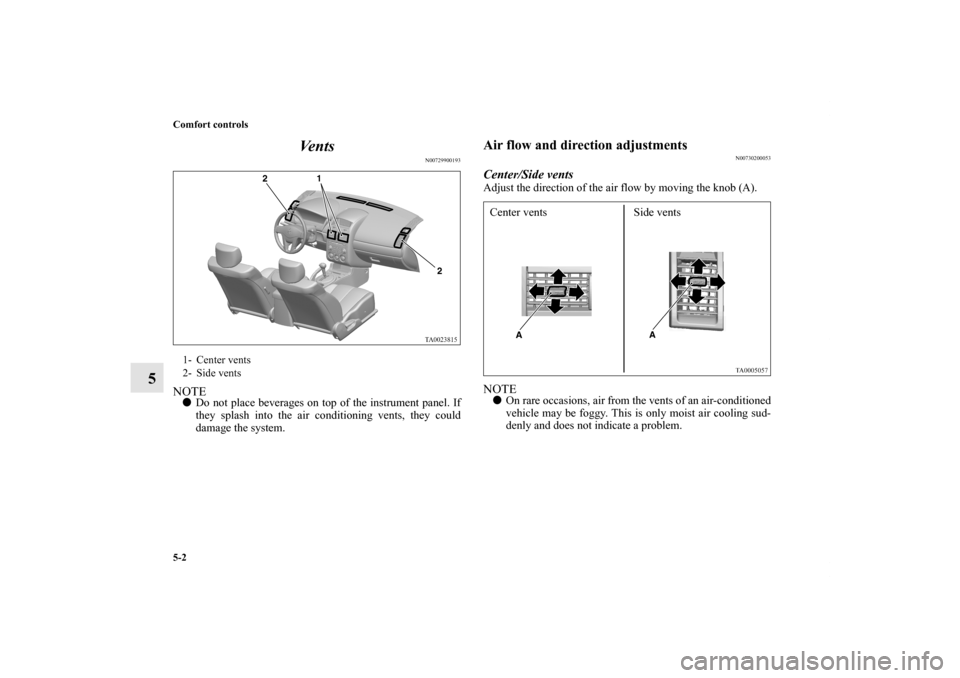

5-2 Comfort controls
5Ve n t s
N00729900193
NOTE
Do not place beverages on top of the instrument panel. If
they splash into the air conditioning vents, they could
damage the system.
Air flow and direction adjustments
N00730200053
Center/Side ventsAdjust the direction of the air flow by moving the knob (A).NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.
1- Center vents
2- Side vents
Center vents Side vents
BK0121200US.book 2 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-3
5

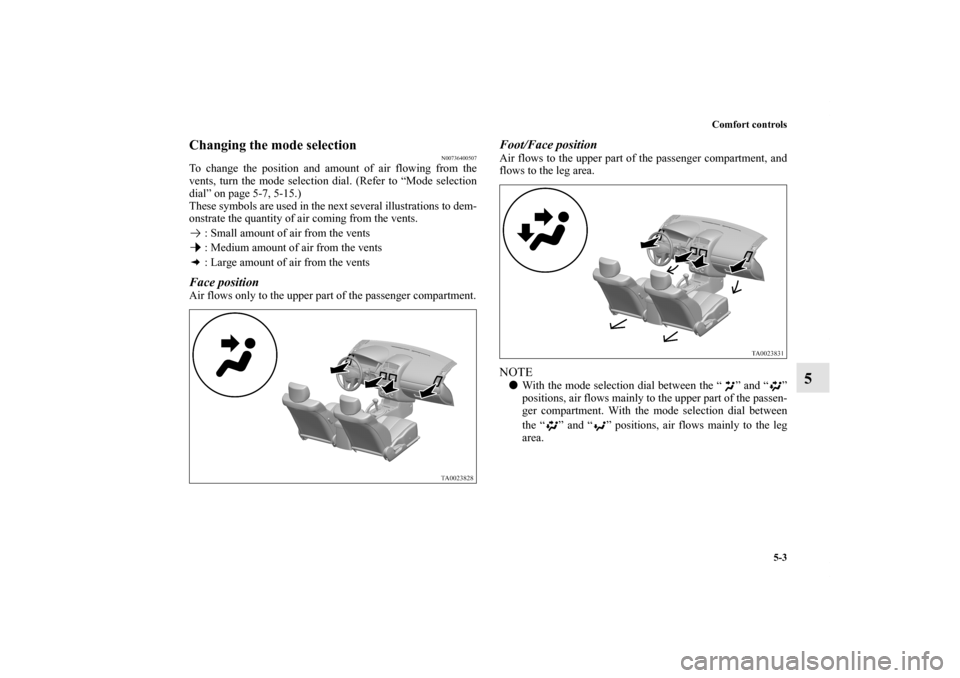

Changing the mode selection
N00736400507
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Mode selection
dial” on page 5-7, 5-15.)
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the vents Face position Air flows only to the upper part of the passenger compartment.
Foot/Face position Air flows to the upper part of the passenger compartment, and
flows to the leg area. NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
