2011 MITSUBISHI GALANT Owners Manual

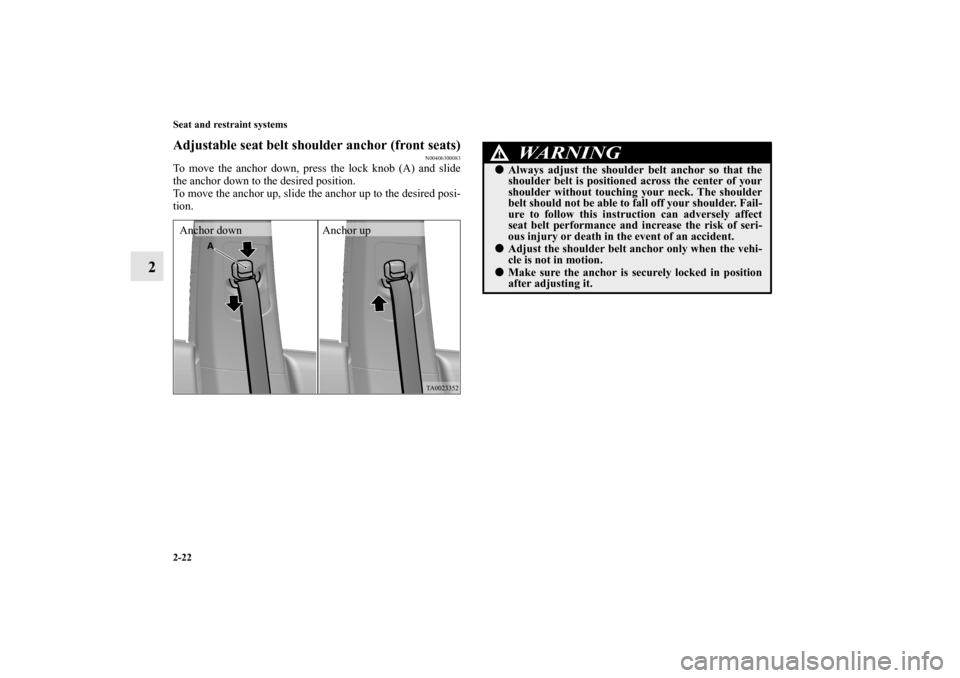

2-22 Seat and restraint systems
2
Adjustable seat belt shoulder anchor (front seats)
N00406300083
To move the anchor down, press the lock knob (A) and slide
the anchor down to the desired position.
To move the anchor up, slide the anchor up to the desired posi-
tion.Anchor down Anchor up
WA R N I N G
!
Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.
Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.
Make sure the anchor is securely locked in position
after adjusting it.
BK0121200US.book 22 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

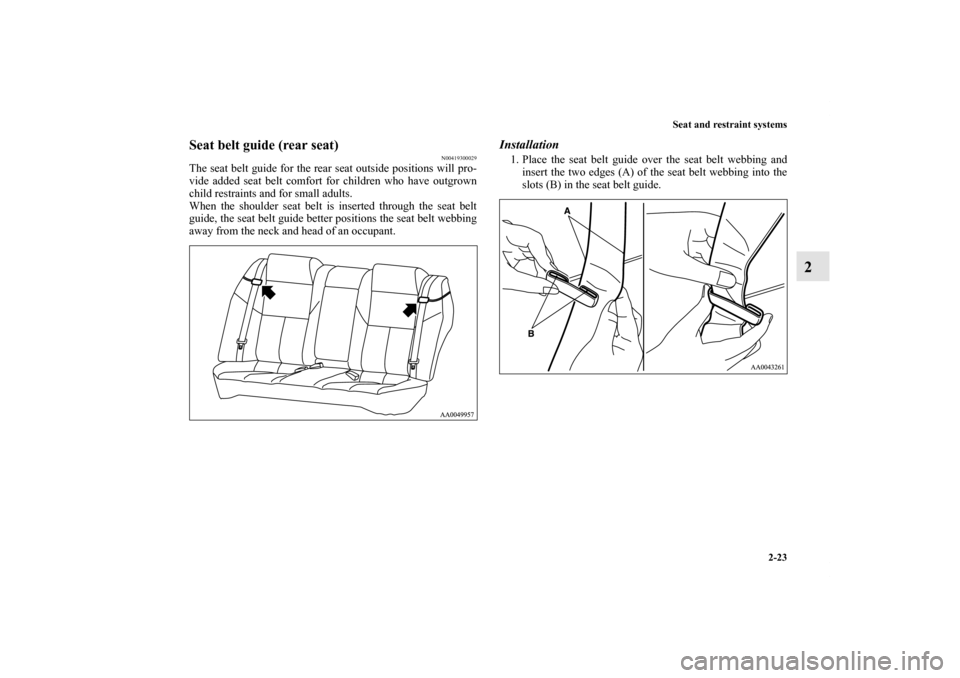

Seat and restraint systems
2-23
2
Seat belt guide (rear seat)
N00419300029
The seat belt guide for the rear seat outside positions will pro-
vide added seat belt comfort for children who have outgrown
child restraints and for small adults.
When the shoulder seat belt is inserted through the seat belt
guide, the seat belt guide better positions the seat belt webbing
away from the neck and head of an occupant.
Installation1. Place the seat belt guide over the seat belt webbing and
insert the two edges (A) of the seat belt webbing into the
slots (B) in the seat belt guide.
BK0121200US.book 23 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

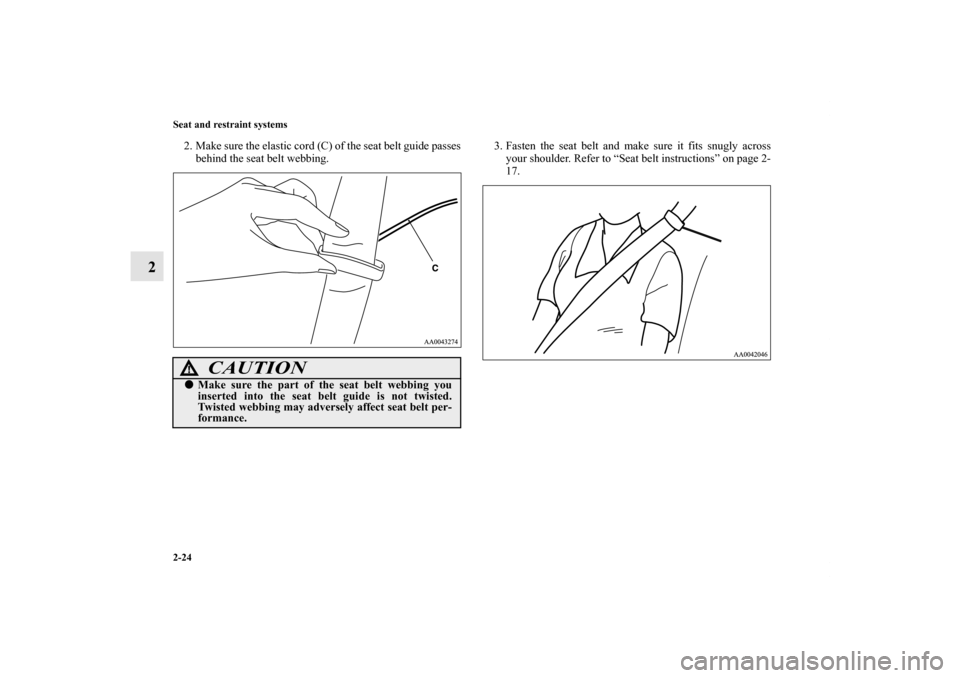

2-24 Seat and restraint systems
2
2. Make sure the elastic cord (C) of the seat belt guide passes
behind the seat belt webbing.3. Fasten the seat belt and make sure it fits snugly across
your shoulder. Refer to “Seat belt instructions” on page 2-
17.
CAUTION
!
Make sure the part of the seat belt webbing you
inserted into the seat belt guide is not twisted.
Twisted webbing may adversely affect seat belt per-
formance.
BK0121200US.book 24 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

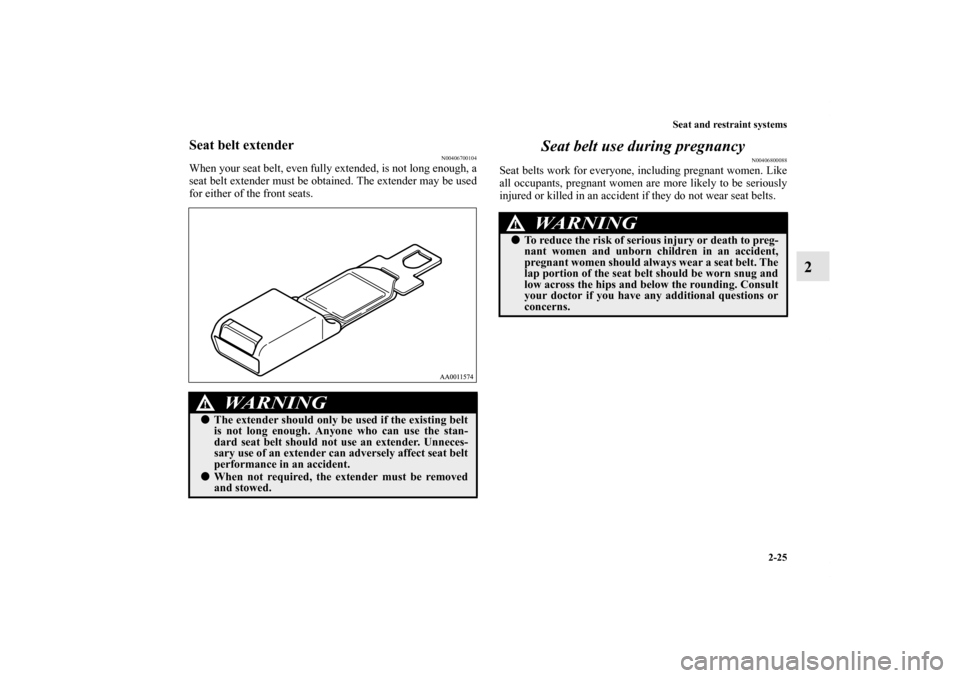

Seat and restraint systems
2-25
2
Seat belt extender
N00406700104
When your seat belt, even fully extended, is not long enough, a
seat belt extender must be obtained. The extender may be used
for either of the front seats.
Seat belt use during pregnancy
N00406800088
Seat belts work for everyone, including pregnant women. Like
all occupants, pregnant women are more likely to be seriously
injured or killed in an accident if they do not wear seat belts.
WA R N I N G
!
The extender should only be used if the existing belt
is not long enough. Anyone who can use the stan-
dard seat belt should not use an extender. Unneces-
sary use of an extender can adversely affect seat belt
performance in an accident.
When not required, the extender must be removed
and stowed.
WA R N I N G
!
To reduce the risk of serious injury or death to preg-
nant women and unborn children in an accident,
pregnant women should always wear a seat belt. The
lap portion of the seat belt should be worn snug and
low across the hips and below the rounding. Consult
your doctor if you have any additional questions or
concerns.
BK0121200US.book 25 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

2-26 Seat and restraint systems
2Seat belt pre-tensioner and force limiter
systems
N00417700175
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner system The driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In moderate-to-severe frontal
collisions, this system operates simultaneously with the
deployment of the front air bags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.The seat belt pre-tensioner system includes the following com-
ponents:
The air bag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The pre-tensioner seat belts will operate only when the ignition
switch is in the “ON” or “START” position.
1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioners
4- Seat belt buckle switches
5- Air bag control unit
BK0121200US.book 26 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

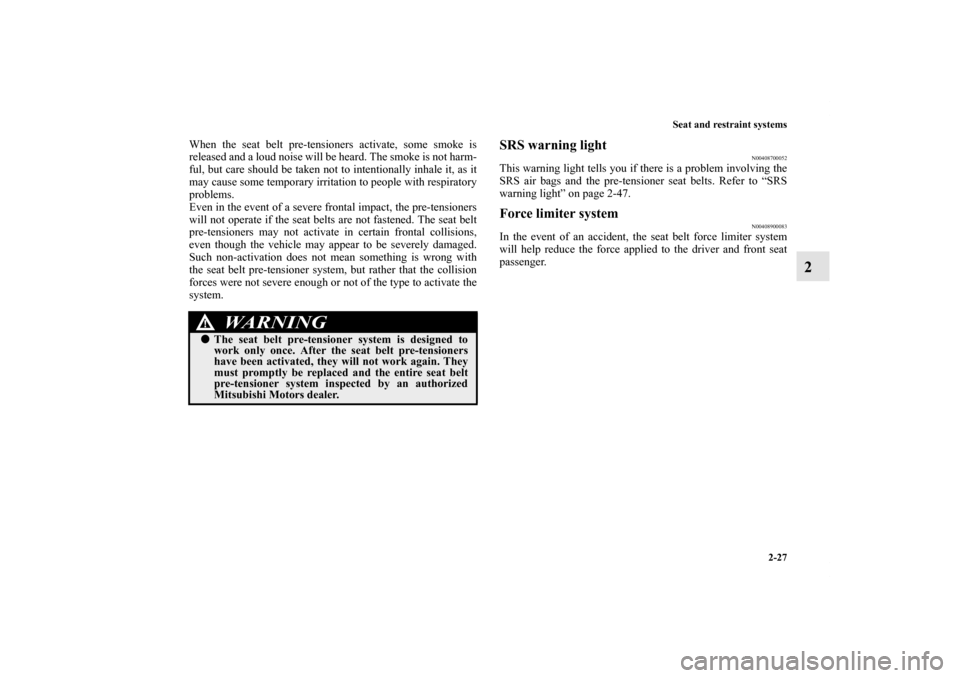

Seat and restraint systems
2-27
2
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
Even in the event of a severe frontal impact, the pre-tensioners
will not operate if the seat belts are not fastened. The seat belt
pre-tensioners may not activate in certain frontal collisions,
even though the vehicle may appear to be severely damaged.
Such non-activation does not mean something is wrong with
the seat belt pre-tensioner system, but rather that the collision
forces were not severe enough or not of the type to activate the
system.
SRS warning light
N00408700052
This warning light tells you if there is a problem involving the
SRS air bags and the pre-tensioner seat belts. Refer to “SRS
warning light” on page 2-47.Force limiter system
N00408900083
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
WA R N I N G
!
The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0121200US.book 27 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

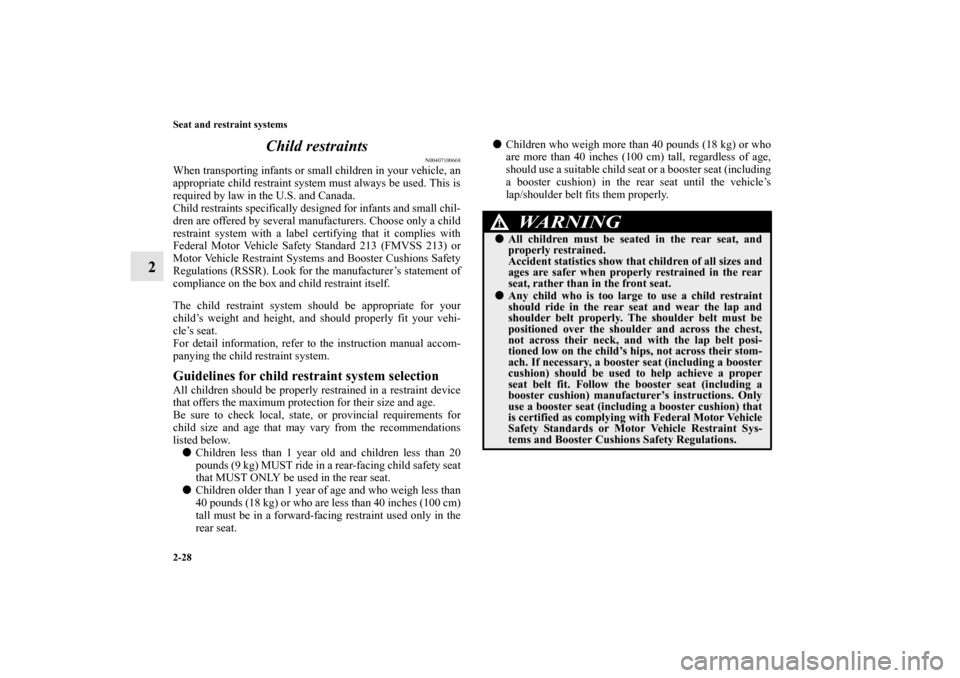

2-28 Seat and restraint systems
2Child restraints
N00407100668
When transporting infants or small children in your vehicle, an
appropriate child restraint system must always be used. This is
required by law in the U.S. and Canada.
Child restraints specifically designed for infants and small chil-
dren are offered by several manufacturers. Choose only a child
restraint system with a label certifying that it complies with
Federal Motor Vehicle Safety Standard 213 (FMVSS 213) or
Motor Vehicle Restraint Systems and Booster Cushions Safety
Regulations (RSSR). Look for the manufacturer’s statement of
compliance on the box and child restraint itself.
The child restraint system should be appropriate for your
child’s weight and height, and should properly fit your vehi-
cle’s seat.
For detail information, refer to the instruction manual accom-
panying the child restraint system.Guidelines for child restraint system selectionAll children should be properly restrained in a restraint device
that offers the maximum protection for their size and age.
Be sure to check local, state, or provincial requirements for
child size and age that may vary from the recommendations
listed below.

Children less than 1 year old and children less than 20
pounds (9 kg) MUST ride in a rear-facing child safety seat
that MUST ONLY be used in the rear seat.

Children older than 1 year of age and who weigh less than
40 pounds (18 kg) or who are less than 40 inches (100 cm)
tall must be in a forward-facing restraint used only in the
rear seat.
Children who weigh more than 40 pounds (18 kg) or who
are more than 40 inches (100 cm) tall, regardless of age,
should use a suitable child seat or a booster seat (including
a booster cushion) in the rear seat until the vehicle’s
lap/shoulder belt fits them properly.
WA R N I N G
!
All children must be seated in the rear seat, and
properly restrained.
Accident statistics show that children of all sizes and
ages are safer when properly restrained in the rear
seat, rather than in the front seat.
Any child who is too large to use a child restraint
should ride in the rear seat and wear the lap and
shoulder belt properly. The shoulder belt must be
positioned over the shoulder and across the chest,
not across their neck, and with the lap belt posi-
tioned low on the child’s hips, not across their stom-
ach. If necessary, a booster seat (including a booster
cushion) should be used to help achieve a proper
seat belt fit. Follow the booster seat (including a
booster cushion) manufacturer’s instructions. Only
use a booster seat (including a booster cushion) that
is certified as complying with Federal Motor Vehicle
Safety Standards or Motor Vehicle Restraint Sys-
tems and Booster Cushions Safety Regulations.
BK0121200US.book 28 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

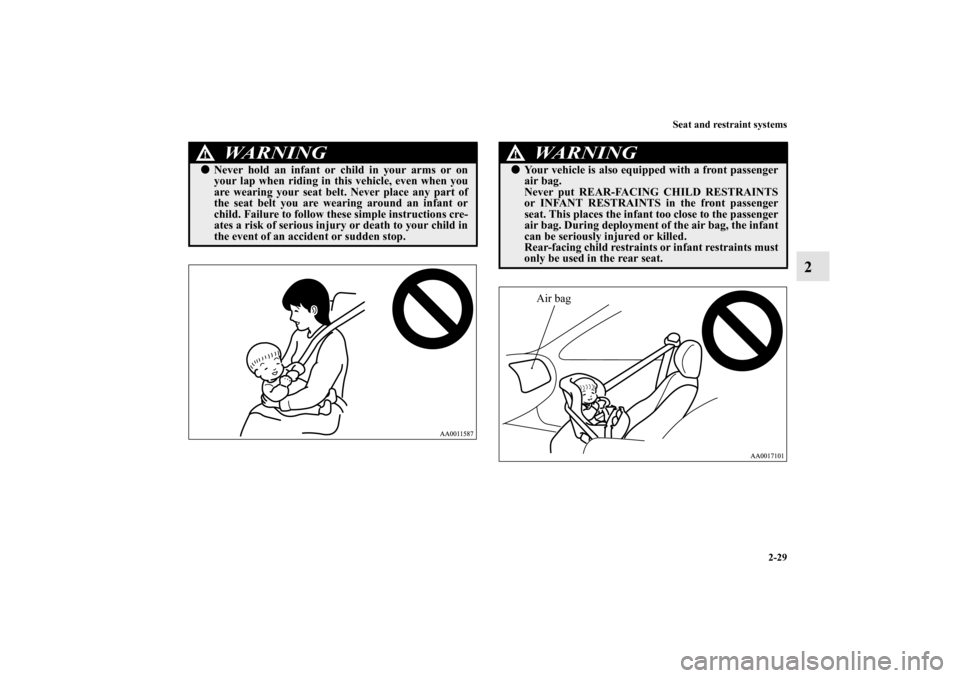

Seat and restraint systems
2-29
2
WA R N I N G
!
Never hold an infant or child in your arms or on
your lap when riding in this vehicle, even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
WA R N I N G
!
Your vehicle is also equipped with a front passenger
air bag.
Never put REAR-FACING CHILD RESTRAINTS
or INFANT RESTRAINTS in the front passenger
seat. This places the infant too close to the passenger
air bag. During deployment of the air bag, the infant
can be seriously injured or killed.
Rear-facing child restraints or infant restraints must
only be used in the rear seat.
Air bag
