2011 MITSUBISHI GALANT Owners Manual

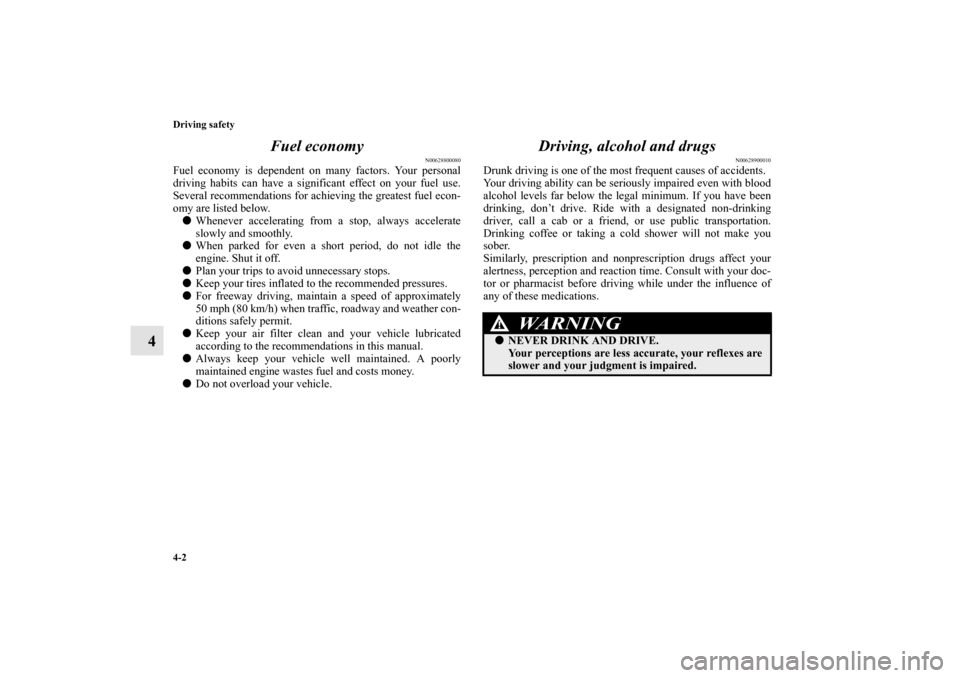

4-2 Driving safety
4Fuel economy
N00628800080
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.

When parked for even a short period, do not idle the
engine. Shut it off.

Plan your trips to avoid unnecessary stops.

Keep your tires inflated to the recommended pressures.

For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.

Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.

Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.

Do not overload your vehicle.
Driving, alcohol and drugs
N00628900010
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
WA R N I N G
!
NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK0121200US.book 2 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

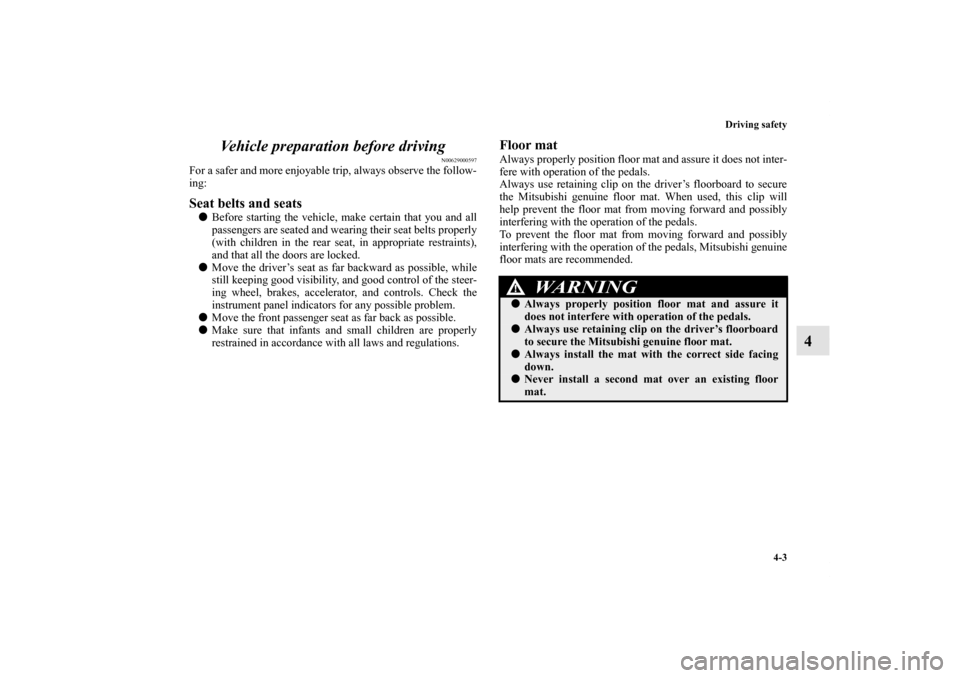

Driving safety
4-3
4 Vehicle preparation before driving
N00629000597
For a safer and more enjoyable trip, always observe the follow-
ing: Seat belts and seats
Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors are locked.

Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators for any possible problem.

Move the front passenger seat as far back as possible.

Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.
Floor matAlways properly position floor mat and assure it does not inter-
fere with operation of the pedals.
Always use retaining clip on the driver’s floorboard to secure
the Mitsubishi genuine floor mat. When used, this clip will
help prevent the floor mat from moving forward and possibly
interfering with the operation of the pedals.
To prevent the floor mat from moving forward and possibly
interfering with the operation of the pedals, Mitsubishi genuine
floor mats are recommended.
WA R N I N G
!
Always properly position floor mat and assure it
does not interfere with operation of the pedals.
Always use retaining clip on the driver’s floorboard
to secure the Mitsubishi genuine floor mat.
Always install the mat with the correct side facing
down.
Never install a second mat over an existing floor
mat.
BK0121200US.book 3 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

4-4 Driving safety
4
Defrosters Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-12, 5-19.)
Tires Check all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.Lights Have someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaks Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
BK0121200US.book 4 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

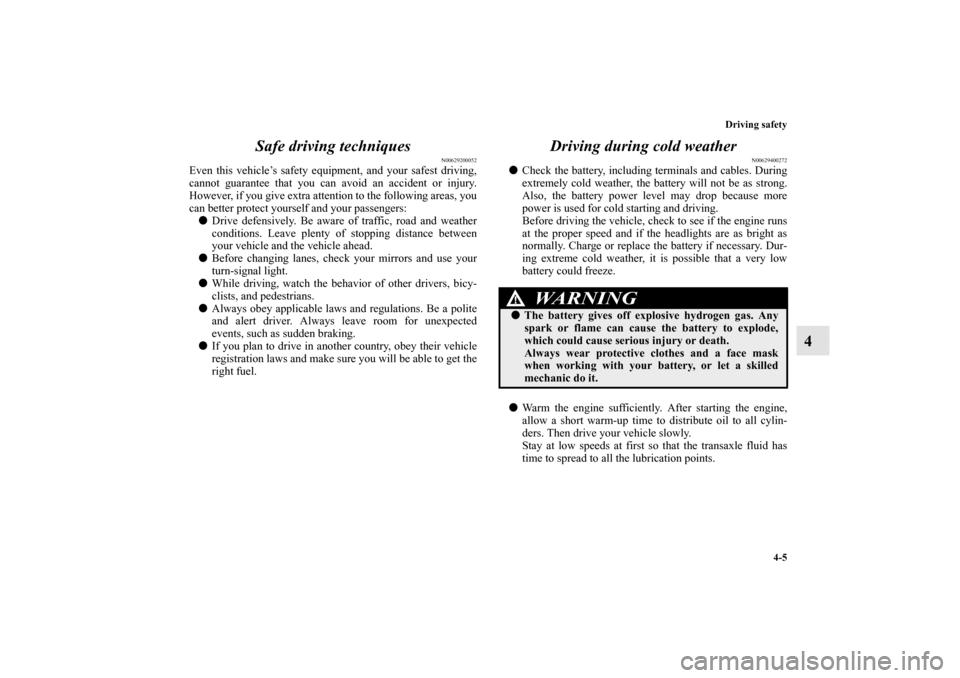

Driving safety
4-5
4 Safe driving techniques
N00629200052
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400272

Check the battery, including terminals and cables. During
extremely cold weather, the battery will not be as strong.
Also, the battery power level may drop because more
power is used for cold starting and driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.
Stay at low speeds at first so that the transaxle fluid has
time to spread to all the lubrication points.
WA R N I N G
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0121200US.book 5 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

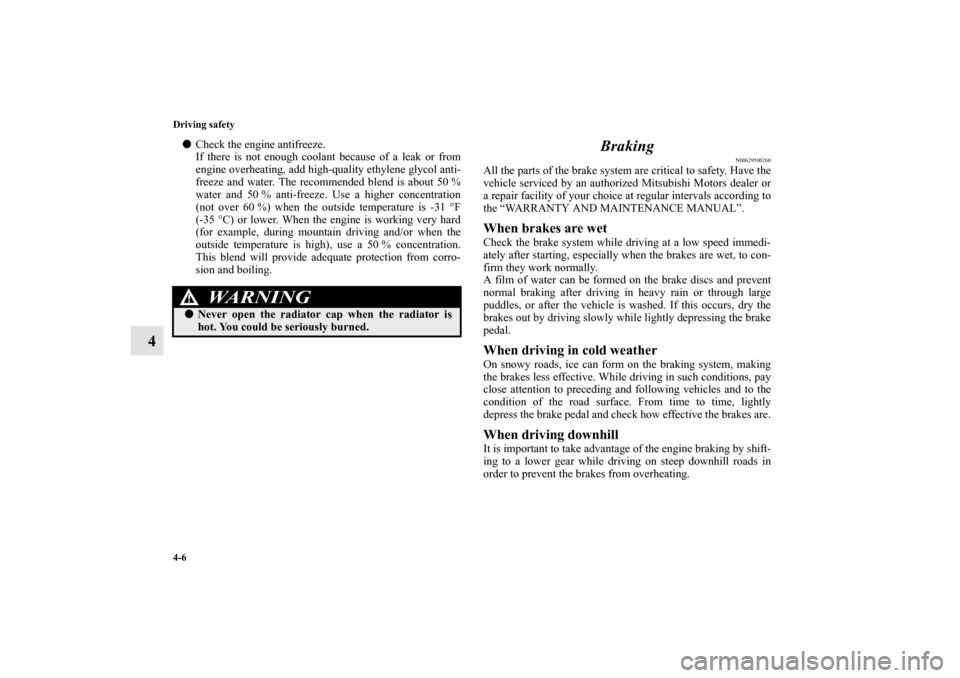

4-6 Driving safety
4

Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add high-quality ethylene glycol anti-
freeze and water. The recommended blend is about 50 %
water and 50 % anti-freeze. Use a higher concentration
(not over 60 %) when the outside temperature is -31 °F
(-35 °C) or lower. When the engine is working very hard
(for example, during mountain driving and/or when the
outside temperature is high), use a 50 % concentration.
This blend will provide adequate protection from corro-
sion and boiling.
Braking
N00629500260
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs and prevent
normal braking after driving in heavy rain or through large
puddles, or after the vehicle is washed. If this occurs, dry the
brakes out by driving slowly while lightly depressing the brake
pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by shift-
ing to a lower gear while driving on steep downhill roads in
order to prevent the brakes from overheating.
WA R N I N G
!
Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0121200US.book 6 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

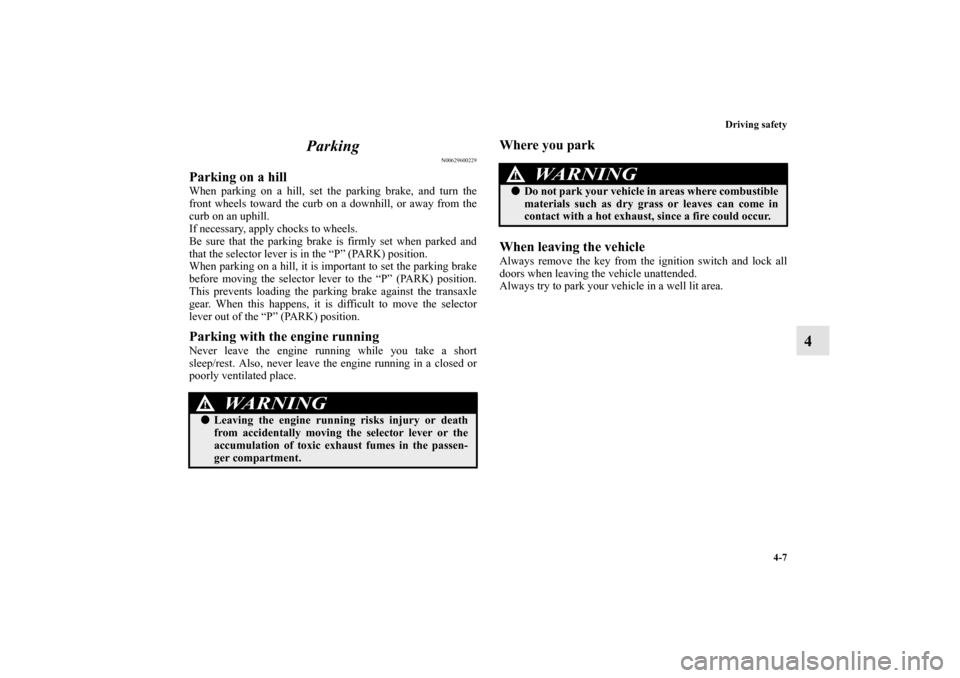

Driving safety
4-7
4 Parking
N00629600229
Parking on a hillWhen parking on a hill, set the parking brake, and turn the
front wheels toward the curb on a downhill, or away from the
curb on an uphill.
If necessary, apply chocks to wheels.
Be sure that the parking brake is firmly set when parked and
that the selector lever is in the “P” (PARK) position.
When parking on a hill, it is important to set the parking brake
before moving the selector lever to the “P” (PARK) position.
This prevents loading the parking brake against the transaxle
gear. When this happens, it is difficult to move the selector
lever out of the “P” (PARK) position.Parking with the engine runningNever leave the engine running while you take a short
sleep/rest. Also, never leave the engine running in a closed or
poorly ventilated place.
Where you park
When leaving the vehicleAlways remove the key from the ignition switch and lock all
doors when leaving the vehicle unattended.
Always try to park your vehicle in a well lit area.
WA R N I N G
!
Leaving the engine running risks injury or death
from accidentally moving the selector lever or the
accumulation of toxic exhaust fumes in the passen-
ger compartment.
WA R N I N G
!
Do not park your vehicle in areas where combustible
materials such as dry grass or leaves can come in
contact with a hot exhaust, since a fire could occur.
BK0121200US.book 7 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

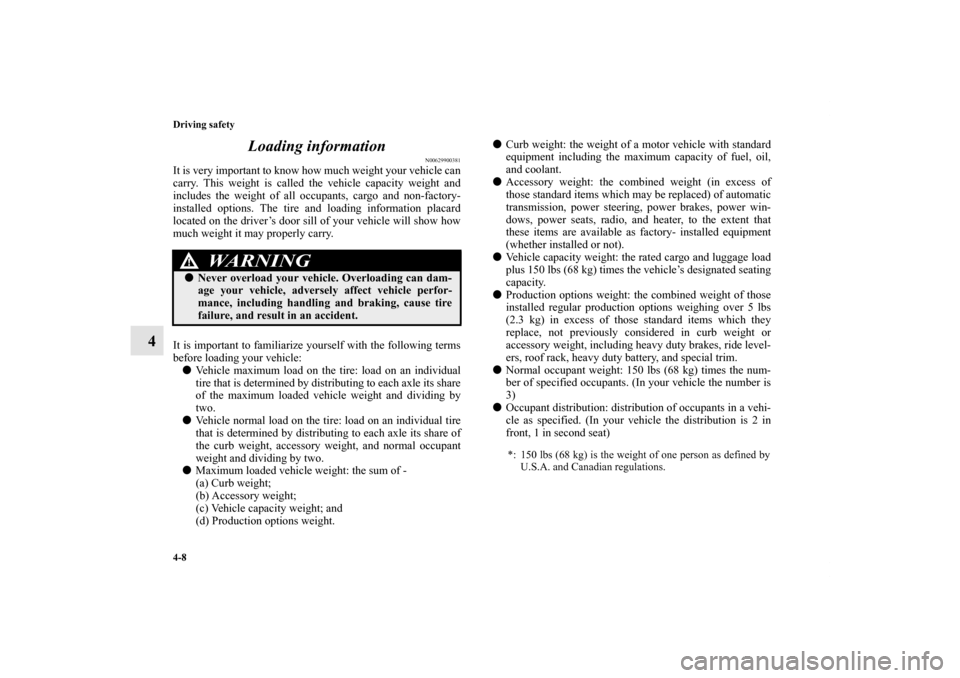

4-8 Driving safety
4Loading information
N00629900381
It is very important to know how much weight your vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all occupants, cargo and non-factory-
installed options. The tire and loading information placard
located on the driver’s door sill of your vehicle will show how
much weight it may properly carry.
It is important to familiarize yourself with the following terms
before loading your vehicle:

Vehicle maximum load on the tire: load on an individual
tire that is determined by distributing to each axle its share
of the maximum loaded vehicle weight and dividing by
two.

Vehicle normal load on the tire: load on an individual tire
that is determined by distributing to each axle its share of
the curb weight, accessory weight, and normal occupant
weight and dividing by two.

Maximum loaded vehicle weight: the sum of -
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.
Curb weight: the weight of a motor vehicle with standard
equipment including the maximum capacity of fuel, oil,
and coolant.

Accessory weight: the combined weight (in excess of
those standard items which may be replaced) of automatic
transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that
these items are available as factory- installed equipment
(whether installed or not).

Vehicle capacity weight: the rated cargo and luggage load
plus 150 lbs (68 kg) times the vehicle’s designated seating
capacity.

Production options weight: the combined weight of those
installed regular production options weighing over 5 lbs
(2.3 kg) in excess of those standard items which they
replace, not previously considered in curb weight or
accessory weight, including heavy duty brakes, ride level-
ers, roof rack, heavy duty battery, and special trim.

Normal occupant weight: 150 lbs (68 kg) times the num-
ber of specified occupants. (In your vehicle the number is
3)

Occupant distribution: distribution of occupants in a vehi-
cle as specified. (In your vehicle the distribution is 2 in
front, 1 in second seat)
WA R N I N G
!
Never overload your vehicle. Overloading can dam-
age your vehicle, adversely affect vehicle perfor-
mance, including handling and braking, cause tire
failure, and result in an accident.
*: 150 lbs (68 kg) is the weight of one person as defined by
U.S.A. and Canadian regulations.
BK0121200US.book 8 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Driving safety
4-9
4
Tire and loading information placard
N00630100211
The tire and loading information placard is located on the
driver’s door sill. This placard shows the maximum number of occupants permit-
ted to ride in your vehicle as well as “the combined weight of
occupants and cargo” (C), which is called the vehicle capacity
weight. This placard also tells you the size and recommended
inflation pressure for the original equipment tires on your vehi-
cle. For more information, refer to “Tires” on page 7-19.
Ty p e 1
A- Vehicles sold in U.S.A. and Canada (Type 1)
B- Vehicles sold in Canada (Type 2)
BK0121200US.book 9 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
