2011 MITSUBISHI GALANT light

Overview
Instruments and controls
N00100201202
Combination headlights and
dimmer switch P.3-81
Turn signal lever P.3-84
Supplemental restraint
system - air bag
(for driver’s seat) P.2-38
Horn switch P.3-91
Instrument panel light dimmer control knob P.3-87
Fog light switch
(if so equipped)
P. 3 - 8 6Steering wheel remote
control switch
(if so equipped) P.5-62 Instrument cluster
P. 3 - 7 2
Cruise control lever
P. 3 - 5 7 Ignition switch P.3-34 Wiper and washer
switch P.3-87
Fuses P.7-35
Active stability control (ASC)
OFF switch P.3-53 Engine hood release lever
P. 7 - 4Steering wheel tilt lock
lever P.3-29
BK0121200US.book 1 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Overview
Center panel
N00100700141
Audio system
P.5-24, 5-37
Electric rear window
defogger switch P.3-90
Air conditioning
P.5-5, 5-13 Ve n t s P. 5 - 2
Front passenger seat belt
warning light P.2-21
Hazard warning flasher
switch P.3-85 Passenger’s air bag off indicator P.2-46
BK0121200US.book 3 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Overview
Interior
N00100301014
Power window switch P.3-23 Outside rearview mirror switch P.3-32
Dome light P.3-129, 7-46, 7-59Sunroof switch
(if so equipped)
P. 3 - 2 6
Reading lights
P.3-128, 7-46,
7-59Inside rearview mirror
P.3-30
Sun visors P.3-121
Vanity mirror P.3-122
Supplemental restraint
system - side air bag
(for front seats) P.2-54 Adjustable seat belt
shoulder anchor
(for front seats) P.2-22
Seat belts P.2-15
Head restraints P.2-12Seats P.2-2
Arm rest P.2-11
Cup holder P.3-133 Supplemental restraint system -
curtain air bag P.2-55HomeLink
® Wireless Control System
(if so equipped) P.3-124Hands-free Bluetooth
® cellular
phone interface system with voice
recognition (if so equipped) P.3-92
BK0121200US.book 4 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Overview
Outside
N00100601222
Outside rearview mirrors P.3-32
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 2
Keyless entry system
P. 3 - 7
Front fog lights
(if so equipped)
P.3-86, 7-45, 7-51 Engine compartment P.7-6
Engine hood P.7-4Windshield wiper and washer P.3-87
Headlights
P.3-81, 7-45, 7-47Front side-marker lights
P.3-81, 7-45, 7-50
Front turn-signal and parking lights
P.3-81, 7-45, 7-50
BK0121200US.book 6 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Overview
License plate light
P.3-81, 7-45, 7-57 Trunk lid P.3-16Tail and stop lights
P.3-81, 7-45, 7-53
Rear side-maker lights
P.3-81, 7-45, 7-53
Rear turn-signal lights
P.3-84, 7-45, 7-53Tire inflation pressure P.7-23
Changing tires P.6-9
Tire rotation P.7-25
Tire chains P.7-27
Wheel covers (if so equipped)
P. 6 - 1 9
Tire pressure monitoring system
P. 3 - 6 3 Back-up lights P.7-45, 7-54
High-mounted stop light
P.7-45, 7-56Antenna P.5-71 Satellite radio antenna (if so equipped)
P. 5 - 7 1
Rear-view camera (if so equipped)
P. 3 - 6 9
BK0121200US.book 7 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

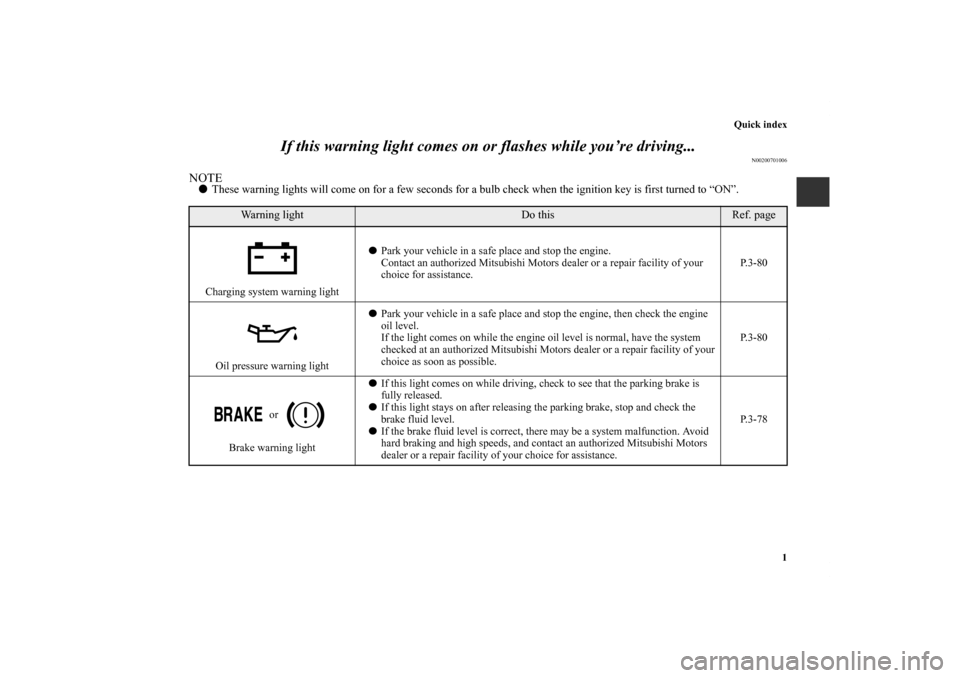

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701006
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition key is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your
choice for assistance.P.3-80
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P.3-80
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is
fully released.

If this light stays on after releasing the parking brake, stop and check the
brake fluid level.

If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speeds, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P.3-78
BK0121200US.book 1 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

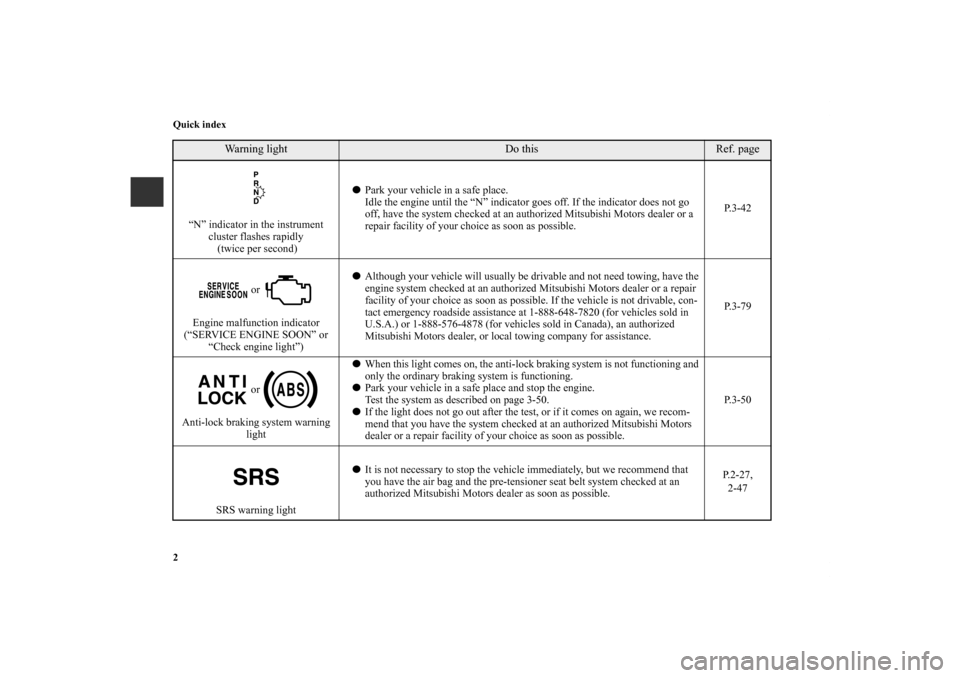

2 Quick index
“N” indicator in the instrument
cluster flashes rapidly
(twice per second)
Park your vehicle in a safe place.
Idle the engine until the “N” indicator goes off. If the indicator does not go
off, have the system checked at an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.P. 3 - 4 2
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized
Mitsubishi Motors dealer, or local towing company for assistance.P. 3 - 7 9
or
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-50.

If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 5 0
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend that
you have the air bag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.P.2-27,
2-47
Warning light
Do this
Ref. page
BK0121200US.book 2 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Quick index
3
“N” indicator in the instrument
cluster flashes slowly
(once per second)
Have the automatic transaxle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P.3-42
and
ASC indicator and
ASC OFF indicator
Park your vehicle in a safe place and turn off the engine.
Restart the engine and check to see if the indicator comes on again.

If the indicator does not go out, or if it comes on again, have your vehicle
inspected at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.

When this indicator comes on, the active stability control is not functioning
and normal operation of the vehicle will not be affected.P.3-54
Tire pressure monitoring system
warning light
If the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.

If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P.3-65
Warning light
Do this
Ref. page
