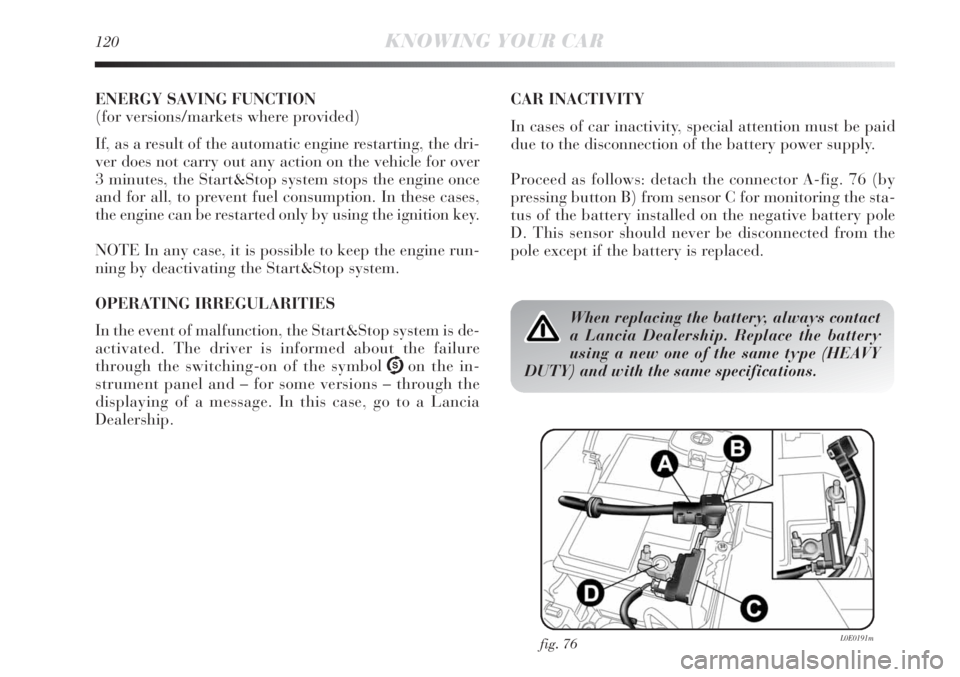

120KNOWING YOUR CAR
ENERGY SAVING FUNCTION
(for versions/markets where provided)
If, as a result of the automatic engine restarting, the dri-
ver does not carry out any action on the vehicle for over
3 minutes, the Start&Stop system stops the engine once
and for all, to prevent fuel consumption. In these cases,
the engine can be restarted only by using the ignition key.
NOTE In any case, it is possible to keep the engine run-
ning by deactivating the Start&Stop system.
OPERATING IRREGULARITIES
In the event of malfunction, the Start&Stop system is de-
activated. The driver is informed about the failure
through the switching-on of the symbol Uon the in-
strument panel and – for some versions – through the
displaying of a message. In this case, go to a Lancia
Dealership.CAR INACTIVITY
In cases of car inactivity, special attention must be paid
due to the disconnection of the battery power supply.
Proceed as follows: detach the connector A-fig. 76 (by
pressing button B) from sensor C for monitoring the sta-
tus of the battery installed on the negative battery pole
D. This sensor should never be disconnected from the
pole except if the battery is replaced.
fig. 76L0E0191m
When replacing the battery, always contact
a Lancia Dealership. Replace the battery
using a new one of the same type (HEAVY
DUTY) and with the same specifications.

1
KNOWING YOUR CAR121
EMERGENCY STARTING
When jump starting, never connect the negative lead (−)
of the auxiliary battery to the negative pole A-fig. 77
of the car battery, but rather to an engine/gearbox earth
point.
fig. 77L0E0190mfig. 78L0E0195m
Before opening the bonnet, make sure the
engine is off and the ignition key is in the
STOP position. Follow the instructions on the ded-
icated label on the front crossmember (fig. 78).
It is advisable to extract the key when there are
other people in the vehicle. Exit from the vehicle
only after having removed the ignition key or hav-
ing rotated it to the STOP position. During refu-
elling, make sure the vehicle has been stopped and
the key is in STOP position.

122KNOWING YOUR CAR
EOBD SYSTEM
The EOBD system (European On Board Diagnosis) car-
ries out a continuous diagnosis of the components of the
car related to emissions. It also alerts the driver, by turn-
ing on the
Uwarning light in the instrument panel to-
gether with a message in the reconfigurable multifunc-
tion display, when these components are no longer in
peak condition (see “Instrument panel warning lights”
chapter).
The goal of the system is to:
❍to keep system efficiency under control;
❍to signal a fault which causes emission levels to in-
crease;
❍to signal the need to replace deteriorated components.
The system also has a diagnosis connector that can be in-
terfaced to suitable instruments, to read the error codes
stored in the control unit together with a series of specific
parameters for engine operation and diagnosis.
This check can also be carried out by traffic control au-
thorities.
IMPORTANT After eliminating the problem, to check the
system completely, Lancia Dealerships run a bench test
and, if necessary, road tests which may also call for a long
journey.
Go to a Lancia Dealership as soon as pos-
sible if warning light
Ueither does not light
up when the key is turned to MAR–ON or if,
while travelling, the warning light comes on either
steadily or flashing (along with a message in the
reconfigurable multifunction display). The oper-
ation of the warning light
Umay be checked by the
traffic control authorities using specific devices.
Always comply with the traffic regulations in force
in the country where you are driving.
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM
THIS is an electrically controlled power steering system
called “Dualdrive”. It is only operational with the igni-
tion key turned to MAR–ON and the engine running; it
can be customised by the driver according to the driving
conditions.
IMPORTANT When turning the ignition key quickly,
complete power steering functionality may be achieved
after 1-2 seconds.

1
KNOWING YOUR CAR123
CITY FUNCTION ACTIVATION/DEACTIVATION
Press button A-fig.79 to activate/deactivate the function.
When the function is active, the CITY warning light on
the instrument panel turns on.
When the CITY function is on, the effort required at
steering wheel is lighter, making parking easier: there-
fore, this function is particularly useful for driving in city
centres.
FAILURE INDICATIONS
Any failure of the electric power steering is indicated by
instrument panel warning light gcoming on together
with a message in the reconfigurable multifunction dis-
play. In the event of electric power steering system fail-
ure, the car can be driven with mechanical steering.
IMPORTANT In some circumstances, factors independent
of the electric power steering could cause the warning light
gon the instrument panel to come on. In this case, stop
the car immediately, switch off the engine for about
20 seconds and then restart the engine. If the gwarn-
ing light remains on, together with the message on the re-
configurable multifunction display, contact a Lancia
Dealership as soon as possible.
fig. 79L0E0057m
Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications
(e.g. installation of anti-theft device). This could
negatively affect performance and safety, invali-
date the warranty, cause serious safety problems
and also result in non-compliance of the car with
type-approval requirements.
On some versions, with the CITY function
activated, the SPORT function is not avail-
able. To activate the SPORT function, deactivate
the CITY function and vice versa, because they are
reciprocally incompatible.

124KNOWING YOUR CAR
IMPORTANT The steering may become slightly stiff fol-
lowing parking manoeuvres involving a lot of steering.
This is normal and is caused by a system to prevent the
motor from overheating. No servicing is required. The
power steering system will start working normally again
the next time the car is used.T.P.M.S. SYSTEM
(Tyre Pressure Monitoring System)
(for versions/markets, where provided)
The car may be equipped with a tyre pressure monitor-
ing system. This system comprises a radio frequency
transmitter fitted to each wheel (on the wheel rim inside
the tyre), which is able to send information on the tyre
inflation pressure of each wheel to the control unit.
IMPORTANT NOTES ABOUT THE TPMS SYSTEM
The fault indications are not stored and will therefore
not be displayed after the engine has been switched off
and then on again. If the fault conditions persist, the
control unit will send the relative indications to the in-
strument panel only after the vehicle has been in motion
for a short time.
Before starting any servicing operation, stop
the engine and remove the key from the igni-
tion switch to operate the steering lock, par-
ticularly when the wheels do not touch the ground.
If this is not possible (e.g. if the key must be kept in
the MAR position or the engine must be kept run-
ning), remove the electric power steering system
main fuse.
The TPMS is not able to warn you of sud-
den tyre pressure losses (for example when
a tyre bursts). In this case stop the car, brak-
ing with care and avoiding sharp steering actions.

1
KNOWING YOUR CAR125
Replacing the normal tyres with winter tyres
and vice versa requires the inspection of the
T.P.M.S., which should only be carried out
by a Lancia Dealership.
The T.P.M.S. requires the use of specific
equipment. Contact a Lancia Dealership to
find out which accessories are compatible
with the system (wheels, hub caps etc.). The use of
other accessories may affect the normal operation
of the system.
Tyre inflation pressure may vary according
to outdoor temperature. The TPMS system
may temporarily indicate insufficient pres-
sure. In this case, check the tyre pressures with the
tyres cold and, if necessary, pump them up.
If the vehicle is fitted with TPMS, when
a tyre is removed, it is advisable to replace
the rubber gasket for the valve. Contact
a Lancia Dealership.
If the vehicle is fitted with a T.P.M.S., tyre
and wheel fitting/removal operations re-
quire specific precautions. To avoid damag-
ing or fitting the sensors incorrectly, tyre and wheel
fitting/removal operations should only be carried
out by specialists. Contact a Lancia Dealership.
Particularly strong radiofrequency interfer-
ence may cause the T.P.M.S. to function in-
correctly. This condition is indicated to the
driver by a warning light
nor symbol lighting up
on the display together with a dedicated message.
The message will disappear automatically as soon
as the interference ceases to disturb the system.

126KNOWING YOUR CAR
Contact
a Lancia Dealership
Repair the damaged
wheel
Contact
a Lancia Dealership
–
Contact
a Lancia Dealership
––
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NO
(*) Given as an alternative in the Owner Handbook and available at Lineaccessori Lancia.
(**) Not cross-swapped (tyres must stay on the same side).
In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Sensor Fault indication Lancia Authorized
Services intervention
–
Replacing a wheel
with the spare wheel
Replacing the wheels
with winter tyres
Replacing the wheels
with winter tyres
Replacing wheels
with others of a different size (*)
Switching wheels
(front/rear) (**)

1
KNOWING YOUR CAR127
PARKING SENSORS
(for versions/markets where provided)
The parking sensors are located on the rear bumper fig.
80 and their function is to inform the driver, through an
intermittent beeping, of the presence of obstacles behind
the car.
ACTIVATION/DEACTIVATION
The sensors are automatically activated when the reverse
gear is engaged. As the obstacle behind the vehicle gets
closer to the car, the buzzer becomes more frequent.
fig. 80L0E0059m
BUZZER WARNING
When reverse gear is engaged and there is an obstacle be-
hind the car a buzzer is activated and the signal varies
as the distance of the obstacle from the bumper varies.
The beep frequency:
❍increases as the distance between the car and the ob-
stacle decreases;
❍becomes continuous when the distance between the
car and the obstacle is less than around 30 cm and
stops immediately if the distance increases;
❍is constant if the distance is unchanged.
Detection distances
Centre operating radius 140 cm
Side operating radius 60 cm
If several obstacles are detected by the sensors, only the
nearest one is considered.
