2011 KIA CEED Owners Manual

737
Maintenance

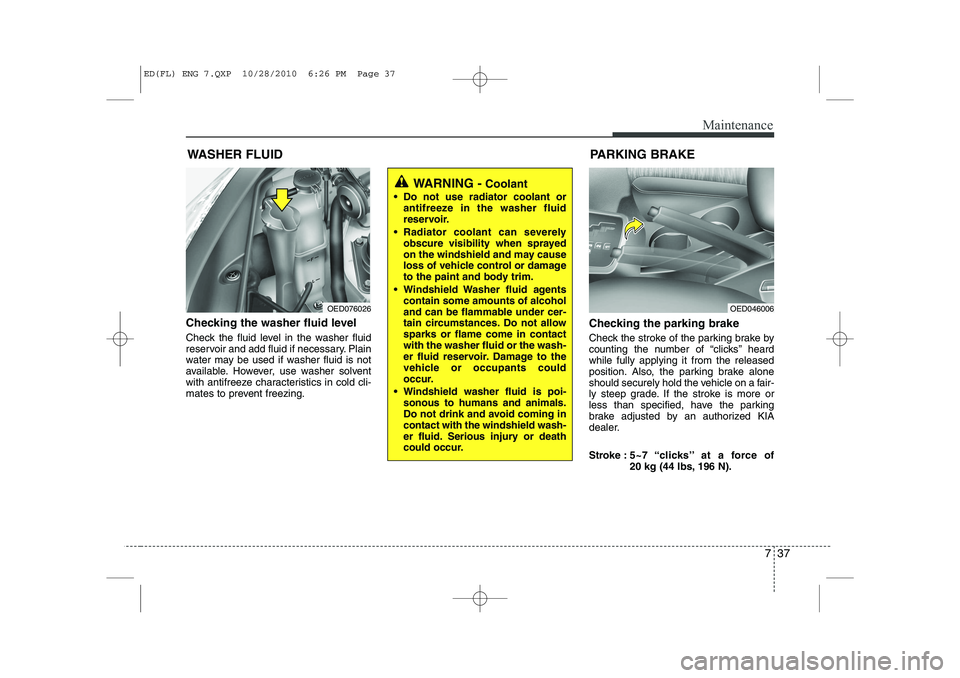

WASHER FLUID
Checking the washer fluid level
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold cli-
mates to prevent freezing. Checking the parking brake
Check the stroke of the parking brake by
counting the number of “clicks’’ heardwhile fully applying it from the released
position. Also, the parking brake alone
should securely hold the vehicle on a fair-
ly steep grade. If the stroke is more or
less than specified, have the parking
brake adjusted by an authorized KIA
dealer.
Stroke :
5~7 “clicks’’ at a force of
20 kg (44 lbs, 196 N).
PARKING BRAKE
WARNING -
Coolant
 Do not use radiator coolant or antifreeze in the washer fluid
reservoir.
 Radiator coolant can severely obscure visibility when sprayed
on the windshield and may cause
loss of vehicle control or damage
to the paint and body trim.
 Windshield Washer fluid agents contain some amounts of alcohol
and can be flammable under cer-
tain circumstances. Do not allowsparks or flame come in contactwith the washer fluid or the wash-
er fluid reservoir. Damage to the
vehicle or occupants could
occur.
 Windshield washer fluid is poi- sonous to humans and animals.
Do not drink and avoid coming incontact with the windshield wash-
er fluid. Serious injury or death
could occur.
OED046006OED076026
ED(FL) ENG 7.QXP 10/28/2010 6:26 PM Page 37

Maintenance
38
7
FUEL FILTER (FOR DIESEL)
Draining water from the fuel filter
The fuel filter for diesel engine plays an
important role of separating water from
fuel and accumulating the water in itsbottom.
If water accumulates in the fuel filter, the
warning light comes on when the ignition
switch is in the ON position. If this warning light illuminates,
take your car to an authorized
KIA dealer and have drain the
water and checked the sys-tem. Extracting air from the fuel filter
If you drove until you have no fuel left
or if you replaced the fuel filter, be
sure to extract air in the fuel system
as it makes you difficult to start the
engine.
1. Remove the air extract nozzle cap
on the fuel filter.
2. Pump up and down until the fuel flows out of the plug opening.
✽✽NOTICE

739
Maintenance

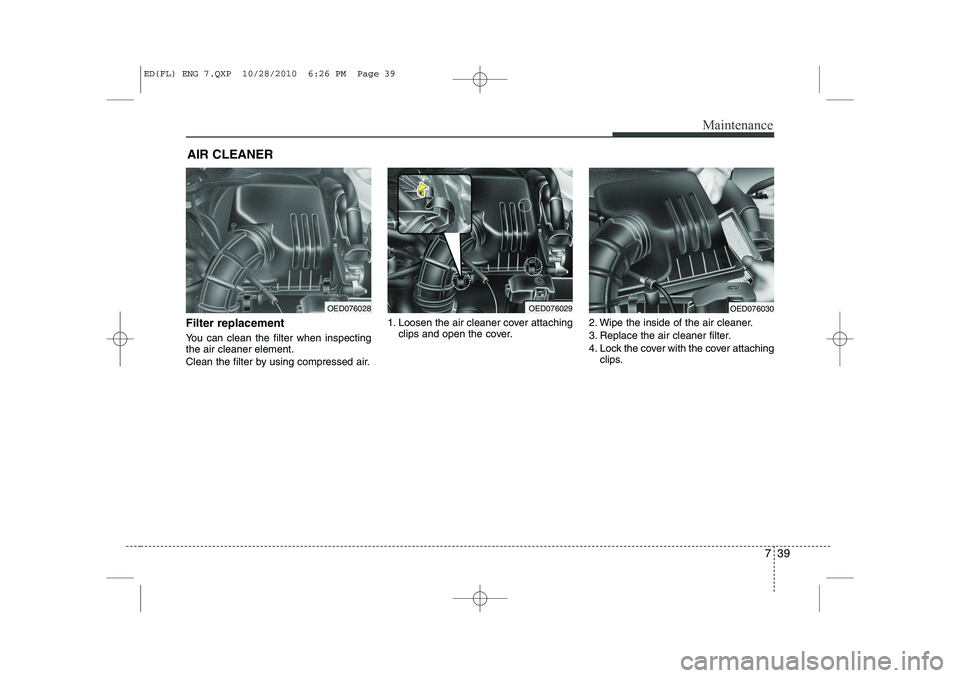

AIR CLEANER
Filter replacement
You can clean the filter when inspecting the air cleaner element.
Clean the filter by using compressed air. 1. Loosen the air cleaner cover attaching
clips and open the cover. 2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover attaching
clips.
OED076028OED076029OED076030
ED(FL) ENG 7.QXP 10/28/2010 6:26 PM Page 39

Maintenance
40
7
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-ment more often than the usual recom-
mended intervals. (Refer to “Maintenance under severe usage conditions” in thissection.)
CAUTION
 Do not drive with the air cleaner removed; this will result in exces-sive engine wear.
 When removing the air cleaner fil- ter, be careful that dust or dirt
does not enter the air intake, ordamage may result.
 Use a KIA genuine part. Use of nongenuine parts could damage
the air flow sensor, turbochargeror engine.
ED(FL) ENG 7.QXP 10/28/2010 6:26 PM Page 40

741
Maintenance
The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the vehi-cle from the outside through the heating
and air conditioning system. If dust or
other pollutants accumulate in the filter
over a period of time, the air flow from the
air vents may decrease, resulting in
moisture accumulation on the inside of
the windshield even when the outside
(fresh) are position is selected. If this
happens, have the climate control air fil-
ter replaced by an Authorized KIA
Dealer.The climate control air filter should bereplaced according to the maintenance
schedule. If the vehicle is operated in the
severely air-polluted cities or on dusty
rough roads for a long period, it shouldbe inspected more frequently and
replaced earlier. When you try to replace
the climate control air filter by owner
maintenance, replace it performing the
following procedure, and in this case, be
careful to avoid damaging other compo-
nents.
Filter replacement
1. With the glove box open, remove thestoppers on both sides to allow the
glove box hang freely on the hinges.
CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
1LDA5047
Outside air
Recirculatedair
Climate control air filter Blower
EvaporatorcoreHeater coreOED076032
ED(FL) ENG 7.QXP 10/28/2010 6:27 PM Page 41

Maintenance
42
7

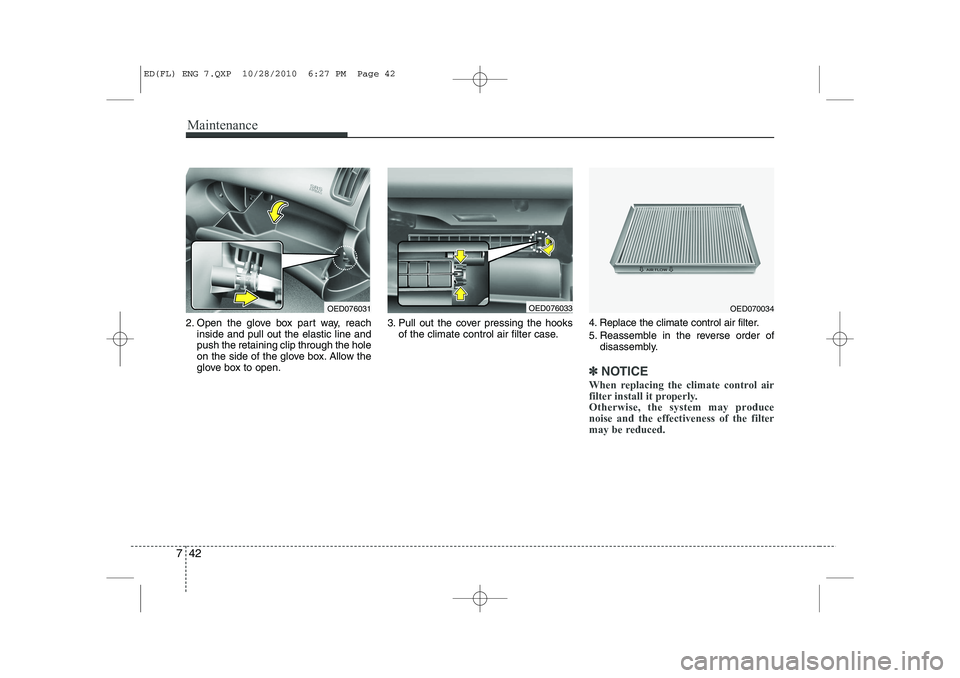

2. Open the glove box part way, reach
inside and pull out the elastic line and push the retaining clip through the hole
on the side of the glove box. Allow the
glove box to open. 3. Pull out the cover pressing the hooks
of the climate control air filter case. 4. Replace the climate control air filter.
5. Reassemble in the reverse order of
disassembly.
✽✽ NOTICE
When replacing the climate control air
filter install it properly.
Otherwise, the system may producenoise and the effectiveness of the filter
may be reduced.
OED076033OED070034OED076031
ED(FL) ENG 7.QXP 10/28/2010 6:27 PM Page 42

743
Maintenance
WIPER BLADES
CAUTION
To prevent damage to the wiperarms or other components, do not
attempt to move the wipers manual- ly.
CAUTION
The use of a non-specified wiperblade could result in wiper malfunc-tion and failure.Blade inspection
✽✽ NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known tomake the windshield difficult to clean.
Contamination of either the windshield or
the wiper blades with foreign matter can
reduce the effectiveness of the wind-
shield wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water. Blade replacement When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
1JBA5122CAUTION
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other solvents on or near them.
ED(FL) ENG 7.QXP 10/28/2010 6:27 PM Page 43

Maintenance
44
7
Front windshield wiper blade
1. Turn the ignition switch off and remove
the key.
2. Push the wiper lever downward to the one touch wiper position for more than
2 seconds, then the wiper blades will
stop upward position. (if equipped) 3. Raise the wiper arm and turn the wiper
blade assembly to expose the plastic
locking clip.
✽✽ NOTICE
Do not allow the wiper arm to fall against the windshield.
4. Open the cover of the blade.
5. Compress the clip behind the wiper arm and lift it off the arm.
OED049039OED070112OED070113
