2011 KIA CEED sunroof

4
Key / 4-2 Remote keyless entry / 4-5Theft-alarm system / 4-8
Door locks / 4-10
Tailgate / 4-14
Windows / 4-16Hood / 4-21
Fuel filler lid / 4-23
Sunroof / 4-26
Steering wheel / 4-30
Mirrors / 4-32
Instrument cluster / 4-36
Rear parking assist system /4-55Rearview camera / 4-58
Hazard warning flasher / 4-58Lighting / 4-59
Wipers and washers / 4-64
Interior light / 4-68
Defroster / 4-69
Manual climate control system / 4-70
Automatic climate control system / 4-79
Windshield defrosting and defogging / 4-87
Storage compartment / 4-90
Interior features / 4-93
Barrier net / 4-99
Tonneau cover / 4-101
Mounting bracket for roof carrier / 4-102
Exterior feature / 4-103Audio system / 4-104
Features of your vehicle
ED(FL) ENG 4(~103).QXP 10/28/2010 6:52 PM Page 1

417
Features of your vehicle
Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door's window. The driv-
er has a power window lock switch which
can block the operation of passenger
windows. The power windows can be
operated for approximately 30 seconds
after the ignition key is removed or turned
to the ACC or LOCK position. However, if
the front doors are opened, the power
windows cannot be operated within the
30 seconds period after the ignition key
removal.
The driver’s door has a master power
window switch that controls all the win-
dows in the vehicle.✽✽NOTICE
While driving with the rear windows
down or with the sunroof (if equipped) in
an open (or partially open position), yourvehicle may demonstrate a wind buffet-
ing or pulsation noise. This noise is a
normal occurrence and can be reduced
or eliminated by taking the followingactions. If the noise occurs with one or
both of the rear windows down, partially
lower both front windows approximatelyone inch. If you experience the noise with
the sunroof open, slightly reduce the size
of the sunroof opening
Window opening and closing
Type A
To open or close a window, press down
or pull up the front portion of the corre-
sponding switch to the first detent posi-tion (5).
OED036084
Type A
ED(FL) ENG 4(~103).QXP 10/28/2010 6:54 PM Page 17

Features of your vehicle
26
4
If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof control lever located on the over-
head console.
1. Slide button
2. Tilt button
3. Close button The sunroof can only be opened, closed,
or tilted when the ignition switch is in theON position.
✽✽
NOTICE

427
Features of your vehicle

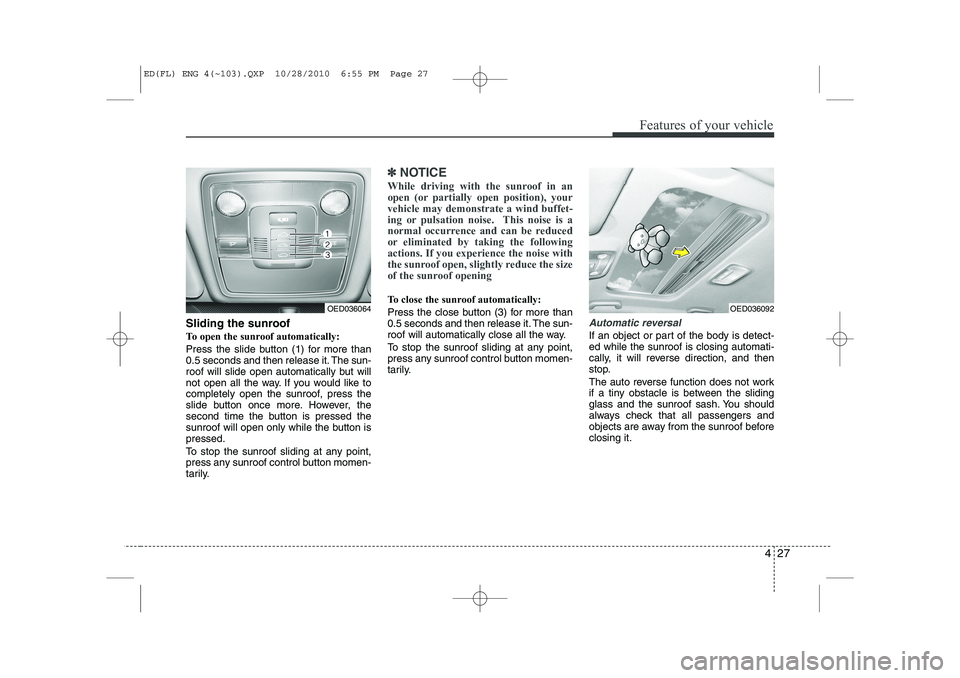

Sliding the sunroof
To open the sunroof automatically:
Press the slide button (1) for more than
0.5 seconds and then release it. The sun-
roof will slide open automatically but will
not open all the way. If you would like to
completely open the sunroof, press the
slide button once more. However, the
second time the button is pressed the
sunroof will open only while the button ispressed.
To stop the sunroof sliding at any point,
press any sunroof control button momen-
tarily.
✽✽NOTICE
While driving with the sunroof in an
open (or partially open position), yourvehicle may demonstrate a wind buffet-
ing or pulsation noise. This noise is a
normal occurrence and can be reduced
or eliminated by taking the followingactions. If you experience the noise with
the sunroof open, slightly reduce the size
of the sunroof opening
To close the sunroof automatically:
Press the close button (3) for more than
0.5 seconds and then release it. The sun-
roof will automatically close all the way.
To stop the sunroof sliding at any point,
press any sunroof control button momen-
tarily.
Automatic reversal
If an object or part of the body is detect- ed while the sunroof is closing automati-
cally, it will reverse direction, and then
stop.
The auto reverse function does not work
if a tiny obstacle is between the sliding
glass and the sunroof sash. You should
always check that all passengers and
objects are away from the sunroof beforeclosing it.
OED036064OED036092
ED(FL) ENG 4(~103).QXP 10/28/2010 6:55 PM Page 27

Features of your vehicle
28
4

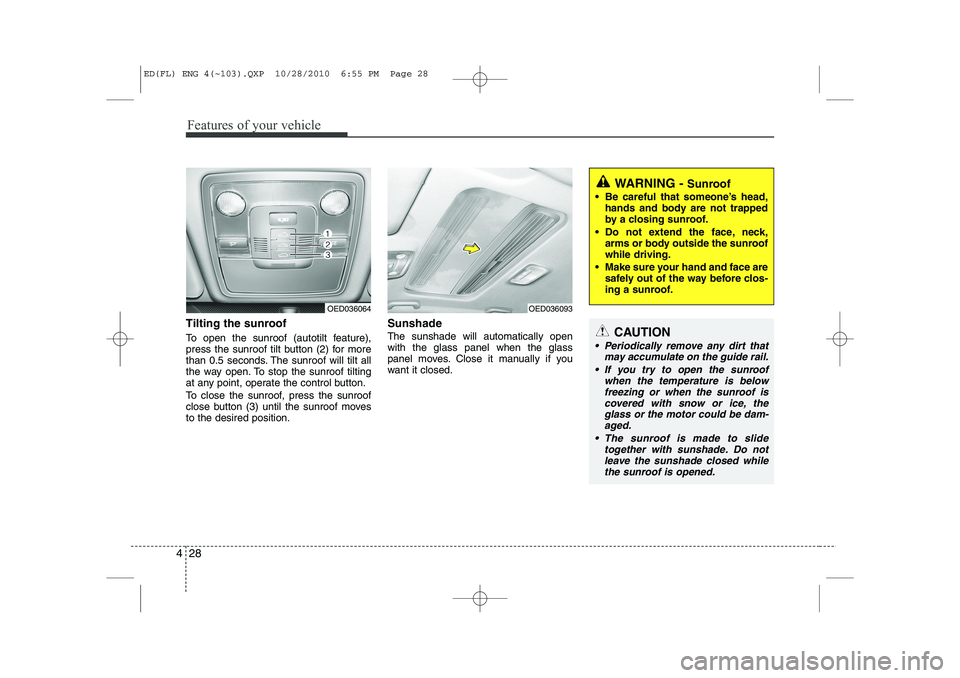

Tilting the sunroof
To open the sunroof (autotilt feature),
press the sunroof tilt button (2) for more
than 0.5 seconds. The sunroof will tilt all
the way open. To stop the sunroof tilting
at any point, operate the control button.
To close the sunroof, press the sunroof
close button (3) until the sunroof movesto the desired position. Sunshade The sunshade will automatically open with the glass panel when the glass
panel moves. Close it manually if you
want it closed.
WARNING -
Sunroof
 Be careful that someone’s head, hands and body are not trapped
by a closing sunroof.
 Do not extend the face, neck, arms or body outside the sunroofwhile driving.
 Make sure your hand and face are safely out of the way before clos-
ing a sunroof.
CAUTION
 Periodically remove any dirt that
may accumulate on the guide rail.
 If you try to open the sunroof when the temperature is belowfreezing or when the sunroof iscovered with snow or ice, the glass or the motor could be dam-
aged.
 The sunroof is made to slide together with sunshade. Do notleave the sunshade closed while
the sunroof is opened.
OED036064OED036093
ED(FL) ENG 4(~103).QXP 10/28/2010 6:55 PM Page 28

429
Features of your vehicle
In case of an emergency
(If your vehicle is equipped with sun-
roof emergency handle)
If the sunroof does not open electrically:
1. Open the sunglass holder.
2. Remove the two (2) screws, and thenremove the overhead console. 3. Insert the emergency handle (provided
with the vehicle) and turn the handle
clockwise to open or counterclockwise
to close. Resetting the sunroof
Whenever the vehicle battery is discon-
nected or discharged, you must reset
your sunroof system as follows:
1. Turn the ignition switch to the ON posi-
tion.
2. Set the sunroof to the maximum TILT- UP position using the corresponding
sunroof switch.
3. Release the tilt button.
4. Press and hold the tilt button (for more than 10 seconds) until the sunroof has
returned to the original position of tilt
after it is raised a little higher than the
maximum tilt position. Then, release
the button.
5. Press and hold the tilt button (about 6 seconds) until the sunroof operates
as follows;
TILT DOWN →SLIDE OPEN →
SLIDE CLOSE
Then, release the button.
When this is complete, the sunroof sys- tem has been reset.
OED036067OED036068
ED(FL) ENG 4(~103).QXP 10/28/2010 6:55 PM Page 29

4 103
Features of your vehicle
EXTERIOR FEATURE
Roof rack (if equipped)
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
✽✽ NOTICE
If the vehicle is equipped with a sunroof,
be sure not to position cargo onto the
roof rack in such a way that it could
interfere with sunroof operation.
WARNING
 The following specification is the maximum weight that can be
loaded onto the roof rack.
Distribute the load as evenly as
possible on the roof rack and
secure the load firmly.
Loading cargo or luggage above
specification on the roof rack
may damage your vehicle.
(Continued)
ROOF 75 kg (165 lbs.)
RACK EVENLY DISTRIBUTED
(Continued)
 The vehicle center of gravity will
be higher when items are loaded
onto the roof rack. Avoid sudden
starts, braking, sharp turns,
abrupt maneuvers or high speeds
that may result in loss of vehicle
control or rollover causing anaccident.
 Always drive slowly and turn cor- ners carefully when carrying
items on the roof rack. Severe
wind updrafts, caused by passing
vehicles or natural causes, can
cause sudden upward pressure
on items loaded on the roof rack.
This is especially true when car-
rying large, flat items such as
wood panels or mattresses. Thiscould cause the items to fall off
the roof rack and cause damage
to your vehicle or others around
you.
 To prevent damage or loss of cargo while driving, check fre-
quently before or while driving to
make sure the items on the roof
rack are securely fastened.CAUTION
 When carrying cargo on the roof
rack, take the necessary precau-
tions to make sure the cargo doesnot damage the roof of the vehicle.
 When carrying large objects on the roof rack, make sure they do
not exceed the overall roof lengthor width.
OED040090
ED(FL) ENG 4(~103).QXP 10/28/2010 7:01 PM Page 103

Maintenance
48
7
Reset items
Items should be reset after the battery
has been discharged or the battery hasbeen disconnected.
 Auto up/down window (See section 4)
 Sunroof (See section 4)
 Trip computer (See section 4)
 Climate control system
(See section 4)
 Clock (See section 4)
 Audio (See section 4)
WARNING
 Before performing maintenance or recharging the battery, turn off all accessories and stop the
engine.
 The negative battery cable must be removed first and installed
last when the battery is discon-nected.WARNING - Recharging
battery
When recharging the battery,
observe the following precautions:
 The battery must be removed from the vehicle and placed in an area with good ventilation.
 Do not allow cigarettes, sparks, or flame near the battery.
 Watch the battery during charg- ing, and stop or reduce the charg-
ing rate if the battery cells begin
gassing (boiling) violently or if
the temperature of the electrolyte
of any cell exceeds 49°C (120°F).
 Wear eye protection when check- ing the battery during charging.
 Disconnect the battery charger in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal.
ED(FL) ENG 7.QXP 10/28/2010 6:27 PM Page 48
