2011 KIA CEED keyless

4
Key / 4-2 Remote keyless entry / 4-5Theft-alarm system / 4-8
Door locks / 4-10
Tailgate / 4-14
Windows / 4-16Hood / 4-21
Fuel filler lid / 4-23
Sunroof / 4-26
Steering wheel / 4-30
Mirrors / 4-32
Instrument cluster / 4-36
Rear parking assist system /4-55Rearview camera / 4-58
Hazard warning flasher / 4-58Lighting / 4-59
Wipers and washers / 4-64
Interior light / 4-68
Defroster / 4-69
Manual climate control system / 4-70
Automatic climate control system / 4-79
Windshield defrosting and defogging / 4-87
Storage compartment / 4-90
Interior features / 4-93
Barrier net / 4-99
Tonneau cover / 4-101
Mounting bracket for roof carrier / 4-102
Exterior feature / 4-103Audio system / 4-104
Features of your vehicle
ED(FL) ENG 4(~103).QXP 10/28/2010 6:52 PM Page 1

45
Features of your vehicle
Remote keyless entry system operations
Lock (1)
All doors are locked if the lock button is
pressed. If all doors are closed, the haz-
ard warning lights blink once to indicate
that all doors are locked. If any door is
opened when the lock button is pressed,
all doors will not lock.
Unlock (2)
All doors are unlocked if the unlock but- ton is pressed.
The hazard warning lights will blink twice
to indicate that all doors are unlocked.
After depressing this button, the doors
will be locked automatically unless you
open any door within 30 seconds.
Tailgate unlock (3, if equipped)
The tailgate is unlocked if the button is
pressed for more than 1 second.
The hazard warning lights will blink twice
to indicate that the tailgate is unlocked.
After depressing this button, the tailgate
will be locked automatically unless you
open the tailgate within 30 seconds.
Also, once the tailgate is opened and
then closed, the tailgate will be locked
automatically.Transmitter precautions
✽✽
NOTICE
The transmitter will not work if any of following occur:

Features of your vehicle
6
4
Battery replacement
The transmitter uses a 3 volt lithium bat-
tery which will normally last for several
years. When replacement is necessary,
use the following procedure.
1. Remove the screw (1) using a cross-
tip screwdriver. (Type B only) 2. Insert a slim tool into the slot and gen-
tly pry open the transmitter center
cover (2).
3. Remove the battery cover (3, Type B only).
4. Replace the battery with new one. When replacing the battery, make sure
the battery positive “+” symbol faces
up as indicated in the illustration.
5. Install the battery in the reverse order of removal.
OED036003
OED037003
Type B
Type C
CAUTION
Keep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due toexposure to water or liquids, it willnot be covered by your manufactur- er vehicle warranty.
CAUTION
Changes or modifications not
expressly approved by the partyresponsible for compliance could void the user’s authority to operate
the equipment. If the keyless entrysystem is inoperative due to changes or modifications notexpressly approved by the party
responsible for compliance, it will not be covered by your manufactur-er’s vehicle warranty.
ED(FL) ENG 4(~103).QXP 10/28/2010 6:53 PM Page 6

47
Features of your vehicle
For transmitter replacement, see an
authorized KIA dealer to reprogram the
transmitter.
CAUTION
 The keyless entry system trans-mitter is designed to give youyears of trouble-free use, howev-
er it can malfunction if exposed to moisture or static electricity. Ifyou are unsure how to use yourtransmitter or replace the battery,
contact an authorized KIA dealer.
 Using the wrong battery can cause the transmitter to malfunc-tion. Be sure to use the correct
battery.
 To avoid damaging the transmit- ter, don't drop it, get it wet, orexpose it to heat or sunlight.
CAUTION
An inappropriately disposed bat-tery can be harmful to the environ-
ment and human health.Dispose the battery according to your local law(s) or regulation.
ED(FL) ENG 4(~103).QXP 10/28/2010 6:53 PM Page 7

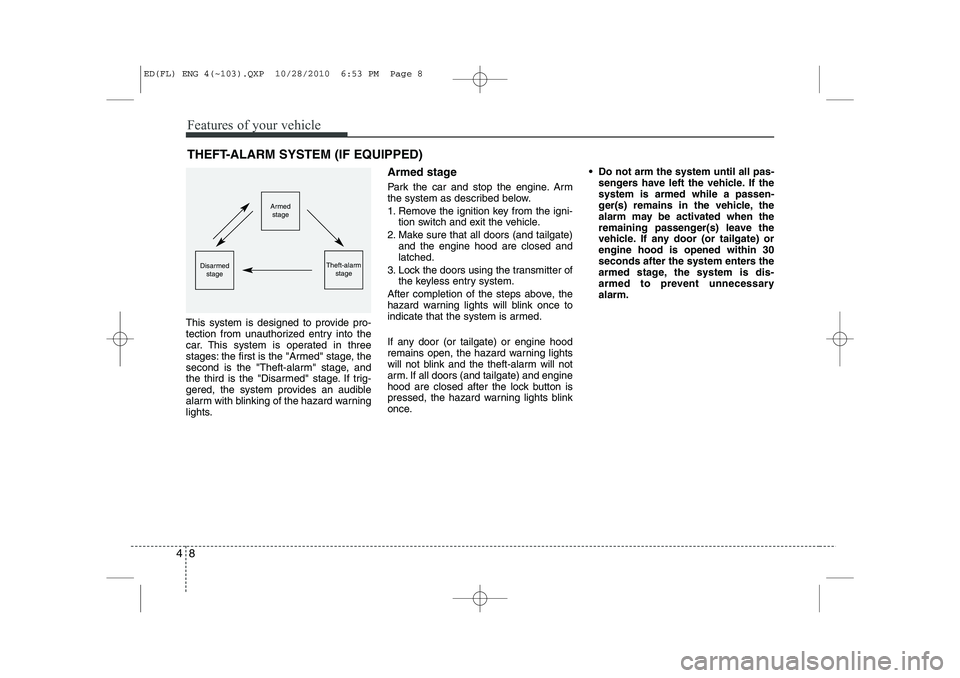

Features of your vehicle
8
4
This system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights. Armed stage
Park the car and stop the engine. Arm
the system as described below.
1. Remove the ignition key from the igni-
tion switch and exit the vehicle.
2. Make sure that all doors (and tailgate) and the engine hood are closed and latched.
3. Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the
hazard warning lights will blink once to
indicate that the system is armed.
If any door (or tailgate) or engine hood
remains open, the hazard warning lights
will not blink and the theft-alarm will not
arm. If all doors (and tailgate) and engine
hood are closed after the lock button is
pressed, the hazard warning lights blink
once.  Do not arm the system until all pas-
sengers have left the vehicle. If thesystem is armed while a passen-
ger(s) remains in the vehicle, the
alarm may be activated when the
remaining passenger(s) leave the
vehicle. If any door (or tailgate) orengine hood is opened within 30
seconds after the system enters the
armed stage, the system is dis-
armed to prevent unnecessaryalarm.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armedstage
Theft-alarm stageDisarmedstage
ED(FL) ENG 4(~103).QXP 10/28/2010 6:53 PM Page 8

Index
8
I
Position light bulb replacement ·····································7-71
Power brakes ··································································5-18
Power outlet ···································································4-95
Power window lock button ············································4-19
Pre-tensioner seat belt ····················································3-20
Push starting ·····································································6-5 Rear combination light bulb replacement ······················7-74
Rear fog light ··································································4-62
Rear fog light bulb replacement ·····································7-77
Rear seat ···········································································3-9
Rear parking assist system ·············································4-55
Rear window defroster····················································4-69
Rearview camera ···························································4-58
Recommended cold tire inflation pressures ··················7-49
Recommended lubricants and capacities ·························8-5
Recommended SAE viscosity number ······················8-6
Remote keyless entry ·······················································4-5
Road warning ···································································6-2
Rocking the vehicle ·······················································5-37
Roof rack ·····································································4-103
Room lamp······································································4-68
Scheduled maintenance service ·······································7-8 Maintenance under severe usage conditions
(1.4/1.6L Gasoline) ················································7-13
Maintenance under severe usage conditions (2.0L Gasoline) ······················································7-19
Maintenance under severe usage conditions (1.6L Diesel) ··························································7-25
Normal maintenance schedule (1.4/1.6L Gasoline)····7-9 Normal maintenance schedule (2.0L Gasoline) ········7-15
Normal maintenance schedule (1.6L Diesel) ············7-21
Seat belts ········································································3-15 Pre-tensioner seat belt ··············································3-20
3 point rear center belt ·············································3-19
Lap/shoulder belt ······················································3-18
Seat belt warning ···························································3-16 Rear passenger's seat belt warning····························3-17
Seat warmer ······································································3-8
Seatback pocket ·······························································3-9Seats ·················································································3-2 Armrest ·····································································3-14
Entering the rear seat ················································3-14
Folding the rear seat ···················································3-9
Front seat adjustment ··················································3-4
Headrest ····························································3-6, 3-12
Lumbar support ··························································3-5
Rear seat ·····································································3-9
Seatback pocket ··························································3-9
Seat warmer ································································3-8
Shift lock system ···························································5-15
R
S
ED(FL) Index.qxp 6/28/2010 11:04 AM Page 8
