2011 INFINITI QX56 fuse

PCS
POWER SUPPLY AND GROUND CIRCUITPCS-31
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000006220185
1.CHECK FUSES AND FUSIBLE LINK
Check that the following IPDM E/R fuses or fusible links are not blown.
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check voltage between IPDM E/R harness connector and the ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> Repair the harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between IPDM E/R harness connectors and the ground.
Does continuity exist?
YES >> INSPECTION END
NO >> Repair the harness or connector.
Signal name Fuses and fusible link No.
Battery power supply C (100 A)
N (60 A)
37 (10 A)
(+) (− ) Voltag e
(Approx.)
IPDM E/R
Connector Terminal
E9 1
Ground Battery voltage
2
E10 8
IPDM E/R
GroundContinuity
Connector Terminal
E11 9 Existed
E12 18
Revision: 2010 May2011 QX56

PCS-74
< DTC/CIRCUIT DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
PUSH-BUTTON IGNITION SW
ITCH POSITION INDICATOR
PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR
DescriptionINFOID:0000000006220225
Push-button ignition switch changes the power supply position.
BCM maintains the power supply position status.
BCM changes the power supply position with the operation of the push-button ignition switch.
Component Function CheckINFOID:0000000006220226
1.CHECK FUNCTION
Check push-button ignition switch (“LOCK INDICATO R”, “ACC INDICATOR” and “IGNITION ON IND”) in
Active Test of BCM with CONSULT-III.
Is the inspection result normal?
YES >> INSPECTION END.
NO >> Refer to PCS-74, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000006220227
1.CHECK PUSH-BUTTON IGNITION SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect push-button ignition switch connector.
3. Check voltage between push-button ignition switch harness connector and ground.
Is the inspection normal?
YES >> GO TO 2.
NO-1 >> Check 10 A fuse [No.10, located in fuse block (J/B)].
NO-2 >> Check harness for open or short betw een push-button ignition switch and fuse.
2.CHECK BCM INPUT
1. Connect push-button ignition switch connector.
2. Disconnect BCM connector.
3. Check voltage between BCM connector and ground.
Is the inspection normal?
YES >> Replace BCM. Refer to BCS-81, "Removal and Installation".
NO >> GO TO 3.
3.CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT
1. Disconnect push-button ignition switch connector.
Te s t i t e m D e s c r i p t i o n
LOCK INDICATOR
ACC INDICATOR
IGNITION ON IND ON
Position indicator Illuminates
OFF Does not illuminate
(+) (–)Voltage (V)
(Approx.)
Push-button ignition switch
Connector Terminal M101 8 Ground Battery voltage
(+) (–)Voltage (V)
(Approx.)
BCM
Connector Terminal
M101 73
Ground Battery voltage
91
109
Revision: 2010 May2011 QX56

PG
PG-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION PG
A
O P
N
CONTENTS
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
PRECAUTION ................
...............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tools .......................................... ......4
SYSTEM DESCRIPTION ..............................5
COMPONENT PARTS ................................... .....5
Circuit Breaker .................................................... ......5
Battery .......................................................................5
Harness Connector ...................................................5
Standardized Relay ...................................................8
WIRING DIAGRAM ......................................11
POWER SUPPLY ROUTING CIRCUIT .......... ....11
Wiring Diagram - BATTERY POWER SUPPLY - ....11
Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK No. K - ........................................ ....
29
Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK No. S - ............................................
33
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 6 - ...........................................................
37
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 7 - ...........................................................
43
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 9 - ...........................................................
46
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 10 - .........................................................
51
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 35 - .........................................................
54
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 43 - .........................................................
60
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 46 - .........................................................
64
Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 47 - ..................................................... ....
67
Wiring Diagram - ACCESSORY POWER SUP-
PLY - ........................................................................
80
Wiring Diagram - ACCESSORY POWER SUP-
PLY FUSE No. 19 - .................................................
83
Wiring Diagram - ACCESSORY POWER SUP-
PLY FUSE No. 20 - .................................................
86
Wiring Diagram - IGNITION POWER SUPPLY - . ....89
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 3 - ....................................................... ..
105
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 4 - ....................................................... ..
109
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 37 - ..................................................... ..
115
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 55 - ..................................................... ..
121
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 57 - ..................................................... ..
123
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 61 - ..................................................... ..
126
Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 80 - ..................................................... ..
129
OPTION HARNESS ........................................133
Wiring Diagram .................................................... ..133
FUSE BLOCK - JUNCTION BOX (J/B) ..........140
Fuse, Connector and Terminal Arrangement ........140
FUSE, FUSIBLE LINK AND RELAY BOX ......141
Fuse and Fusible Link Arrangement ......................141
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ..............
143
Fuse, Connector and Terminal Arrangement ........143
HARNESS LAYOUT .......................................144
How To Read Harness Layout ............................ ..144
Outline ...................................................................145
Engine Room Harness ..........................................146
Engine Control Harness ........................................148
Revision: 2010 May2011 QX56

PG-2
Main Harness ........................................................149
Body Harness ........................................................150
Chassis Harness ...................................................152
Door Harness ........................................................153
Room Lamp Harness .............................................158
BASIC INSPECTION ..................................159
BATTERY INSPECTI ON ................................ .159
How to Handle Battery ......................................... ..159
Work Flow ..............................................................161
FUSE INSPECTION .........................................162
How To Check ..................................................... ..162
FUSIBLE LINK INSPECTION ..........................163
How To Check ..................................................... ..163
REMOVAL AND INSTALLATION .............164
BATTERY ....................................................... ..164
Exploded View ..................................................... .164
Removal and Installation .......................................164
BATTERY TERMINAL WITH FUSIBLE LINK ..165
Exploded View ......................................................165
Removal and Installation .......................................165
SERVICE DATA AND SPECIFICATIONS
(SDS) ........ .................................................
166
SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................. ..
166
Battery .................................................................. .166
Revision: 2010 May2011 QX56

PG
POWER SUPPLY ROUTING CIRCUITPG-37
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N

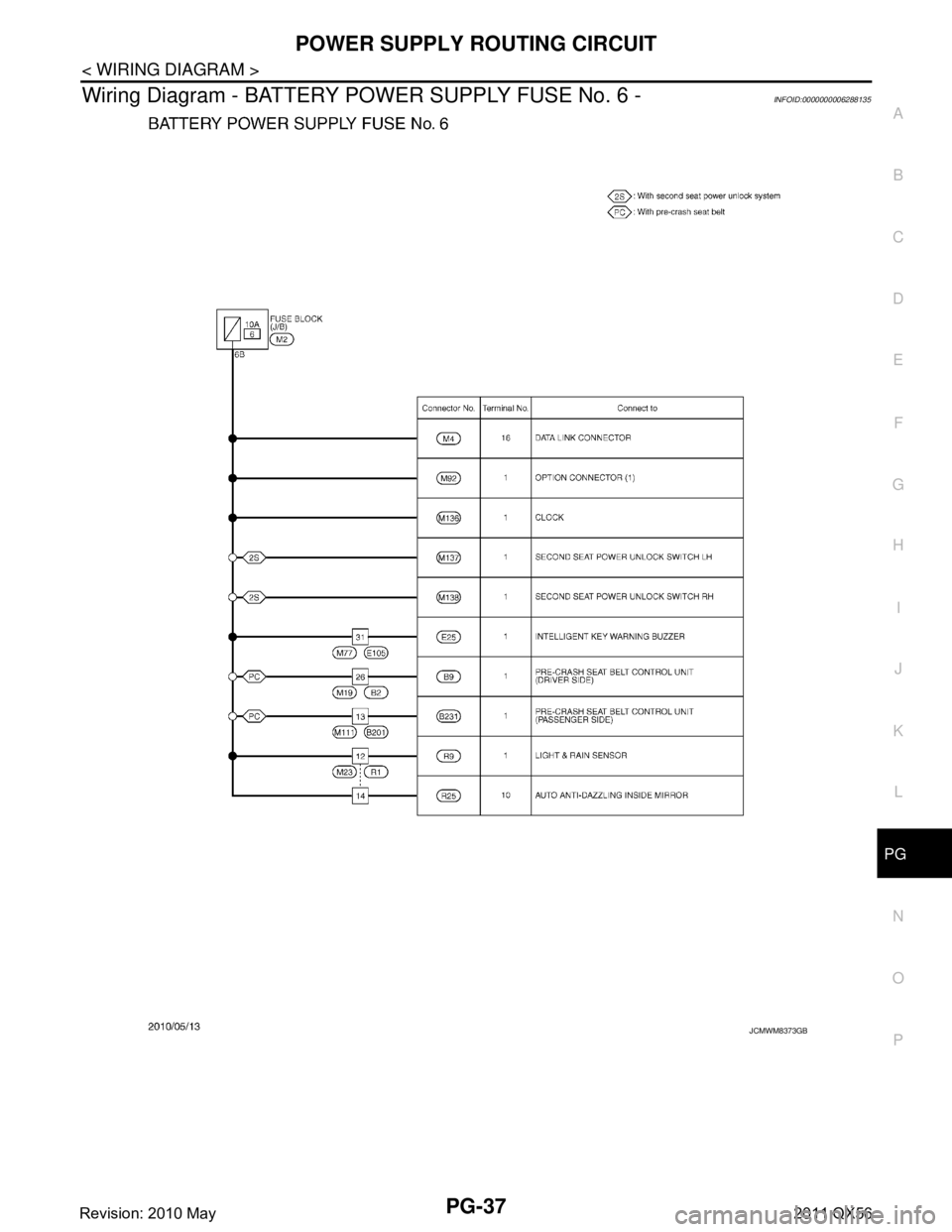

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 6 -INFOID:0000000006288135
JCMWM8373GB
Revision: 2010 May2011 QX56

PG
POWER SUPPLY ROUTING CIRCUITPG-43
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N
Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 7 -INFOID:0000000006288136
JCMWM8379GB
Revision: 2010 May2011 QX56

PG-46
< WIRING DIAGRAM >
POWER SUPPLY ROUTING CIRCUIT
Wiring Diagram - BATTERY PO WER SUPPLY FUSE No. 9 -
INFOID:0000000006288137
JCMWM8382GB
Revision: 2010 May2011 QX56

PG
POWER SUPPLY ROUTING CIRCUITPG-51
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K L
B A
O P
N
Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 10 -INFOID:0000000006288138
JCMWM8387GB
Revision: 2010 May2011 QX56
