2011 HONDA ODYSSEY display

If you see an error message on the
audio display while playing a USB
f lash memory device, f ind the
solution in the chart to the right. If
you cannot clear the error message,
take your vehicle to your dealer.Error Message
Solution
There is a problem with the USB adapter unit.
Appears when the overcurrent protection feature of the system stops
supplying power to USB because an incompatible device is connected.
Disconnect the device. Then, turn the audio system off, and turn it on
again. Do not reconnect the device that caused the error.
Appears when the files in the USB flash memory device are DRM or
an unsupported format. This error message appears for a few seconds,
then plays the next song.
Appears when the USB flash memory device is empty or there are no
MP3, WMA, or AAC files in the USB flash memory device. Save some
MP3, WMA, or AAC files in the USB flash memory device.
Appears when an unsupported device is connected. See page 297for
specification information on USB flash memory devices. If it appears
when the supported device is connected, reconnect the device.
USB Flash Memory Device Error Messages (Models without navigation system)
Features
303
USB ERROR
BAD USB DEVICE
PLEASE CHECK OWNERSMANUAL
UNPLAYABLE FILE
NO SONG
UNSUPPORTED
10/07/17 10:14:39 31TK8600_308
2011 Odyssey

Î
Î

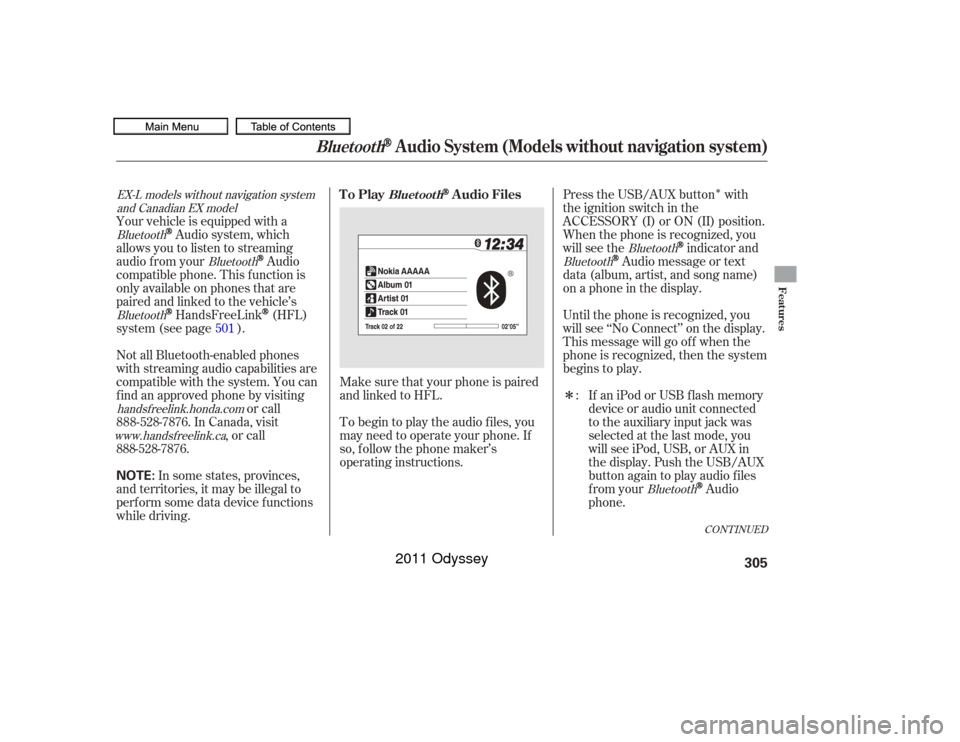

Make sure that your phone is paired
and linked to HFL.
To begin to play the audio f iles, you
may need to operate your phone. If
so, f ollow the phone maker’s
operating instructions. Press the USB/AUX button with
the ignition switch in the
ACCESSORY (I) or ON (II) position.
When the phone is recognized, you
will see the
indicator and
Audio message or text
data (album, artist, and song name)
on a phone in the display.
Until the phone is recognized, you
will see ‘‘No Connect’’ on the display.
This message will go of f when the
phone is recognized, then the system
begins to play.
If an iPod or USB f lash memory
device or audio unit connected
to the auxiliary input jack was
selected at the last mode, you
will see iPod, USB, or AUX in
the display. Push the USB/AUX
button again to play audio f iles
from your
Audio
phone.
Your vehicle is equipped with a
Audio system, which
allows you to listen to streaming
audio f rom your
Audio
compatible phone. This f unction is
only available on phones that are
paired and linked to the vehicle’s
HandsFreeLink
(HFL)
system (see page ).
Not all Bluetooth-enabled phones
with streaming audio capabilities are
compatible with the system. You can
f ind an approved phone by visiting or call
, or call
In some states, provinces,
and territories, it may be illegal to
perf orm some data device f unctions
while driving. :
501
Bluetooth
Bluetooth
Bluetooth
Bluetooth
Bluetooth
Bluetooth
handsf reelink.honda.comwww. handsf reelink.ca
EX-L models without navigation system
and Canadian EX model
CONT INUED
To Play
Audio Files
Bluet oot h
Bluetooth
Audio System (Models without navigation system)
Features
305
NOTE:
10/07/17 10:14:54 31TK8600_310
888-528-7876. In Canada, visit
888-528-7876.
2011 Odyssey

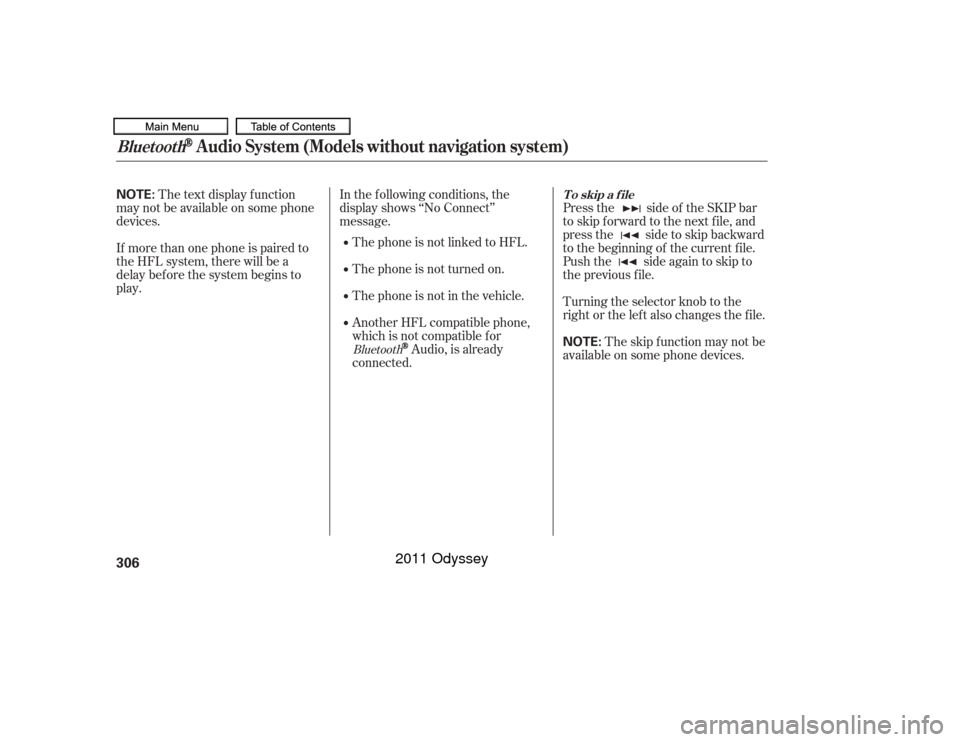

The text display f unction
maynotbeavailableonsomephone
devices.
If more than one phone is paired to
the HFL system, there will be a
delay bef ore the system begins to
play. The phone is not linked to HFL.
The phone is not turned on.
The phone is not in the vehicle.
Another HFL compatible phone,
which is not compatible f or
Audio, is already
connected.
In the following conditions, the
display shows ‘‘No Connect’’
message.
Press the side of the SKIP bar
to skip f orward to the next f ile, and
press the side to skip backward
to the beginning of the current f ile.
Push the side again to skip to
the previous f ile.
Turning the selector knob to the
right or the lef t also changes the f ile.
The skip f unction may not be
available on some phone devices.
Bluetooth
Bluetooth
Audio System (Models without navigation system)
T o skip a f ile
306NOTE:
NOTE:
10/07/17 10:15:02 31TK8600_311
2011 Odyssey

µ
µ

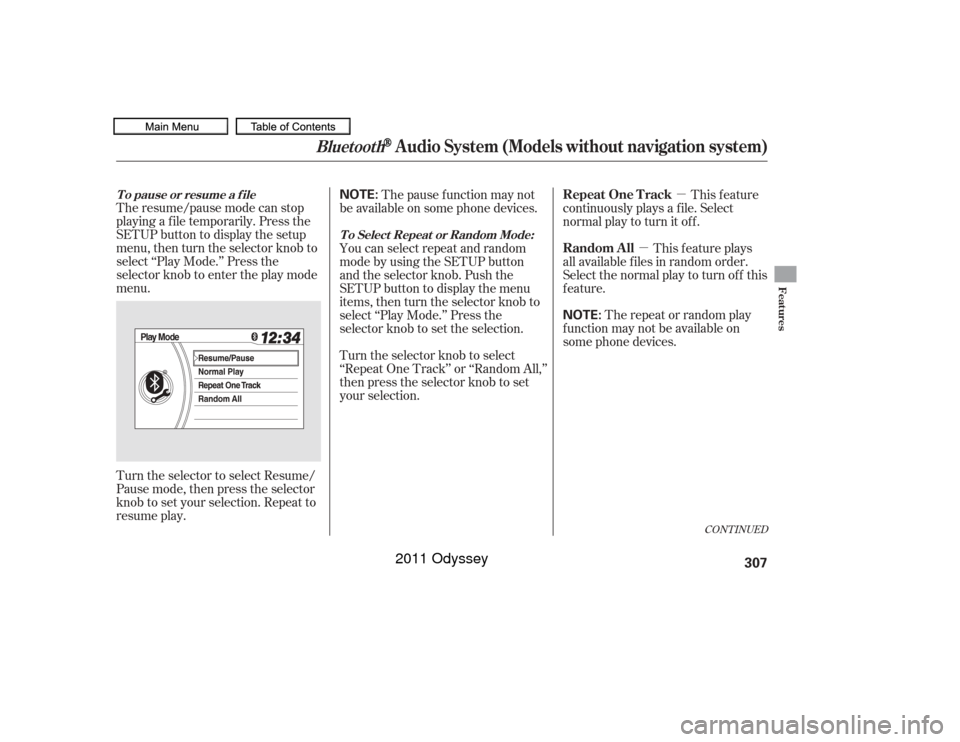

The resume/pause mode can stop
playing a f ile temporarily. Press the
SETUP button to display the setup
menu, then turn the selector knob to
select ‘‘Play Mode.’’ Press the
selector knob to enter the play mode
menu.
Turn the selector to select Resume/
Pause mode, then press the selector
knob to set your selection. Repeat to
resume play. This feature
continuously plays a f ile. Select
normal play to turn it off.
This f eature plays
all available f iles in random order.
Select the normal play to turn of f this
feature.
The repeat or random play
f unction may not be available on
some phone devices.
You can select repeat and random
mode by using the SETUP button
and the selector knob. Push the
SETUP button to display the menu
items, then turn the selector knob to
select ‘‘Play Mode.’’ Press the
selector knob to set the selection.
Turn the selector knob to select
‘‘Repeat One Track’’ or ‘‘Random All,’’
then press the selector knob to set
your selection. Thepausefunctionmaynot
be available on some phone devices.
CONT INUED
T o pause or resume a f ile
T o Select Repeat or Random Mode:
Repeat One Track
Random All
Bluetooth
Audio System (Models without navigation system)
Features
307
NOTE:
NOTE:
10/07/17 10:15:11 31TK8600_312
2011 Odyssey

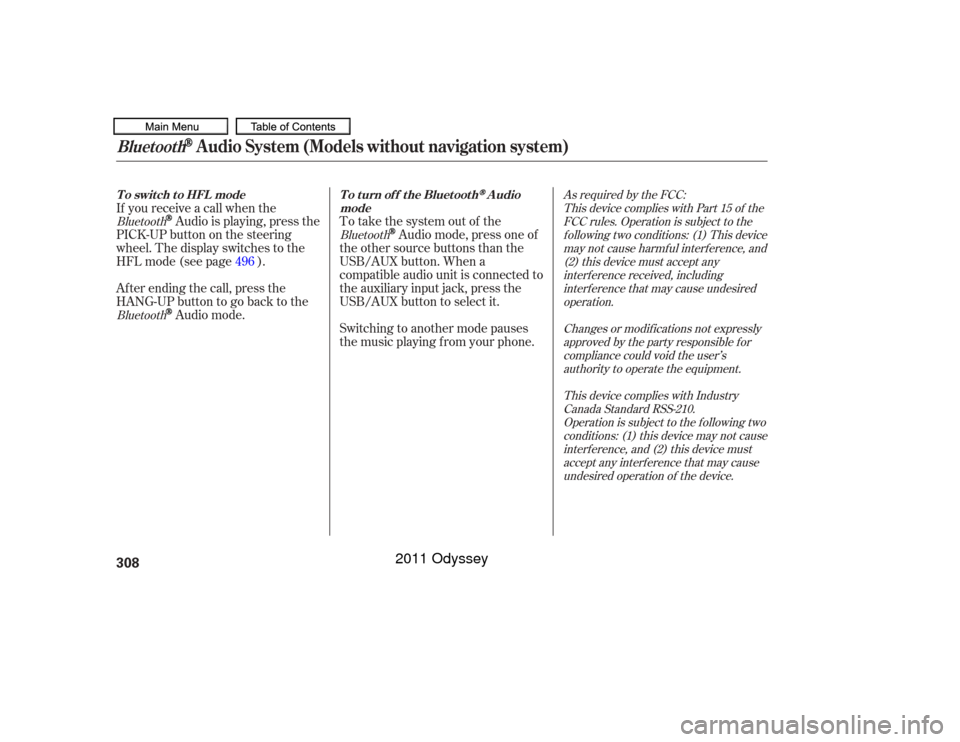

To take the system out of the
Audio mode, press one of
the other source buttons than the
USB/AUX button. When a
compatible audio unit is connected to
the auxiliary input jack, press the
USB/AUX button to select it.
Switching to another mode pauses
the music playing f rom your phone.
If you receive a call when the
Audio is playing, press the
PICK-UPbuttononthesteering
wheel. The display switches to the
HFLmode(seepage ).
Af ter ending the call, press the
HANG-UP button to go back to theAudio mode. 496
Bluetooth
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Bluetooth
Bluetooth
T o swit ch t o HFL mode
T o t urn of f t he Bluet oot h
Audio
mode
Bluetooth
Audio System (Models without navigation system)
308
10/07/17 10:15:18 31TK8600_313
2011 Odyssey

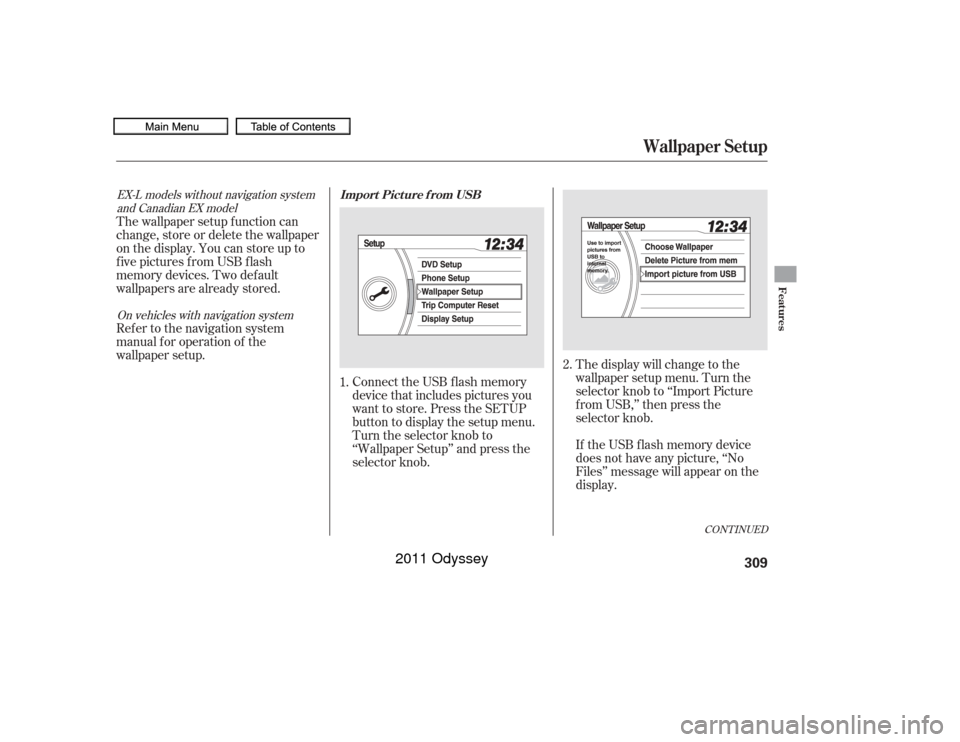

Connect the USB f lash memory
device that includes pictures you
want to store. Press the SETUP
button to display the setup menu.
Turn the selector knob to
‘‘Wallpaper Setup’’ and press the
selector knob.The display will change to the
wallpaper setup menu. Turn the
selector knob to ‘‘Import Picture
f rom USB,’’ then press the
selector knob.
If the USB f lash memory device
does not have any picture, ‘‘No
Files’’ message will appear on the
display.
Ref er to the navigation system
manual f or operation of the
wallpaper setup. The wallpaper setup function can
change, store or delete the wallpaper
on the display. You can store up to
five pictures from USB flash
memory devices. Two def ault
wallpapers are already stored.
1.2.
CONT INUED
On vehicles with navigation system
EX-L models without navigation system
and Canadian EX model Import Pict ure f rom USB
Wallpaper Setup
Features
309
10/07/17 10:15:26 31TK8600_314
2011 Odyssey

·
Turn the selector knob to select a
desired picture, then press the
knob to import the picture.
‘‘Loading Picture’’ message will
appear on the display.
If you choose an incompatible
picture, such as one that is too
large or in an unsupported f ormat,
a message will appear and the
system will not be able to import
the picture.
The display will change to as
shown above. Select OK to import
the picture to the system. The
imported list number and the
conf irmation message will appear.
Then the display will return to the
import wallpaper list. You can only import images f rom
the root directly. Images in the
f olders cannot be imported.
The max f ile size is 1024 768
pixels. Smaller images are
displayed with the extra area
appearinginblack.
Larger images are reduced to a
displayable size without changing
the aspect ratio.
3.
4.
Wallpaper Setup310
NOTE:
10/07/17 10:15:33 31TK8600_315
2011 Odyssey

311
10/07/17 09:47:14 31TK8600_098
Wallpaper Setup
Features
Five uploaded images (in BMP or
JPEG format) can be saved.
If youattempttouploadanimage
withthesamenameasanexisting
image, a pop-up screen will appear,
asking if you want to overwrite the
existing image f ile.
You cannot import images while
driving.You can conf irm the wallpaper which
you selected. Press the DISPLAY
button, and select Wallpaper by
turning and pressing the selector
knob. You can also select ‘‘Default
Wallpaper’’ (Honda logo) or ‘‘Clock’’
(analog) on the list. On the wallpaper setup menu, select
‘‘Choose Wallpaper,’’ then press the
selector knob. The screen will
change to the wallpaper list. Select
desired wallpaper and press the
selector knob. Your selection will be
indicated by the f illed in circle.
Choose Wallpaper
On the wallpaper setup menu, select
‘‘Delete Picture f rom mem’’ and
press the selector knob. The screen
will change to the Delete Wallpaper
list. Select the picture that you want
to delete, then press the selector
knob. The conf irmation message will
appear. Select ‘‘Yes’’ to delete
completely.Delet e Wallpaper
