2011 HONDA FIT Navigation Manual

56Navigation System
Driving to Your Destination
The display automatically changes to the map screen when you reach your destination. Press the MENU button to return to the Enter destination by screen.
NOTE:
For information on the available voice commands, see Voice Command Index on page 138. If you are en route and the joystick is moved, the “Time to Destination” and “Distance to Destination” indicators are replaced with an indicator showing distance from the current vehicle location.
Landmark Icons
Landmark icons are shown in the map screen on the 1/20 and 1/8 mile scales or 80 and 200 meter scales. The Freeway Exit information is displayed on the 1/4, 1/2, and 1 mile scales. The icons are:
Some icons can be turned on or off; you can either display them or hide them from the ICON button on the lower left corner (see page 50) or using voice commands (see page 138).
You can select most landmark icons with the joystick to display the icon’s information. See the table on the following page for exceptions.
NOTE:
The same list can be viewed on the screen by selecting Map Legend from the Information screen. When there are overlapping landmark icons, a list of the points of interest (POIs) is displayed. For information on the available voice commands, see Voice Command Index on page 138.
One-Way Traffic Icon
The one-way traffic icons (see Map Screen Legend on page 50) are only shown on the 1/20 mile scale and only when turned on in Icon Options (see page 58).
Acura Dealer
School
Restaurant
AT M
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information

Navigation System57

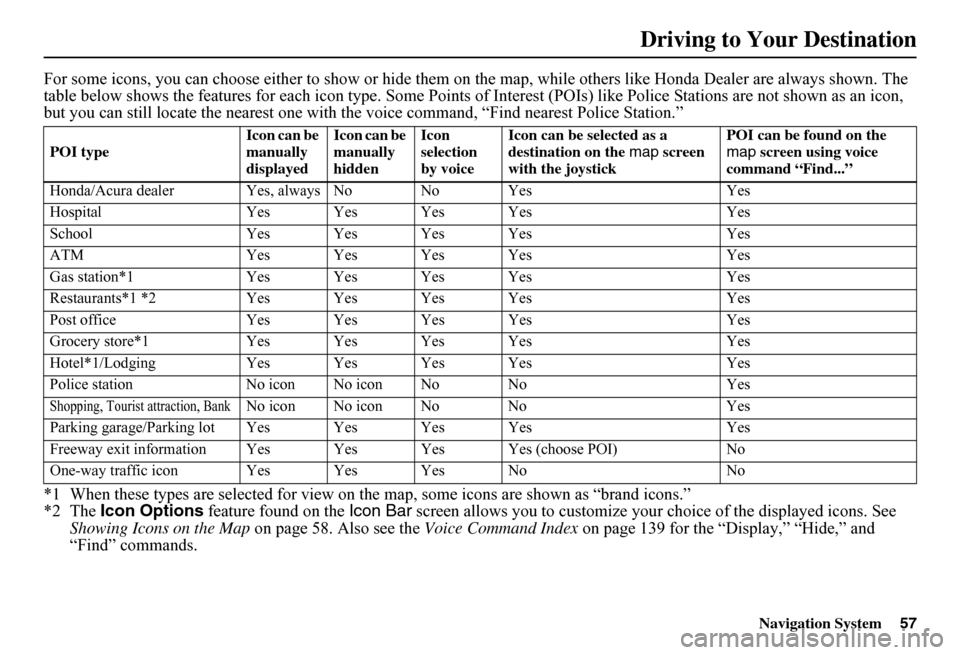

For some icons, you can choose either to show or hide them on the map, while others like Honda Dealer are always shown. The table below shows the features for each icon type. Some Points of Interest (POIs) like Police Stations are not shown as an icon, but you can still locate the near est one with the voice command, “Find nearest Police Station.”
*1 When these types are selected for view on th e map, some icons are shown as “brand icons.” *2 The Icon Options feature found on the Icon Bar screen allows you to customize your choice of the displayed icons. See Showing Icons on the Map on page 58. Also see the Voice Command Index on page 139 for the “Display,” “Hide,” and “Find” commands.
POI type Icon can be manually displayed
Icon can be manually hidden
Icon selection by voice
Icon can be selected as a destination on the map screen with the joystick
POI can be found on the map screen using voice command “Find...”
Honda/Acura dealer Ye s, always No No Yes Yes
Hospital Yes Yes Yes Yes Yes
School Yes Yes Yes Yes Yes
ATM Yes Yes Yes Yes Yes
Gas station*1 Yes Yes Yes Yes Yes
Restaurants*1 *2 Yes Yes Yes Yes Yes
Post office Yes Yes Yes Yes Yes
Grocery store*1 Yes Yes Yes Yes Yes
Hotel*1/Lodging Yes Yes Yes Yes Yes
Police station No icon No icon No No Yes
Shopping, Tourist attraction, BankNo icon No icon No No Yes
Parking garage/Parking lot Yes Yes Yes Yes Yes
Freeway exit information Y es Yes Yes Yes (choose POI) No
One-way traffic icon Yes Yes Yes No No
Driving to Your Destination

58Navigation System
Driving to Your Destination
Showing Icons on the Map
Touching the ICON button on the map screen displays the following screen:
The screen consists of the following items:
Icon Bar (row of icon symbols)
The icon bar allows you to manually select the icons that are displayed on the map (see page 56 for a list of these icons). In the screen above, both gas stations and restaurants are selected. Touch the icons to select (goes blue) or remove them (goes gray). You can also display or hide the same icons by using the “Display” or “Hide” voice commands (see page 139).
Icon Options
This feature allows you to “fine tune” some of the icons on the Icon bar (see Icon Options for more information).
Guidance Mode
When en route, this item allows you to select between a single-screen (with occasional pop-up guidance windows), or a split-screen (containing one-half map and one-half guidance/directions list window). See page 53 for an explanation of this feature, and see page 90 for Setup.
Exit Screen
Select Return to return to the map screen.
Icon Options
Selecting Icon Options displays the following screen:
This feature allows you to “fine tune” some of the icons on the Icon bar. The three icon choices – “Parking” (lot or garage), “Restaurant” (specific type or types of food), and “Other icons” (hospitals, schools, etc.) – can each be tailored to your needs.

Navigation System59
For instance, let’s assume that hospital icons are not displayed on the map. You would do the following:
• First, you would ensure that the OTHER ICON button on the Icon bar is blue (see Icon Bar on page 58).
• Second, you select Icon Options and verify that hospital option is also on (blue). This procedure is explained below.
If you select Other Icons from the Select category for icon settings screen, the other icons options are displayed:
In the previous example, POST OFFICE and SCHOOL are selected and will show up on the map. To also see HOSPITAL on the map, this would need to be turned on to select it so it appears as below.
Exit, and save your settings by selecting Done .
NOTE:
When viewing the map screen, you can turn some icons on using voice control. See Navigation Display Commands on page 139 for the available “Display” and “Hide” icon command.
Driving to Your Destination

60Navigation System
Driving to Your Destination
Going Off the Route
If you leave the calculated route, “Recalculating...” is displayed at the top of the screen. The system will recalculate the route from your current location and direction to the desired destination, and then give you a new route instruction. This is done automatically if you have set Rerouting to Automatic on the Setup screen (second) (see page 82).
If the Rerouting option in Setup is set to Manual, “Off route” appears at the top of the screen when you leave the calculated route. Sa y “Recalculate” or select Recalculation whenever you wish the system to perform a recalculation.
Off-road Tracking
If you drive more than half a mile from a mapped road, “Not on a digitized road” appears at the bottom of the screen.
The map screen starts displaying a series of dots (breadcrumbs) to show the path you have taken if Off-road Tracking on the Setup screen (second) is set to On (see page 90).
By following the dots, you can backtrack to the mapped road you originally left. “Breadcrumbs” may occasionally be displayed in urban areas, such as large parking lots in shopping malls, or in new subdivisions where the roads are not yet in the database. In other cases, you may see dots if the system temporarily goes off route, like in a parking garage where the GPS signal is unavailable.
These dots appear only in the 1/20, 1/8, 1/4, and 1/2 mile (or the 80, 200, 400, and 800 meter) map scales.Use the ZOOM buttons to change scales if necessary.
Tracking continues for approximately 150 miles; dots at the beginning of the trail will start disappearing when you exceed that distance . When you reach a mapped road, th e system stops displaying dots.

Navigation System61
Viewing/Saving the Current
Location
Whenever you are on a map screen, you can always obtain your current location either by touching the Vehicle Position icon or by using the voice control system and saying “Display current location.” A screen pops up which shows the address of your current location, as well as the latitude, longitude, and elevation.
NOTE:
The elevation will not appear when the system is temporarily lacking proper GPS information. The system elevation may not agree with elevations shown on roadside elevation signs, and may fluctuate plus or minus 100 feet or more.
You can store the current location for later use. It does not change or cancel your current route.
For example, you are following the system’s directions to get to a destination. While sitting at a stoplight you notice a store on the corner, but do not have time to visit it right now. You can save the location to select as a destination at a later date.
To save the location, say “Save current location” or select Save on the screen. When you select “User 1” or “User 2,” the Edit address book screen with the current location data will appear. You can edit the name, phone number, or category name to be saved in your personal Address Book.
After the location is saved, select Return to return to the map screen. You can then use Address Book from the Enter destination by screen to select the saved location and return to the same spot.
Driving to Your Destination

62Navigation System
Driving to Your Destination
Pop-Ups and Disclaimers
When you say “OK” in the Calculate Route to screen, or if you change your route, the system checks your route and provides you with pop-up messages for the following situations:
• Your route takes you into an area that you previously set as an “Avoid Area” (see Edit Avoid Area on page 87).
• Your route passes near an unverified area (see Unverified Area Routing on page 83).
• Your route includes unverified areas (see Unverified Area Routing on page 83).
• You are about to enter an unverified area (see Unverified Area Routing on page 83).
• You actually ente red an unverified area (see Unverified Area Routing on page 83).

Navigation System63
Changing the Route
While en route, you may wish to alter your route, add an interim “Waypoint” (pit stop), choose a different destination, or cancel your current destination.
To change your pres ent route, you can do any of the following:
Say “Menu,” or press the MENU button to view the Change route by screen:
• Search waypoint (page 63)
• Delete waypoint (page 65)
• Avoid streets (page 65)
• Detour (page 65)
• Change routing method (page 65)
• Cancel the current route (page 66)
• Back to the current route (page 66)
Choose a different destination (other methods) by:
• Saying “Find nearest...” to find a POI (page 66).
• Saying “Go home” (page 66).
• Using the joystick to select a different POI or address on the map (page 66).
•Pressing the MENU button twice to get to the Enter destination by screen (page 68).
Change Route By Screen
Pressing the MENU button displays the Change route by screen:
Waypoints
Waypoints allow you to add an interim “pit stop” while traveling to a destination. For inst ance, you may want to stop for gas or food, and then continue on to your destination. Although you can enter up to five waypoints at a time, typically you may never use more than one at a time. Waypoints are routed to in the order they were entered (number 1 first, etc.), with your final destination routed to last. If you wish to create a custom route of several destinations , and then control the order of routing, the function “Today’s Destinations” is probably a better choice (see By Today’s Destinations on page 41).
Driving to Your Destination
