2011 HONDA CR-V Owners Manual

The temperatures of the driver’s side
and the front passenger’s side can be
controlled independently when the
indicator in the DUAL button is on.
To adjust the driver’s side, turn the
driver’s side temperature control dial
on the climate control panel. To
adjust the passenger’s side, turn the
passenger’s side temperature control
dial.
Push AUTO or . The selected
temperatures appear in the display.
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
adjusting the driver’s temperature
control dial.
EX-L and Canadian EX modelsT emperat ure Cont rol
Dual Temperature Control
140
DUAL BUTTON
DRIVER’ S SIDE TEMPERATURE
CONTROL DIAL
PASSENGER’ S SIDE TEMPERATURE
CONTROL DIAL
Main MenuTable of Contents

To set the driver’s side temperature
to a different value than the
passenger’s side, press the DUAL
button, then turn the temperature
controldialonthecontrolpanel.To
set the passenger’s side to a
different value than the driver’s side,
turn the passenger’s side
temperature control dial. You can
adjust the passenger’s side without
pressing the DUAL button first.
When you set the temperature to its
lower limit or its upper limit, it will be
displayed as ‘‘Lo’’ or ‘‘Hi’’.
Dual Temperature Control
Features
141
Driver’s Side Passenger’s SideREAR POSITION FLOOR VENTS
Main MenuTable of Contents

Theclimatecontrolsystemhastwo
sensors: a sunlight sensor on top of
the dashboard, and a temperature
sensor next to the steering column.
Do not cover the sensors or spill any
liquidonthem.
Sunlight and T emperature
Sensors
Climat e Cont rol Sensors
142
SUNLIGHT SENSOR
TEMPERATURE SENSOR
Main MenuTable of Contents

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For LX models, see pagesthrough .
For EX and EX-L models without
navigation system, see pages through .
For EX-L model with navigation
system, see pages through . 145 156
157 193 194 249
Audio System
Features
143
EX-L models EX models
LX models
Main MenuTable of Contents

Audio System
144
EX-L model with navigation system
Main MenuTable of Contents

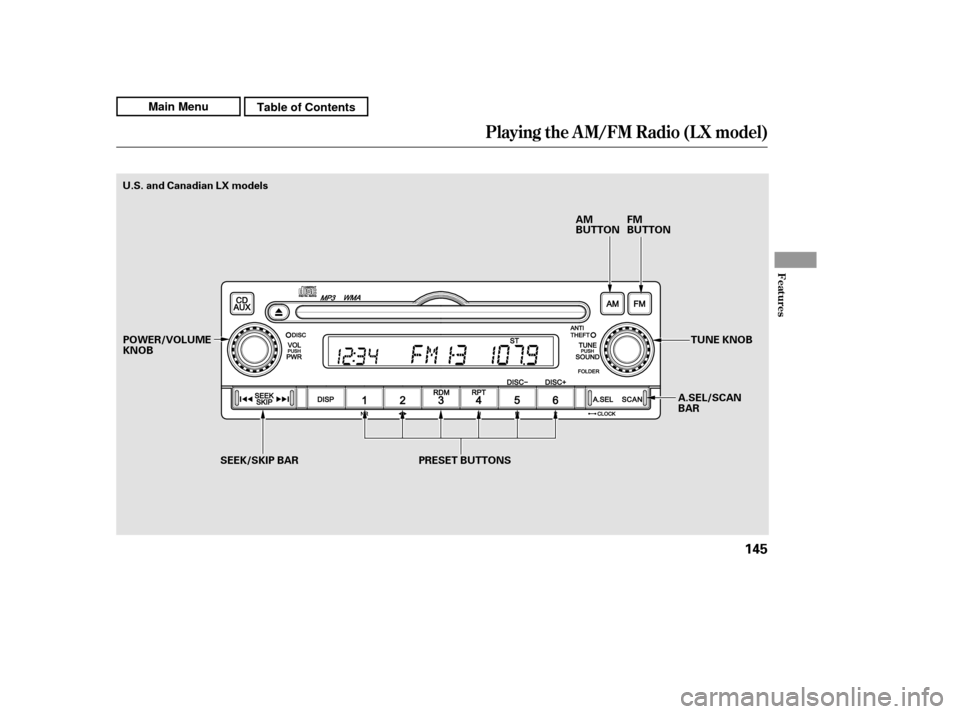

Playing the AM/FM Radio (LX model)
Features
145
AM
BUTTONFM
BUTTON
PRESET BUTTONS A.SEL/SCAN
BARTUNE KNOB
U.S. and Canadian LX models
SEEK/SKIP BAR
POWER/VOLUMEKNOB
Main MenuTable of Contents

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the right side of the A. SEL/SCAN
bar, then release it. You will see
SCAN in the display. The system will
scan f or a station with a strong signal.
When it f inds one, it will stop and
play that station for about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN side of the bar again.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
The seek f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
To Select a Station
TUNE
To Play the AM/FM Radio
SCAN
SEEK /SK IP
Playing the AM/FM Radio (LX model)
146
Main MenuTable of Contents

µµ µ
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
For inf ormation on AM/FM radio
f requencies and reception, see page
.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. You can store one f requency
on FM1, and one f requency on
FM2witheachpresetbutton.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. ,pressthe
A. SEL side of the bar. This restores
the presets you originally set.
Press the lef t side of the
A. SEL/SCAN bar. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
Pick a preset button (1 6), and
hold it until you hear a beep. If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
1. 2. 3. 4. 250
To turn of f auto select
Preset A UT O SEL ECT
Playing the AM/FM Radio (LX model)
Features
147
Main MenuTable of Contents
