2011 HONDA CR-V Owners Manual

Air f lows f rom the f loor
vents.
When you select , the system
automatically switches to f resh air
mode. If you switch the mode f rom or to , the system
keeps the A/C on. The A/C
indicator will not come on if it was
off to start with.
To turn of f the A/C, press the A/C
button to illuminate the indicator,
then press it again to turn off the
A/C.
Airf low is divided between
the f loor vents and def roster vents at
the base of the windshield. Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C.
You cannot turn the A/C of f in this
mode.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed. The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Select .
When you select , the system
automatically switches to f resh air
mode. If you switch the mode
f rom or , the system
also automatically turns on the
A/C. This helps prevent the
windows f rom f ogging up
unintendedly. The A/C indicator
willnotcomeonifitwasoffto
start with (see the f irst column on
this page).
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
When you switch to or
mode f rom , the A/C
turnsoff.Butifitwasontostart
with, the A/C stays on. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then discharges
it through vents near the tailgate. 1.2. 3.4.1. 2. 3.
Vents, Heating, and A/C
Ventilation
Using the Heater
132
Main MenuTable of Contents

Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
air conditioning, and setting the f an
to maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
1. 2. 3. 4. 5. 1. 2.3.4.
1.2. 3.
71
If the interior is very warm,Dehumidif y the Interior
Using the A /C
Vents, Heating, and A/C
Features
133
Main MenuTable of Contents

To remove f og f rom the inside of the
windows:Turning the f an speed control dial all
the way to the left shuts the system
of f .
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When you switch to , f rom or , the A/C stays on.
This helps prevent the windows f rom
rapidly f ogging up when the air is
suddenly routed away f rom the
windshield. If you want to turn the
A/C off, press and release the A/C
button twice. The indicator in the
buttoncomesonandthengoesoff. Select . The system
automatically switches to f resh air
mode and turns on the A/C.
The A/C indicator does not come
on if it was of f to start with.
Select .
Set the f an and temperature
controls to maximum level.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was off to start with.
Adjust the temperature so the
airflow f eels warm.
Select / to help
clear the rear window.
To increase airf low to the
windshield, close the corner vents.
1. 2. 3.
1. 2. 3. 4.5.
To Defog and Defrost
To Turn Everything Off
T o Remove Exterior Frost or Ice
From the Windows
Vents, Heating, and A/C
134
Main MenuTable of Contents

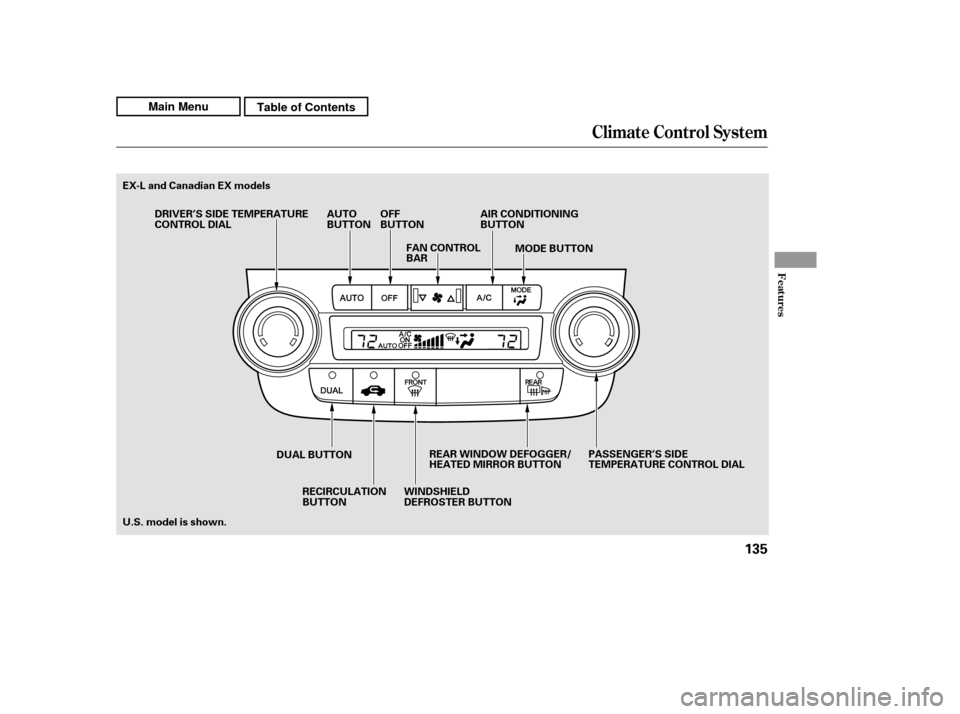

Climate Control System
Features
135
RECIRCULATION
BUTTONMODE BUTTON
AUTO
BUTTON
OFF
BUTTON
FAN CONTROL
BAR AIR CONDITIONING
BUTTON
WINDSHIELD
DEFROSTER BUTTON
DUAL BUTTON
EX-L and Canadian EX models
U.S. model is shown.
PASSENGER’S SIDE
TEMPERATURE CONTROL DIAL
DRIVER’S SIDE TEMPERATURE
CONTROL DIAL
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
Main MenuTable of Contents

On vehicles with navigation systemThe automatic climate control
system in your vehicle maintains the
interior temperature you select. The
system also adjusts the f an speed
and airf low levels.The driver’s side temperature and
the passenger’s side temperature can
be set separately. Turn the dial of
the appropriate temperature control
clockwisetoincreasethe
temperature of airf low. Turn the dial
counterclockwise to decrease it.
Each set temperature is shown in the
display.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
When the indicator in the dual
button is on, the driver’s side and
passenger’s side temperature can be
controlled independently (see page
).
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
navigation system manual f or
complete details.
Press the AUTO button.
Set the desired temperature by
turning the driver’s side
temperature control dial. You will
see AUTO and the selected
temperature in the display. You
can also set the passenger’s side
temperature by turning the
passenger’s side dial.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence.
1. 2.
140
Climate Control System
Voice Control System Using A utomatic Climate ControlT emperat ure Cont rol
136
Main MenuTable of Contents

ÛÝ
You can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator is on). When the
indicator in the DUAL button is of f ,
the temperatures for both sides are
synchronized to the driver’s side set
temperature. When def rost mode is
selected, dual mode operation is
canceled. If you press the OFF button, the
climate control system shuts of f
completely.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out. Select the f an speed by pressing
either side of the f an speed control
bar ( or ). The f an speed is
showninverticalbarsonthedisplay.
This button turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control dial below the
outside temperature.
CONT INUED
Climate Control System
Dual Button
A ir Condit ioning (A /C) But t onTo Turn Everything Of f
Semi-automatic OperationFan Control
Features
137
Main MenuTable of Contents

When the indicator in the button is
on, air f rom the vehicle’s interior is
sent through the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.Pushing this button also turns the
power mirror heaters on and of f .
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents.
Airf low is divided between
the f loor and corner vents and the
defroster vents at the base of the
windshield.
80
Climate Control System
Recirculat ion But t on Rear Window Def ogger
ButtonMode Cont rol
138
Main MenuTable of Contents

Select . The system
automatically switches to f resh air
mode and turns on the A/C.
Adjust the temperature with the
driver’s side temperature control
so the airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
For f aster def ogging, manually set
the fan speed to high.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
This button directs the main airflow
to the windshield for faster
def rosting. It also overrides any
mode selection you may have made.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase airf low to the windshield by
closing the corner vents on the
dashboard. To close the vents, rotate
the wheel under each corner vent.
When you turn of f by
pressing the button again, the
system returns to its former settings. 1. 2.3. 4.
Climate Control System
Windshield Def rost er But t on
Features
139
