2011 HONDA CR-V Owners Manual

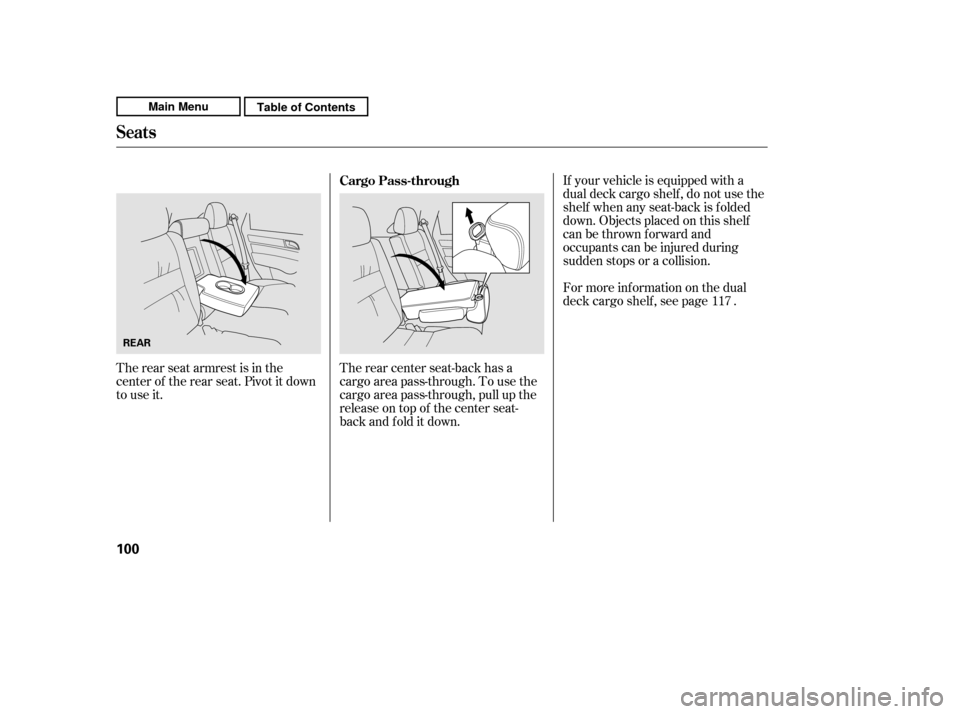

The rear seat armrest is in the
center of the rear seat. Pivot it down
to use it.If your vehicle is equipped with a
dual deck cargo shelf , do not use the
shelf when any seat-back is f olded
down. Objects placed on this shelf
canbethrownforwardand
occupants can be injured during
sudden stops or a collision.
For more inf ormation on the dual
deck cargo shelf , see page .
The rear center seat-back has a
cargo area pass-through. To use the
cargo area pass-through, pull up the
release on top of the center seat-
backandfolditdown. 117
Cargo Pass-through
Seats
100
REAR
Main MenuTable of Contents

See page f or important saf etyinf ormation and a warning aboutimproperly positioning head restraints. 14

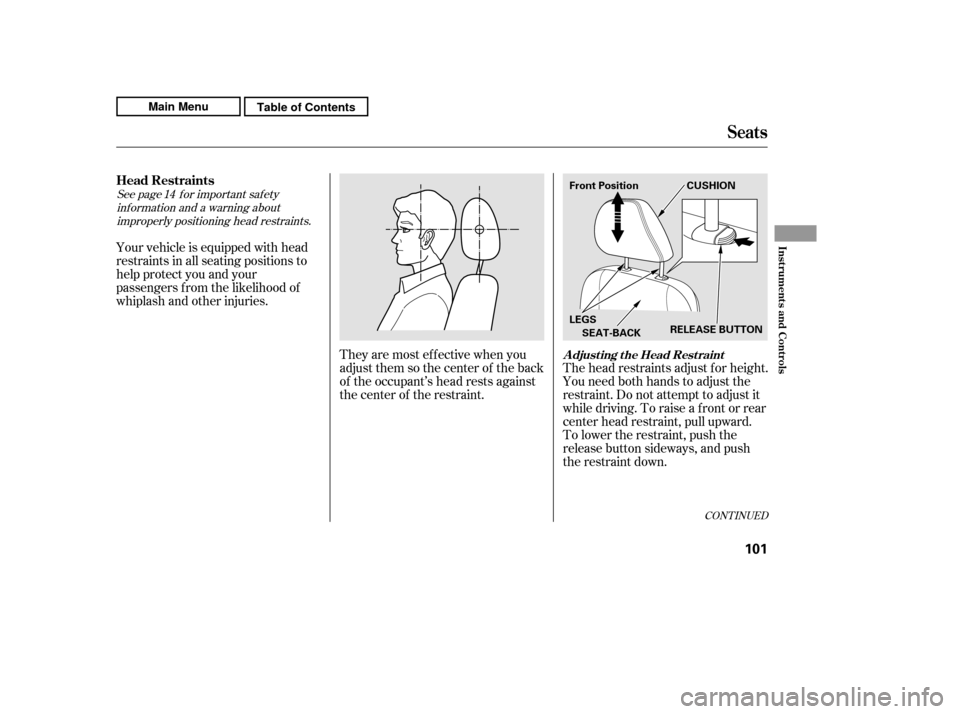

Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom the likelihood of
whiplash and other injuries.
They are most ef f ective when you
adjust them so the center of the back
of the occupant’s head rests against
the center of the restraint.The head restraints adjust f or height.
You need both hands to adjust the
restraint.Donotattempttoadjustit
while driving. To raise a f ront or rear
center head restraint, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
CONT INUED
Head Restraints
A djust ing t he Head Rest raint
Seats
Inst rument s and Cont rols
101
RELEASE BUTTON
LEGS
SEAT-BACK CUSHION
Front Position
Main MenuTable of Contents

Make sure the removed head
restraints are securely stored.
Make sure the head restraint locks
in position when you reinstall it.
When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
When a passenger is seated in the
rear center seating position, make
sure the center head restraint is
properly adjusted.
To pivot the outer head restraint
down f or better visibility, press the
tilt button on the side of the head
restraint. It f olds down f orward. To
raise the head restraint, pivot it up
by hand. Make sure the head
restraint locks in position.
To remove a f ront or rear center
head restraint, pull it up as f ar as it
will go. Push the release button, then
pull the restraint out of the seat-back.
Seats
Removing t he Head Rest raint
102
RELEASE BUTTON
Rear Outer Position
LEGSSEAT-BACK
CUSHION
TILT BUTTON Rear Center Position
CUSHION
Failure to reinstall the head
restraints can result in severe
injury during a crash.
Always replace the head
restraints before driving.
Main MenuTable of Contents

The driver’s and f ront passenger’s
seats have active head restraints. If
the vehicle is struck severely f rom
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move f orward.For a head restraint system to work
properly:
Do not hang any items on the head
restraints, or f rom the restraint
legs.
Do not place any object between
an occupant and the seat-back.
Install each restraint in its proper
location.
Only use genuine Honda
replacement head restraints.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer.
Af ter a collision, the activated
restraint should return to its normal
position.
This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupants
against the likelihood of whiplash
and injuries to the neck and upper
spine.
A ct ive Head Rest raint s
Seats
Inst rument s and Cont rols
103
Main MenuTable of Contents

You can recline the seat-backs on the
f ront seats so they are level with the
rear seat cushions, making a large
cushioned area. To do this:Adjust the rear seats as f ar back
as possible.
Remove the f ront head restraints
(see page ), and store them
securely.
Only the passenger’s side can be
level as f ollows. Adjust the f ront seats f orward as
f ar as possible. Pull up the seat-
back angle adjustment lever and
pivot the seat-back backward until
it is level with the rear seat
cushion.
The seat-back of the power
adjustable driver’s seat cannot be
level. Do not push the seat-back
down f orcibly.
Adjust the rear seat-back to the
desired position.
Reverse this procedure to return the
f ront and rear seats to the upright
position. Make sure you install the
head restraints and securely lock the
seats before driving.
When you return the seat-back to its
upright position, hold the seat-back
to keep it f rom going up too quickly.
1. 2.
4.
3.
102
EX-L and Canadian EX models
EX-L and Canadian EX models
Reclining the Front Seats
Seats
104
SLIDE BAR SEAT-BACK ANGLE
ADJUSTMENT LEVER
Main MenuTable of Contents

Each rear seat-back can be folded
down separately to give more cargo
room. With either of the outer seat-
backs f olded-down, you can still
carry a passenger in the rear seat.
With the center seat-back folded-
down, either outer seating position
can be used.
You can also fold up the left or right
side of the rear seats separately to
create f urther cargo space (see page).
Remove any items from the seat
before folding down the seat-back. Push the seat belt buckles into the
seat cushion.
When you are f olding the rear center
seat-back, use the latch plate to
release the center seat belt from the
detachable anchor (see page ).
Allow the seat belt to retract into the
holder on the ceiling and store the
buckles in it.
Make sure the rear seat armrest is
stored.
1.
107
109
CONT INUED
Folding the Rear Seats Down
Seats
Inst rument s and Cont rols
105
LATCH PLATE
BUCKLE
Main MenuTable of Contents

Reverse this procedure to return the
seat-back to the upright position.
Make sure the seat is secured and
the seat belt is in f ront of the seat-
back bef ore driving.
In the rear center seating position,
be sure the detachable anchor is
latched securely (see page ).Make sure that the f olded down rear
seat does not interf ere with the f ront
passenger’s seat-back. This will
cause the f ront passenger’s weight
sensors and the f ront passenger’s
seat belt reminder indicator to work
improperly (see page ). Also
check the passenger airbag of f
indicator to assure proper operation
of the passenger’s f ront airbag (see
page ).
Do not put any heavy items on the
seat-back when it is folded down. Fold the seat-back forward.
Pull up the release lever on the top
of the seat-back.
Lower the rear center head
restraint to its lowest position.
Push the button located next to
each rear outer head restraint to
pivot the head restraint down.
2. 3. 4. 109
19
33
Seats
106
RELEASE LEVER
Main MenuTable of Contents

When any seat-back is f olded down,
do not use the dual deck cargo shelf
(if equipped).
Make sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard (See
on page ).The lef t and right rear seats can be
f olded up separately to make room
for cargo.
To f old the rear seat f orward:
Remove any items from the seat
beforeyoufolduptheseatcushion.
Pull up the bar under the seat
cushion and slide the rear seat
backward. The rear seat will not
foldforwardunlessitisasfar
back as it will go. Lower the center seat-back bef ore
f olding the passenger’s side seat
forward.
Follow steps 1 through 4 on pages
and f or f olding down the
seat-back.
1. 2.
304 105 106
CONT INUED
Carrying CargoFolding the Rear Seat Forward
Seats
Inst rument s and Cont rols
107
SLIDE BARS
Main MenuTable of Contents
