ÎÎ
Î Î
Î
µ µ µ µ µ µµµ
Î
No.
No. Amps. Circuits ProtectedNo. Circuits Protected
Circuits Protected
Amps. Amps.
12345678
9
10111213141516 7.5 A
7.5 A
10 A
10 A
10 A
7.5 A
7.5 A 10 A ODS (Occupant Detection
System)
Meter
SRS
Right Headlight High Beam
Left Headlight High Beam
Small Lights (Interior)
Small Lights (Exterior)
Right Headlight Low Beam 1718192021222324252627282930 31 32333435363738Left Headlight Low Beam
Headlight High Beam Main
Small Lights Main
Not Used
Headlight Low Beam Main
Not Used
Not Used
Moonroof
Door Lock
Driver’s Power Window
HAC Option
Rear Accessory Socket
Accessory
Front Passenger’s Power
Window
Not Used
Not Used
Not Used
Not Used
Accessory, Radio
IG2 HAC
Daytime Running Lights
Front Wiper
Power Window
Fuel Pump
IG1 ACG
ABS/VSA
Heated Seats
Front Fog Lights
TPMS
Not Used
If equipped
7.5 A
15 A
10 A
7.5 A
(15 A)
(20 A)
(7.5 A) 10 A
20 A
15 A
20 A
(20 A) 20 A
20 A
(20 A)
(15 A) 15 A
20 A
7.5 A 10 A
7.5 A
30 A
:
Fuse Locations
T aking Care of t he Unexpect ed
357
INTERIOR FUSE BOX
Main Menu

µµ If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the f ront tires and lif t them of f
the ground. The rear tires remain on
the ground. Do not tie down the vehicle at an
angle that would allow the towing
cables to contact the vehicle’s f ront
bumper. To avoid possible damage,
protect the f ront bumper with tape.
With the f ront wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below35mph(55km/h).
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.
Start the engine.
Release the parking brake.
Release the parking brake.
Shif t the transmission to neutral.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Manual transmission:
Automatic transmission:
Flat -bed Equipment
Wheel-lif t Equipment
T his is the best way to
transport your vehicle.
This is an acceptable
way to tow your vehicle.
Emergency T owing
358
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
Main Menu

Emergency T owing
T aking Care of t he Unexpect ed
359
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Main Menu

360
Main Menu

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers . 362
................................
Specif ications . 364
DOT Tire Quality Grading
......................
(U.S. Vehicles) . 367
Unif orm Tire Quality
..................................
Grading . 367
.................................
Treadwear . 367
......................................
Traction . 367
.............................
Temperature . 368
.................................
Tire Labeling . 369
Tire Pressure Monitoring System
(TPMS) Required Federal ............................
Explanation . 371 .......................
Emissions Controls . 373
.....................
The Clean Air Act . 373
Crankcase Emissions Control
....................................
System . 373
Evaporative Emissions Control ....................................
System . 373
Onboard Ref ueling Vapor ................................
Recovery . 373
...
Exhaust Emissions Controls . 374
....................
PGM-FI System . 374
Ignition Timing Control
................................
System . 374
Exhaust Gas Recirculation ...................
(EGR) System . 374
Three Way Catalytic ...........................
Converter . 374
....................
Replacement Parts . 374
..
Three Way Catalytic Converter . 375
........................
Emissions Testing . 376
T echnical Inf ormat ion
T echnical Inf ormation
361
Main Menu

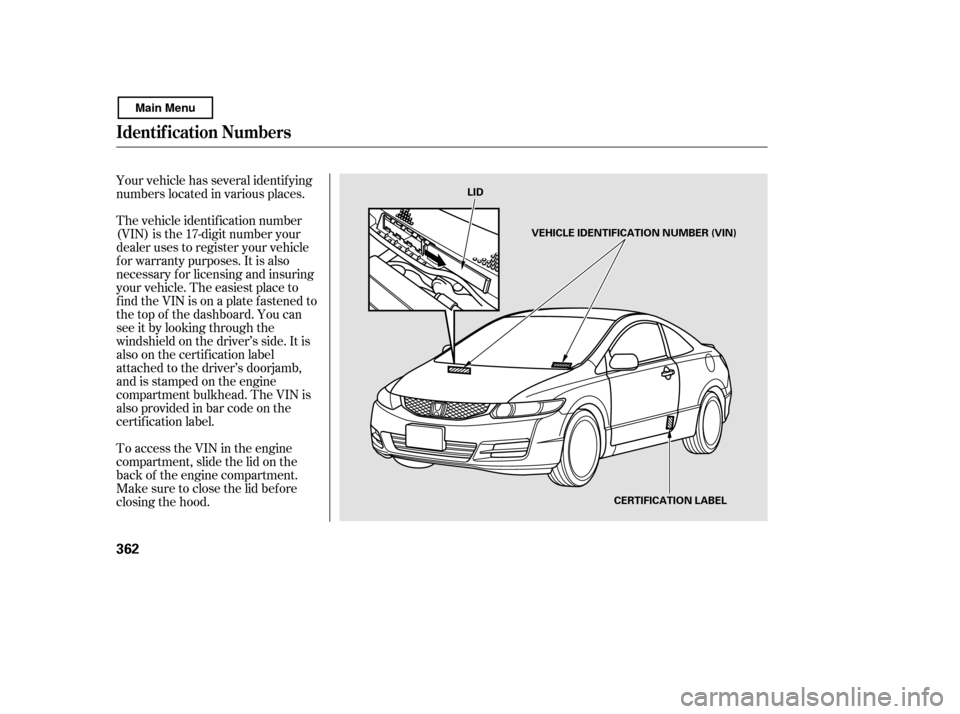

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
To access the VIN in the engine
compartment, slide the lid on the
back of the engine compartment.
Make sure to close the lid bef ore
closing the hood.
Identif ication Numbers
362
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
LID
Main Menu

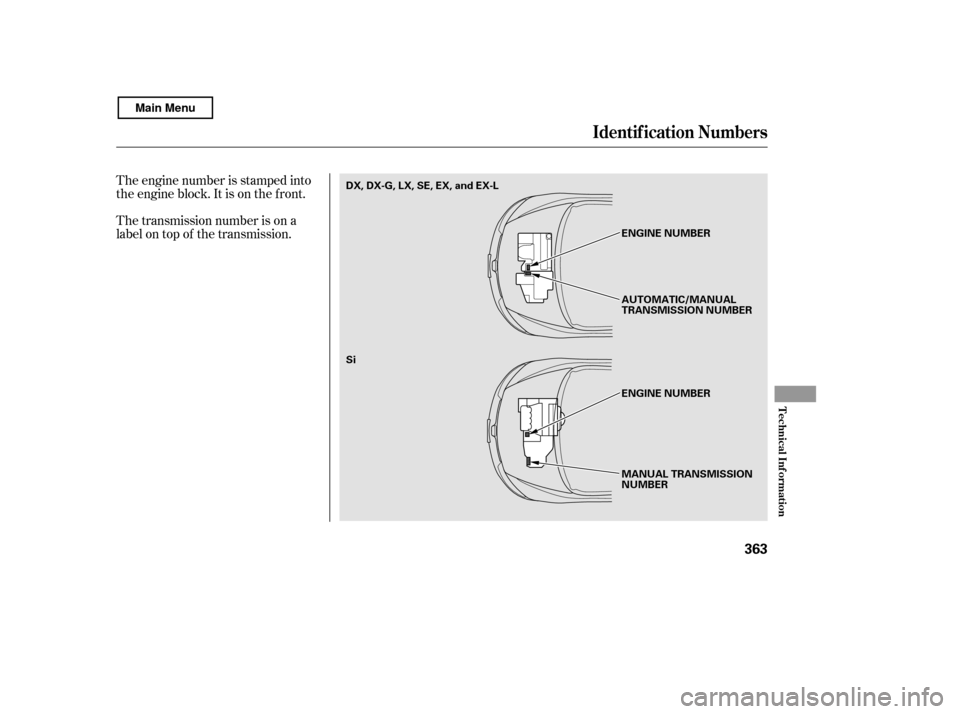

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
363
MANUAL TRANSMISSION
NUMBER
Si
ENGINE NUMBER
ENGINE NUMBER
AUTOMATIC/MANUAL
TRANSMISSION NUMBER
DX, DX-G, LX, SE, EX, and EX-L
Main Menu

Î ÎÎÎ
Î Î Î
Î
ÎÎ
ÎÎ
Specif ications
364
Dimensions Engine
Seating Capacities
Weights 175.5 in (4,457 mm)
68.9 in (1,751 mm)
55.0 in (1,396 mm)
104.3 in (2,650 mm)
59.0 in (1,499 mm)
60.1 in (1,526 mm)
Length
Width
Height
Wheelbase
Track
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plugs3.19 x 3.44 in (81.0 x 87.3 mm)
3.39x3.39in(86x86mm) 110 cu-in (1,799 cm
)
122 cu-in (1,998 cm)
10.5 11.0
IZFR6K-11SSKJ20DR-M11SIFR7G-11KSSK22PR-M11S
Water cooled 4-stroke
SOHC i-VTEC , DOHC i-VTEC
4-cylinder gasoline engine
Total
FrontRear
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb.5 23
FrontRear
1:2:NGK:
DENSO:
NGK:
DENSO:
DX, DX-G, LX, SE, EX, EX-LSi
1 2 12
1 2 1
2
12
