2011 HONDA CIVIC COUPE Owners Manual

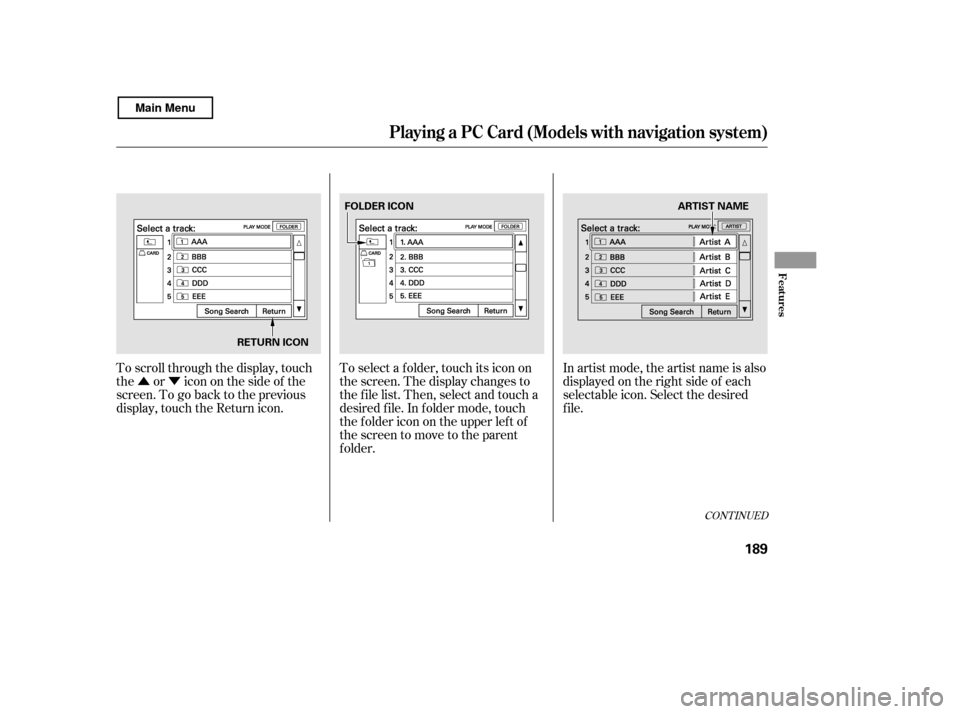

ÛÝIn artist mode, the artist name is also
displayed on the right side of each
selectable icon. Select the desired
f ile.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon. To select a f older, touch its icon on
the screen. The display changes to
the f ile list. Then, select and touch a
desired f ile. In f older mode, touch
the f older icon on the upper lef t of
the screen to move to the parent
f older.
CONT INUED
Playing a PC Card (Models with navigation system)
Features
189
RETURN ICONFOLDER ICON
ARTIST NAME
Main Menu

To select a desired icon with the
joystick, move it in the appropriate
direction, then press ENT.
In album mode, the album name is
also displayed on the right side of
each selectable icon. Select the
desired f ile.
You can then select any of three
modes to search a f ile: Title by
Keyword, Artist, and Album.
PresstheAUDIObuttontogoback
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio control display on the screen.
When you select ‘‘Song Search’’ f rom
the track list display, the song search
menu appears.
Song Search Funct ion
Playing a PC Card (Models with navigation system)
190
ARTIST ICON
TITLE BY KEYWORD ICON
RETURN ICON
SONG SEARCH ICON
ALBUM ICON
Folder mode is shown.
ALBUM NAME
Main Menu

ÛÝ
Searching f or a Song Title by KeywordSearching f or a Song by Artist Name

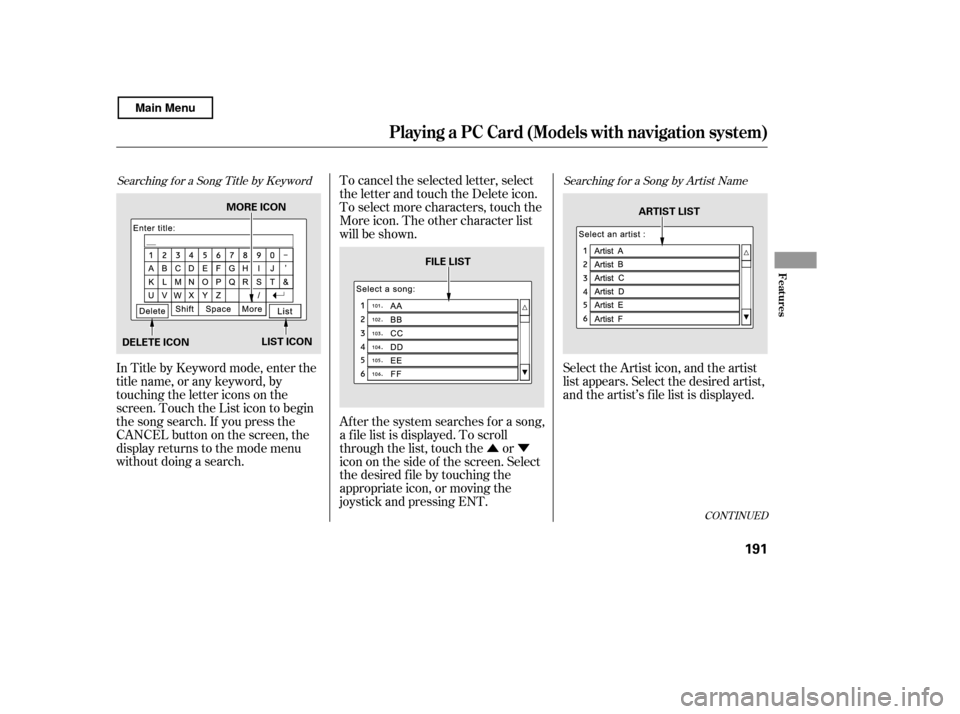

In Title by Keyword mode, enter the
title name, or any keyword, by
touching the letter icons on the
screen. Touch the List icon to begin
the song search. If you press the
CANCELbuttononthescreen,the
display returns to the mode menu
without doing a search.To cancel the selected letter, select
the letter and touch the Delete icon.
To select more characters, touch the
More icon. The other character list
will be shown.
Af ter the system searches f or a song,
a f ile list is displayed. To scroll
through the list, touch the or
icon on the side of the screen. Select
the desired f ile by touching the
appropriate icon, or moving the
joystick and pressing ENT.
Select the Artist icon, and the artist
list appears. Select the desired artist,
and the artist’s f ile list is displayed.
CONT INUED
Playing a PC Card (Models with navigation system)
Features
191
MORE ICON
DELETE ICON LIST ICON FILE LIST
ARTIST LIST
Main Menu

Î
Î
Î
Searching f or a Song by Album Name
Select the Album icon, and the
album list appears. Select the desired
album, and its song list is displayed.
You can then select the desired song
from the list. If equipped
To play an audio unit connected to
the auxiliary input jack or the USB
adapter cable when a PC card is
playing, touch the AUX or USB icon.
To play the radio when a PC card is
playing, press the AM/FM button or
touch the FM1, FM2, AM, XM1 , or
XM2 icon. If a disc is in the audio
unit, press the CD/XM button or
touch the CD icon to play the disc.
Touch the CARD icon to switch back
to the PC card player.
If you turn the system of f while a PC
card is playing, either with the
power/volume knob or by turning
of f the ignition switch, the card will
stay in the drive. When you turn the system back on, the card will begin
playing where it lef t of f .
You can also press the MODE
buttononthesteeringwheelto
change modes. When you leave the vehicle, always
remove the PC card f rom the audio
unit.
To remove a PC card f rom the audio
unit, f old back the screen by
pressing the OPEN button (see page
). Press the eject button ( )
to remove the card. If you do not
remove it f rom the slot, you cannot
return the screen to the upright
position.
To return the screen to the upright
position, press the CLOSE button.
You can also eject a card when the
ignition switch is of f .
:
173
T o Stop Playing a PC Card
Removing a PC Card
Playing a PC Card (Models with navigation system)
192
ALBUM LIST
Main Menu

If you see an error message in the
display while playing a PC card, f ind
thesolutioninthecharttotheright.
If you cannot clear the error
message, take your vehicle to your
dealer.Error Message Solution
The system cannot read the file(s). Check the files on the PC card.
There is a possibility that the files have been damaged.
It appears when the PC card is empty or there are no MP3 or WMA
filesinthePCcard.SavetheMP3orWMAfilesinthePCcard.
It appears when an unsupported PC card is inserted. The system
supports CompactFlash card, Flash ATA card, and SanDisk memory
Card Adapter.
PC Card Error Messages (Models wit h navigat ion syst em)
Features
193
FILE ERROR
NO MUSIC
MEDIA ERROR
Main Menu

µ´

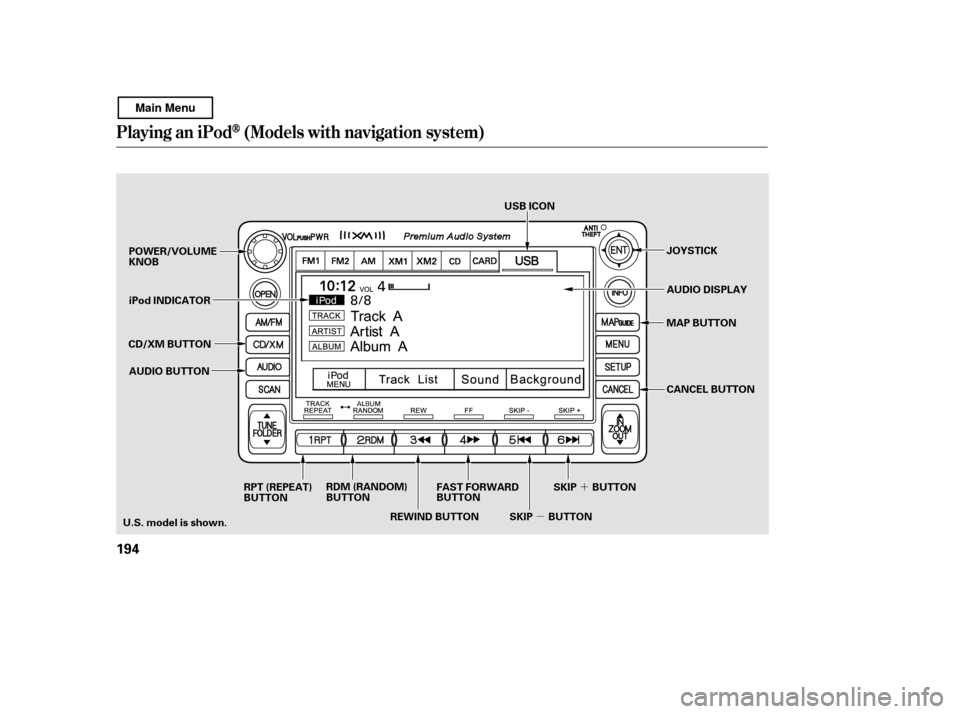

Playing an iPod(Models with navigation system)
194
JOYSTICK
POWER/VOLUME KNOB
MAP BUTTON
iPod INDICATOR
REWIND BUTTON
AUDIO BUTTON USB ICON
AUDIO DISPLAY
RPT (REPEAT)
BUTTON RDM (RANDOM)
BUTTON
FAST FORWARD
BUTTON
SKIP BUTTONSKIP BUTTON CANCEL BUTTON
U.S. model is shown. CD/XM BUTTON
Main Menu

iPods compatible with your audio
system using the USB adapter cable
are:
You can also select an icon by
moving the joystick. Move it to lef t,
right, up, or down to change the
highlighting and scroll through lists,
then press ENT on the top of the
joystick to set your selection. To select the USB mode without
using the icon, press the CD/XM
button repeatedly. The status bar
appears on the bottom of the screen.
The audio system reads and plays
playable sound f iles on the iPod. The
system cannot operate an iPod as a
mass storage device. The system will
only play songs stored on the iPod
with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
You can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
theplaymodefunctions.
This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the in-
dash disc player. To play an iPod,
connect it to the USB adapter cable
in the console compartment by using
your dock connector. Press the
AUDIO button beside the screen to
show the audio display and touch the
USB icon. The ignition switch must
be in the ACCESSORY (I) or ON (II)
position. The iPod will also be
recharged with the ignition switch in
these positions.
CONT INUED
Model
iPod classic
(80/160 G)
iPod classic
(120 G)
iPod with video
(iPod 5th
generation)
iPod nano
iPod nano
2nd generation
iPod nano
3rd generation
iPod nano
4th generation
iPod nano
5th generation
iPod touch
iPod touch
2nd generation Sof tware
Ver. 1.1.2 or more
Ver. 2.0.1 or more
Ver. 1.3.0 or more
Ver. 1.3.1 or more
Ver. 1.1.3 or more
Ver. 1.1.3 or more
Ver. 1.0.3 or more
Ver. 1.0.1 or more
Ver. 1.1.5 or more
Ver. 2.2.1 or more
To Play an iPod
Voice Cont rol Syst em
Playing an iPod(Models with navigation system)
Features
195
Main Menu

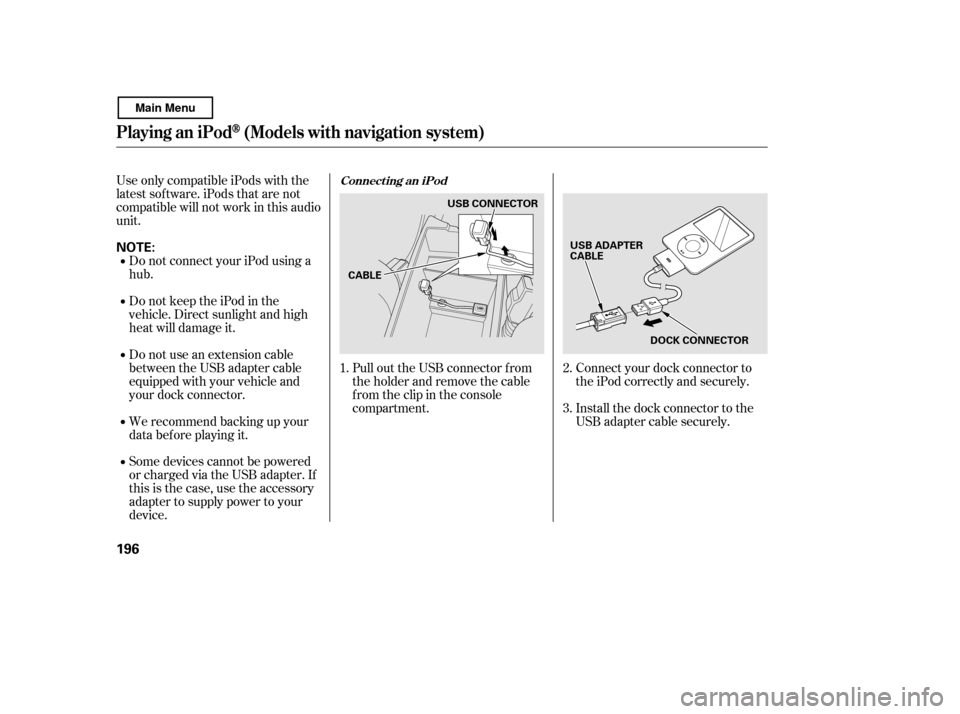

Install the dock connector to the
USB adapter cable securely.
Connect your dock connector to
the iPod correctly and securely.
Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
We recommend backing up your
data bef ore playing it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not connect your iPod using ahub.
UseonlycompatibleiPodswiththe
latest sof tware. iPods that are not
compatible will not work in this audio
unit.
1.2. 3.
Connect ing an iPod
Playing an iPod(Models with navigation system)
196
NOTE:
DOCK CONNECTOR
USB ADAPTER
CABLE
CABLE USB CONNECTOR
Main Menu
