2011 HONDA CIVIC COUPE Owners Manual

Playing t he A M/FM Radio (Models wit hout navigat ion syst em)
Features
125

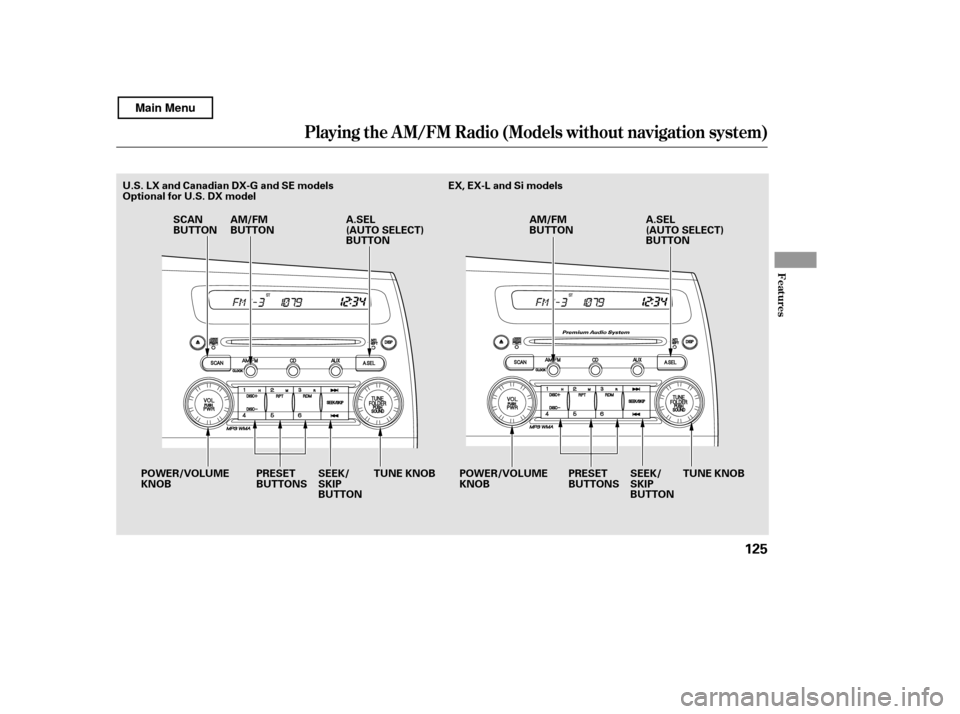

SCAN
BUTTON
POWER/VOLUMEKNOB PRESET
BUTTONS TUNE KNOB
TUNE KNOB
PRESET
BUTTONS
POWER/VOLUMEKNOB
SEEK/SKIP
BUTTON SEEK/SKIP
BUTTON
AM/FM
BUTTON
A.SEL
(AUTO SELECT)
BUTTON AM/FM
BUTTON
A.SEL
(AUTO SELECT)
BUTTON
EX, EX-L and Si models
U.S. LX and Canadian DX-G and SE models
Optional for U.S. DX model
Main Menu

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds.
The seek f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP button, then release it.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM/FM
button. Adjust the volume by turning
the power/volume knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
To Select a Station
TUNE
SCAN
To Play the AM/FM Radio
SEEK
Playing t he A M/FM Radio (Models wit hout navigat ion syst em)
126
Main Menu

µµ µ
Each side of the buttons
(1 through 6) can store one
f requency on AM, and two
f requencies on FM.
Press the A. SEL button. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
For inf ormation on AM/FM radio
f requencies and reception, see page .
Select the desired band, AM or
FM. FM1 and FM2 let you store
six stations each.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset number (1 6), and
hold it until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
1. 2.3. 4. 214
To turn of f auto select
Preset A UT O SEL ECT
Playing t he A M/FM Radio (Models wit hout navigat ion syst em)
Features
127
Main Menu

µ
µ
µ µ
µ
µ The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the TUNE knob to
adjust the setting to your liking. If
you f eel the sound is too loud, choose low. If you f eel the sound is
too quiet, choose high.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display. Adjusts the volume level
basedonthevehiclespeed.
The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.
Press the TUNE (SOUND) knob
repeatedly to display the SUBW (if
equipped), BASS, TREBLE, FADER,
BALANCE, and SVC (speed-
sensitive volume compensation)
settings.
Adjusts the strength of
sound f rom the subwoof er speaker.
Adjusts the bass.Adjusts the treble.
Adjusts the front-to-back
strength of the sound.
Adjusts the side-to-
side strength of the sound. You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
76
If equipped
Speed-sensit ive VolumeCompensat ion (SVC)
SVC
SUBW
BASS
TREBLE
FADER
BAL ANCE A udio System L ighting
A djust ing t he Sound (Models wit hout navigat ion syst em)
128
Main Menu

XM is a registered trademark of
Sirius XM Radio
,Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Your audio system is capable of
receiving XM
Radio anywhere in
the United States, except Hawaii,
Alaska, and Puerto Rico.
Playing t he XMRadio (Models without navigation system)
Features
Opt ional on U.S. EX, EX-L and Si
models
129

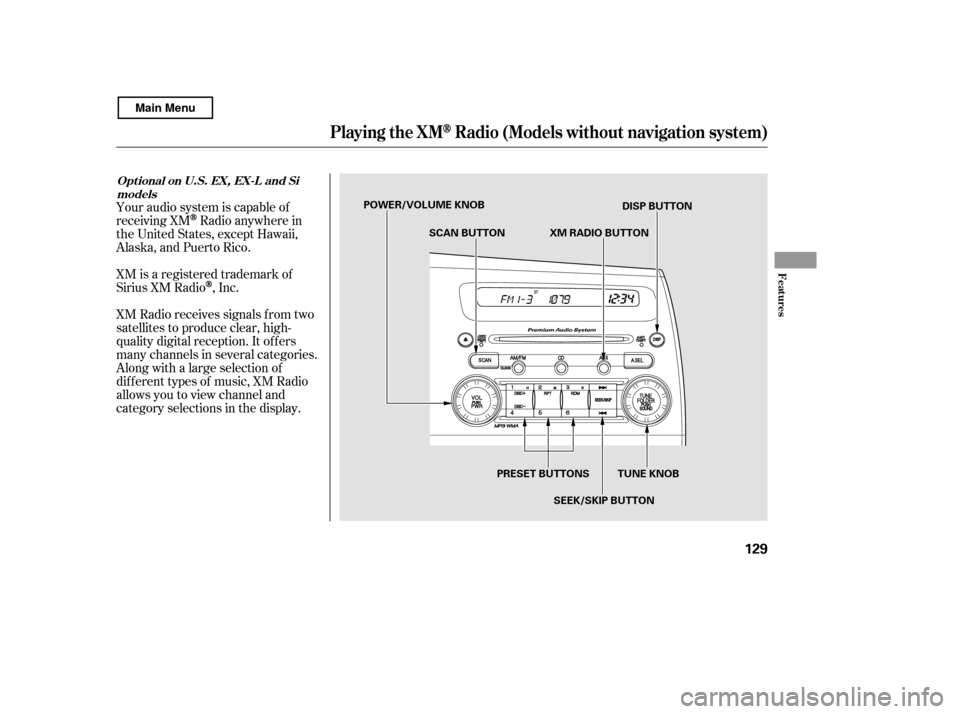

POWER/VOLUME KNOB
XM RADIO BUTTON
SCAN BUTTON
PRESET BUTTONS TUNE KNOB DISP BUTTON
SEEK/SKIP BUTTON
Main Menu

µ
µ
µ
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
To switch between
channel mode and category mode,
press and hold the DISP button until
themodechanges.
Each time you press and release the
DISP button, the display changes in
the f ollowing sequence: Channel
name, channel number, category,
artist name, and music title.
Press either side of the SEEK/SKIP
button ( or ) to select
another category.
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Press the
AUX button to select XM Radio
mode. Adjust the volume by turning
the knob. The last channel you
listened to will show in the display.
Operating the XM Radio
TUNE
MODE
SEEK /SK IP (CA T EGORY)
Playing t he XMRadio (Models without navigation system)
130
Main Menu

µµ µ
µ
µ
µ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again.
Youcanstoreupto12
preset channels using each side of
the preset button. Each side of the
button stores one channel f rom the
XM1 band and one channel f rom the
XM2 band.
To store a channel: Usethetune,seek,orscan
function to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. Pick a preset number you want f or
that channel. Press and hold the
button until you hear a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper side of the preset
button to tune to it.
Press the AUX button. Either XM1
or XM2 will show in the display. Press the AUX button again. Store
the next six channels using steps 2
and 3. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
1. 2. 3. 4. 5.
CONT INUED
SCAN
Preset
XM Radio Display Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
Playing t he XMRadio (Models without navigation system)
Features
131
Main Menu

µµ
µ

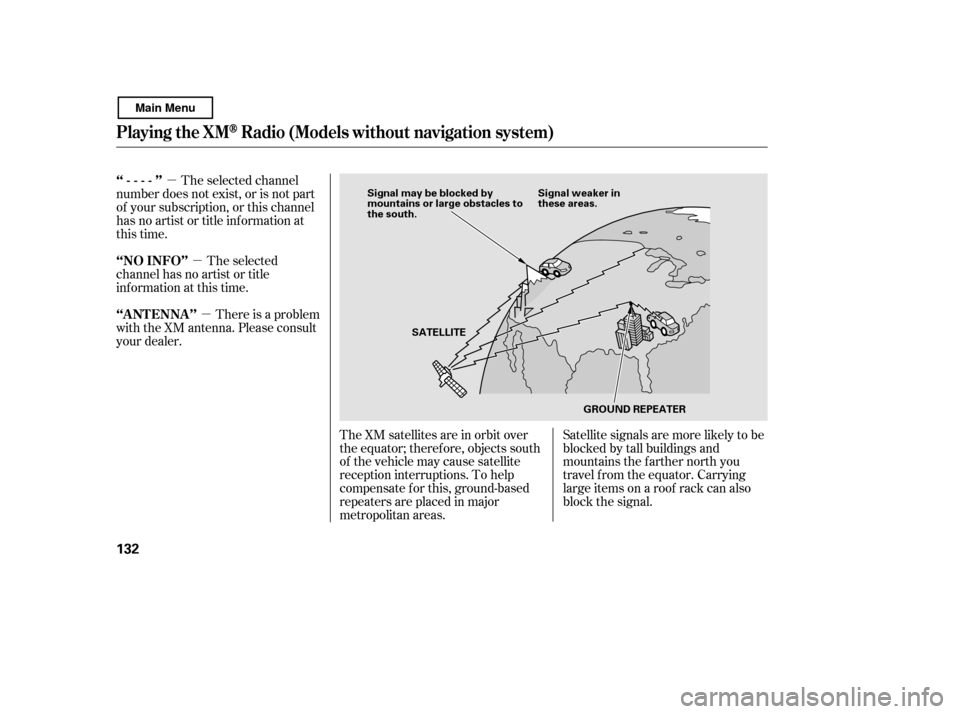

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer. The selected
channel has no artist or title
inf ormation at this time.
‘‘----’’
‘‘A NT ENNA ’’
‘‘NO INFO’’
Playing t he XMRadio (Models without navigation system)
132
Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
Main Menu
